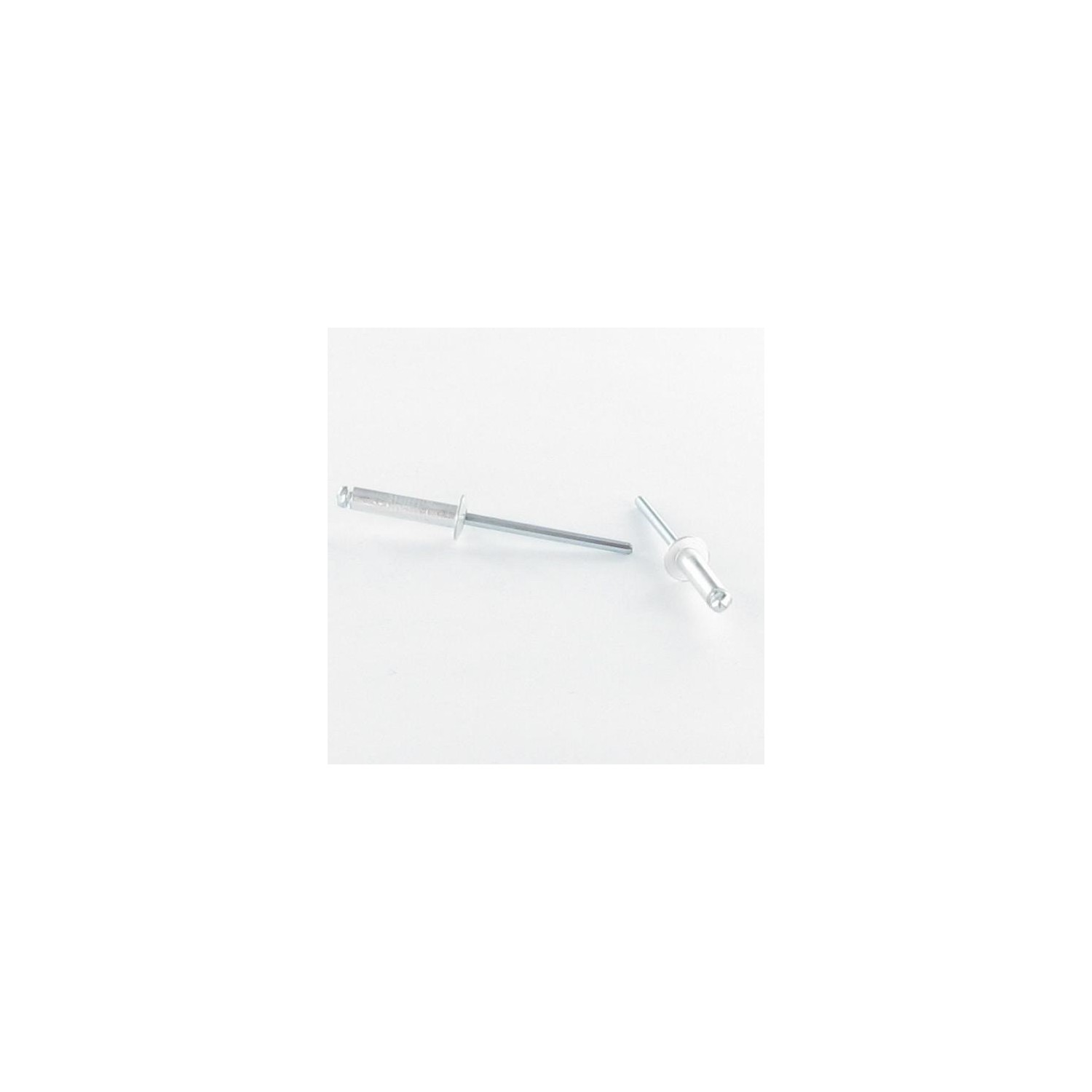

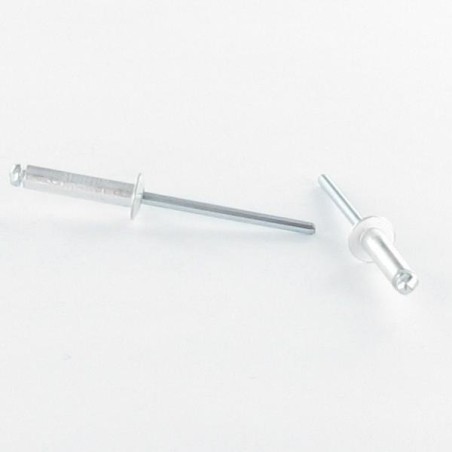

1 x Rivet Steel/ steel 4.8X12 Head Flat

Name: 1 x Rivet Steel/ steel 4.8X12 Head Flat
Brand: Vis-Express
SKU: 9076310737
Price: 4.25 EUR
Availability: InStock

Reference 9076310737_1

In stock 349 Pièces

€4.25 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500
Lot price VAT included	€4.25	€8.45	€18.35	€87.15

DOC 3702 - Rivet Steel/ steel 4.8X12 Head Flat

Packaging

1 unit
10 units
100 units
500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: Class 4.8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 12
Material: Steel
Sub product family: Flat Head
WEIGHT For THERE unit: 4.4 GR

In stock 349 Items

ean13 3663072176683

Application

metal construction
industrial maintenance
heavy bodywork

Description

Rivet Steel/ steel 4.8X12 Head Flat
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Steel / rod Steel

dimensional guide (mm)

Diameter	3	3	3	3	3	3	3	3	3.2	3.2	3.2	3.2	3.2	3.2	3.2	4	4	4	4	4	4	4	4.8	4.8	4.8	4.8	4.8	4.8	5	5	5	5	5	5	5	5	5	5	5	5	5	6	6	6	6	6	6	6.4	6.4	6.4	6.4	6.4	6.4
Length	5	6	8	10	12	16	18	20	6	8	10	12	16	18	20	6	8	10	12	16	18	20	25	8	10	12	16	20	25	8	10	12	14	16	18	20	25	30	35	40	45	50	10	12	14	16	20	25	8	12	16	18	20	25
d Perc	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.3	3.3	3.3	3.3	3.3	3.3	3.3	4.9	4.9	4.9	4.9	4.9	4.9	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	6.5	6.5	6.5	6.5	6.5	6.5
Crimp thickness	0.5-2	2-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-2.5	2.5-4.5	4.5-6.5	6.5-8.5	8.5-12	12-14	14-16	16-21	1.5-4	4-6	6-8	8-11	11-15	15-20	1.5-4	4-6	6-8	8-9.5	9.5-11	11-13	13-15	15-20	20-25	25-30	30-34	34-39	39-44	2.5-4.5	4.5-6.5	6.5-8.5	8.5-10.5	10.5-14.5	14.5-19.5	1-3	3-6	6-9	9-11	11-13	13-17
