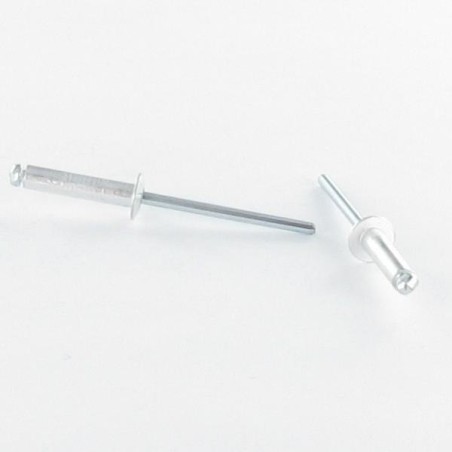

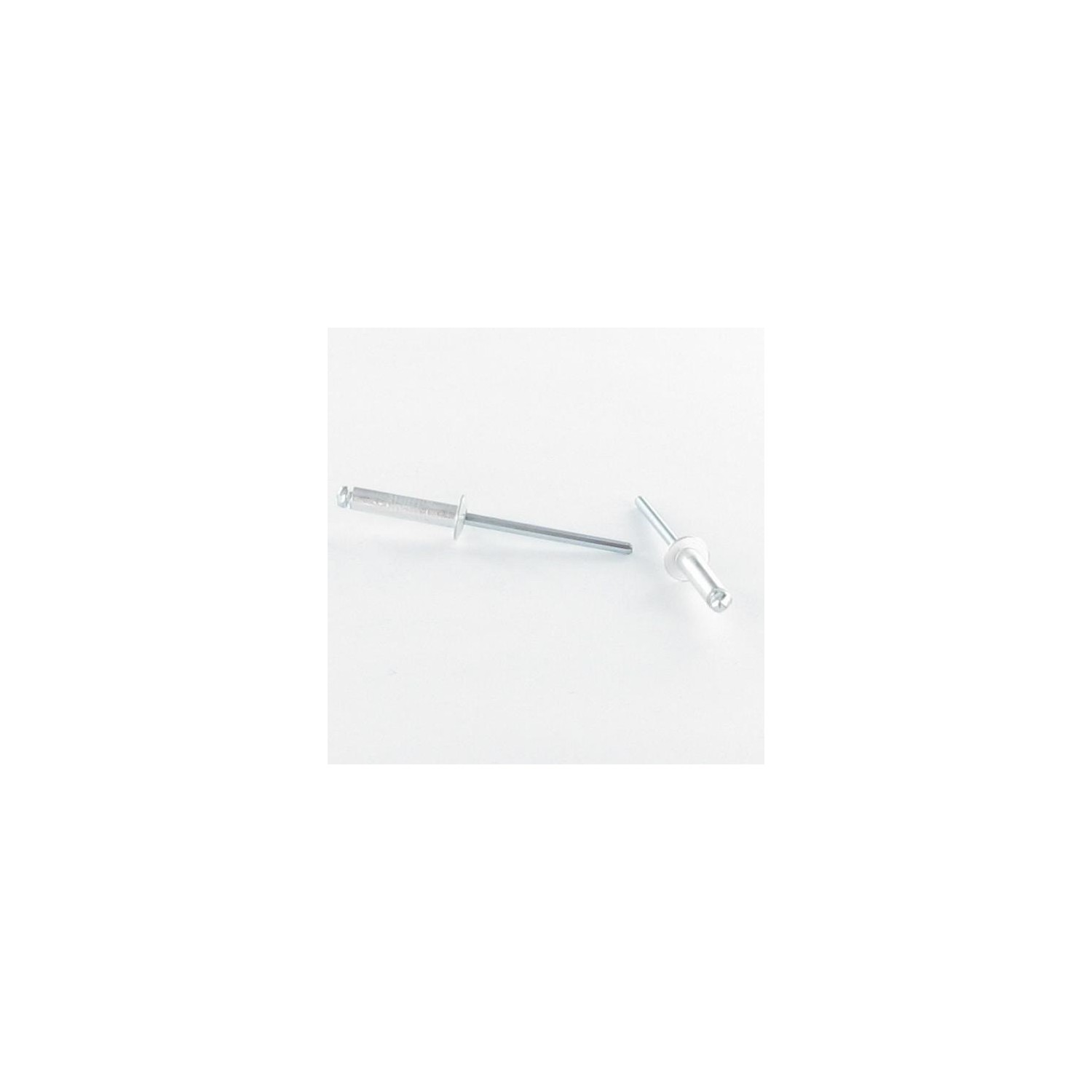

1 x Rivet Steel/ steel 5X50 Head Flat

Name: 1 x Rivet Steel/ steel 5X50 Head Flat
Brand: Vis-Express
SKU: 9076311121
Price: 3.85 EUR
Availability: InStock

Reference 9076311121_1

In stock 200 Pièces

€3.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100
Lot price VAT included	€3.85	€7.70	€21.15	€70.45

DOC 3702 - Rivet Steel/ steel 5X50 Head Flat

Packaging

1 unit
10 units
30 units
100 units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 5
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 16
Material: Steel
Sub product family: Flat Head
WEIGHT For THERE unit: 10.35 GR

In stock 200 Items

ean13 3663072357686

Application

metal construction
industrial maintenance
heavy bodywork

Description

Rivet Steel/ steel 5X50 Head Flat
Diameter = 5, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Steel / rod Steel

dimensional guide (mm)

Diameter	3	3	3	3	3	3	3	3	3.2	3.2	3.2	3.2	3.2	3.2	3.2	4	4	4	4	4	4	4	4.8	4.8	4.8	4.8	4.8	4.8	5	5	5	5	5	5	5	5	5	5	5	5	5	6	6	6	6	6	6	6.4	6.4	6.4	6.4	6.4	6.4
Length	5	6	8	10	12	16	18	20	6	8	10	12	16	18	20	6	8	10	12	16	18	20	25	8	10	12	16	20	25	8	10	12	14	16	18	20	25	30	35	40	45	50	10	12	14	16	20	25	8	12	16	18	20	25
d Perc	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.1	3.3	3.3	3.3	3.3	3.3	3.3	3.3	4.9	4.9	4.9	4.9	4.9	4.9	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	5.1	6.5	6.5	6.5	6.5	6.5	6.5
Crimp thickness	0.5-2	2-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-3	3-5	5-7	7-9	9-12.5	12.5-14.5	14.5-16.5	0.5-2.5	2.5-4.5	4.5-6.5	6.5-8.5	8.5-12	12-14	14-16	16-21	1.5-4	4-6	6-8	8-11	11-15	15-20	1.5-4	4-6	6-8	8-9.5	9.5-11	11-13	13-15	15-20	20-25	25-30	30-34	34-39	39-44	2.5-4.5	4.5-6.5	6.5-8.5	8.5-10.5	10.5-14.5	14.5-19.5	1-3	3-6	6-9	9-11	11-13	13-17
