1259002001_1
In stock 59 Pièces
£4.86 Incl VAT
Decreasing prices by quantity
Number of pieces 1 2 3 5
Lot price VAT included £4.86 £9.72 £14.58 £24.30

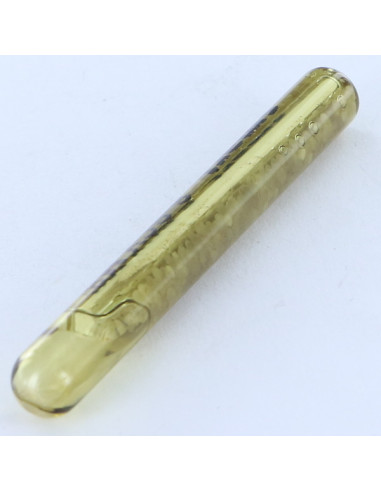

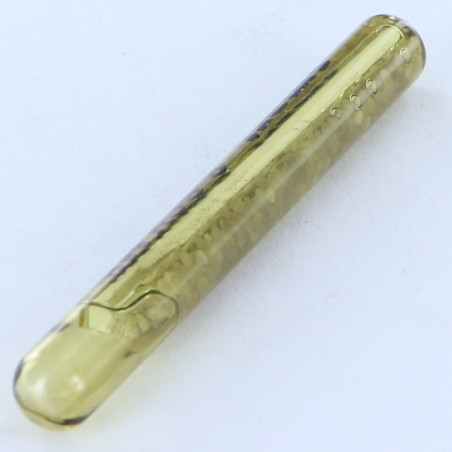

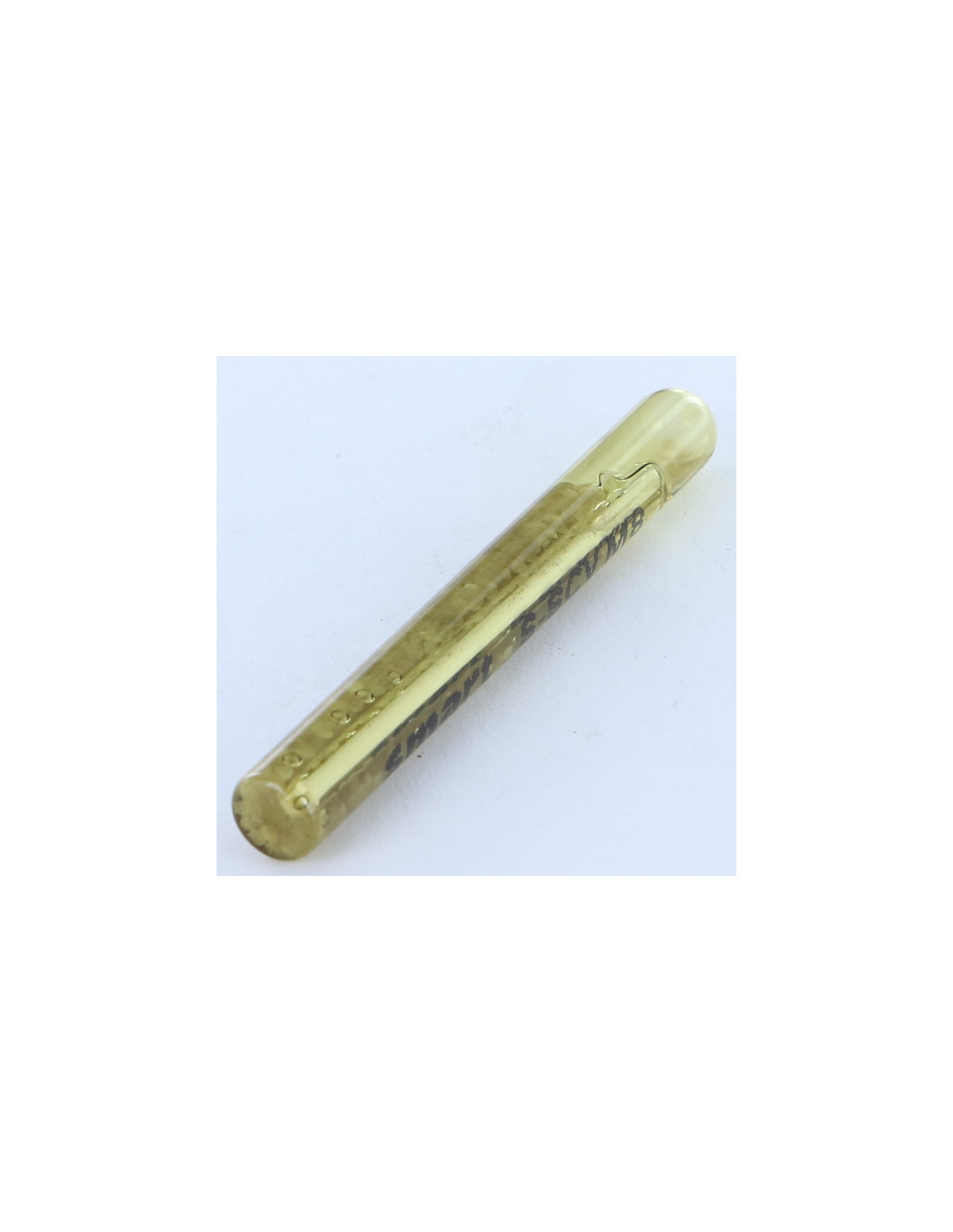

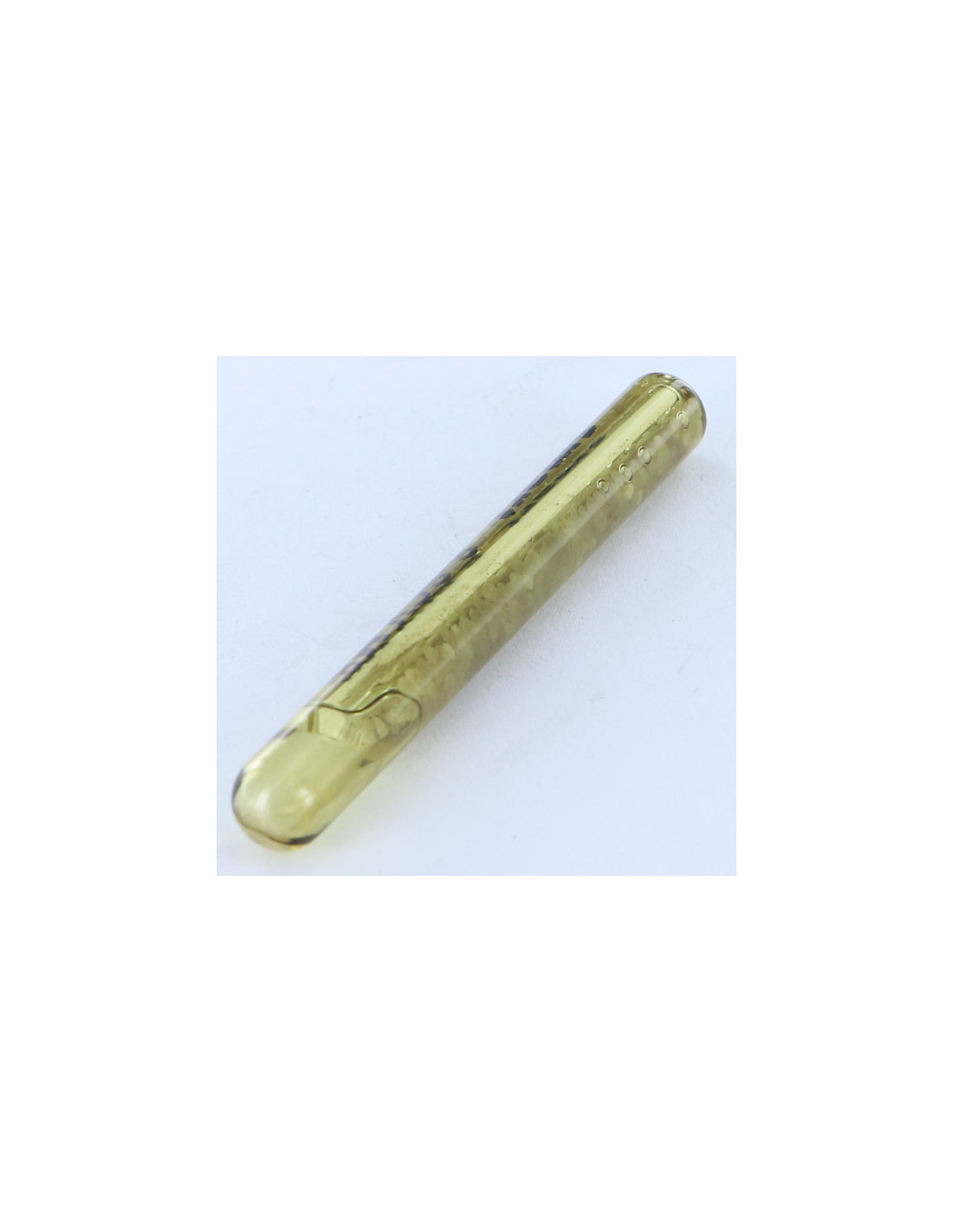

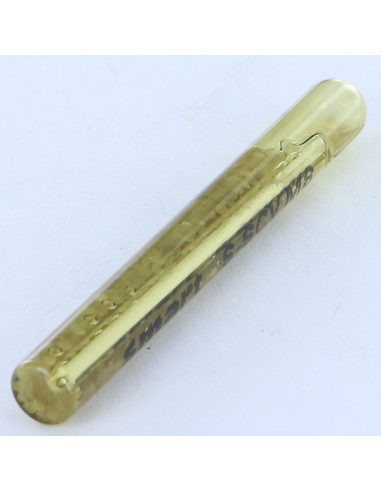

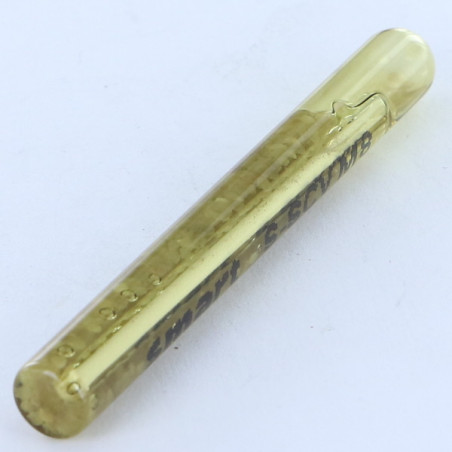

Chemical Anchor Capsule M20
Packaging
  • 1 unit
  • 2 units
  • 3 units
  • 5 units

Dimensions shown in millimeters (mm)

Diameter
M20
Product Family
Plug
WEIGHT For THERE unit
36 GR
59 Items
3663072236677

Application

  • Safety railings
  • Gallows
  • Cable tray
  • Metal beams and posts
  • All applications subjected to dynamic and vibratory loads

Materials

  • Uncracked concrete
  • Natural stone
  • Solid masonry
Chemical Anchor Capsule M20
Diameter = M20, Product Family = Plug

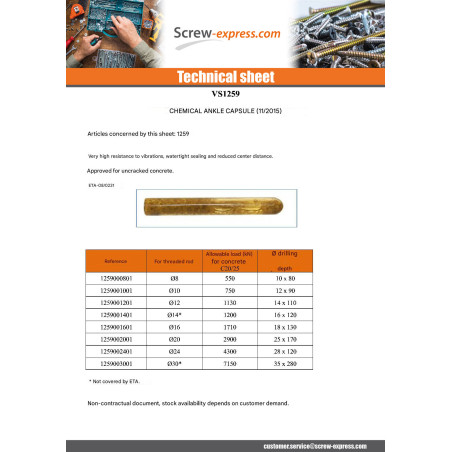

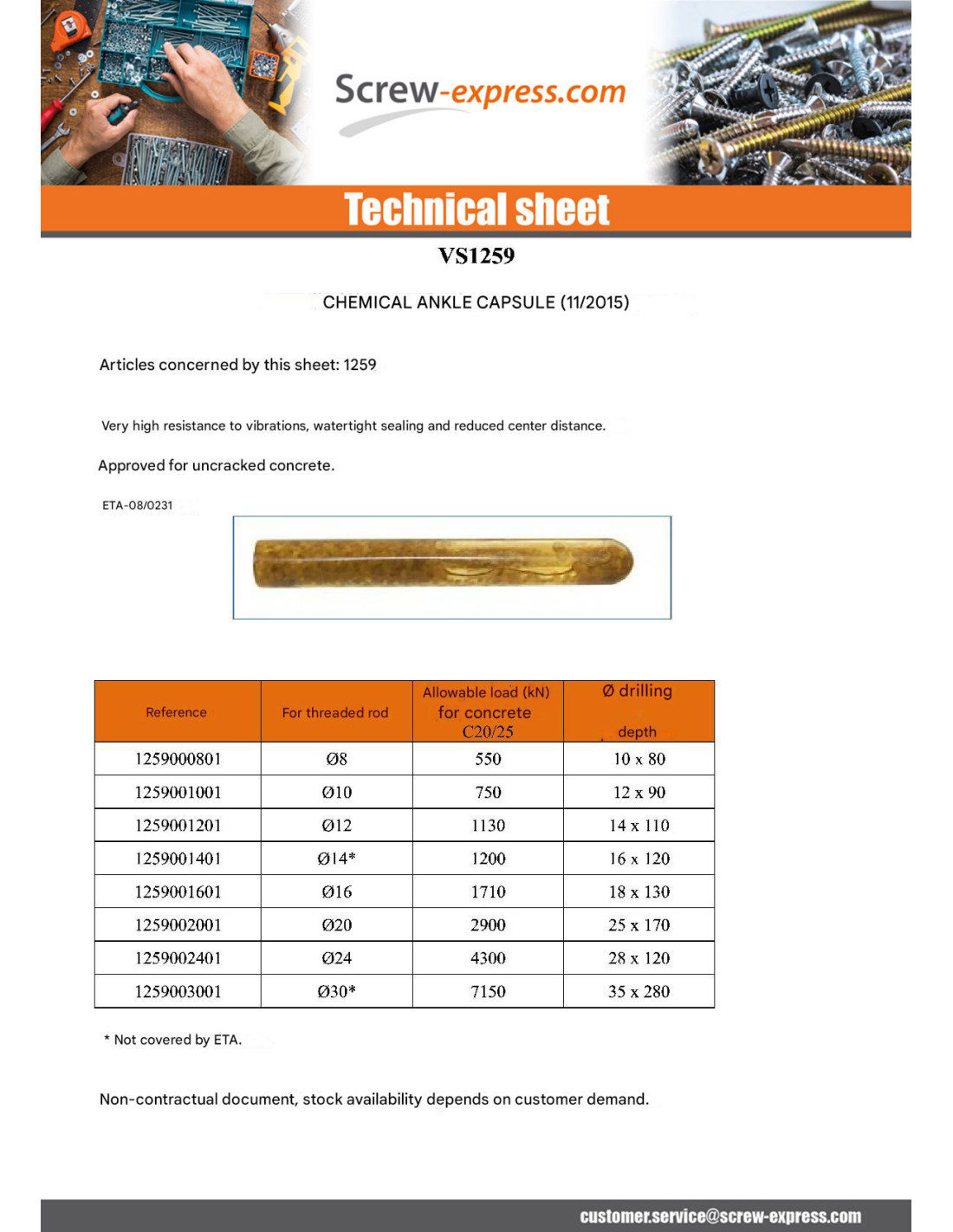

dimensional guide (mm)
POUR TIGE FILETEE DEM8M10M12M14M16M20M24M30
CHARGE ADMISE POUR BETON C20/25 (KN)550750113012001710290043007150
DIAMETRE FORAGE X PROFONDEUR10X8012X9014X11016X12018X13025X17028X12035X280

Other Reference : 0000620 1010A0043 3663072236677
laurent L. (vis-express.fr)
2025-05-11

sealing rod. threaded for shed posts threaded rod 20 cm


Thierry C. (vis-express.fr)
2024-04-14

support a staircase support and fix a wooden staircase
