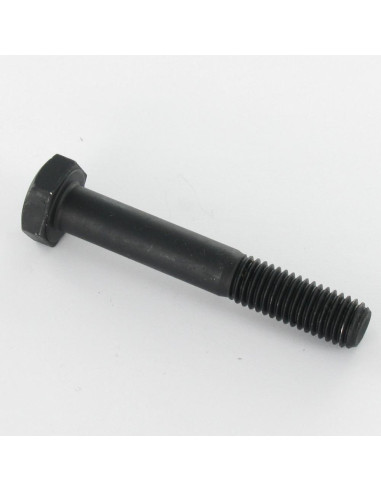

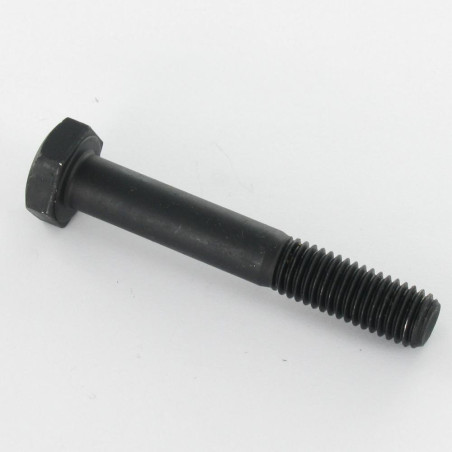

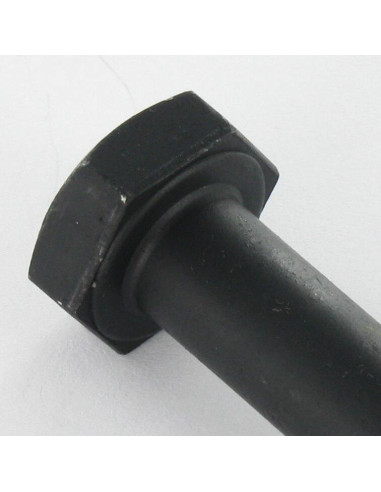

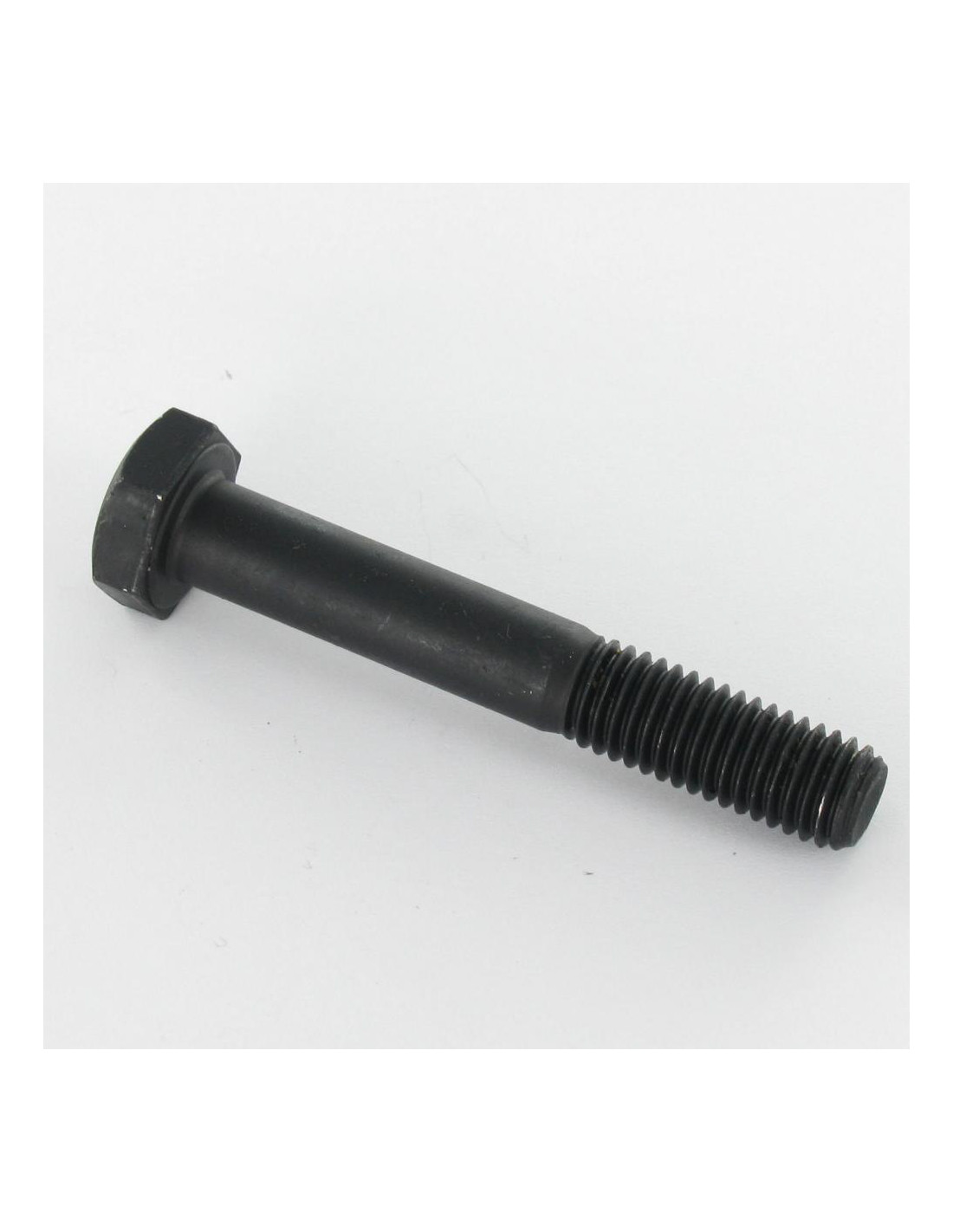

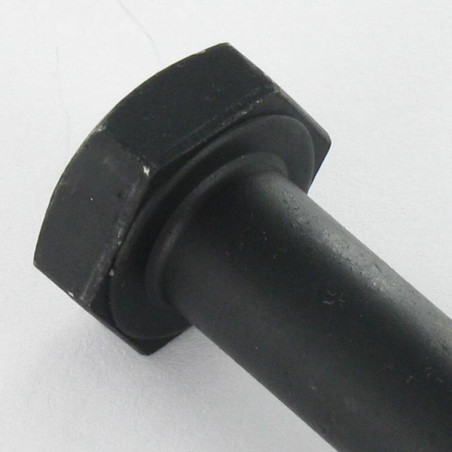

1 x Bolt Partial Thread Hexagonal Head 7/16X 6" Unc Or Bsw British Standard Whitworth Grade 5 Steel

1 x Bolt Partial Thread Hexagonal Head 7/16X 6"...

1 x Bolt Partial Thread Hexagonal Head 7/16X 6" Unc Or Bsw British Standard Whitworth Grade 5 Steel

Name: 1 x Bolt Partial Thread Hexagonal Head 7/16X 6" Unc Or Bsw British Standard Whitworth Grade 5 Steel
Brand: Screw Express
SKU: 4127121101
Price: 39.87 GBP
Availability: InStock

Reference 4127121101_1

In stock 46 Pièces

£39.87 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100
Lot price VAT included	£39.87	£398.77	£3,987.56

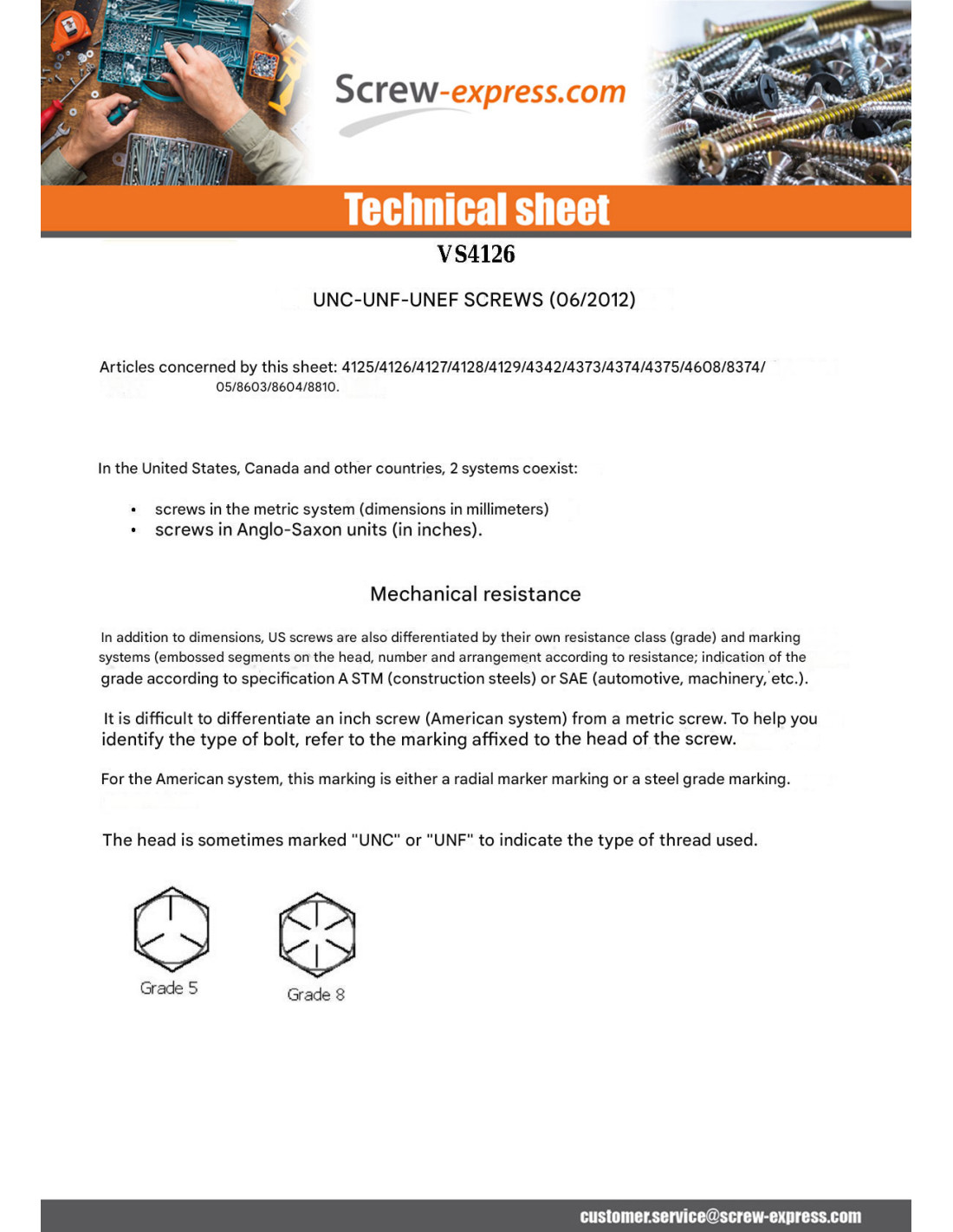

ANSI B18-2-1, VS4126 - Bolt Partial Thread Hexagonal Head 7/16X 6" Unc Or Bsw British Standard Whitworth Grade 5 Steel1 inch = 25.4mm

Packaging

1 unit
10 units
100 units

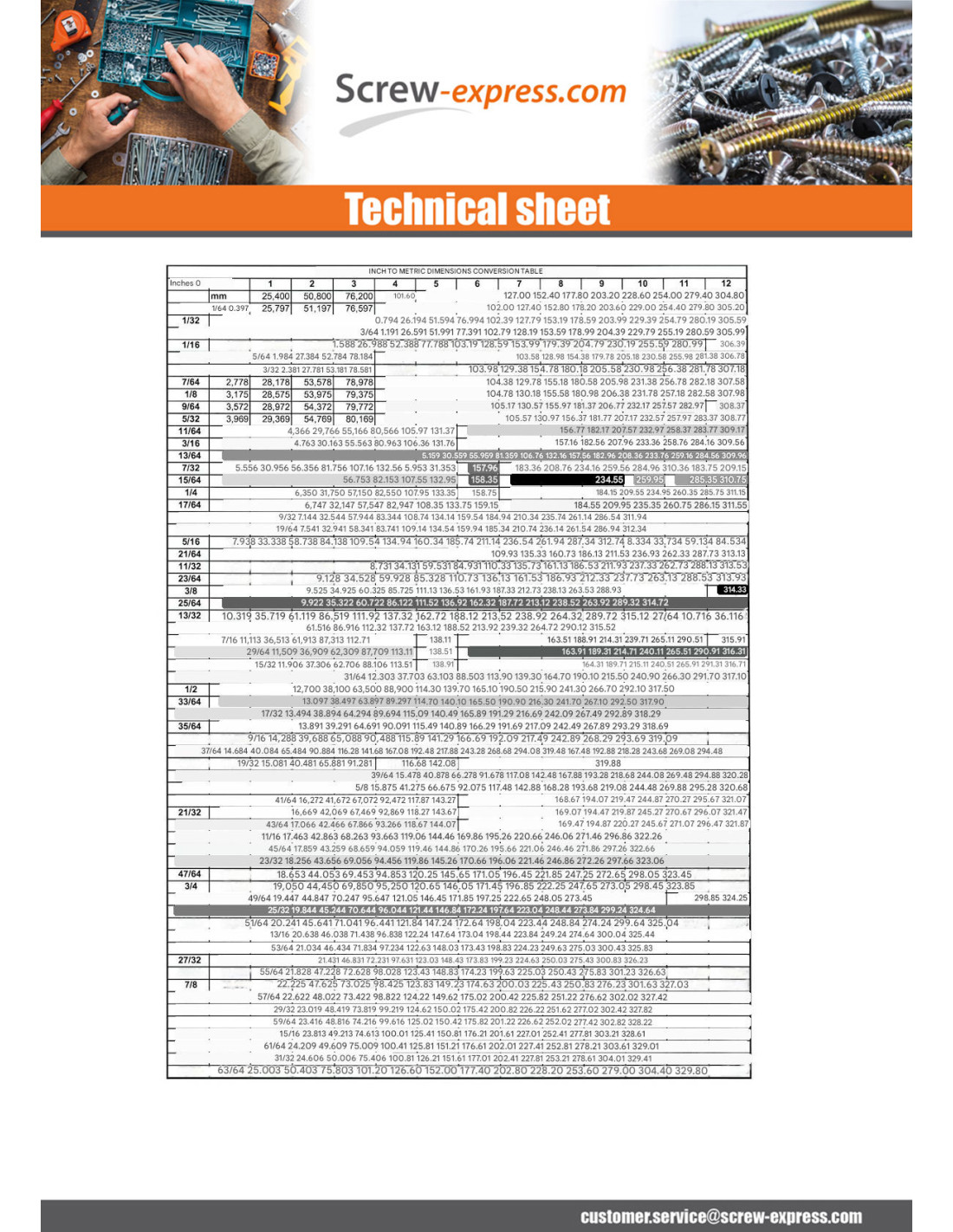

Correspondence table inches and mm

Product Details

Diameter: 7/16 (11,113 mm)
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 6" (152 mm)
Pitch: Pitch Unc EQUIVALENT BSW
Material: Steel
Product Family: Bolts Hexagonal Head
Sub product family: Hex Head
WEIGHT For THERE unit: 125 GR

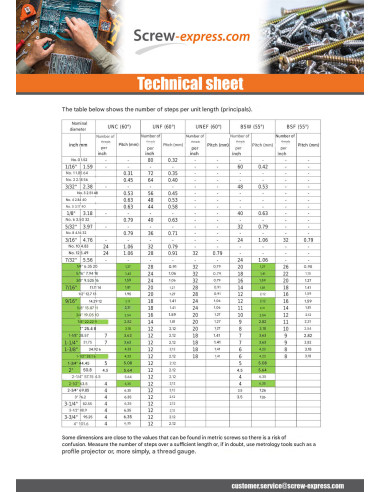

Number of threads per inch

Number of threads per inch

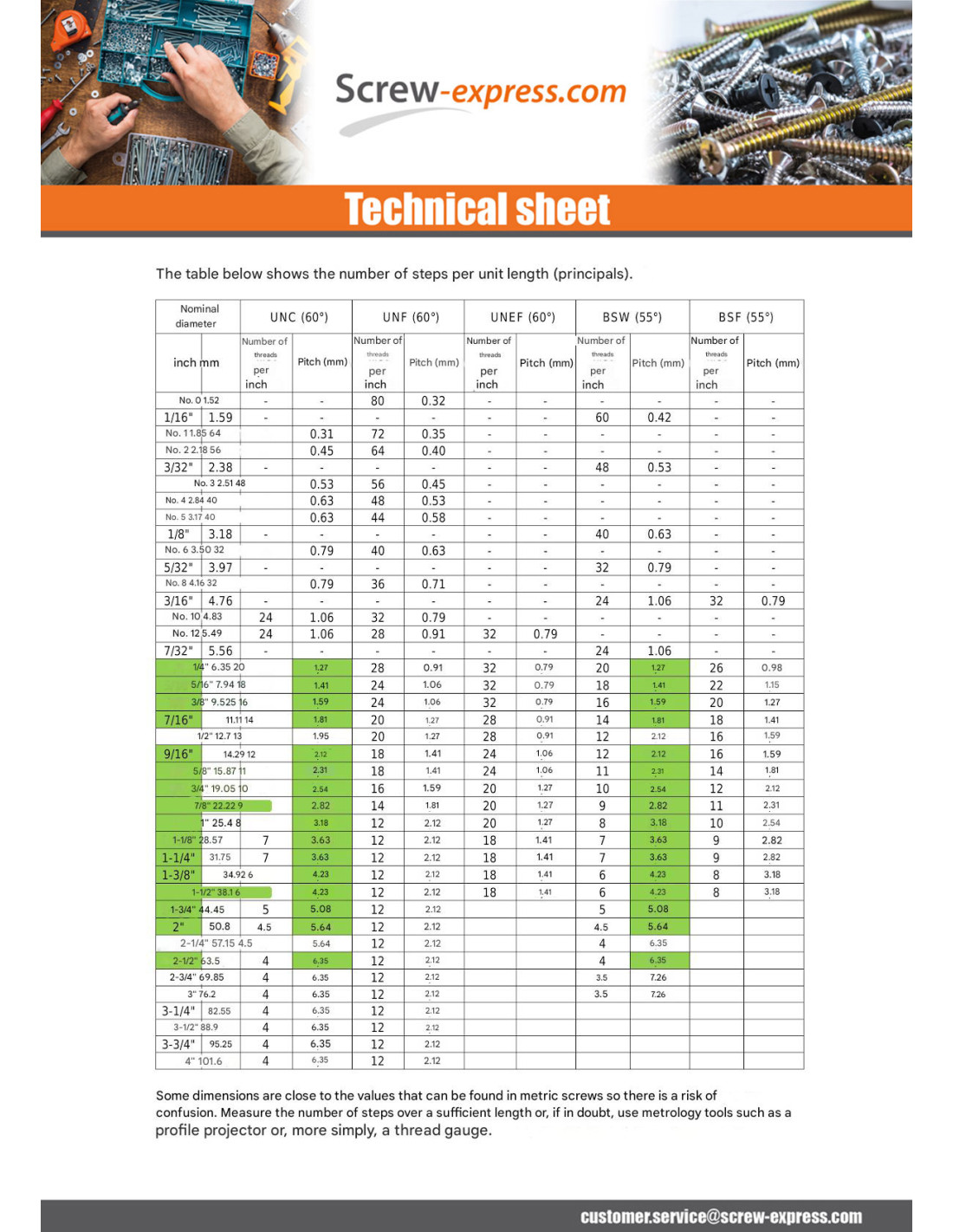

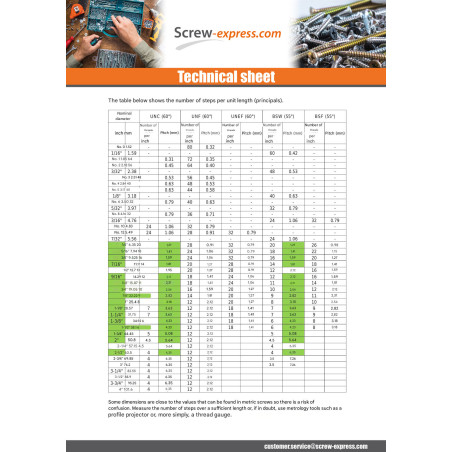

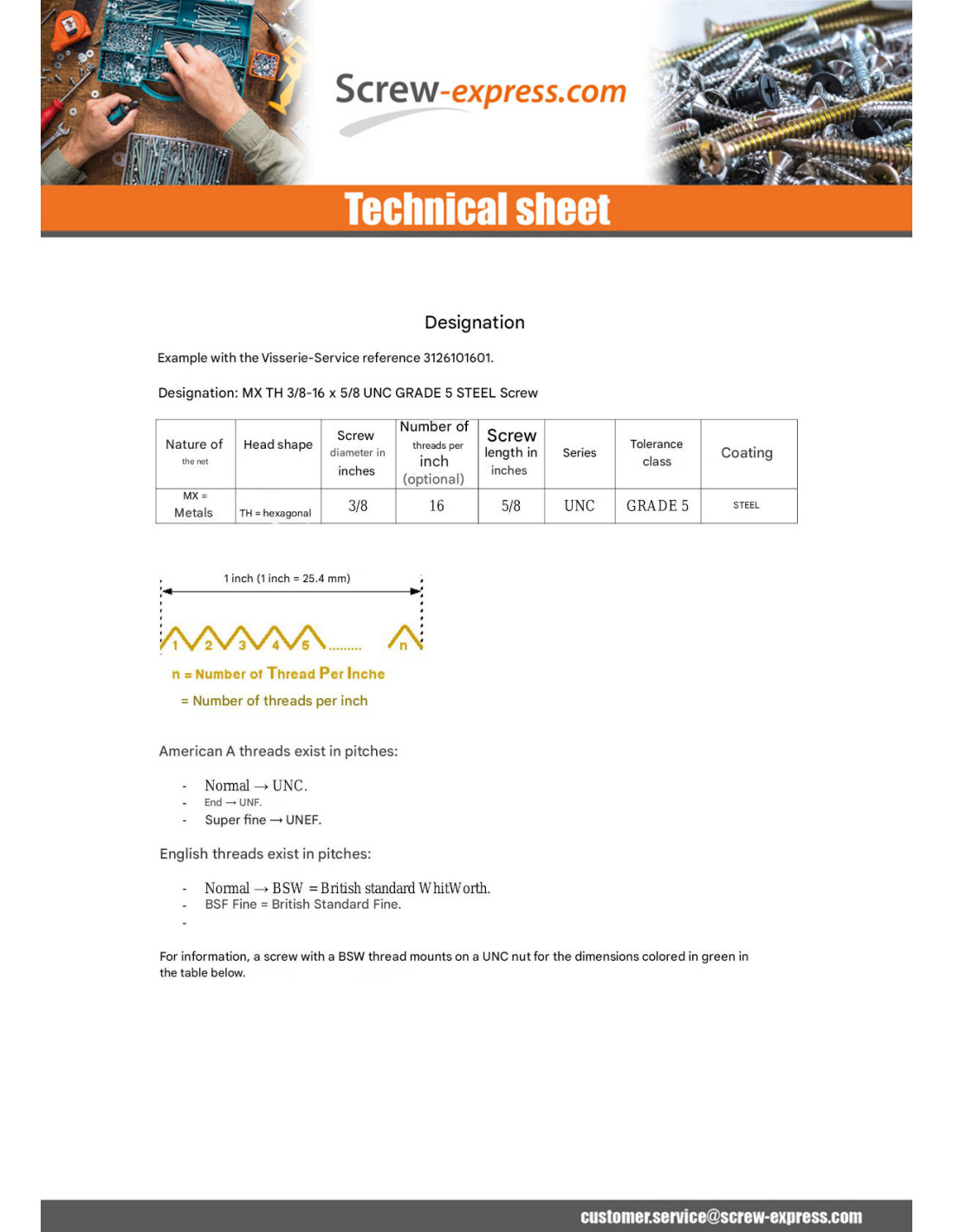

How to determine the diameter of a UNC or UNF screw:

The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.

Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.

For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD

Ø in inches

Ø in mm

Number of threads/inch in UNC

Number of threads/inch in UNF (fine pitch)

N°0

1.524

80

N°1

1.854

64

72

N°2

2.184

56

64

N°3

2.515

48

56

N°4

2.845

40

48

N°5

3.175

40

44

N°6

3.505

32

40

N°8

4.166

32

36

N°10

4.826

24

32

N°12

5.486

24

28

1/4

6.35

20

28

5/16

7.938

18

24

3/8

9.525

16

24

7/16

11.113

14

20

1/2

12.7

13

20

9/16

14.288

12

18

5/8

15.875

11

18

3/4

19.05

10

16

7/8

22.225

9

14

1”

25.4

8

14

1”1/8

28.575

7

12

1”1/4

31.75

7

12

1“1/2

38.1

6

12

1”3/4

44.45

5

-: 14

In stock 46 Items

EAN13 3663072082625

Description

Bolt Partial Thread Hexagonal Head 7/16X 6" Unc Or Bsw British Standard Whitworth Grade 5 Steel Other Reference : 3617500983275 3663072082625

16 other products in the same category:

Lock of ECR RIGHT For FIN M10 Zinc Plated

Lock of ECR RIGHT For FIN M10 Zinc Plated 2

In stock

LONG TAP WASHER

Lock of ECR RIGHT For FIN M10 Zinc Plated

3578001002

£3.04 Incl VAT

DIN 463 - Lock of ECR RIGHT For FIN M10 Zinc Plated

Square Hole Plugs For Tubes 18X18 Tube wall thickness 1.5...

Square Hole Plugs For Tubes 18X18 Tube wall thickness 1.5... 2

In stock

BIT SQUARE

Square Hole Plugs For Tubes 18X18 Tube wall thickness 1.5 to 3 Black Polyethylene

7369181815

£3.04 Incl VAT

Square Hole Plugs For Tubes 18X18 Tube wall thickness 1.5 to 3 Black Polyethylene

In stock

Flat Washer Without Hole

Flat Washer Without Hole 20X3 Steel

3598200301

£4.56 Incl VAT

Flat Washer Without Hole 20X3 SteelRisk of rust on these parts.

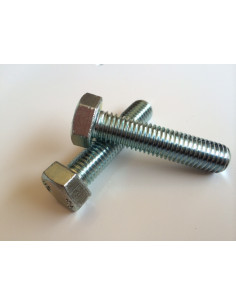

Machine Screw Hexagonal Head 7/8X 1"3/4 Unc Or Bsw...
