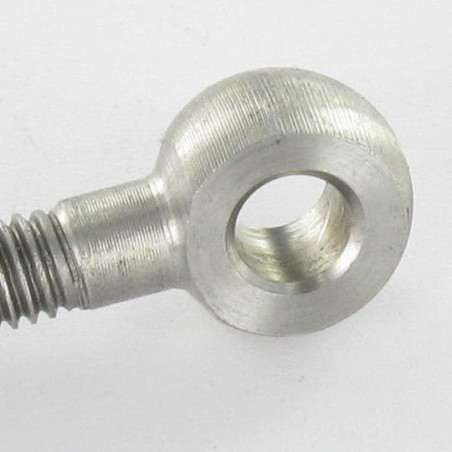

1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A4

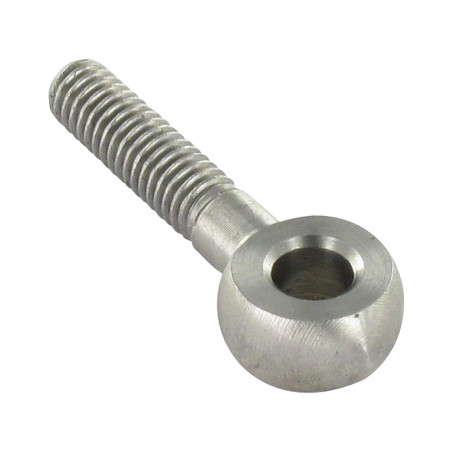

1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A4

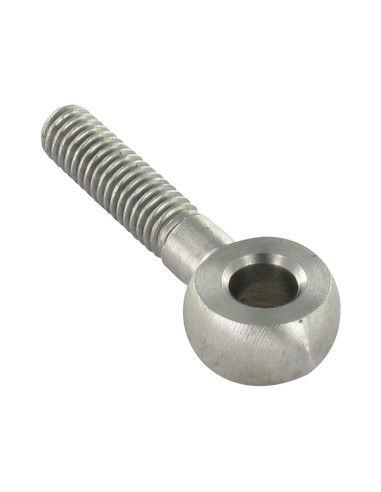

1 x Machine Screw to Eye M16X100 Eye 16...

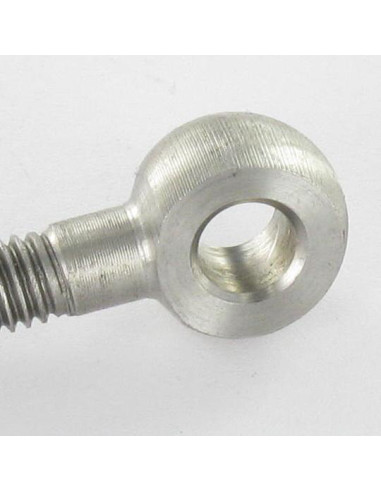

1 x Machine Screw to Eye M16X100 Eye 16...

1 x Machine Screw to Eye M16X100 Eye 16 Stainless Steel A4

8875171018_1
In stock 44 Pièces
€9.90 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €9.90 €49.50 €99.00 €247.45
DIN444 - Machine Screw to Eye M16X100 Eye 16 Stainless Steel A4
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M16
Length
100
Thread
Metal
Material
Stainless Steel
Norm
DIN444
Product Family
Machine Screw
WEIGHT For THERE unit
196 GR
44 Items
3663072421233
Machine Screw to Eye M16X100 Eye 16 Stainless Steel A4
Diameter = M16, Length = 100, Material = Stainless Steel A4, Pitch = Standard pitch 200, Norm = DIN444, Product Family = Machine Screw


dimensional guide (mm)
Diameter M6 M8 M10 M12 M16 M20
DIAMETRE INTERIEUR OEIL 6 8 10 12 16 18
DIAMETRE EXTERIEUR OEIL 14 18 20 25 32 40
EPAISSEUR OEIL 7 9 12 14 17 22
Thread length for screw L<125 18 22 26 30 38 46
Thread length for screw 125 - 28 32 36 44 52
PARTIE FILETEE POUR L>200 - - - 49 57 65
L=longueur de la vis (milieu oeil)

Other Reference : 3617500539960 3663072421233
