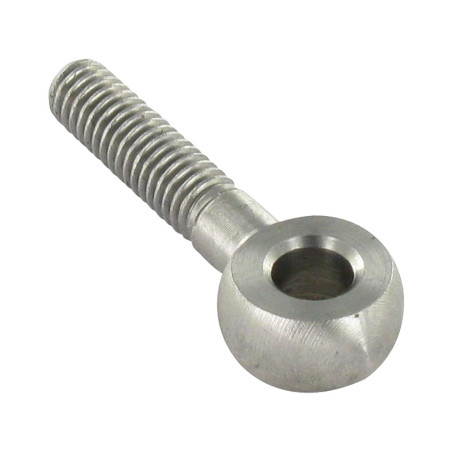

1 x Machine Screw to Eye M8X100 Eye 8 Stainless Steel A4

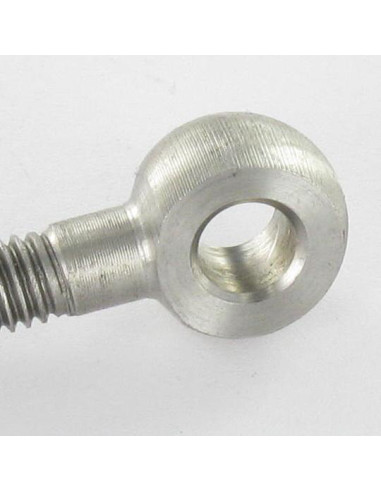

1 x Machine Screw to Eye M8X100 Eye 8 Stainless Steel A4

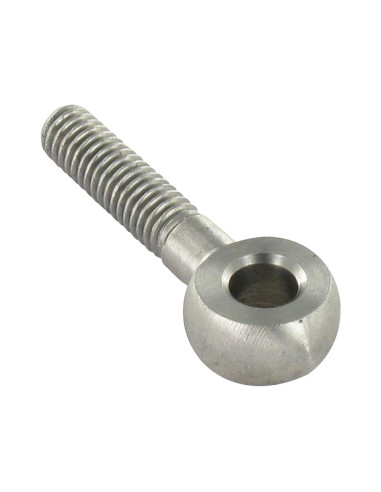

1 x Machine Screw to Eye M8X100 Eye 8 Stainless...
1 x Machine Screw to Eye M8X100 Eye 8 Stainless...

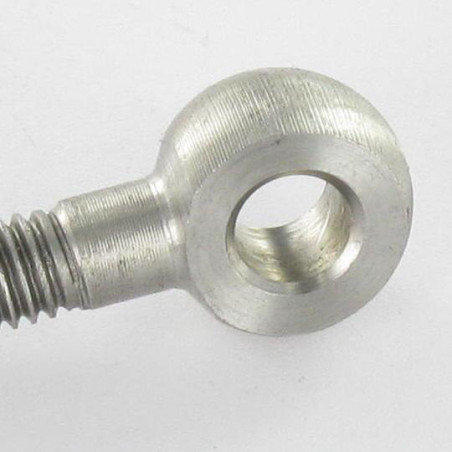

1 x Machine Screw to Eye M8X100 Eye 8 Stainless Steel A4

8875810018_1
In stock 296 Pièces
€5.05 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €5.05 €25.25 €100.95 €252.45
DIN444 - Machine Screw to Eye M8X100 Eye 8 Stainless Steel A4
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M8
Length
100
Thread
Metal
Material
Stainless Steel
Norm
DIN444
Product Family
Machine Screw
WEIGHT For THERE unit
44 GR
296 Items
3663072378896
Machine Screw to Eye M8X100 Eye 8 Stainless Steel A4
Diameter = M8, Length = 100, Material = Stainless Steel A4, Pitch = Standard pitch 125, Norm = DIN444, Product Family = Machine Screw


dimensional guide (mm)
Diameter M6 M8 M10 M12 M16 M20
DIAMETRE INTERIEUR OEIL 6 8 10 12 16 18
DIAMETRE EXTERIEUR OEIL 14 18 20 25 32 40
EPAISSEUR OEIL 7 9 12 14 17 22
Thread length for screw L<125 18 22 26 30 38 46
Thread length for screw 125 - 28 32 36 44 52
PARTIE FILETEE POUR L>200 - - - 49 57 65
L=longueur de la vis (milieu oeil)

Other Reference : 3617501779860 990891 116107 5231A2619290 3663072378896
Michael L. (vis-express.fr)
2024-02-25

This product is used with a tightening wheel The tightening wheels are Elesa brand
