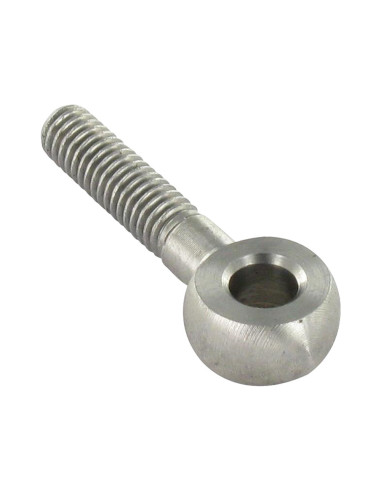

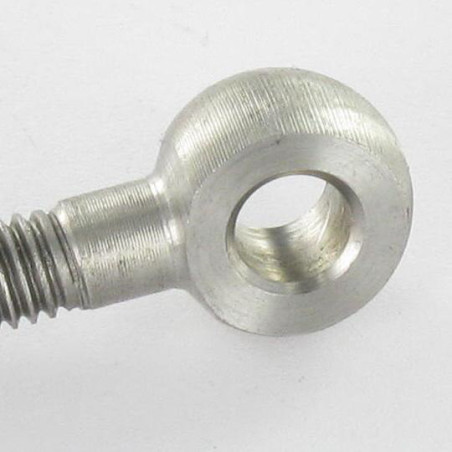

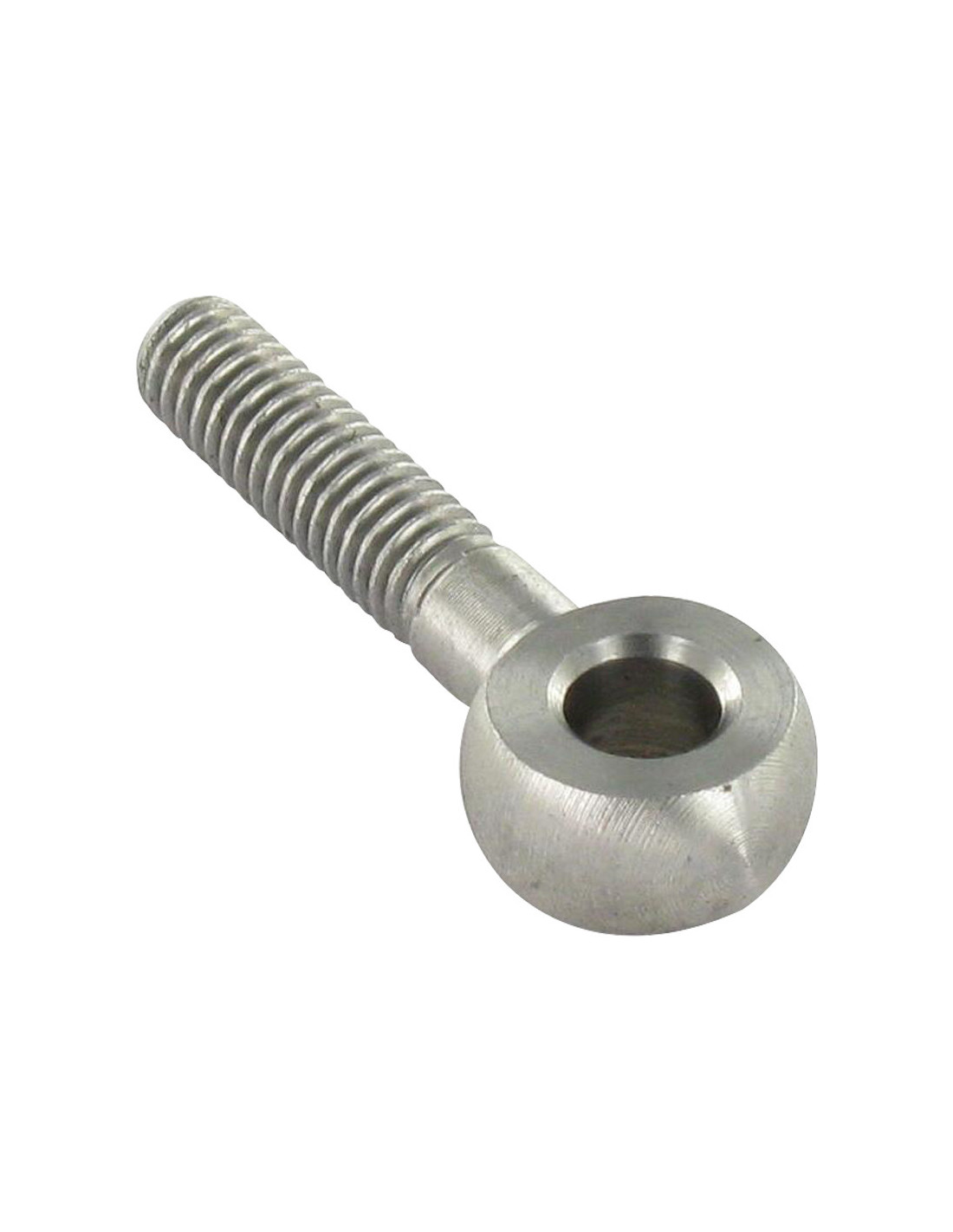

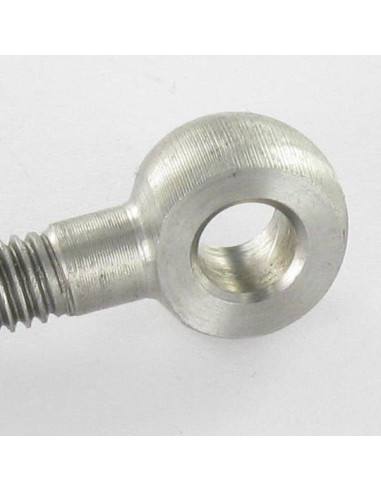

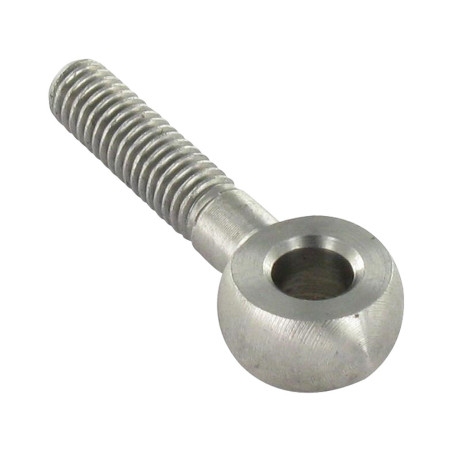

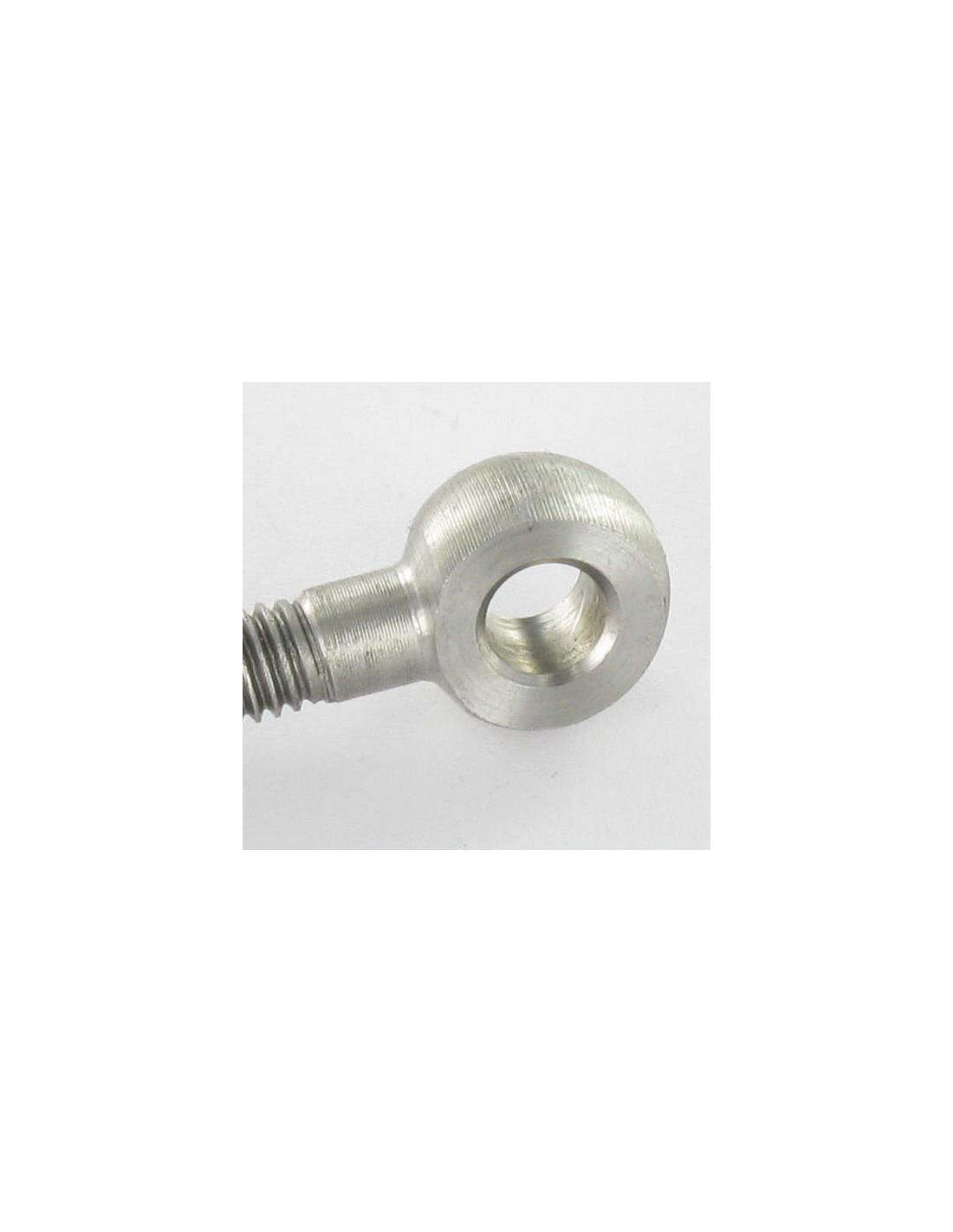

1 x Machine Screw to Eye M8X50 Eye 8 Stainless Steel A4
1 x Machine Screw to Eye M8X50 Eye 8 Stainless Steel A4
1 x Machine Screw to Eye M8X50 Eye 8 Stainless...
1 x Machine Screw to Eye M8X50 Eye 8 Stainless...

1 x Machine Screw to Eye M8X50 Eye 8 Stainless Steel A4

8875805018_1
In stock 22 Pièces
€999.00 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €999.00 €999.00 €999.00 €999.00
DIN444 - Machine Screw to Eye M8X50 Eye 8 Stainless Steel A4
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
16
Thread
Metal
Material
Stainless Steel
Norm
DIN444
Product Family
Machine Screw
WEIGHT For THERE unit
28.9 GR
22 Items
3663072421561
Machine Screw to Eye M8X50 Eye 8 Stainless Steel A4
Diameter = M8, Length = 50, Material = Stainless Steel A4, Pitch = Standard pitch 125, Norm = DIN444, Product Family = Machine Screw


dimensional guide (mm)
DiameterM6M8M10M12M16M20
DIAMETRE INTERIEUR OEIL6810121618
DIAMETRE EXTERIEUR OEIL141820253240
EPAISSEUR OEIL7912141722
Thread length for screw L<125182226303846
Thread length for screw 125-2832364452
PARTIE FILETEE POUR L>200---495765
L=longueur de la vis (milieu oeil)

Other Reference : 3617501718173 3663072421561
