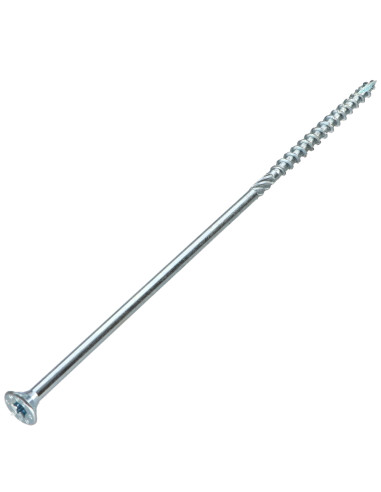

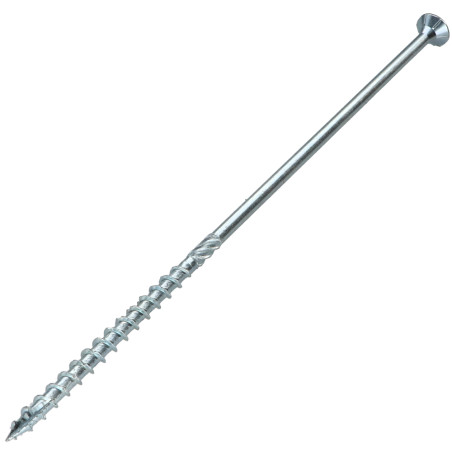

1 x Framing screws TEKOR Countersunk Head With Serration T30 6X200 Thread Length: 100 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T30 6X200 Thread Length: 100 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T30 6X200 Thread Length: 100 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040620002
Price: 0.39 GBP
Availability: InStock

Reference 2040620002_1

In stock 64226 Pièces

£0.39 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	£0.39	£1.91	£5.73	£19.26	£73.24

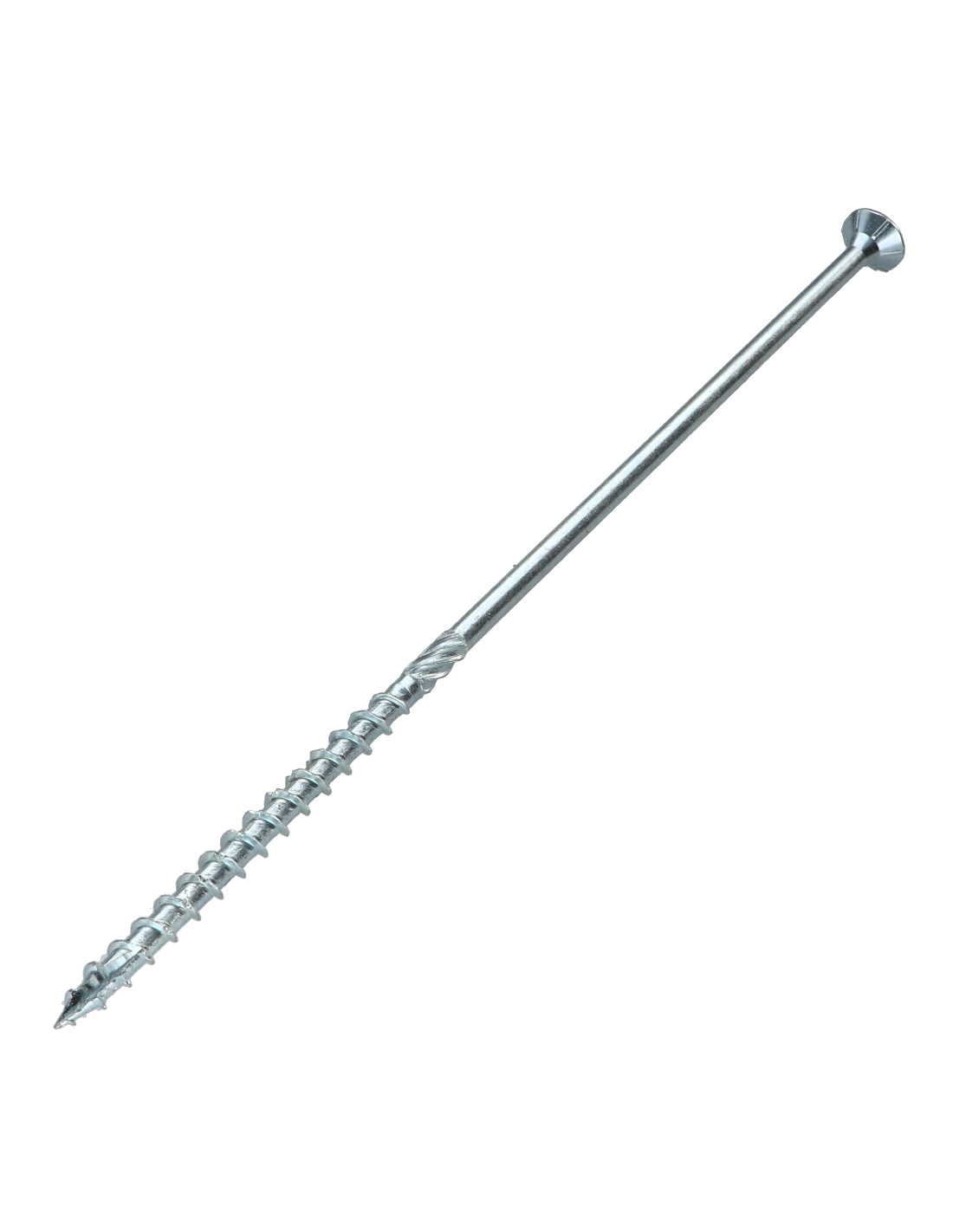

Framing screws TEKOR Countersunk Head With Serration T30 6X200 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
10 units
30 units
100 units
400 Units

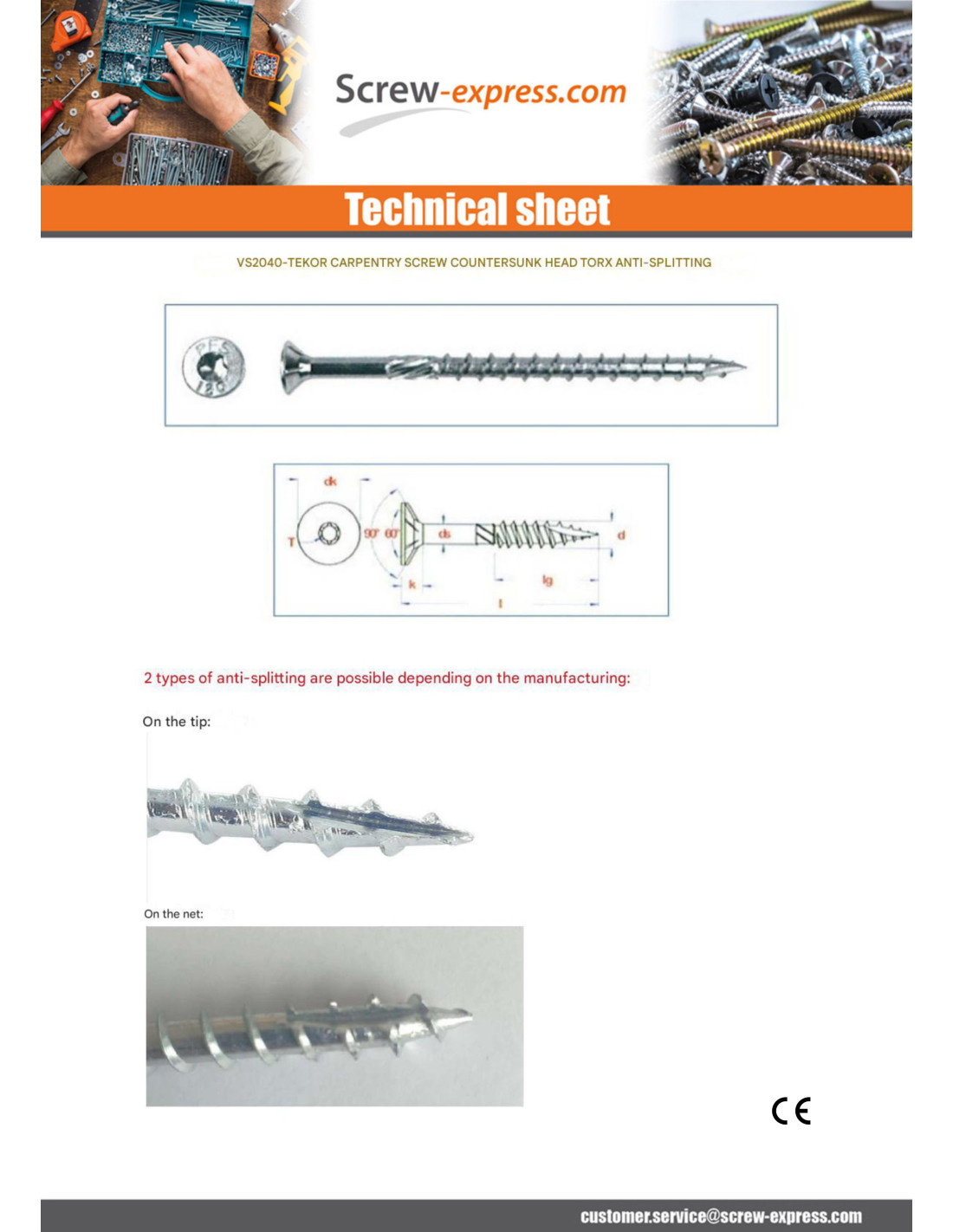

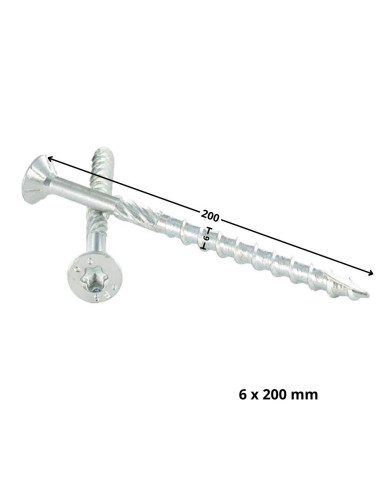

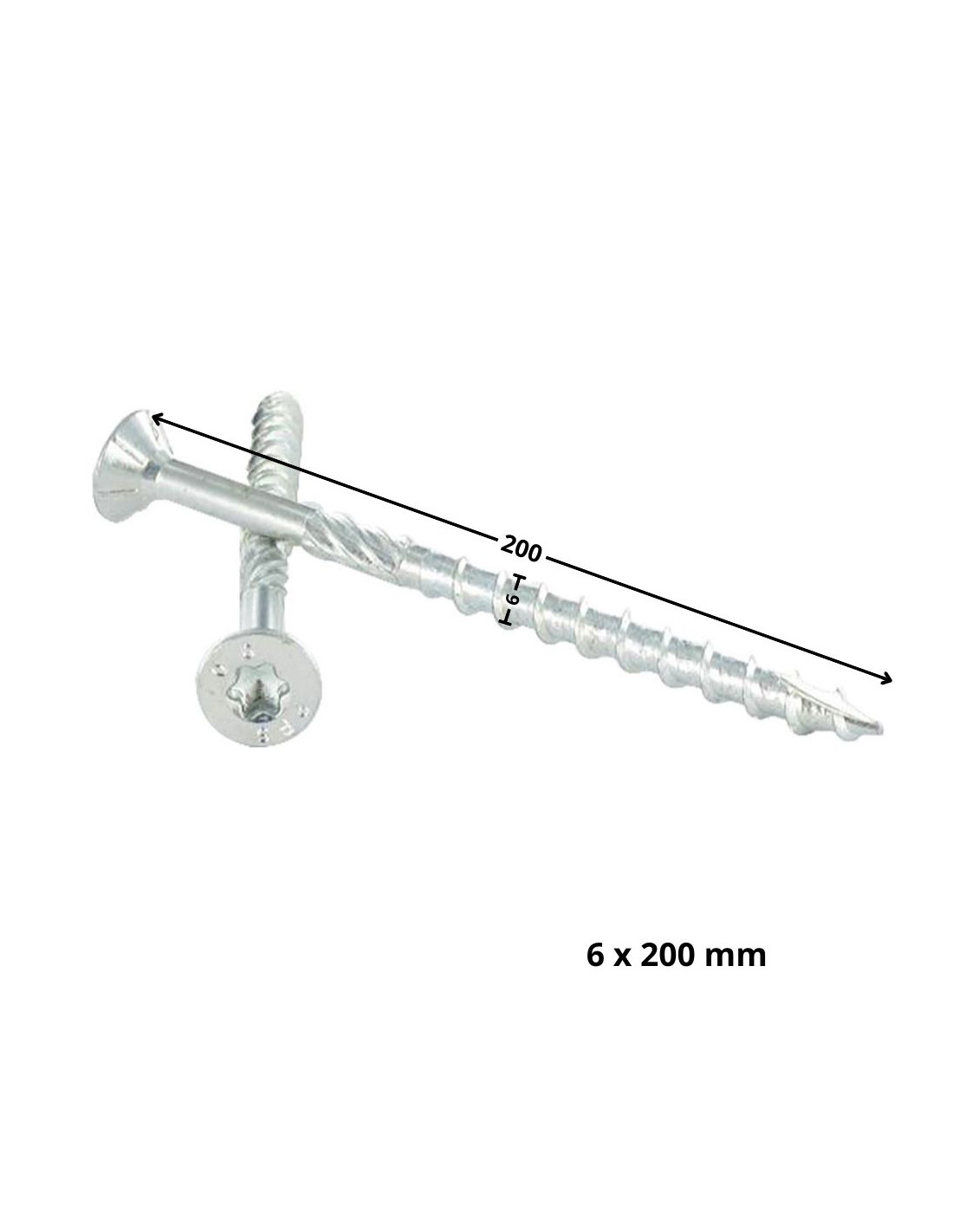

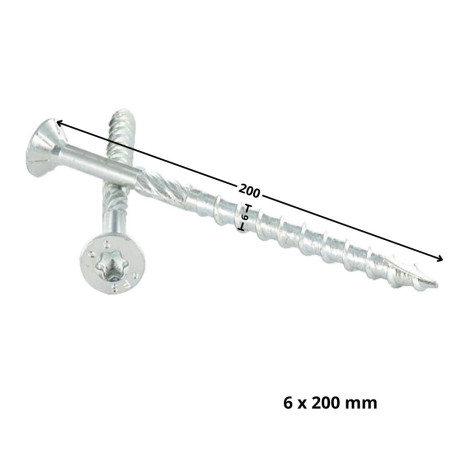

Dimensions shown in millimeters (mm)

Product Details

Diameter: 6
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 200

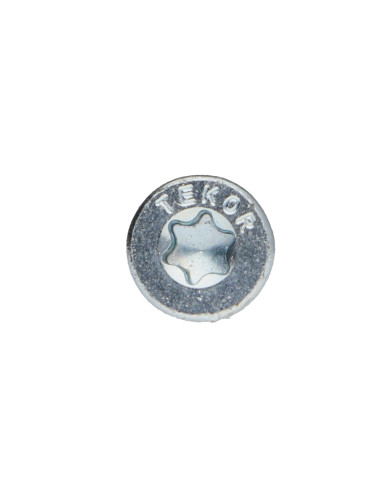

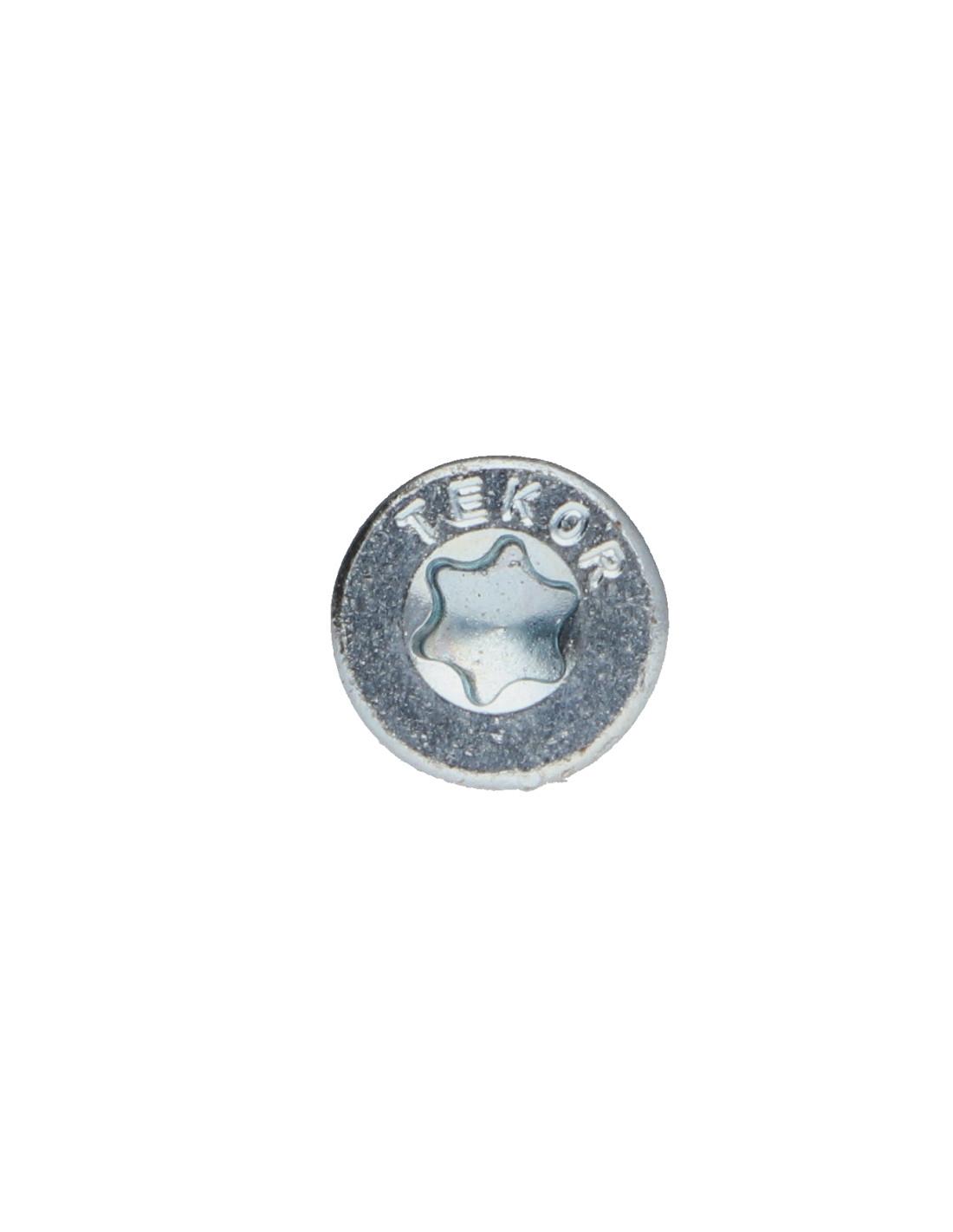

Drive Type: Torx
Size Drive Type: T30
Material: Steel
Coating: ZINGUE White
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws

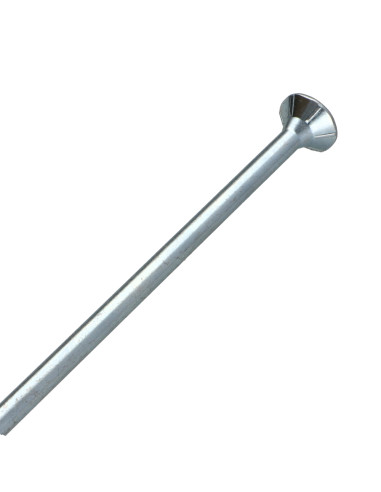

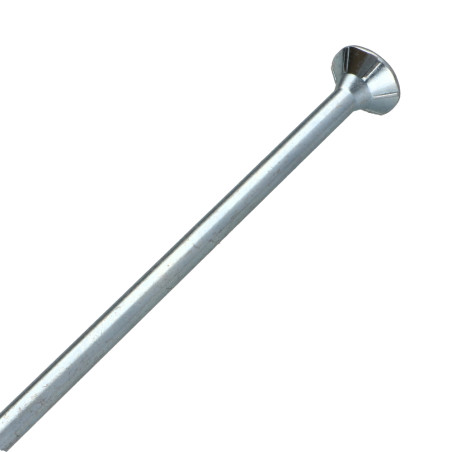

Sub product family: Countersunk Head

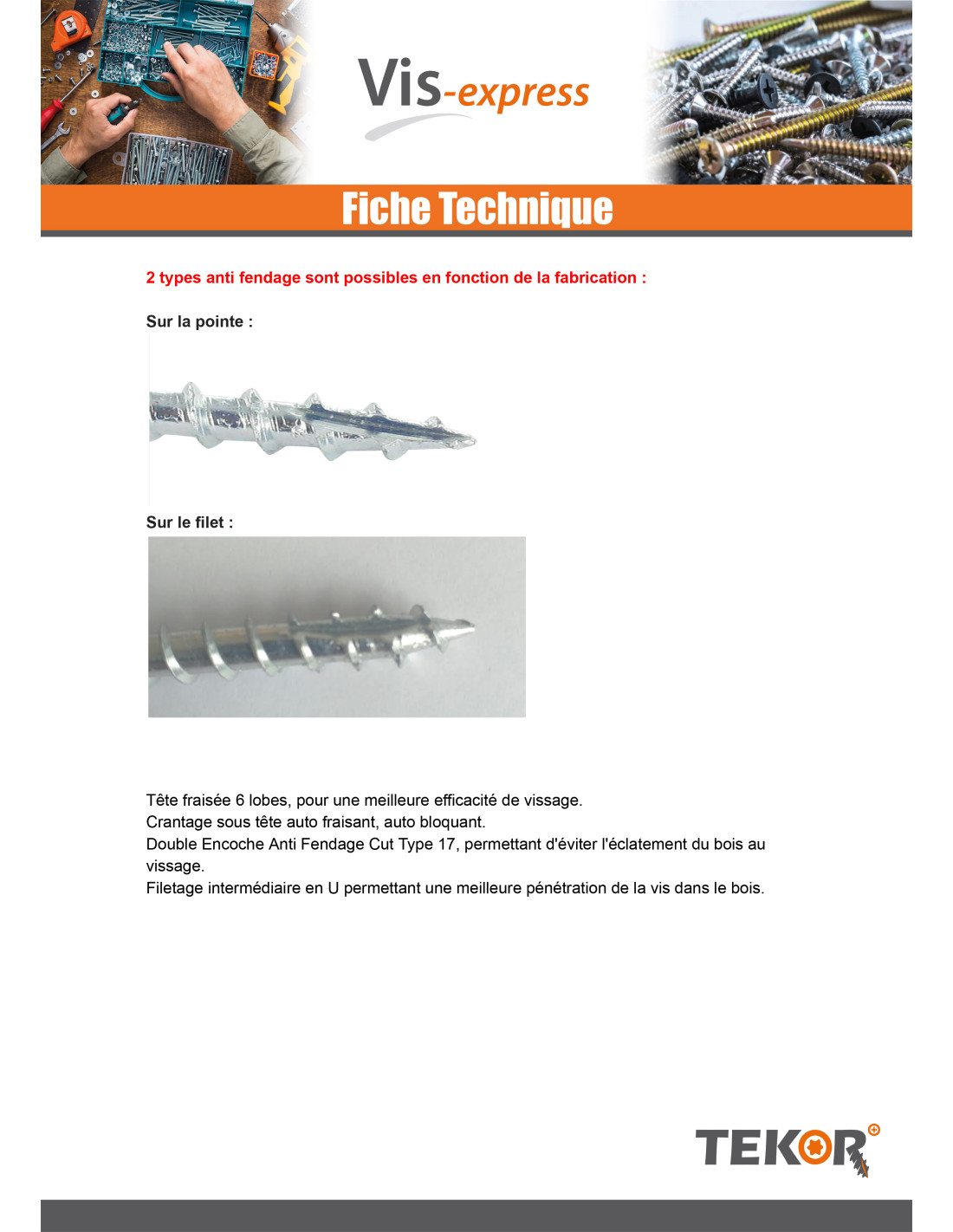

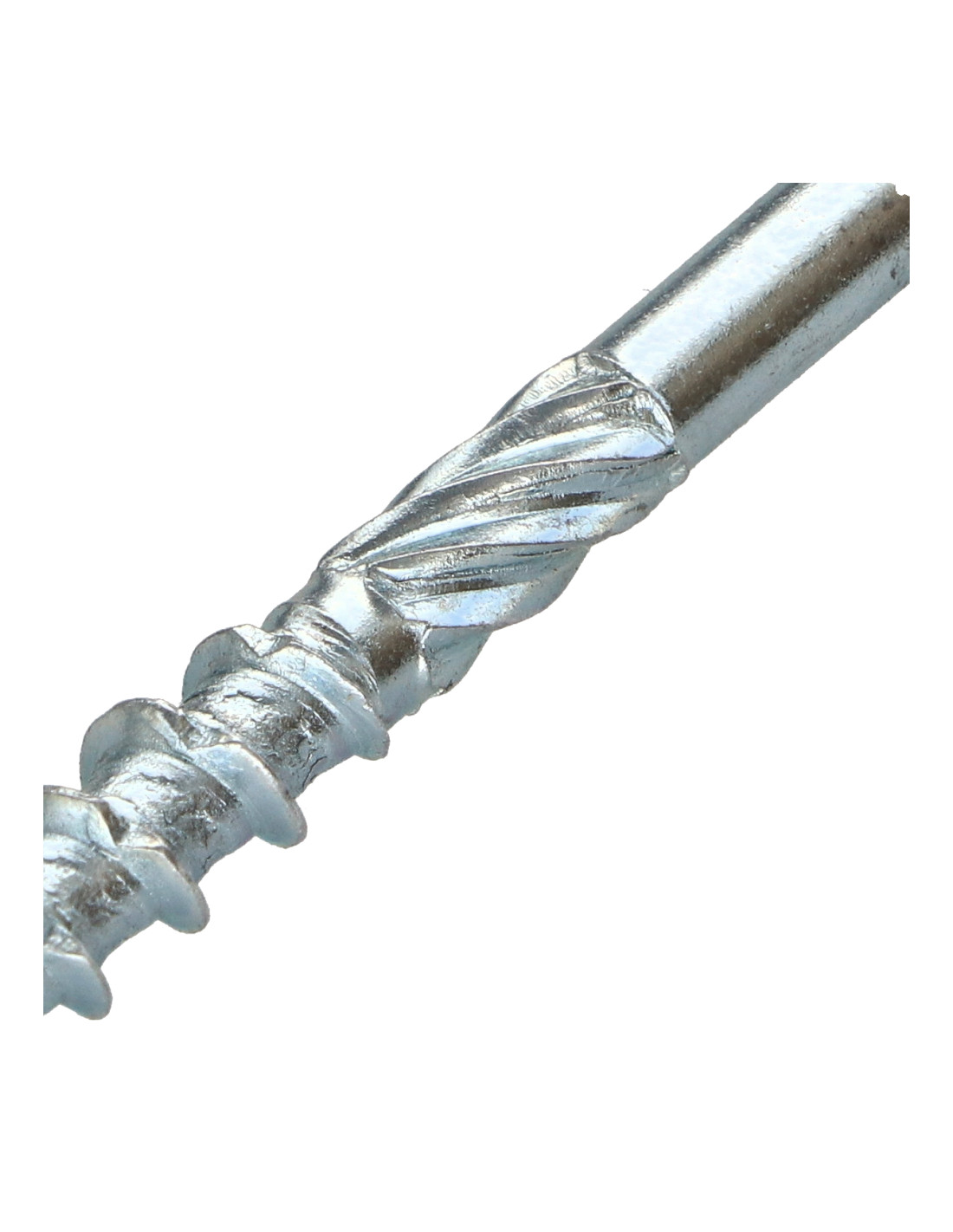

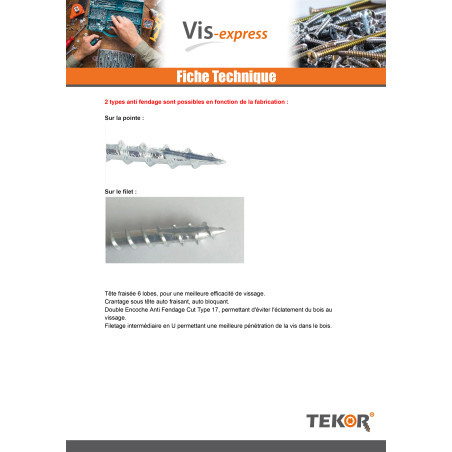

Tip: Drilling Point Type 17
Unit weight: 24.51 GR

In stock 64226 Items

ean13 3663072203143

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T30 6X200 Thread Length: 100 cut Type 17 Drilling Point Zinc Plated
Diameter = 6, Length = 200, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T30, Brand = Chipboard Screw Tekor

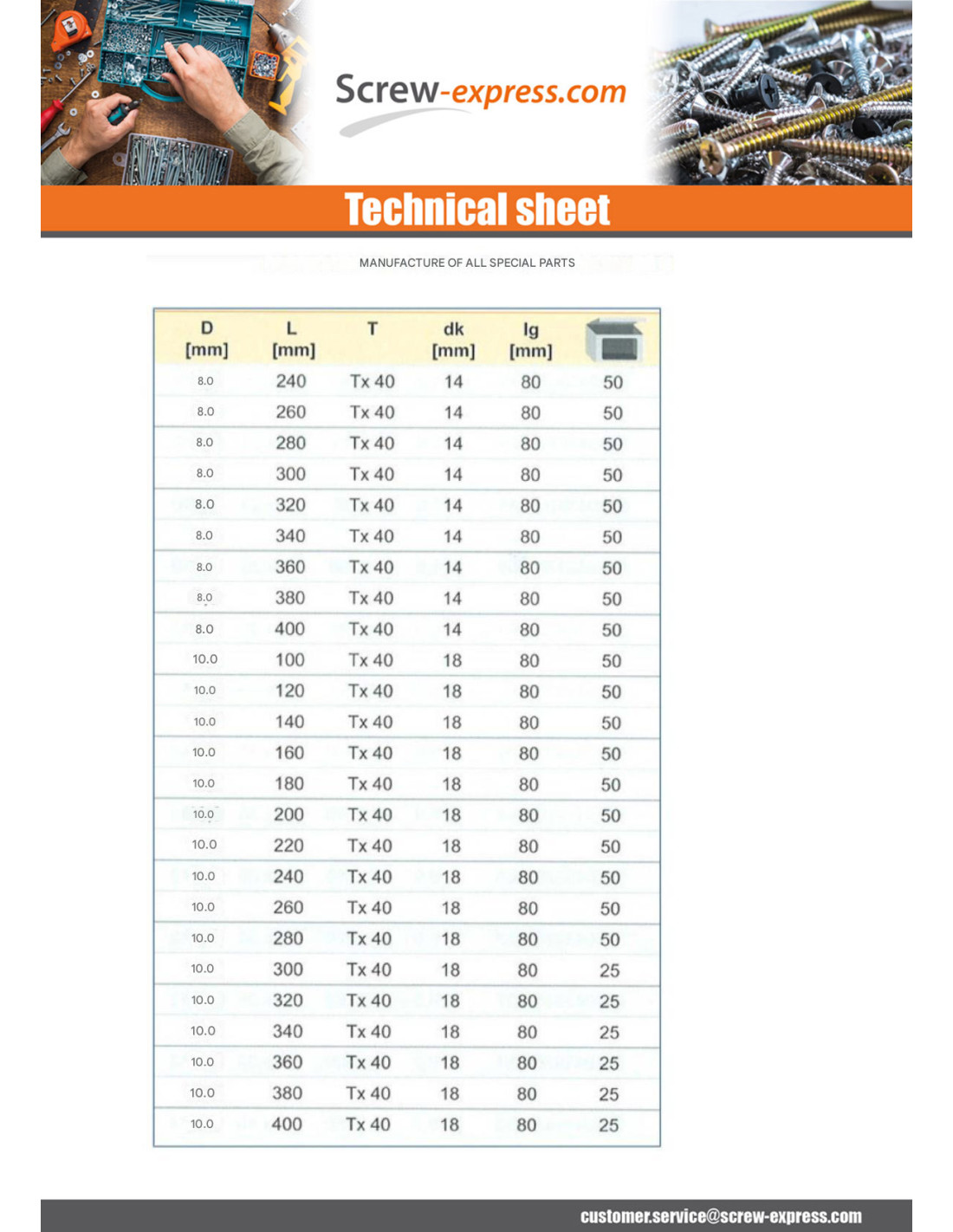

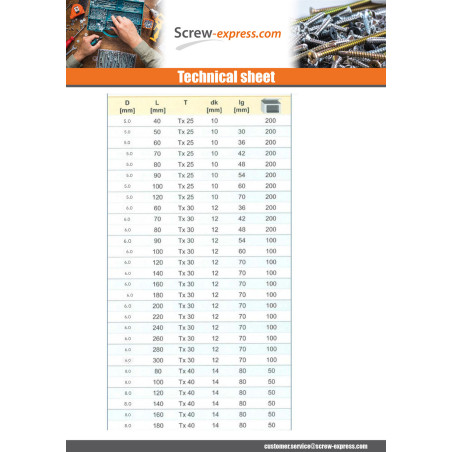

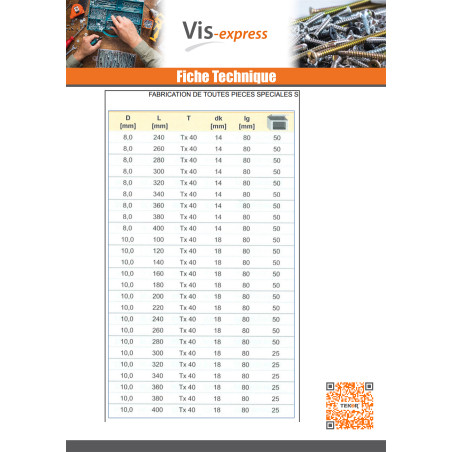

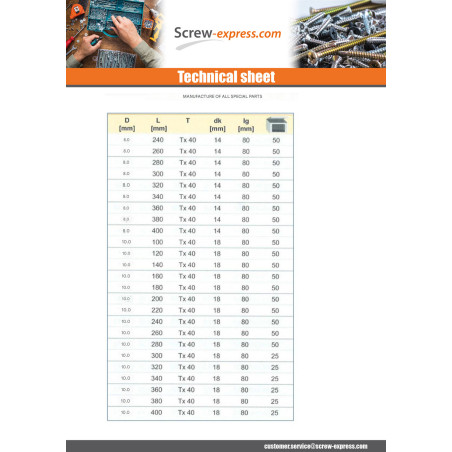

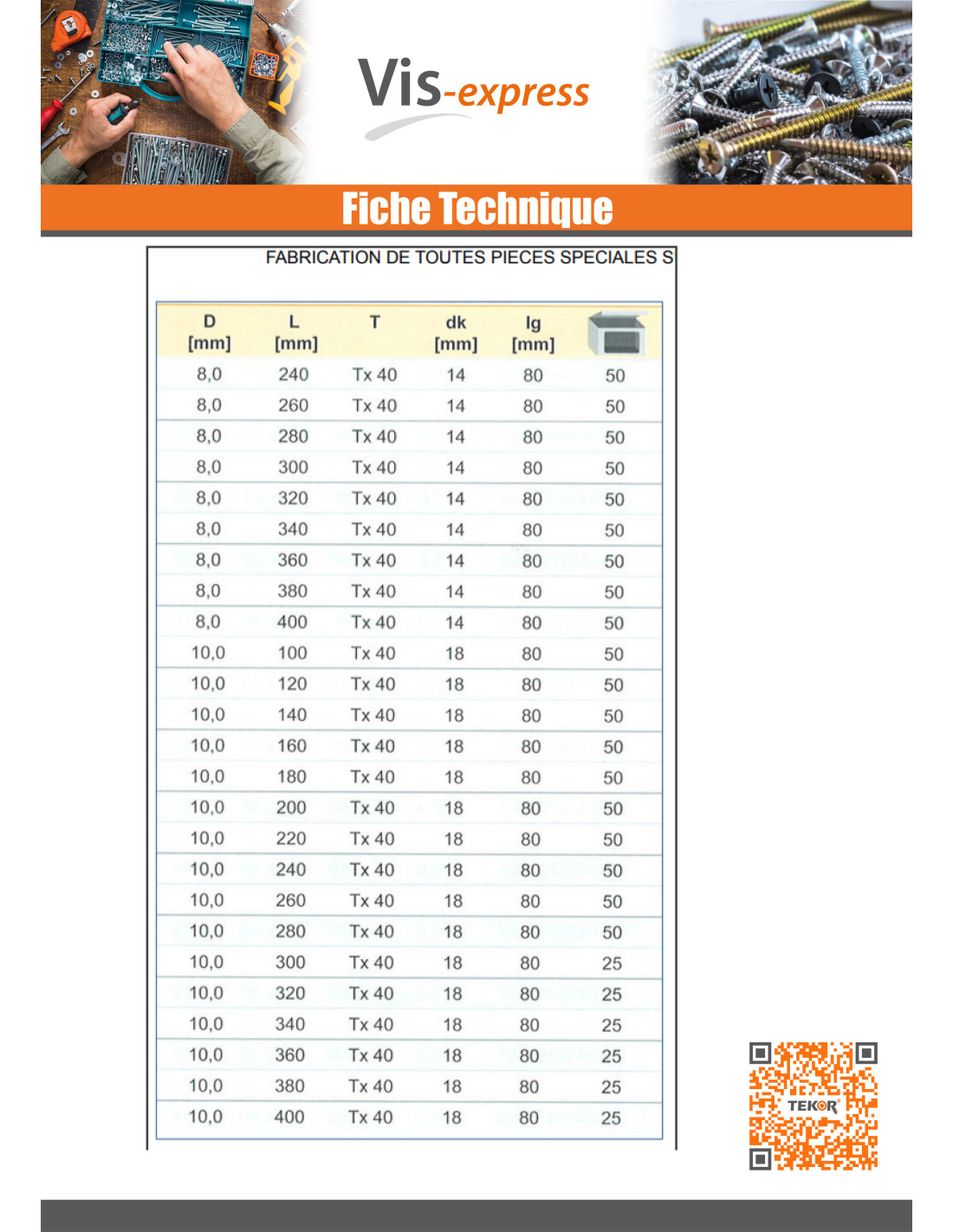

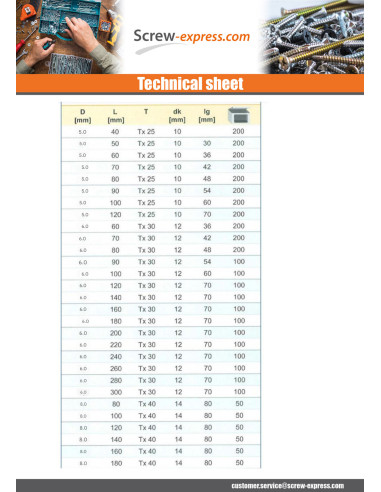

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500810014 1605 235PB6200 3663072203143

Use Cases

Jacques T. (vis-express.fr)
2026-04-19

fixation de chevron pour une cabane dans les arbres chevron de 120mm/120mm

Rémi A. (vis-express.fr)
2026-04-12

Screwing battens into a frame with sandwich insulation Screwing battens into a frame with sandwich insulation

Rémi A. (vis-express.fr)
2026-04-12

Screwing battens into a frame with sandwich-type external thermal insulation Screwing battens into a frame with sandwich-type external thermal insulation

Rémi A. (vis-express.fr)
2026-04-12

Screwing battens into a frame with sandwich insulation Screwing battens into a frame with sandwich insulation

Damien C. (vis-express.fr)
2025-10-19

assembly of a solid wood end table

stephane g. (vis-express.fr)
2025-10-05

Construction of agricultural shed 10m 6m Steel tray roof

Didier m. (vis-express.fr)
2025-09-28

I want to use these screws with the insulation washers to fix insulation boards to the roof slopes The boards are ISONAT flex 160 wood wool boards

Damien D. (vis-express.fr)
2025-09-14

Roof frame fixing Rafter fixing for a roof

Vincent S. (vis-express.fr)
2025-09-07

This product is ideal for fixing insulation when used with a suitable PVC washer the 6 mm diameter provides good rigidity and the 200 mm allows for fixing thick insulation

Marie-Claude M. (vis-express.fr)
2025-08-03

These screws will be used in the renovation of a frame these TEKOR frame screws Countersunk head TF Slot TORX T30 6X200 Threaded on 70 Anti-splitting point cut type 17 Steel used in the context of a frame renovation

Marie-Claude M. (vis-express.fr)
2025-08-03

Use of these TEKOR framing screws Countersunk head TF TORX slot T30 6X200 Thread e on 70 Anti-splitting point cut type 17 Steel in the assembly of timber Use of these TEKOR framing screws Countersunk head TF TORX slot T30 6X200 Thread e on 70 Anti-splitting point cut type 17 Steel in the assembly of timber and beams

Charles B. (vis-express.fr)
2025-05-25

Construction of a terrace Screwing reinforced joists 150 x 50 onto a 200 x 100 beam.

Patrice C. (vis-express.fr)
2025-04-13

Screws for fixing timber joists Screws for fixing timber joists for timber frame construction, wooden shelter

DENIS K. (vis-express.fr)
2024-11-17

wooden frame fixing ridge riser on ridge

Damien D. (vis-express.fr)
2024-09-15

Fixing a rafter frame To create a double frame

mickael m. (vis-express.fr)
2024-09-01

fixing of frame elements assy 4 csmp 6x200/70 mm

Damien D. (vis-express.fr)
2024-08-25

Fixing rafters Buy to fix 150x50 rafters on a frame

Alan D. (vis-express.fr)
2024-08-11

construction of a 7m x 4m long steel deck

Anthony B. (vis-express.fr)
2024-05-26

Lamella coll frame assembly for a pool house Beam assembly in 140x200 and 70x120

MAXIME C. (vis-express.fr)
2024-05-19

I use the Framing Screws T te countersunk e TF Crant TORX T30 6X200 Thread e on 70 Anti-splitting tip cut type 17 Steel for assembling rafters together in order to form posts which will support a plank. I use the Screws Framing Fresh head e TF Crant TORX T30 6X200 Thread e on 70 Anti-splitting tip cut type 17 Steel for assembling rafters together to form posts which will support a plank.

Jérôme F. (vis-express.fr)
2024-02-04

Bastaing fixing Screws 6*200 wood
