1 x Framing screws TEKOR Countersunk Head With Serration T40 8X160 Thread Length: 80 cut Type 17 Drilling Point Zinc

1 x Framing screws TEKOR Countersunk Head With...

1 x Framing screws TEKOR Countersunk Head With Serration T40 8X160 Thread Length: 80 cut Type 17 Drilling Point Zinc

Name: 1 x Framing screws TEKOR Countersunk Head With Serration T40 8X160 Thread Length: 80 cut Type 17 Drilling Point Zinc
Brand: Tekor
SKU: 2040816002
Price: 0.43 GBP
Availability: InStock

Reference 2040816002_1

In stock 45489 Pièces

£0.43 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50	200
Lot price VAT included	£0.43	£1.22	£4.86	£12.11	£44.08

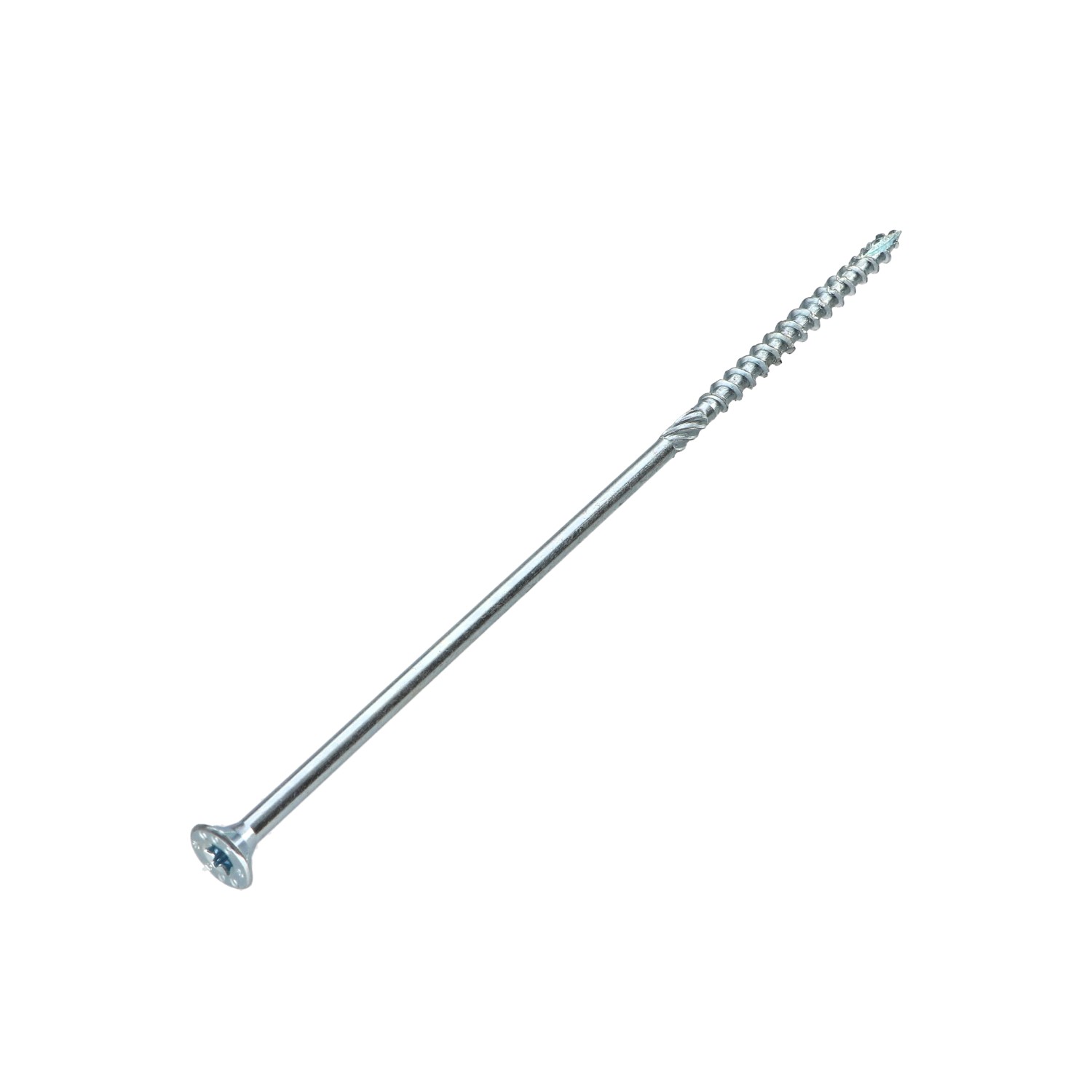

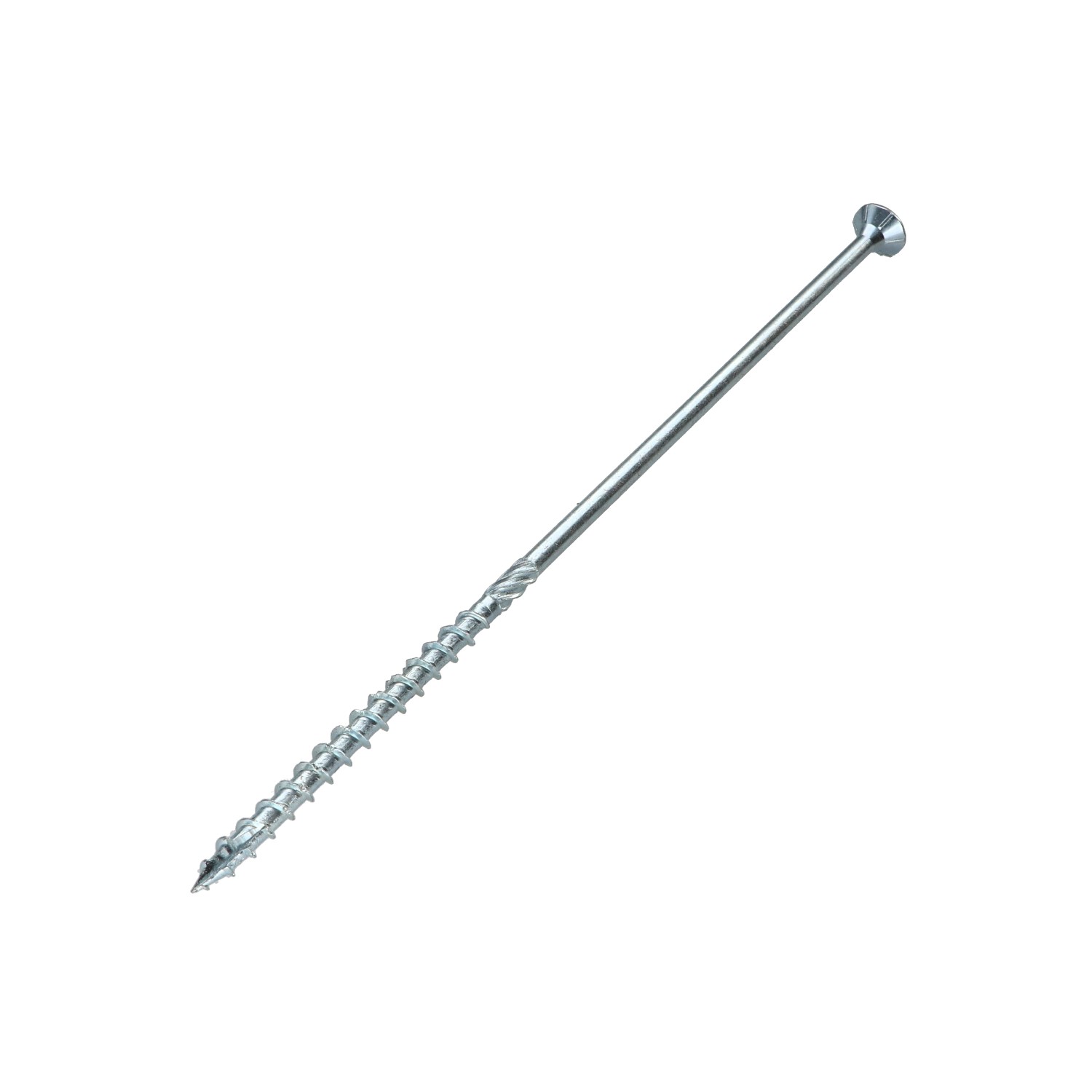

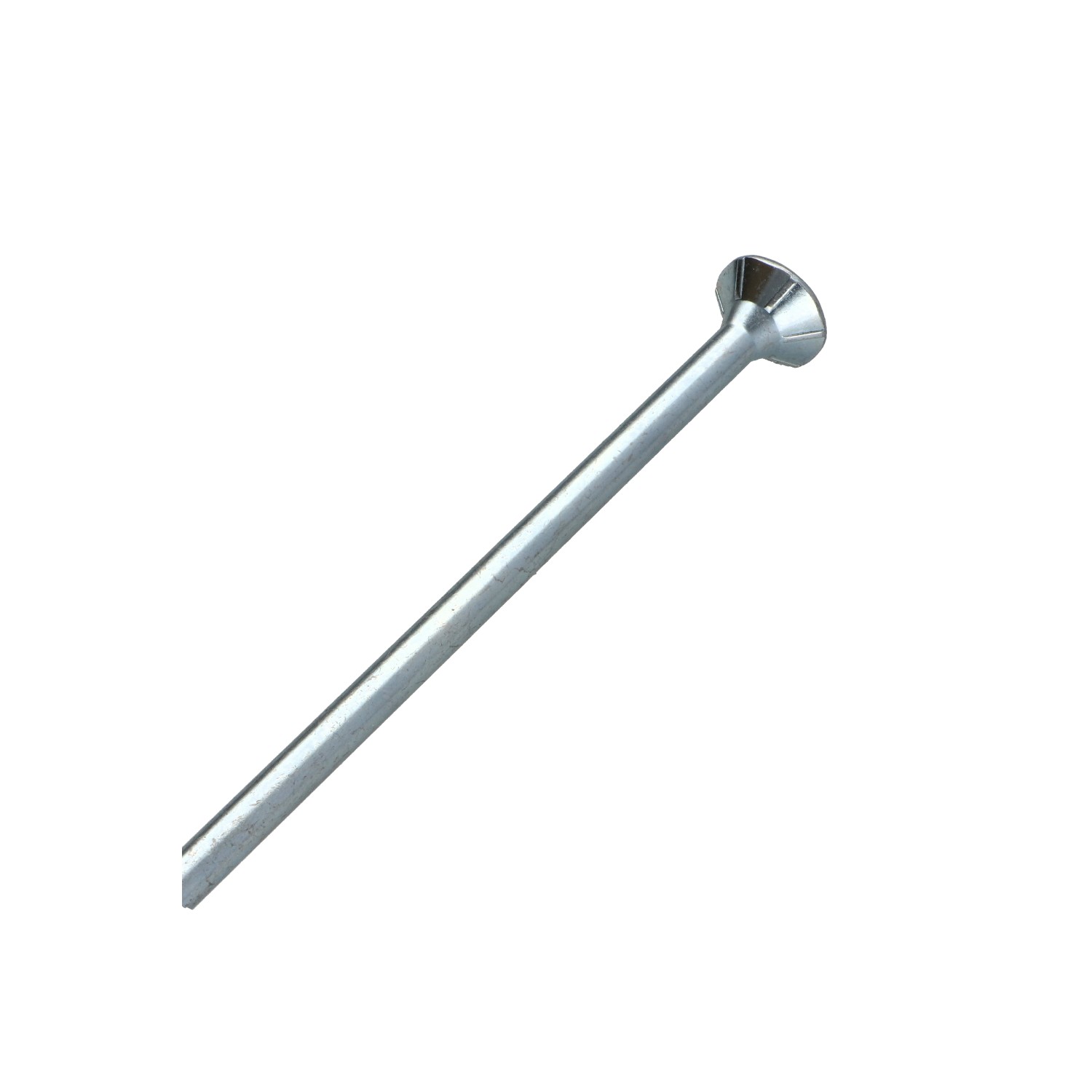

Framing screws TEKOR Countersunk Head With Serration T40 8X160 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated

Packaging

1 unit
5 units
20 units
50 units
200 units

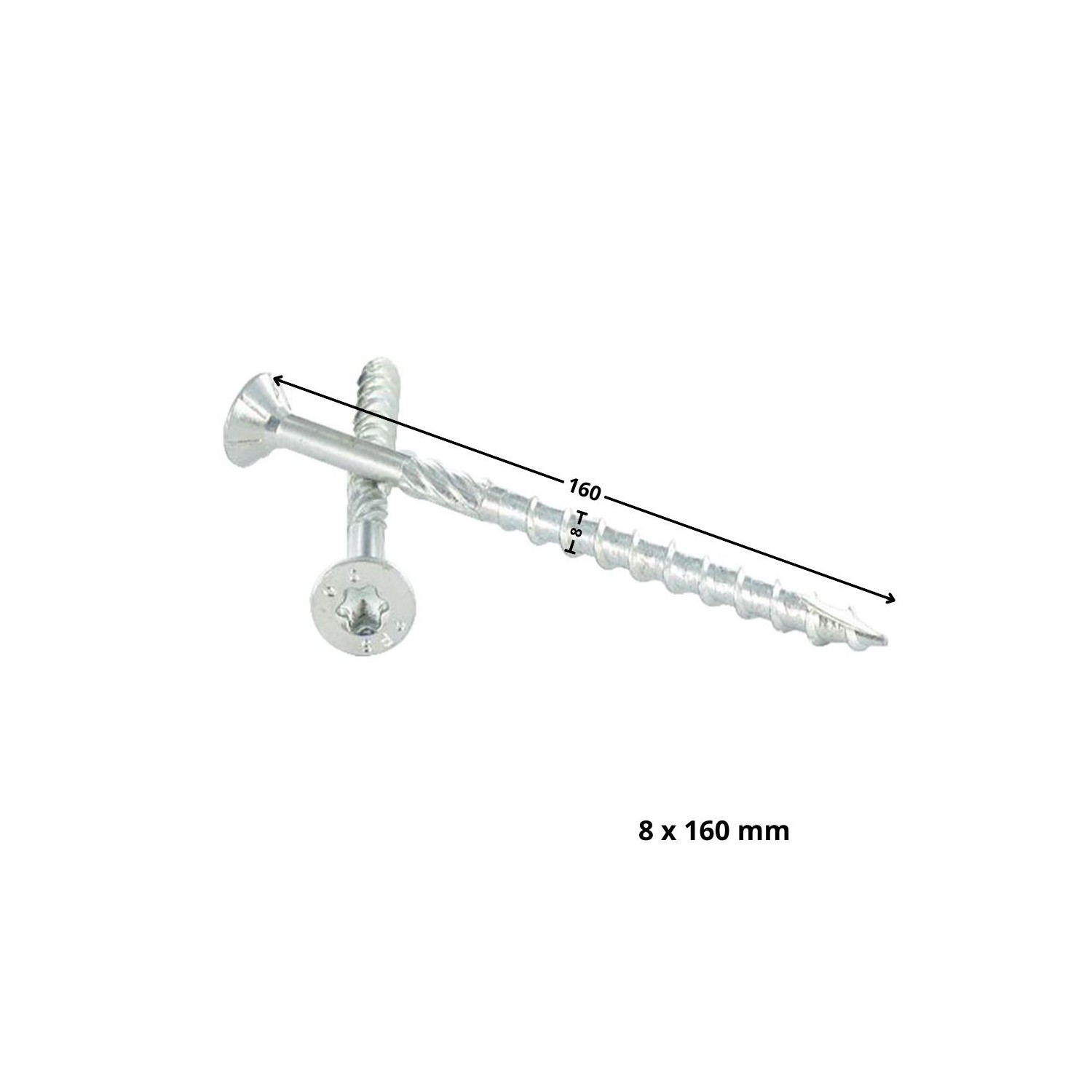

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

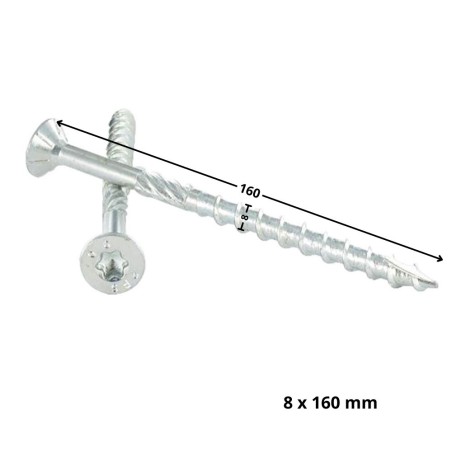

Diameter: 8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 160

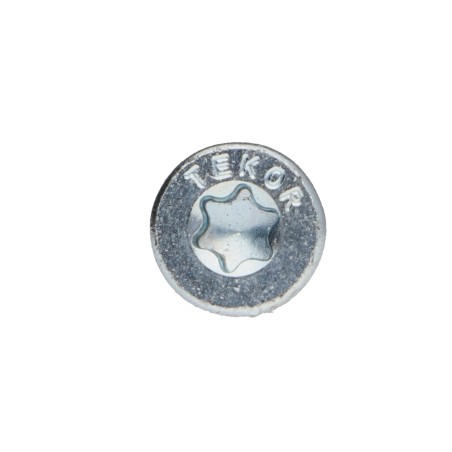

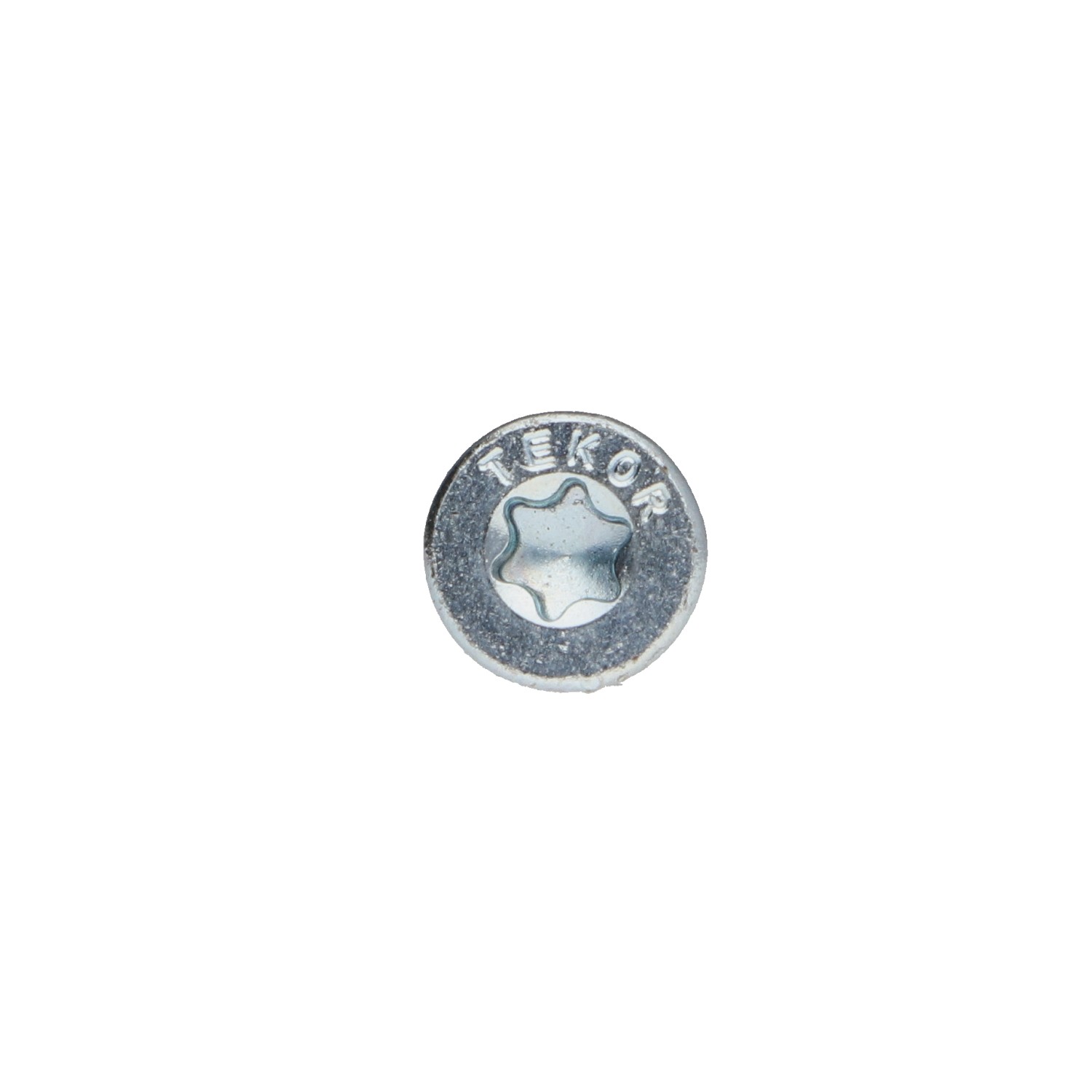

Drive Type: Torx
Size Drive Type: T40
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws
Sub product family: Countersunk Head

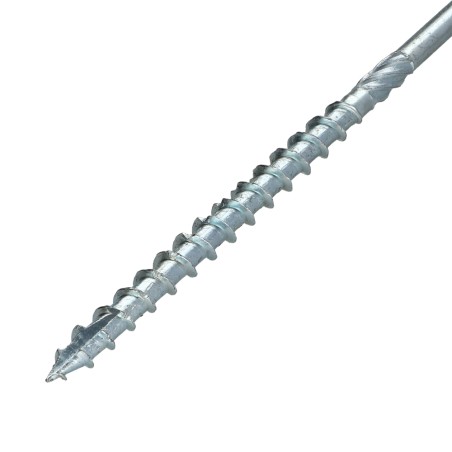

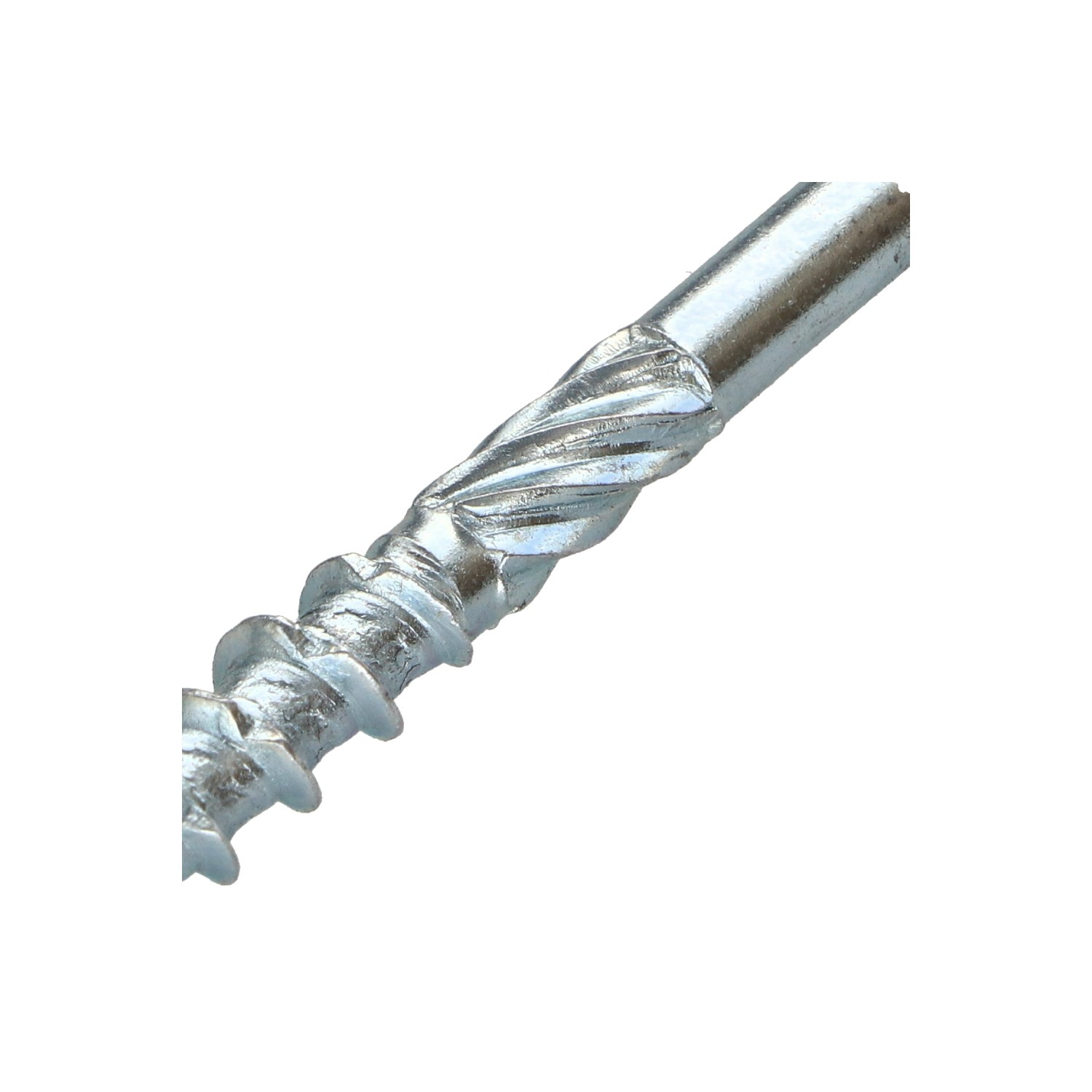

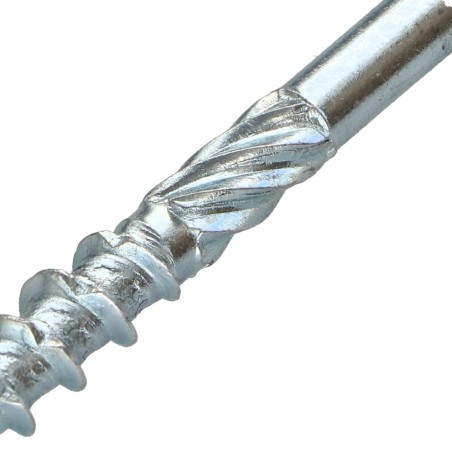

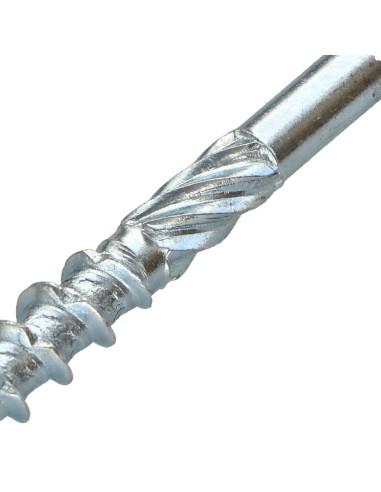

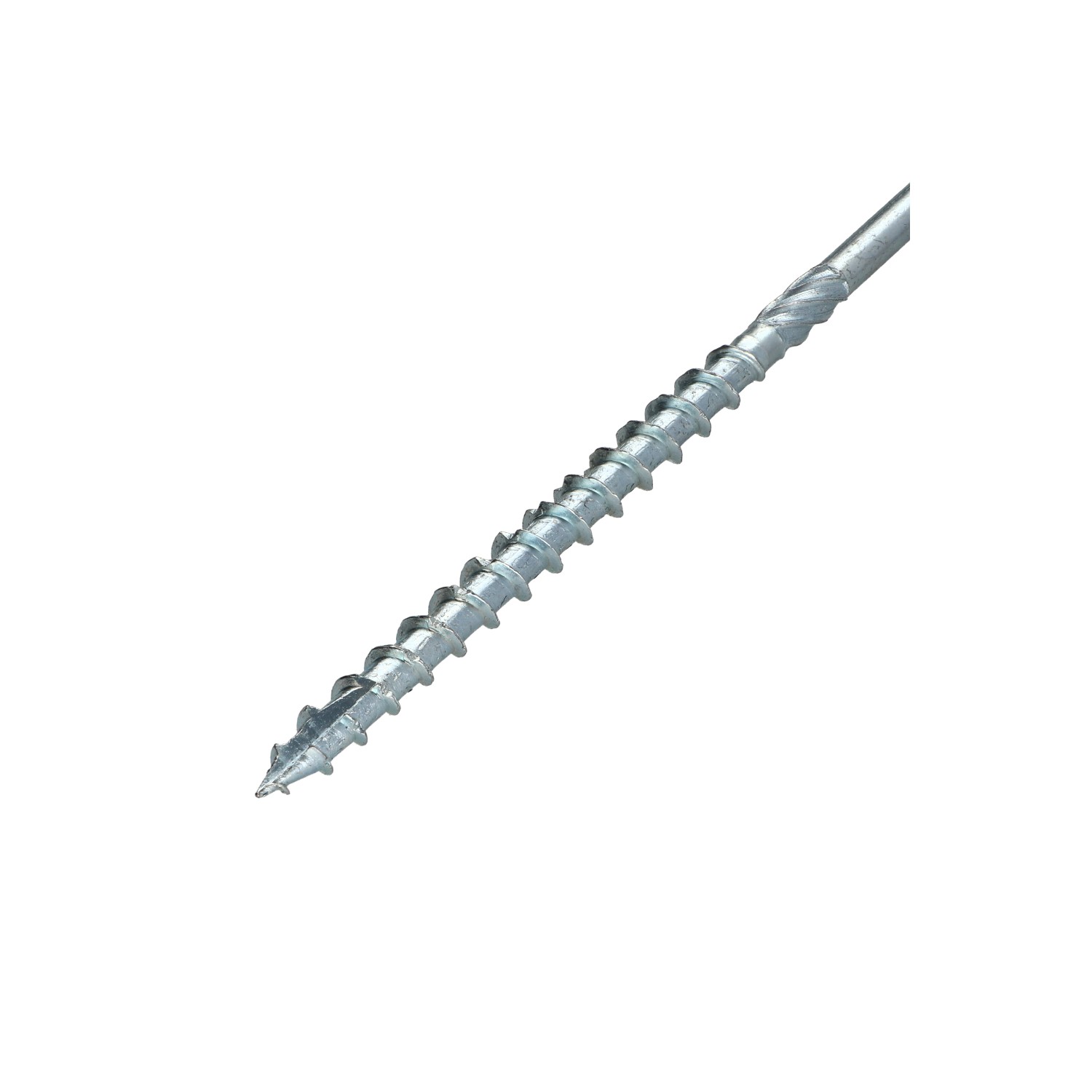

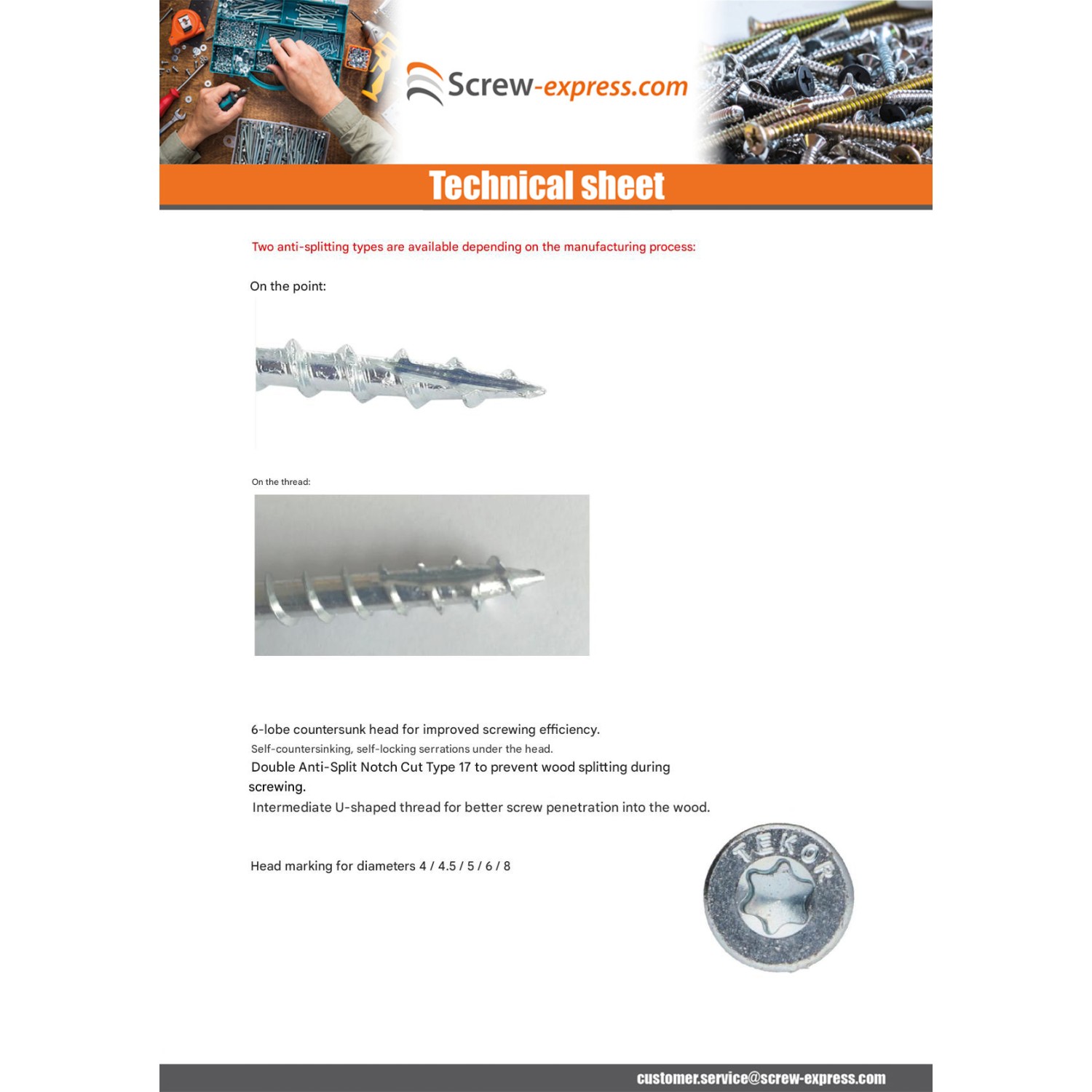

Tip: Drilling Point Type 17
Unit weight: 34 GR

In stock 45489 Items

ean13 3663072195882

Application

Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
Timber frame construction: fixing of frame components and bracing
Assembly of pergolas, carports, shelters, wooden frames
Fixing panels to a wooden structure (OSB/CTBX)

Description

Framing screws TEKOR Countersunk Head With Serration T40 8X160 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated
Diameter = 8, Length = 160, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor

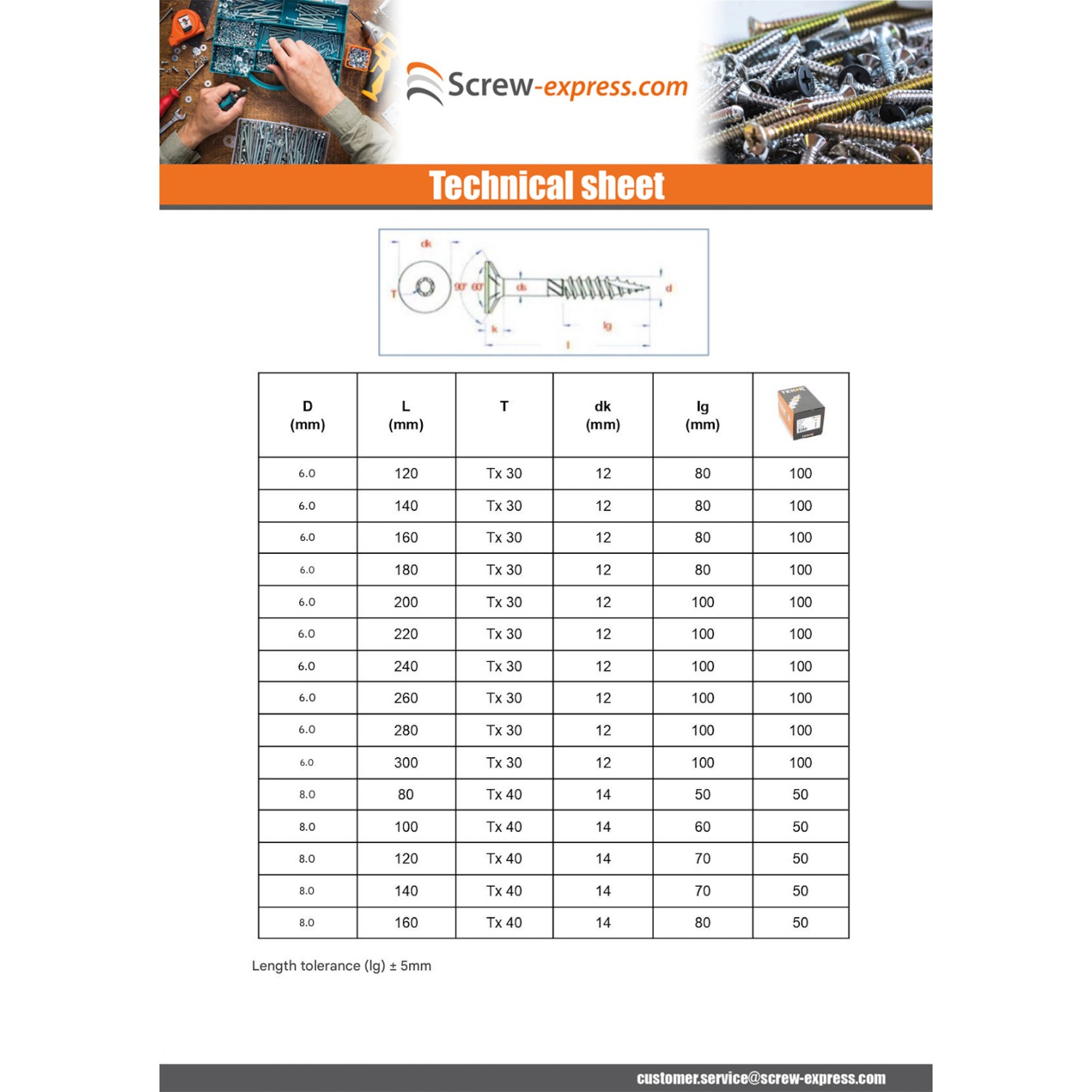

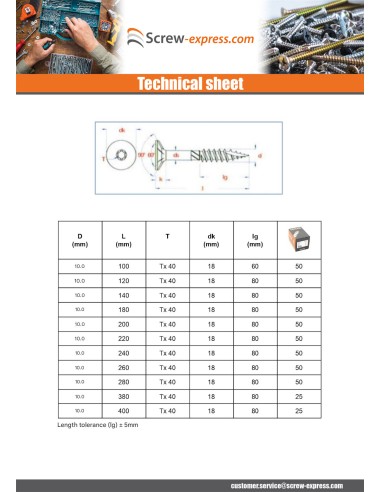

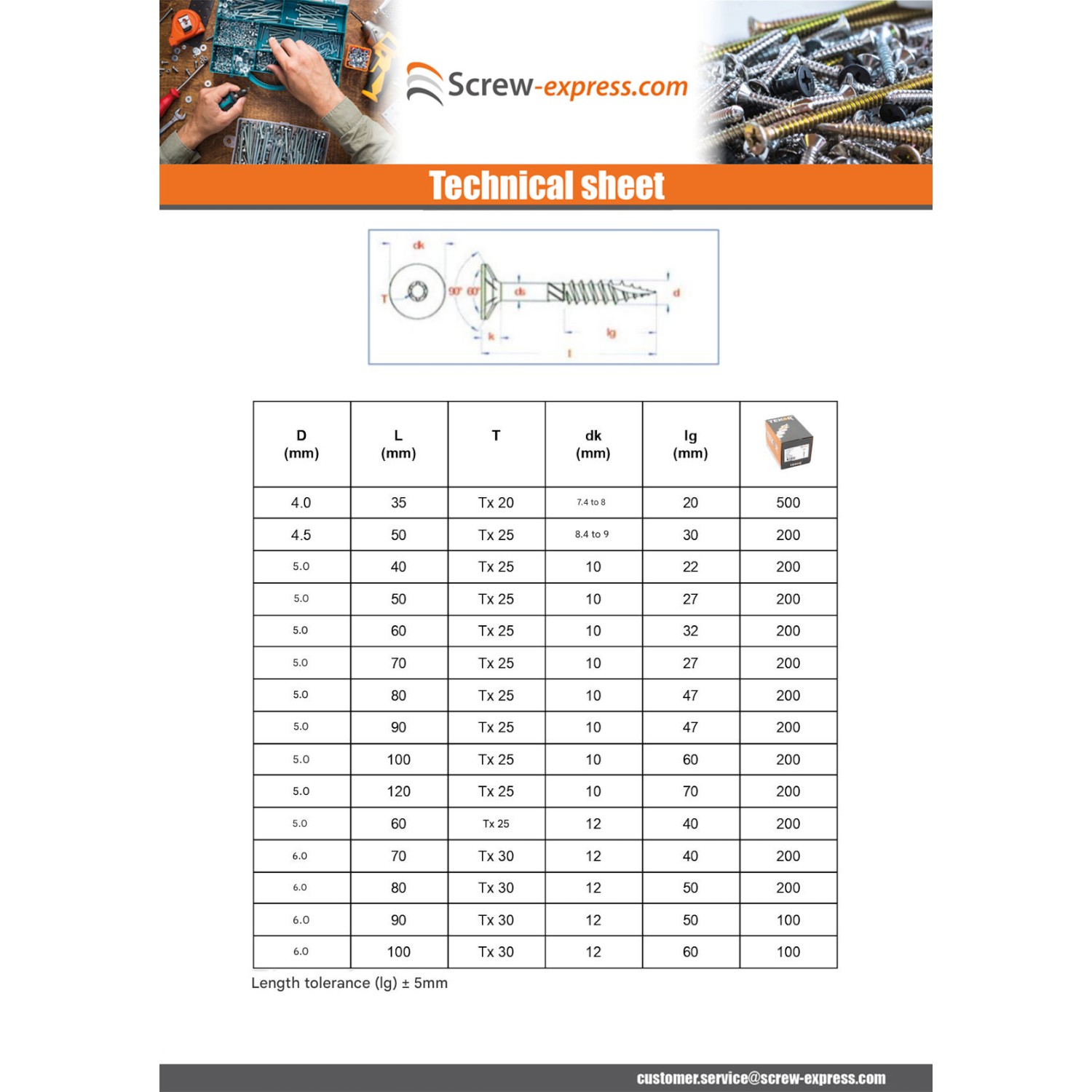

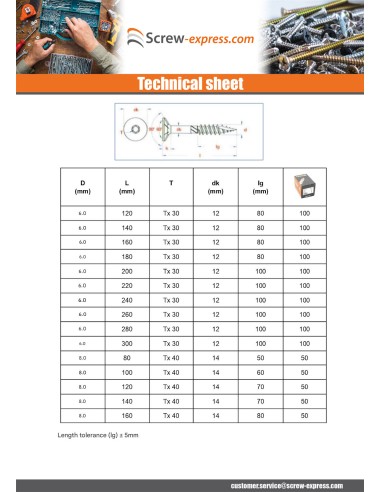

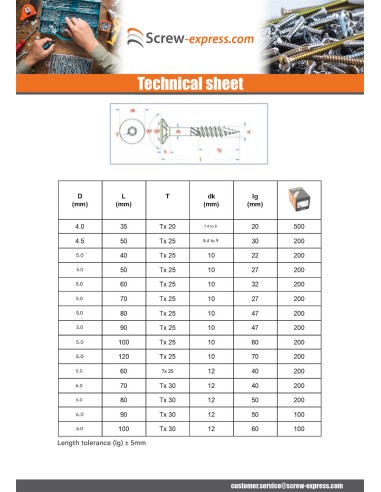

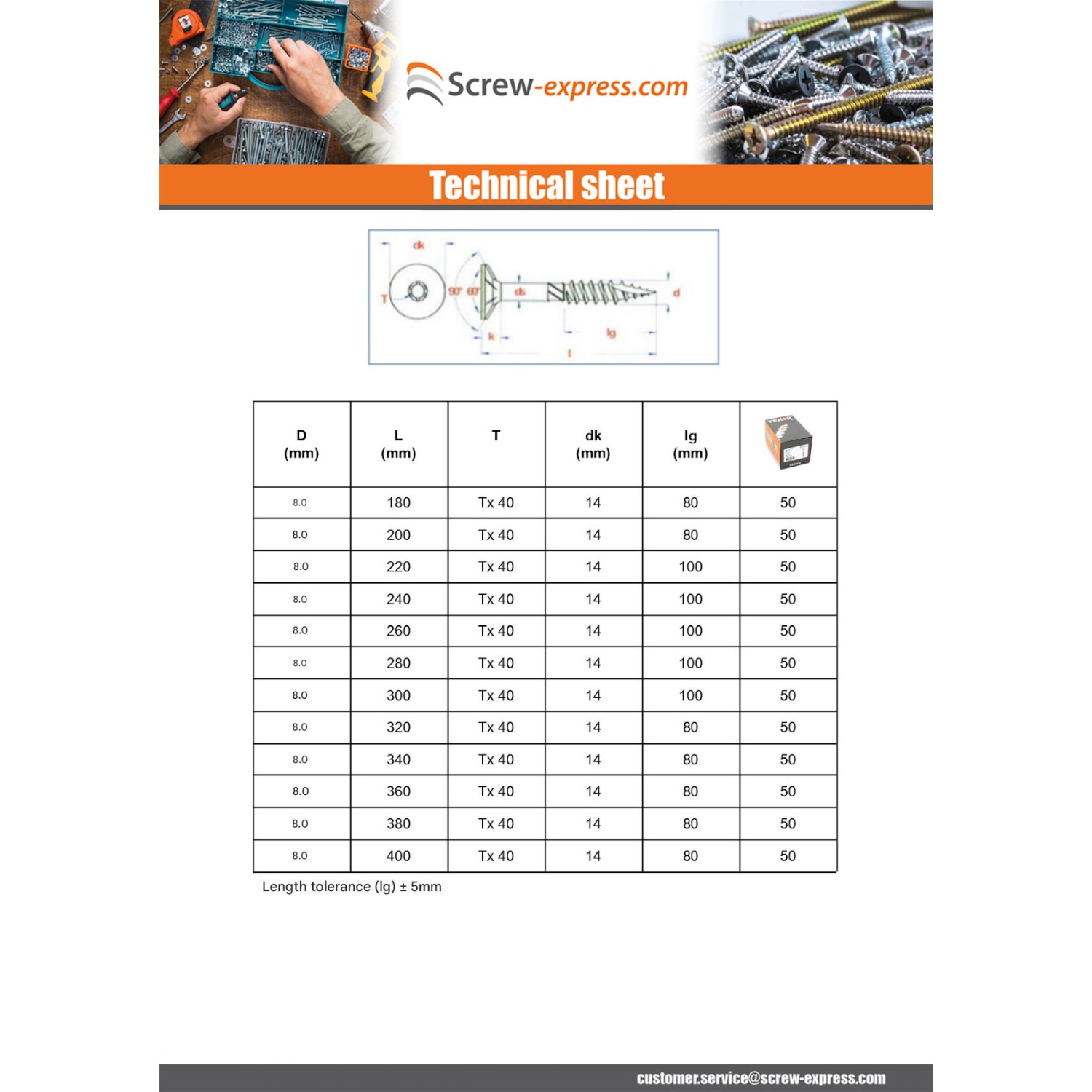

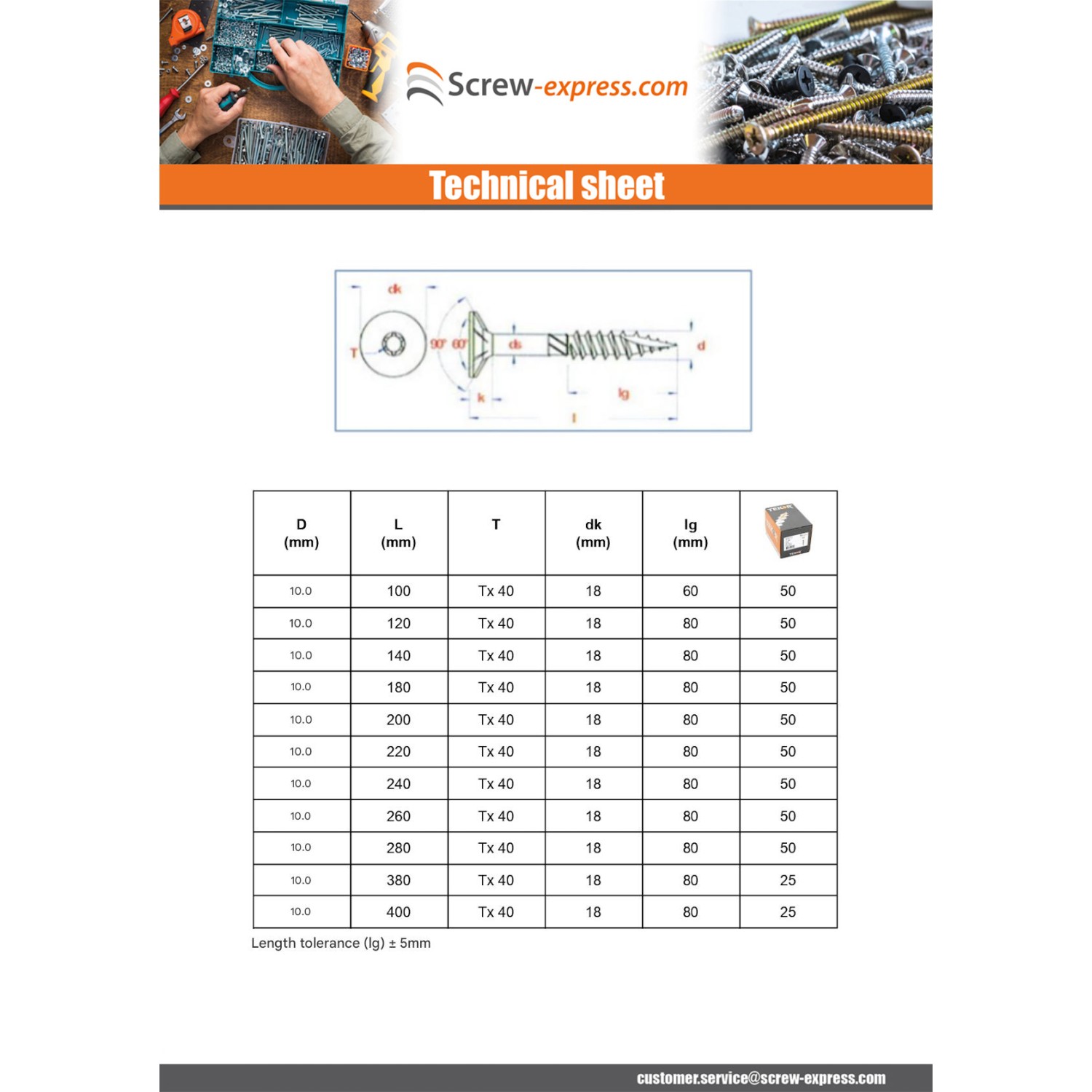

dimensional guide (mm)

Diameter	5	6	8	10
Head diameter	10	12	14	18

Other Reference : 3617500788863 AR08321 FIX000684 FIX000684 3663072195882

Use Cases

clara c. (vis-express.fr)
2026-08-30

Post and beam assembly Allows for increased rigidity of the post and beam assembly in addition to anchoring to prevent any twisting during lifting

Gwendal A. (vis-express.fr)
2026-08-16

Fixing joists Fixing 150x50 joists between beams spaced 80cm apart

Patrice L. (vis-express.fr)
2026-08-02

construction of a MOB

Ludovic P. (vis-express.fr)
2026-04-26

Je vais me servir de ces vis pour fixer les liteaux 8 x 6. J'utilise les vis charpente TEKOR Tête fraisée Cranté TORX T40 8X160 Filetée sur 80 Pointe antifendage type 17 Acier zingué pour fixer les liteaux en 8 × 6 pour la construction de mon appentis destiné à abriter mon bois

Nicolas D. (vis-express.fr)
2026-04-05

6x8 wood screws in 5m lengths for a barn

Sous A. (vis-express.fr)
2026-03-29

Barn frame Barn frame 500m2

Joffrey C. (vis-express.fr)
2026-03-29

purlin fixing 8x140 is suitable for purlins of approximately 8x200cm

Elie M. (vis-express.fr)
2026-03-29

Assembly 75x225 Purlin

J marc B. (vis-express.fr)
2026-03-15

For framing Rafter fixing 10x6cm

Benjamin M. (vis-express.fr)
2026-03-01

Floor framing fixing Fixing 48 2.5m joists to 6m beams

Neil S. (vis-express.fr)
2026-02-22

Timber frame assembly These screws are strong enough to assemble beams

Thibaut C. (vis-express.fr)
2026-02-01

To fix rafters into purlins. I screw 63x75mm wooden rafters into 90x240mm wooden purlins.

Thibaut C. (vis-express.fr)
2026-02-01

This product helps me fix the rafters into the purlins. I fix my 63x75 wooden rafters into 90x240 wooden purlins.

David H. (vis-express.fr)
2025-12-14

Construction of a roof frame extension

Didier M. (vis-express.fr)
2025-11-30

Fixing a rafter to a timber frame 95x95 rafter

Matthieu I. (vis-express.fr)
2025-11-02

Screw fixing of the rafters for the construction of a timber-framed wall. 80x120mm KVH rafters

sarl planète vsp S. (vis-express.fr)
2025-10-26

frame assembly screwing the beams crosswise

Romuald S. (vis-express.fr)
2025-10-12

Fixing braces on purlins 22/8 purlin, 15/4 braces. Doublas pine wood. Surface area 100m

Lémuel H. (vis-express.fr)
2025-09-14

Maintaining logs on a wall 50x150 log fixed with the load-bearing wall in 50x200 timber frame

Lémuel H. (vis-express.fr)
2025-09-14

Maintaining logs on a wall 50x150 log fixed with the load-bearing wall in 50x200 timber frame

Stephane L. (vis-express.fr)
2025-01-12

Timber frame assembly rafter/joist assembly

sarl planète vsp S. (vis-express.fr)
2024-09-15

frame assembly northern wood frame

Dorian P. (vis-express.fr)
2024-08-11

Framework 160mm roof framework

Stéphanie B. (vis-express.fr)
2024-03-24

These screws participate in the construction of our wooden chalet, they fix the joists in the rafters of the roof. In the insulation phase, we put the glass wool between the rafters and the 2nd layer of insulation between the joists which I fix thanks this your screws
