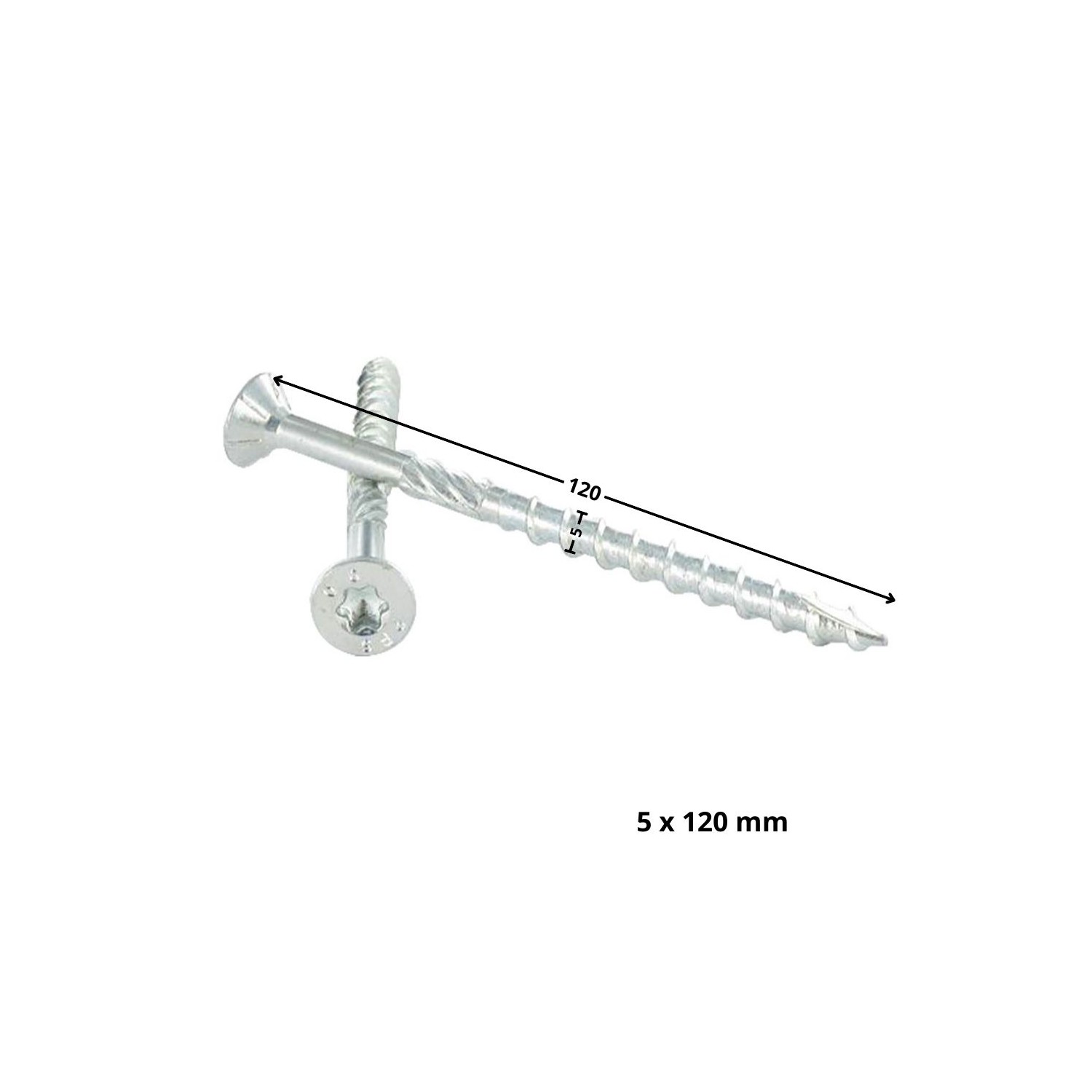

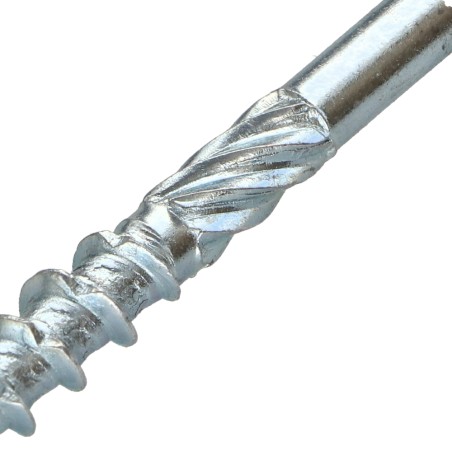

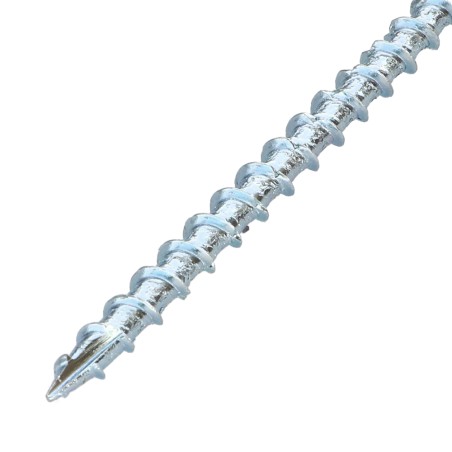

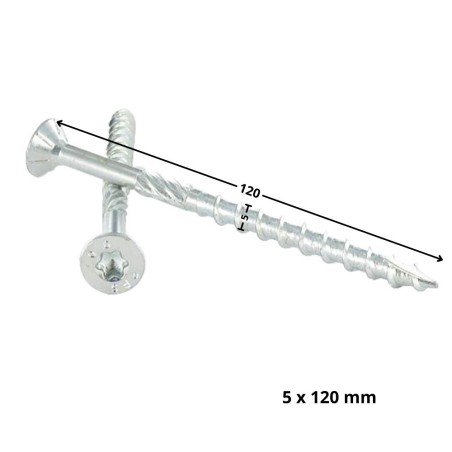

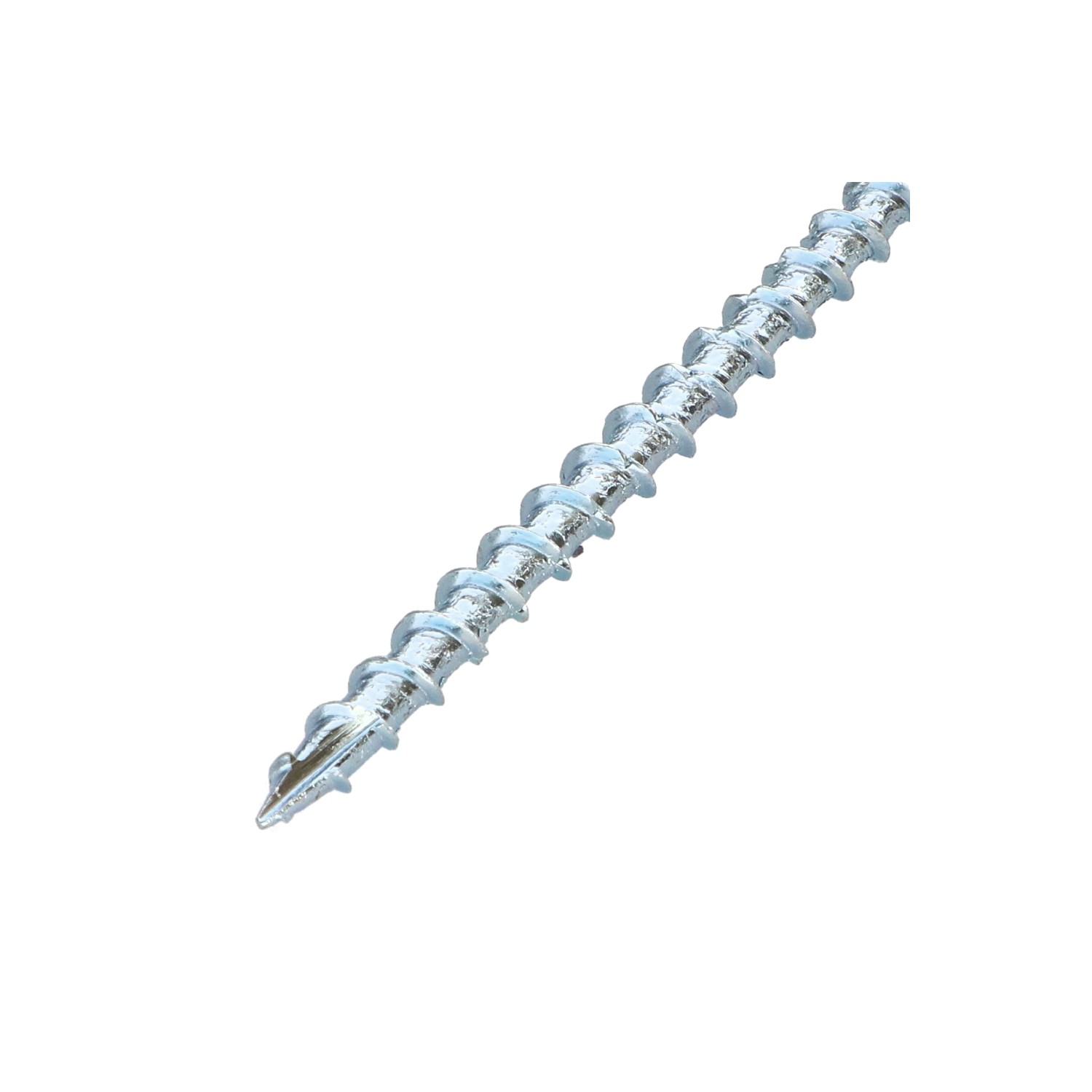

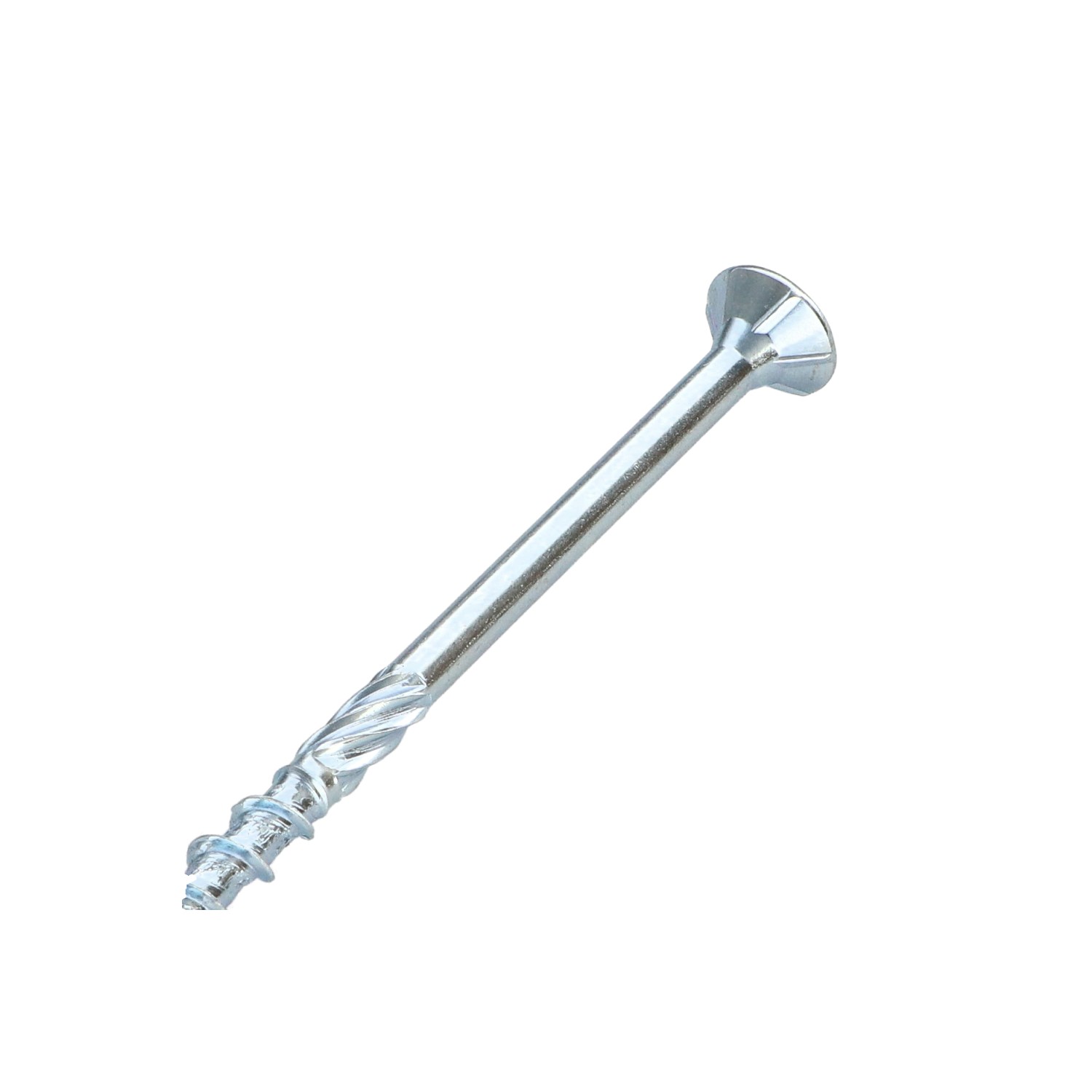

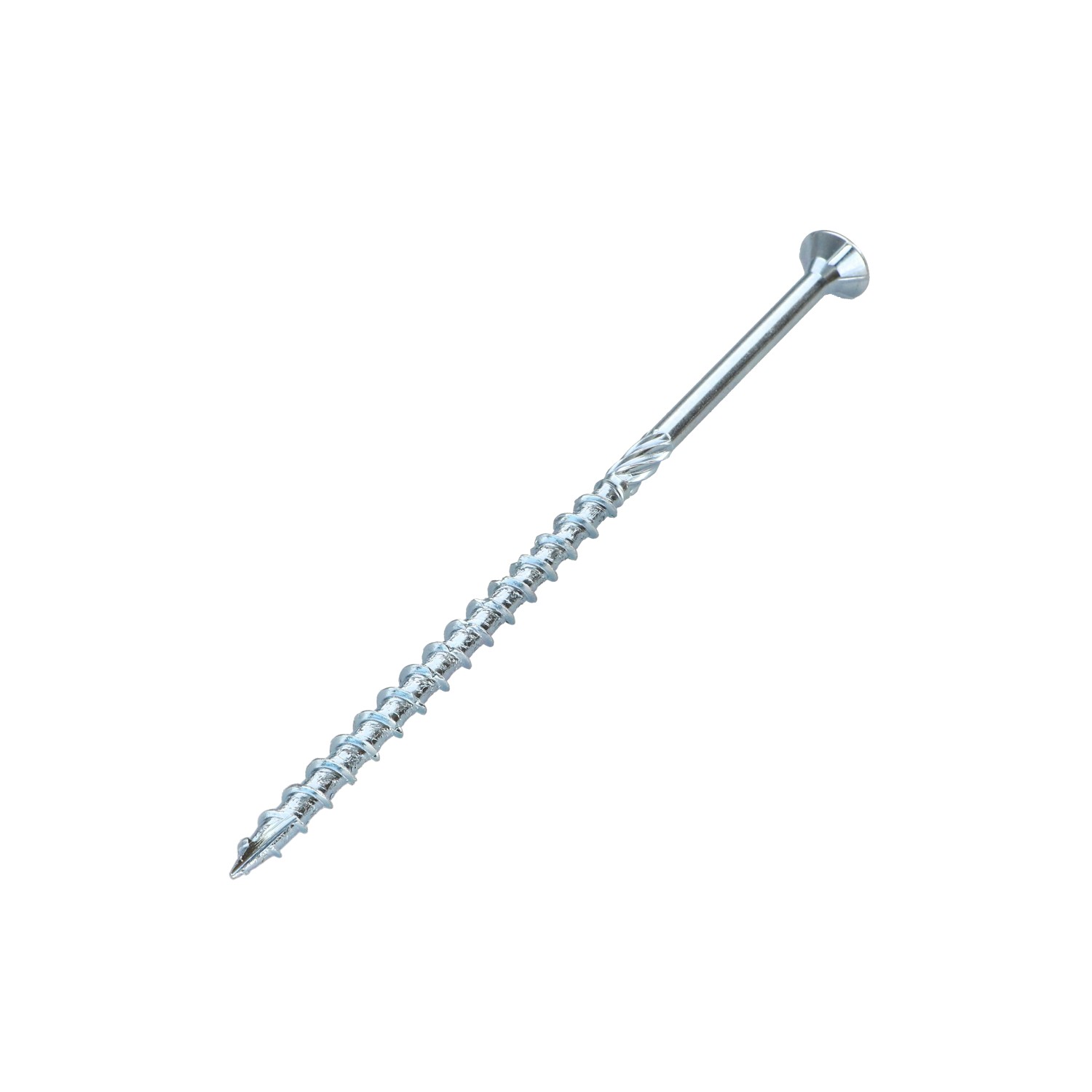

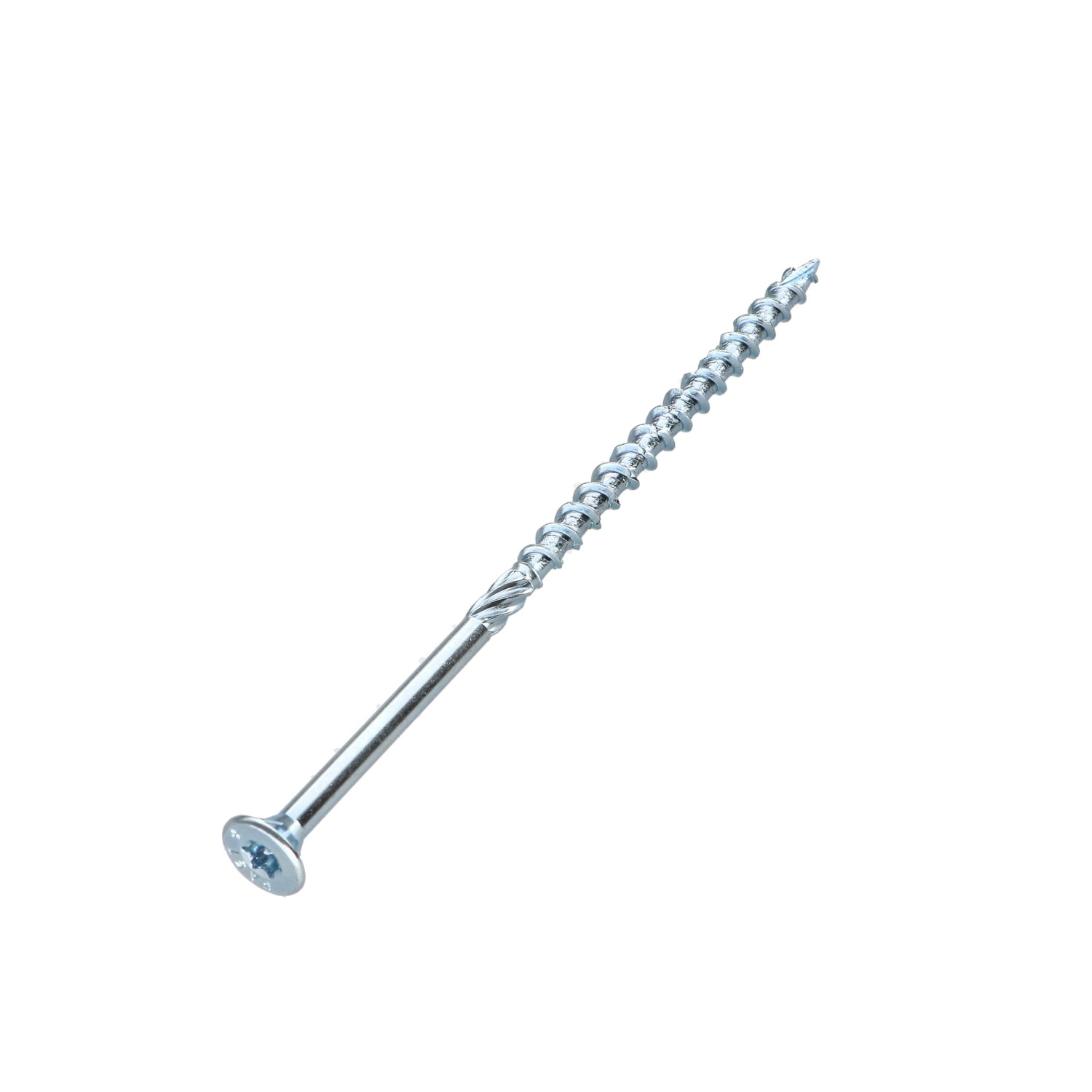

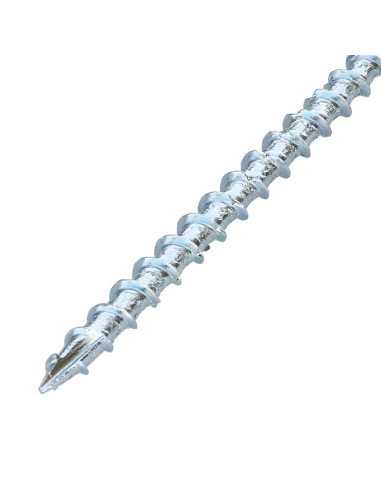

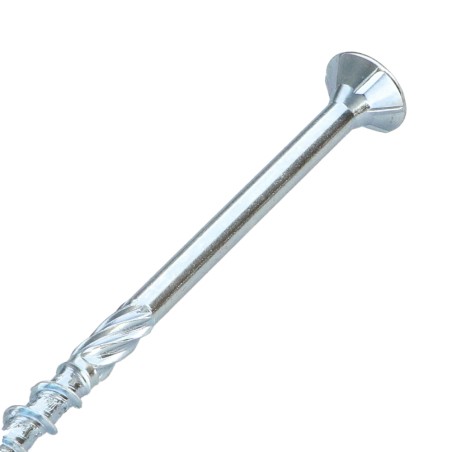

1 x Framing screws TEKOR Countersunk Head With Serration T25 5X120 Thread Length: 70 cut Type 17 Drilling Point Zinc

Timber frame assembly Timber frame assembly, 45*145mm timbers, 6m length

Shelter construction Connection between 63x175 mm joists

Fixing OSB to counter battens and battens 18mm OSB, 28/32mm counter batten and 32/40mm batten

Fixing battens and counter-battens

WOOD FRAME CONSTRUCTION

Timber frame construction Building extension

pour dela construction d'une cabane en bois

fixation bardage bois sur charpente bois TEKOR Tête fraisée Cranté TORX T25 5X120 Filetée sur 70 Pointe antifendage

Charpente bois OSB 3 pour plancher

Fixing rafters to the original frame Modifying the frame for installing a steel roof deck

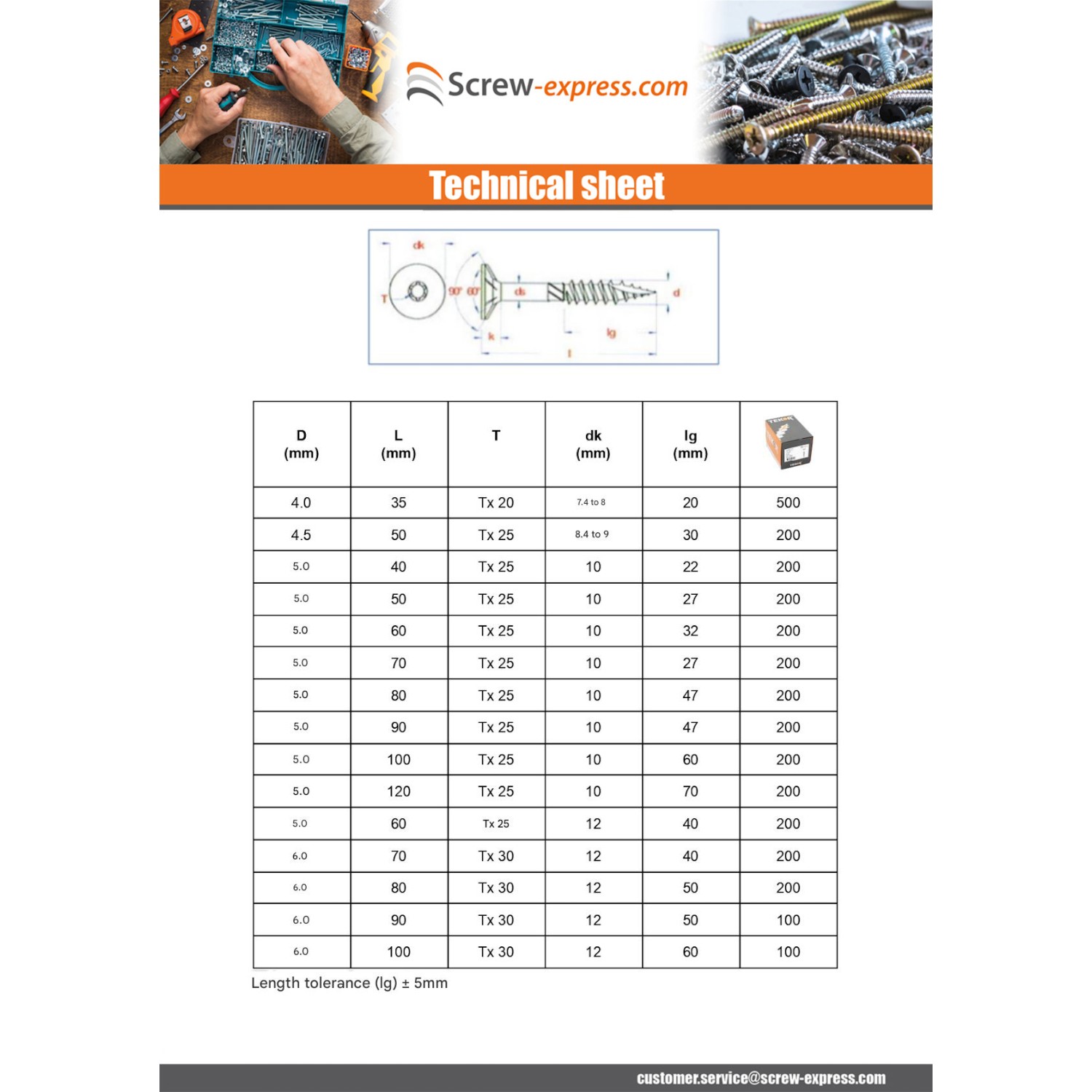

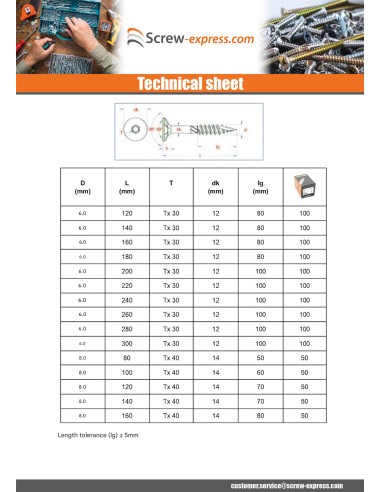

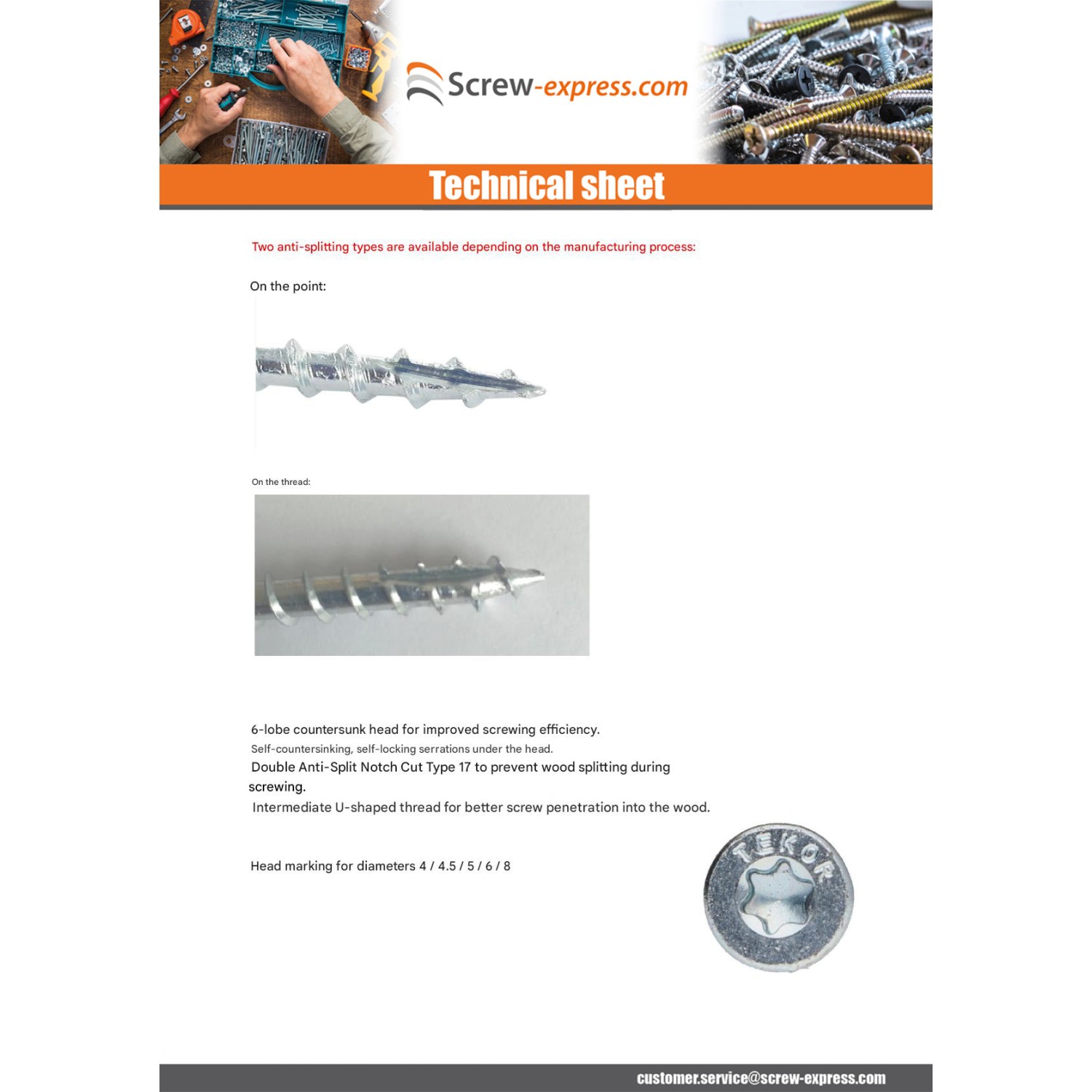

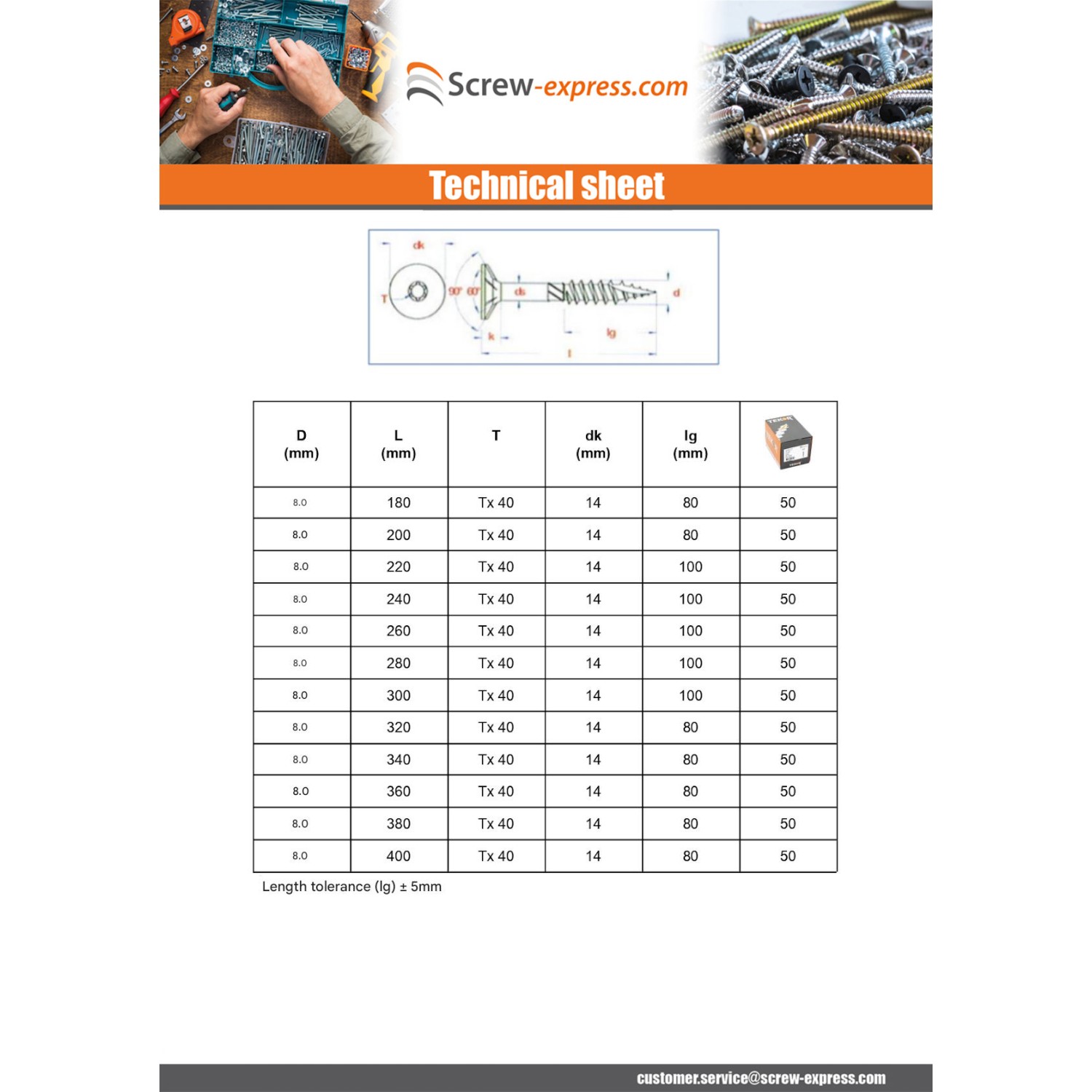

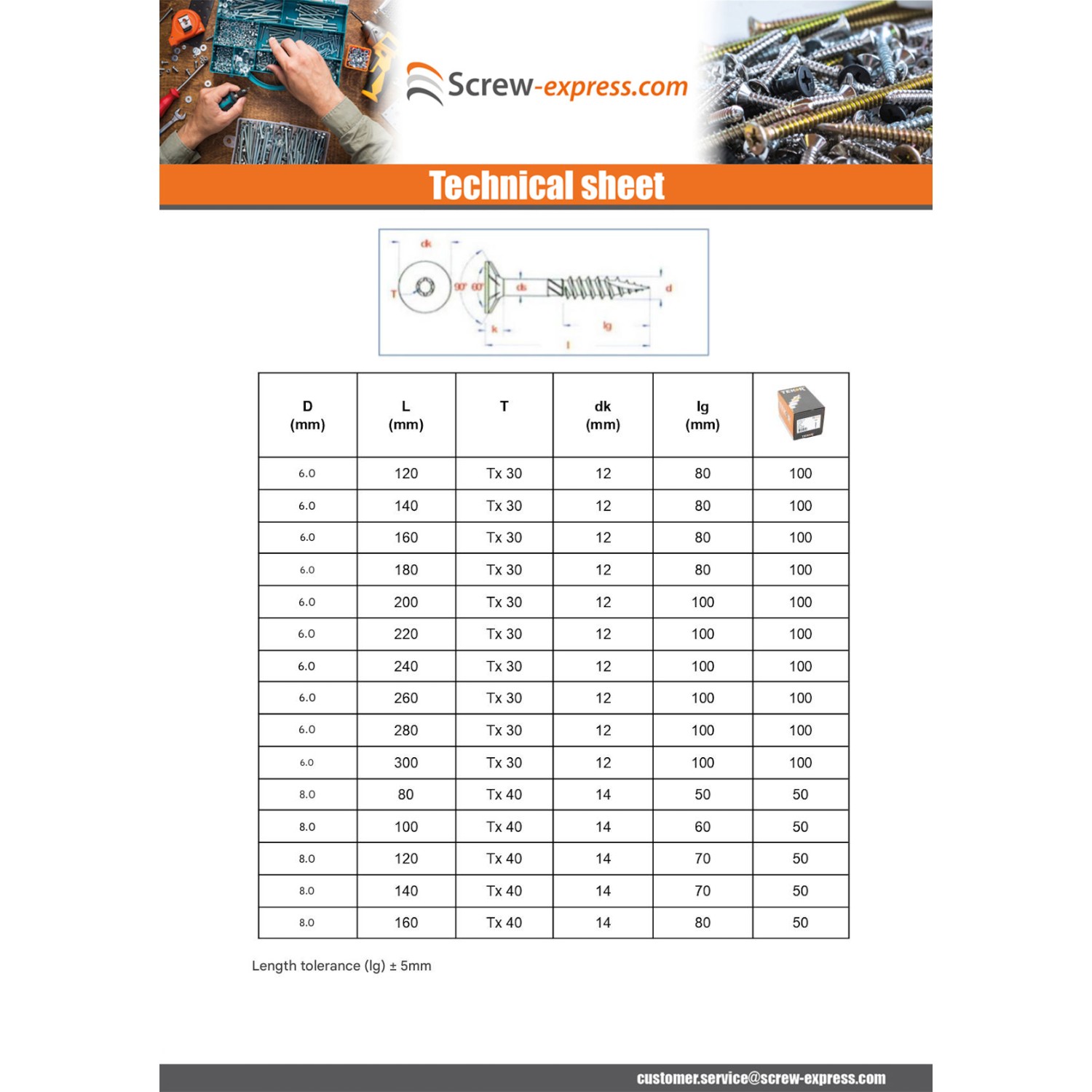

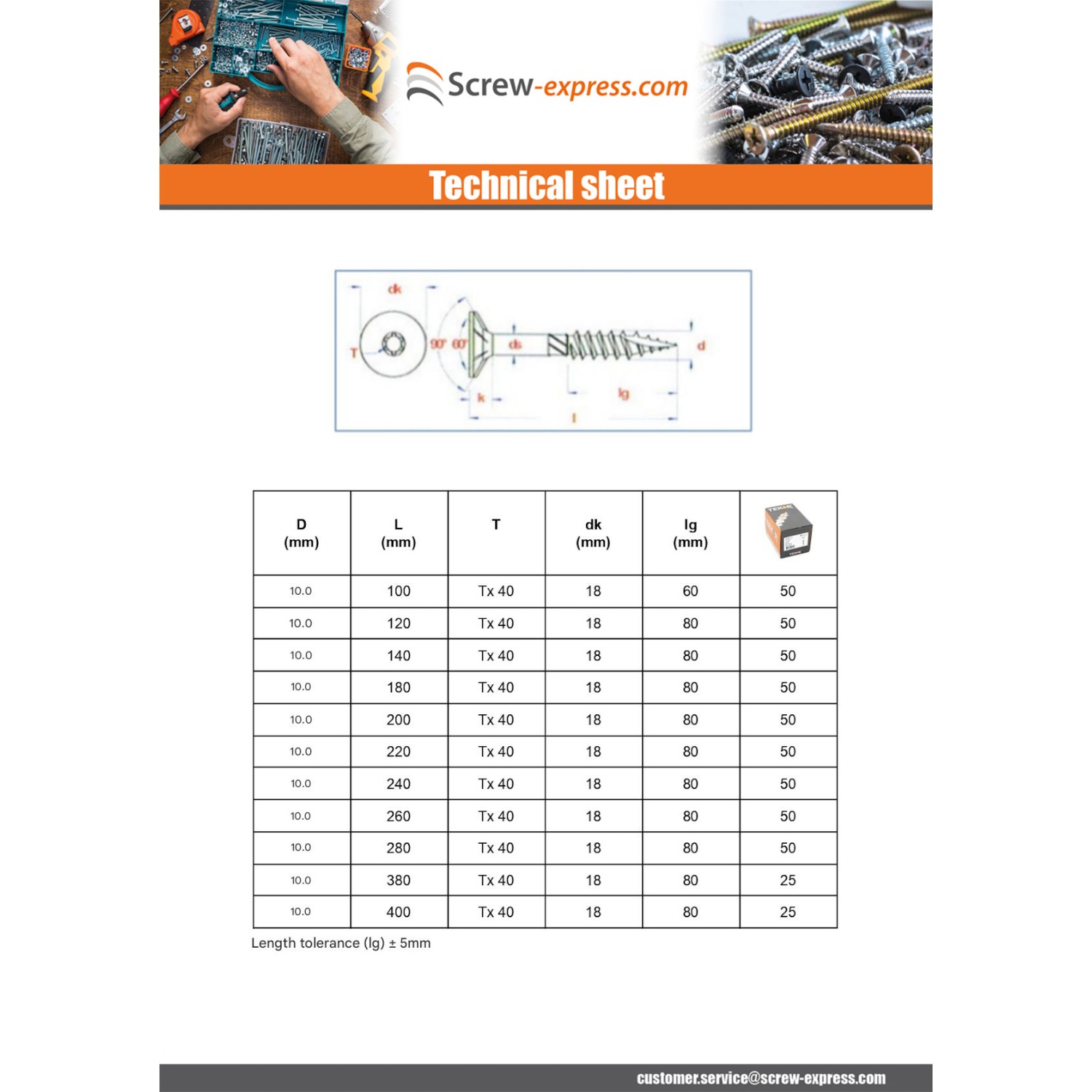

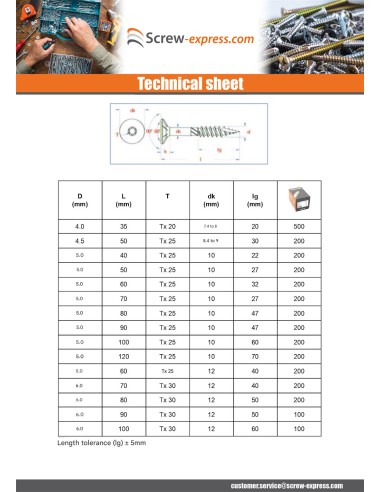

Application: Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces. Timber frame construction: fixing of framing components and bracing. Assembly of pergolas, carports, shelters, timber frames. Fixing of panels to timber structures (OSB/CTBX). TEKOR Timber Screws, Countersunk Head, TORX T25 Drive, 5x120mm, 70mm Thread, Type 17 Anti-splitting Point, Zinc-Plated Steel, Diameter = 5mm, Length = 120mm, Surface Coating = White Zinc Plated, By-Product Family = Countersunk Head, Material = Steel, Drive = Torx, Product Family = Wood Screws, Drive Dimensions = T25, Brand = Tekor. Dimensional Guide (in mm): Diameter 5 6 8 10, Head Diameter 10 12 14 18. Other references: 3617500791580 34565 VISBOIS.5X12 3663072195776

Application: Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces. Timber frame construction: fixing of framing components and bracing. Assembly of pergolas, carports, shelters, timber frames. Fixing of panels to timber structures (OSB/CTBX). TEKOR Timber Screws, Countersunk Head, TORX T25 Drive, 5x120mm, 70mm Thread, Type 17 Anti-splitting Point, Zinc-Plated Steel, Diameter = 5mm, Length = 120mm, Surface Coating = White Zinc Plated, By-Product Family = Countersunk Head, Material = Steel, Drive = Torx, Product Family = Wood Screws, Drive Dimensions = T25, Brand = Tekor. Dimensional Guide (in mm): Diameter 5 6 8 10, Head Diameter 10 12 14 18. Other references: 3617500791580 34565 VISBOIS.5X12 3663072195776

This is for fixing battens. To make my roof, I put down a layer of plywood, so one layer of plywood, half a batten, a roofing underlayment, half another batten, and the batten. With these thicknesses, I need 120mm screws or nails.

The panels are "ISONAT Multisol 110 - Wood fiber insulation panel". The panels are 80mm thick and measure 1.25m by 0.6m. These screws will be used to fix rigid wood insulation panels to the roof rafters as part of an interior roof insulation project.

screwing boards Tekor screw head

create a fence With point p

Fixing 25mm Douglas fir cladding to a timber frame TEKOR 5x120mm zinc-coated steel screws

Aim for rafters on joists

to build a cabin LEROY MERLIN

Using Tektor size 25 framing screws (5x120) to fix 6x8 battens for the purpose of building a canopy Tektor T25 screws (5x120)

rafter fixing 6x4 rafter

Construction of a joist system Fixing 22mm thick OSB boards for the construction of a floor

Joist installation Fixing 22mm thick OSB boards for the construction of a floor

Furring strip fixing for support against BA 13 partition wall Sixbox OB17 fixing + 38mm long spacer onto which the furring strip will be clipped

Screwing timber frame Interior walls

Installation of insulation on rafters, fixing of counter battens

Aviary panel Size 2.00 x 1.00

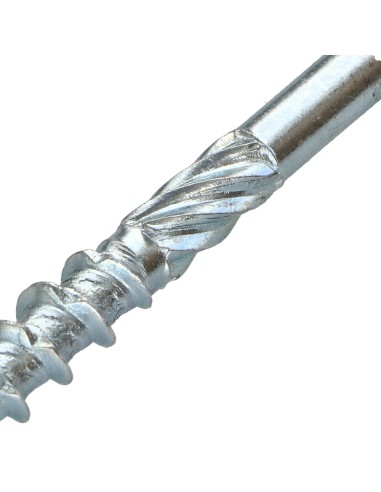

Anti-splitting timber screw TEKOR timber screw, T-shaped, with TF screw, TORX T25, 5x120 thread, 70mm pitch, anti-splitting point type 17, zinc-plated steel

Frame fixing 63/75 rafter fixing of 4 meters on beams to support Tolganor brand steel trays

Spacer beam fixing for flooring

Wood structure assembly TEKOR frame screw Countersunk head TF TORX T25 5X120 slot Thread e over 70 Anti-splitting tip cut type 17 Steel

Fixing against batten and insulation on MOB ISONAT AND ROTHOBLASS

screws for flooring and frame manufacturing carpenter screws 6x120/140 and 160

Double batten fixing + 35mm thick wood fiber

Fixing boards (backboards) Douglas in 15 x 300 cm

they will be used to assemble the stacked beams of my wooden house TORX T30 6X180 countersunk head framing screws

These screws will be used to assemble the stacked beams of my wooden house. They are TORX T30 6X180 countersunk head framing screws.

hangar frame assembly rafter fixing

for partitions Fixing for wooden and OSB frame partitions covered with gyproc board

Very good quality screws Use for all types of wooden frames

Fixing against joists 6x8 rafter
