2040140002_1
In stock 275 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €4.25 €19.35 €77.40 €193.50

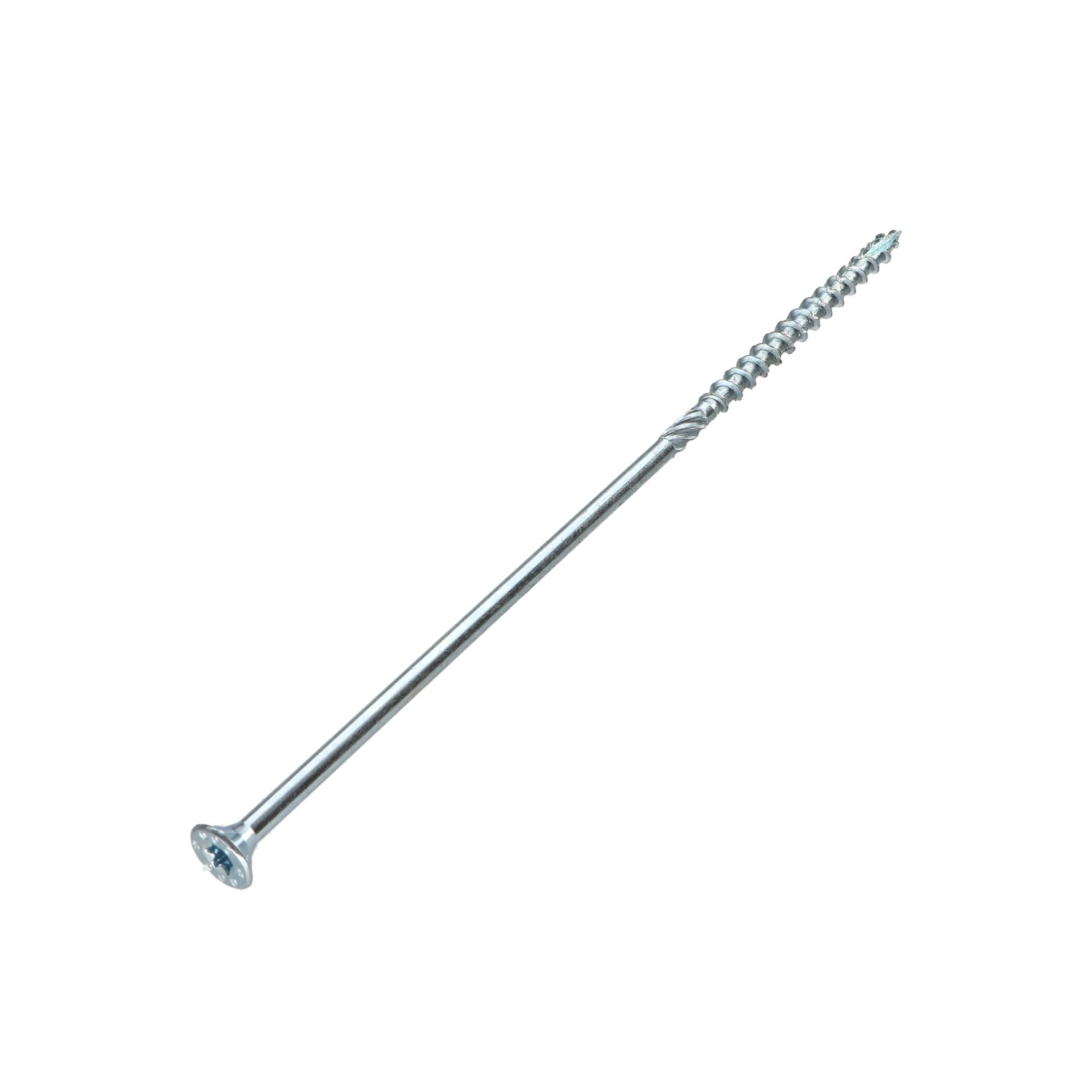

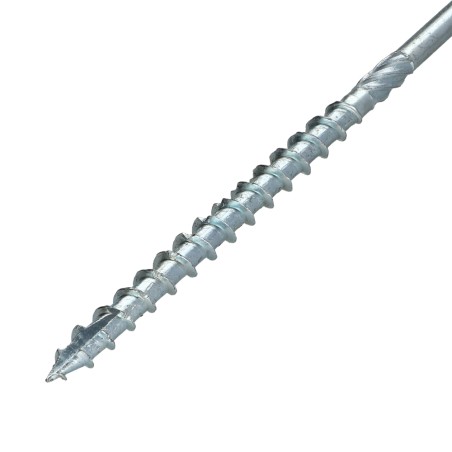

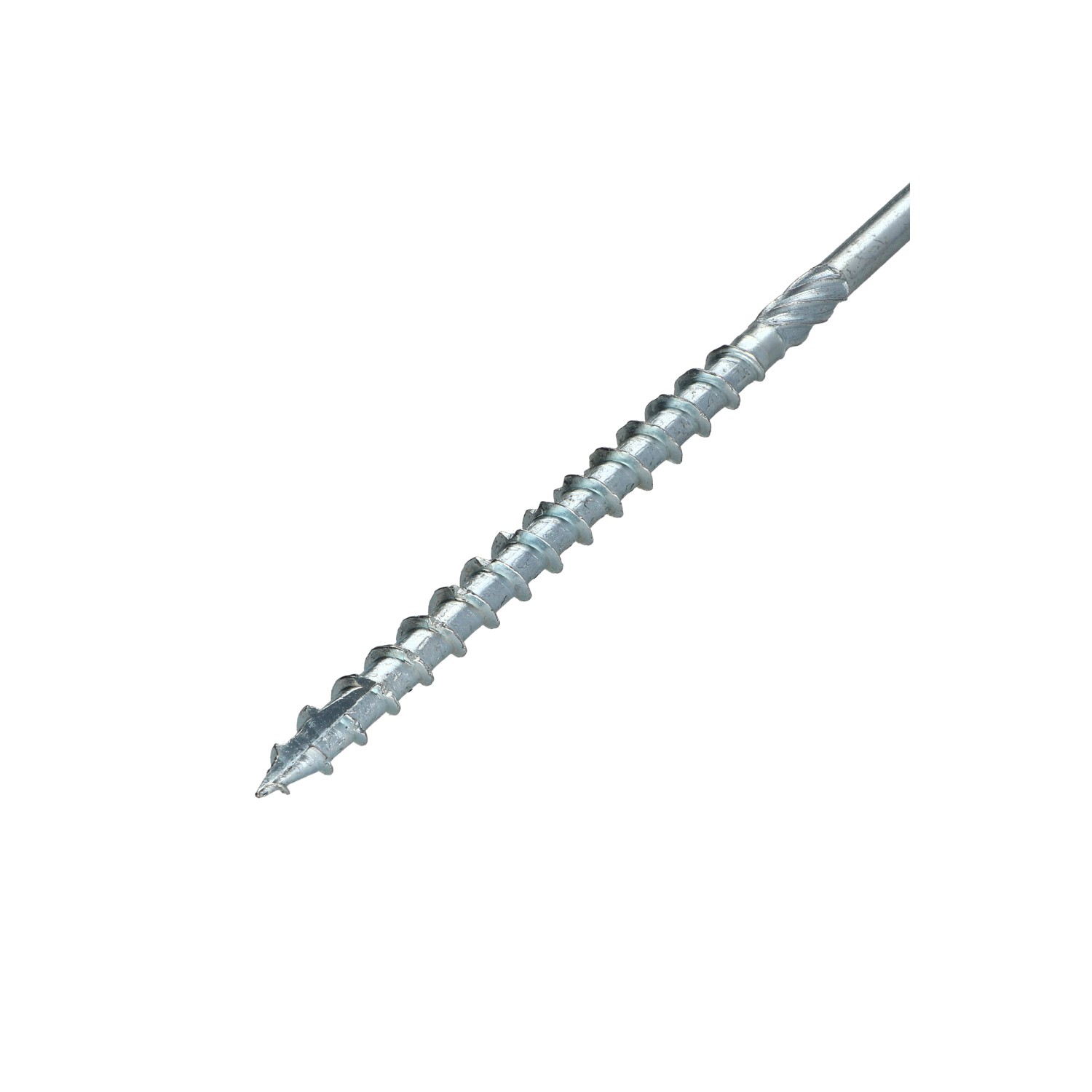

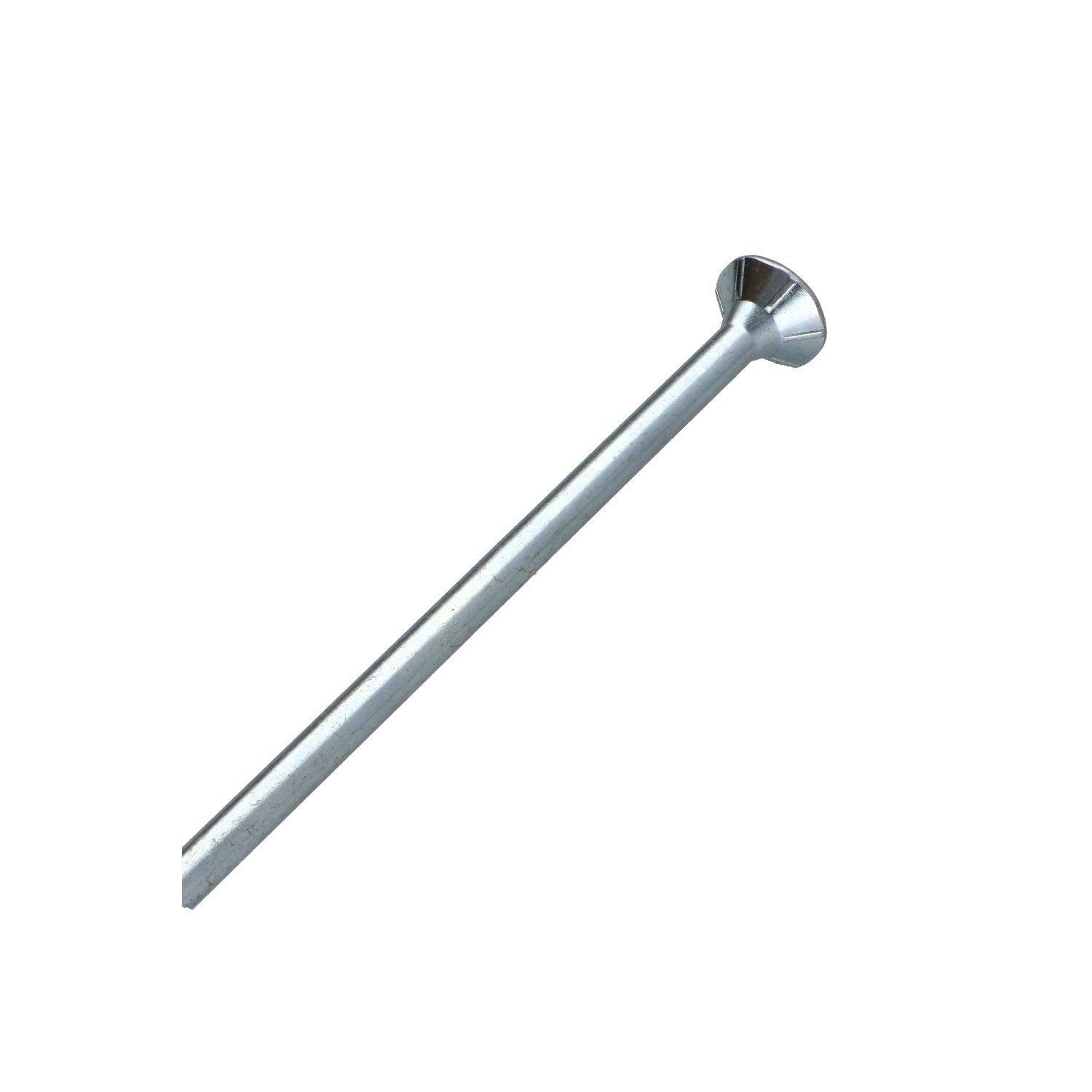

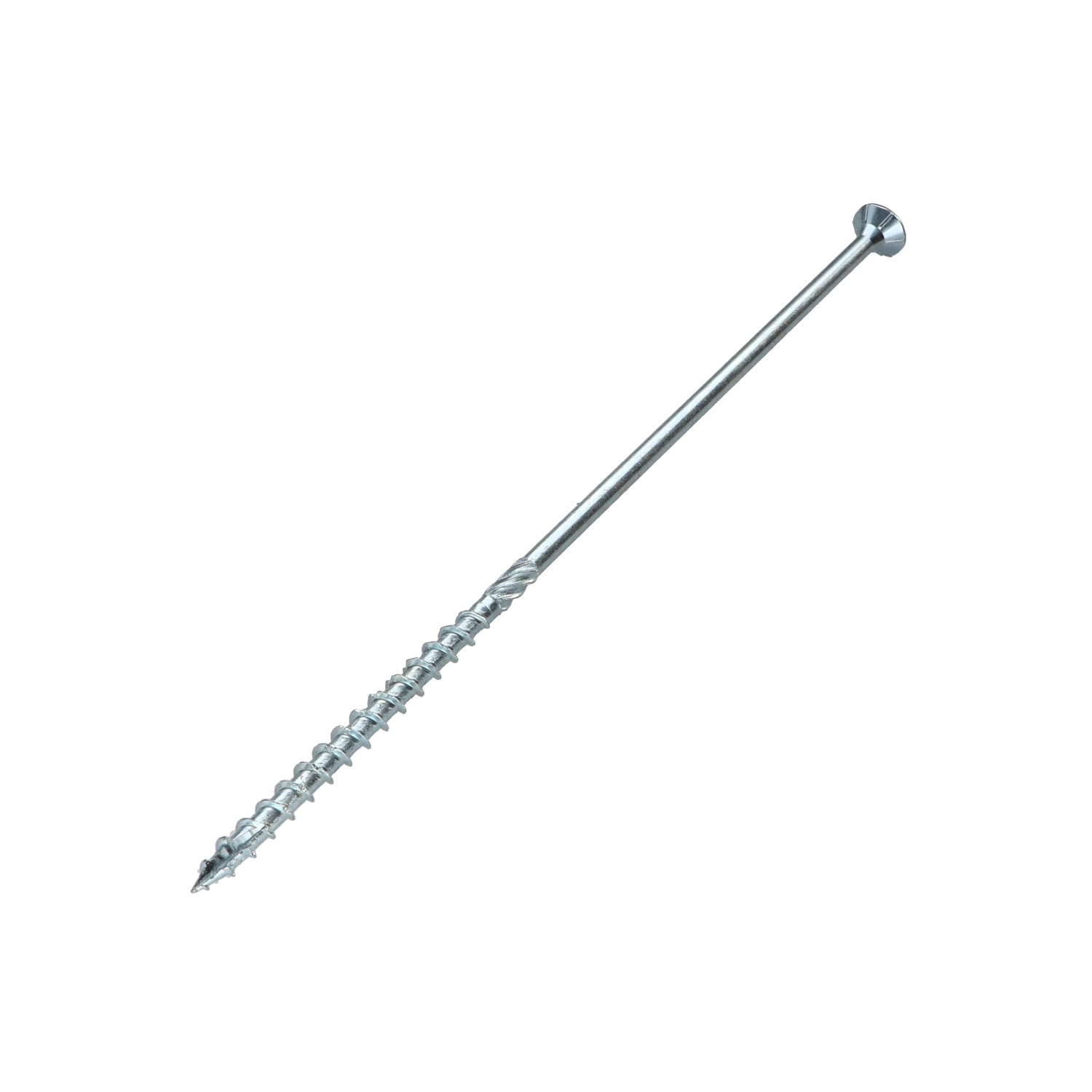

Framing screws TEKOR Countersunk Head With Serration T40 10X400 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
10
Length
400
Drive Type
Torx
Size Drive Type
T40
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Brand
Chipboard Screw Tekor
Product Family
Wood Screws
Sub product family
Countersunk Head
Tip
Drilling Point Type 17
Unit weight
125.2 GR
275 Items
3663072244689

Application

  • Structural timber assemblies / light framing: rafters, purlins, joists, frame studs, reinforcements, braces
  • Timber frame construction: fixing of frame components and bracing
  • Assembly of pergolas, carports, shelters, wooden frames
  • Fixing panels to a wooden structure (OSB/CTBX)
Framing screws TEKOR Countersunk Head With Serration T40 10X400 Thread Length: 80 cut Type 17 Drilling Point Zinc Plated
Diameter = 10, Length = 400, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T40, Brand = Chipboard Screw Tekor


dimensional guide (mm)
Diameter 5 6 8 10
Head diameter 10 12 14 18

Other Reference : 8032975251301 3663072244689
GAEC S. (vis-express.fr)
2026-03-22

purlin installation on truss 200*100 purlin on wooden truss
