1 x Carriage Bolt Stainless Steel A2 M10X140 Partial Thread

8414111418_1
In stock 2051 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €4.25 €8.45 €22.85 €57.10

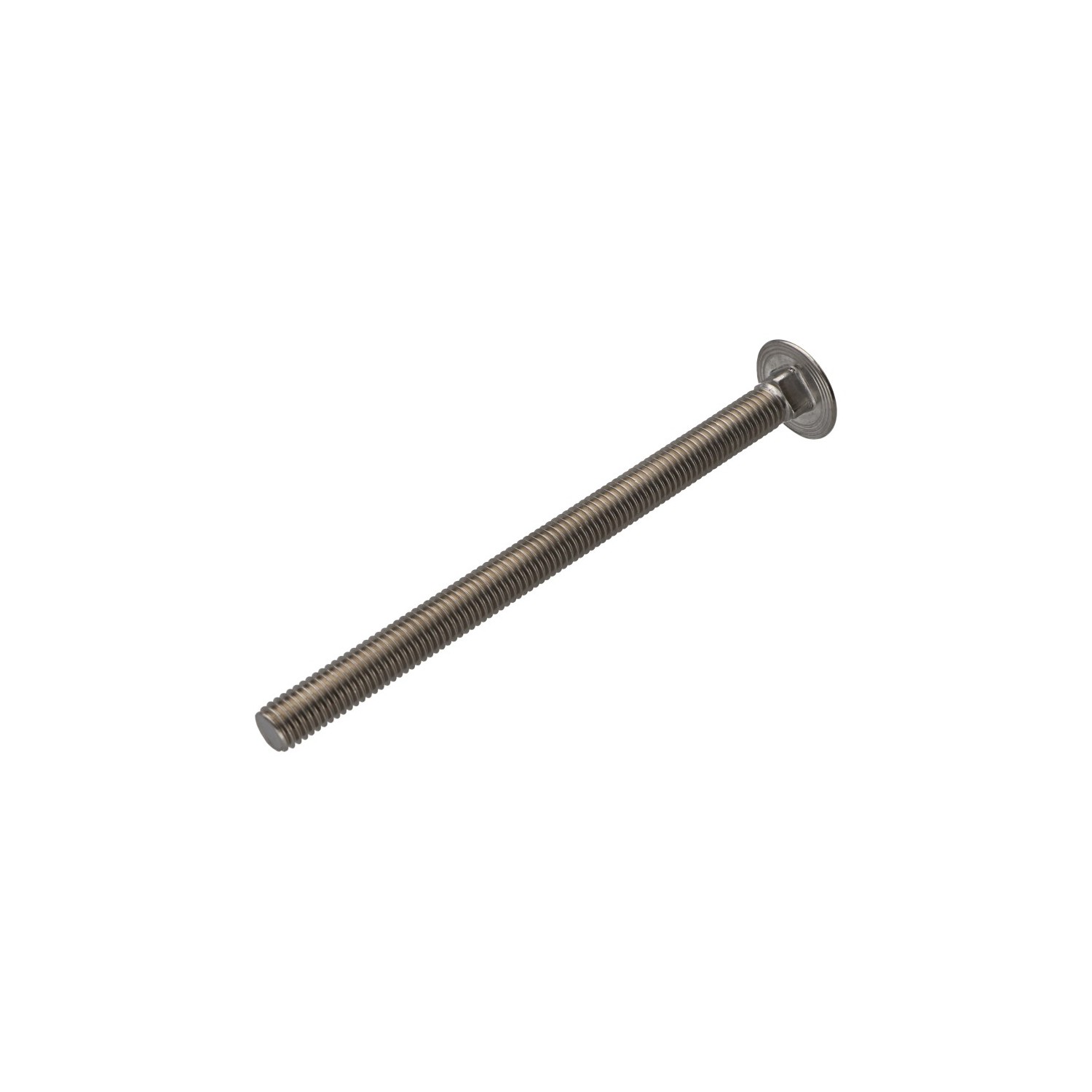

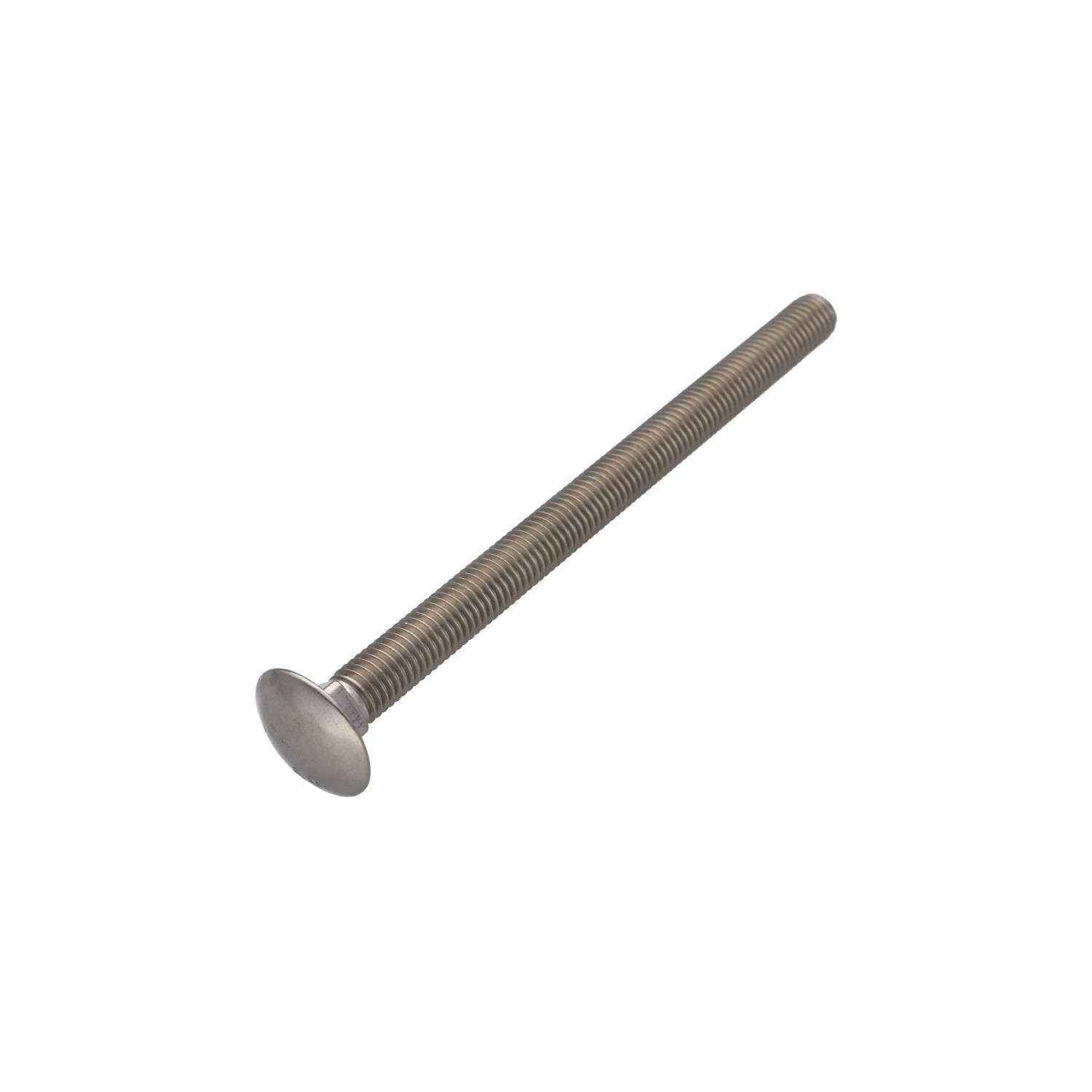

DIN 603 - Carriage Bolt Stainless Steel A2 M10X140 Partial Thread
MARTRCC
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
140
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 603
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
84 GR
2051 Items
3663072224926
Carriage Bolt Stainless Steel A2 M10X140 Partial Thread
Diameter = M10, Length = 140, Material = Stainless Steel A2, Pitch = Standard pitch 150, Norm = DIN 603

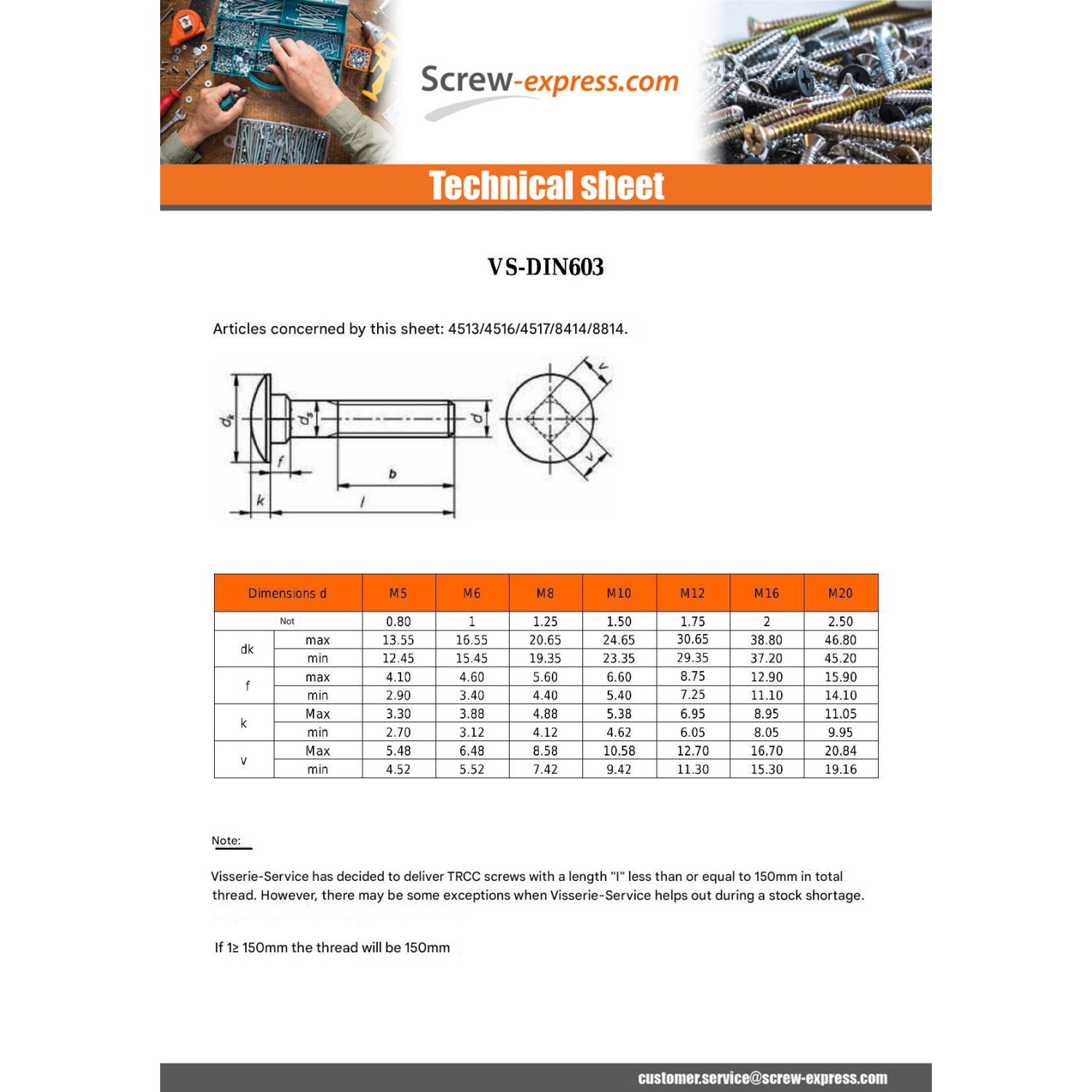

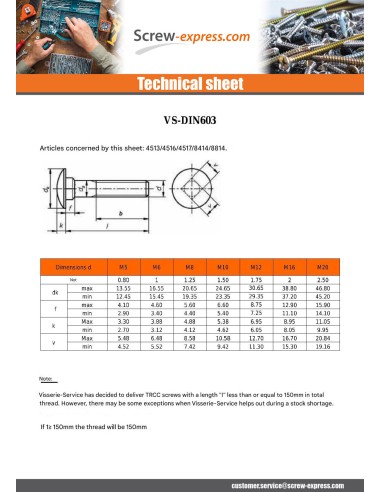

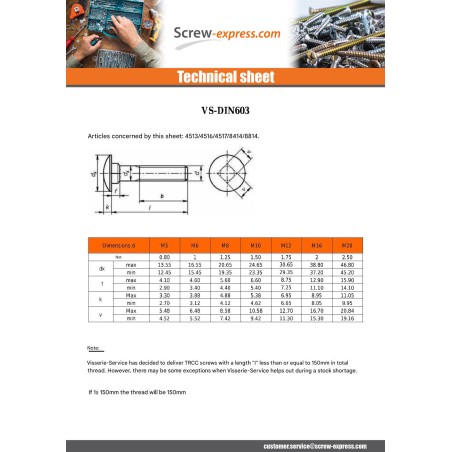

dimensional guide (mm)
Diameter 5 6 8 10 12
Head diameter 13.5 16.5 20.5 24.5 30.5
Head Tickness 3.3 3.9 5 5.4 7

Other Reference : 6221310X140 TRCC.M10X140 VTRCC10*140 730520047 730520047 730520047 730520047 730520047 730520047 730520047 730520047 730520047 730520047 730520047 730520047 TRCC_10_140_ 3663072224926
