8414810018_1
In stock 2509 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included £1.61 £3.21 £6.16 £15.40 £56.06

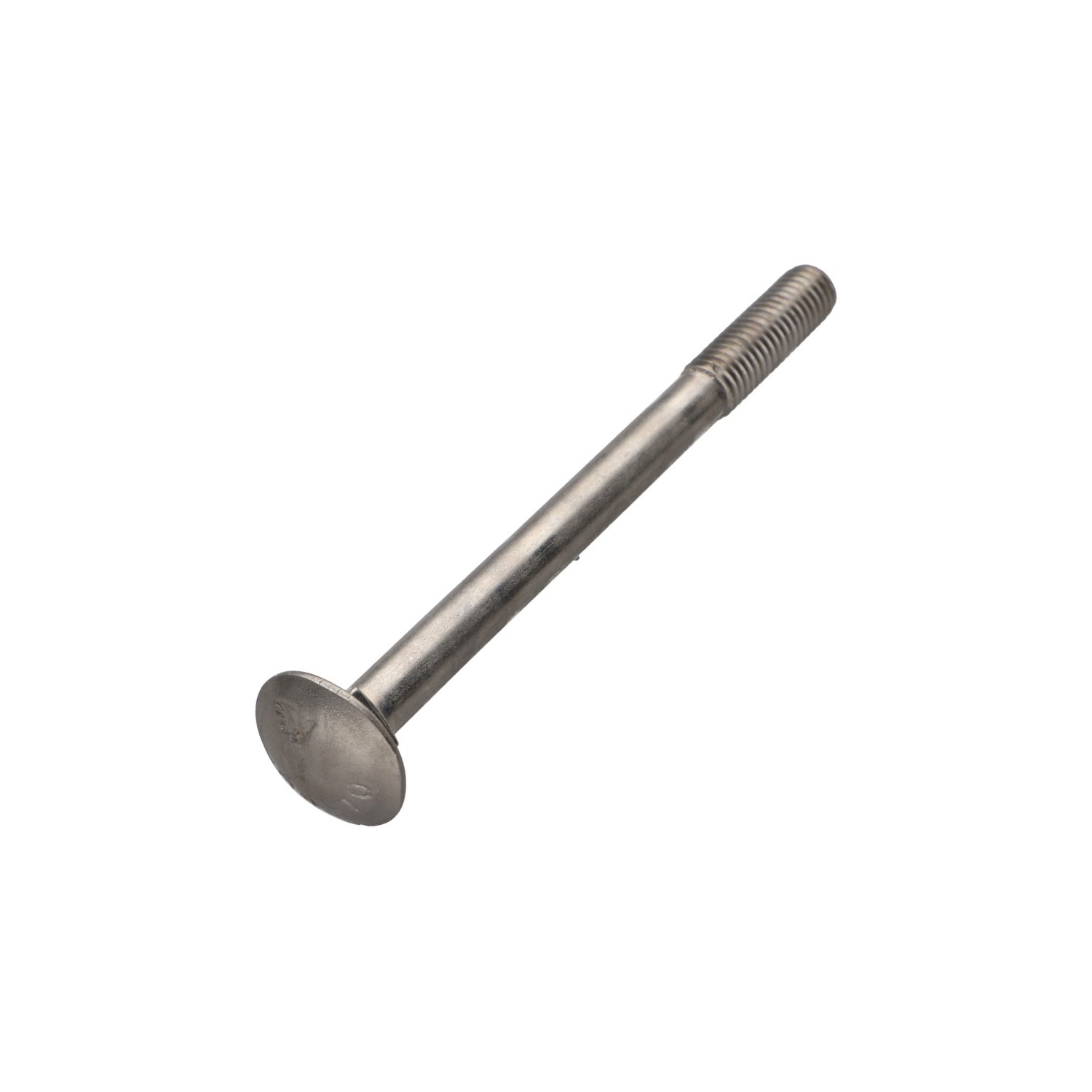

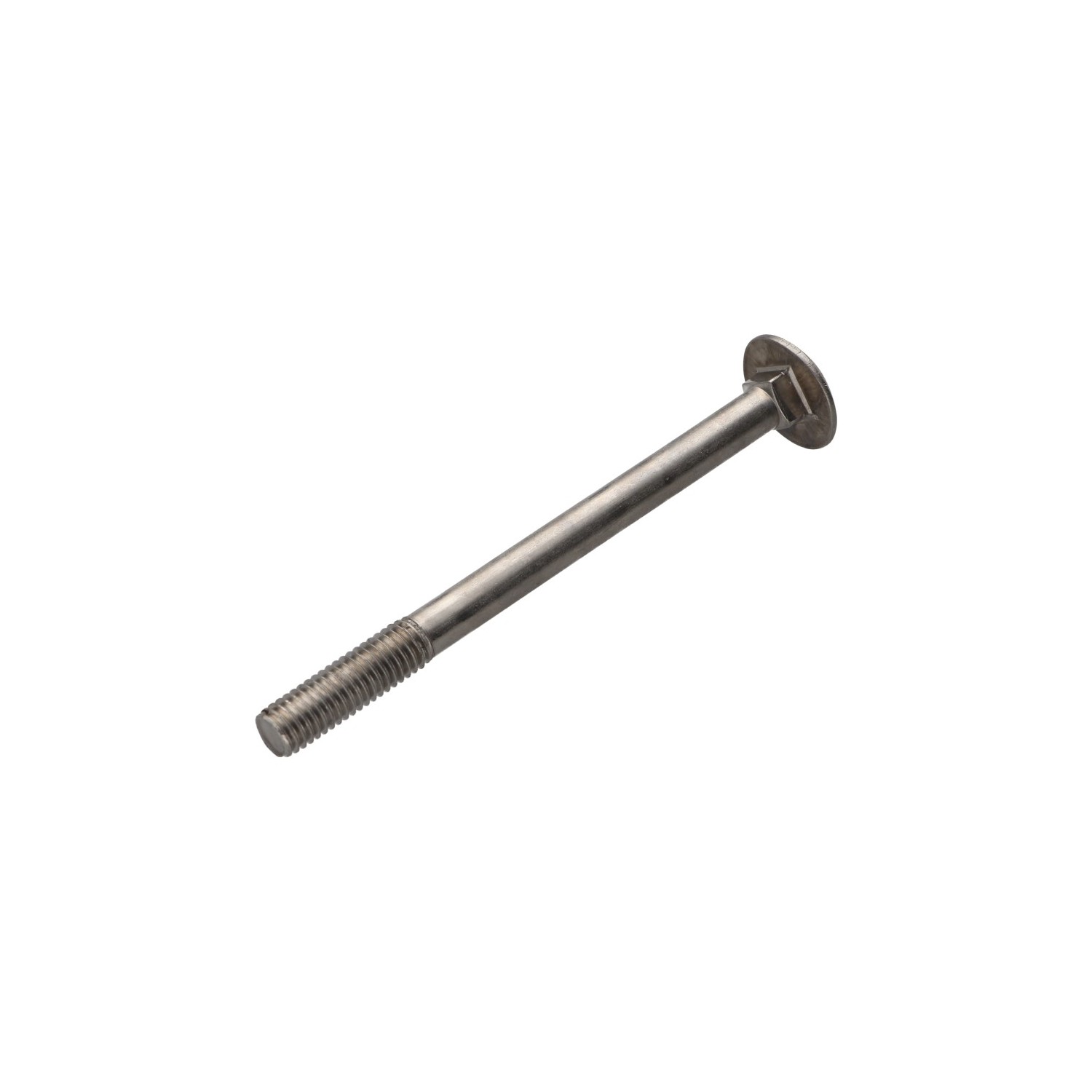

DIN 603 - Carriage Bolt Stainless Steel A2 M8X100 Partial Thread
MARTRCC
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

2509 Items
3663072163157
Carriage Bolt Stainless Steel A2 M8X100 Partial Thread
Diameter = M8, Length = 100, Material = Stainless Steel A2, Pitch = Standard pitch 125, Norm = DIN 603

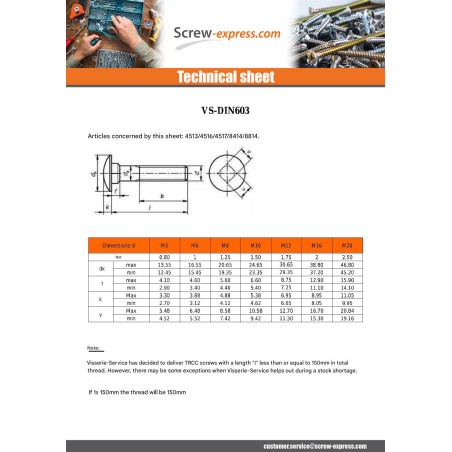

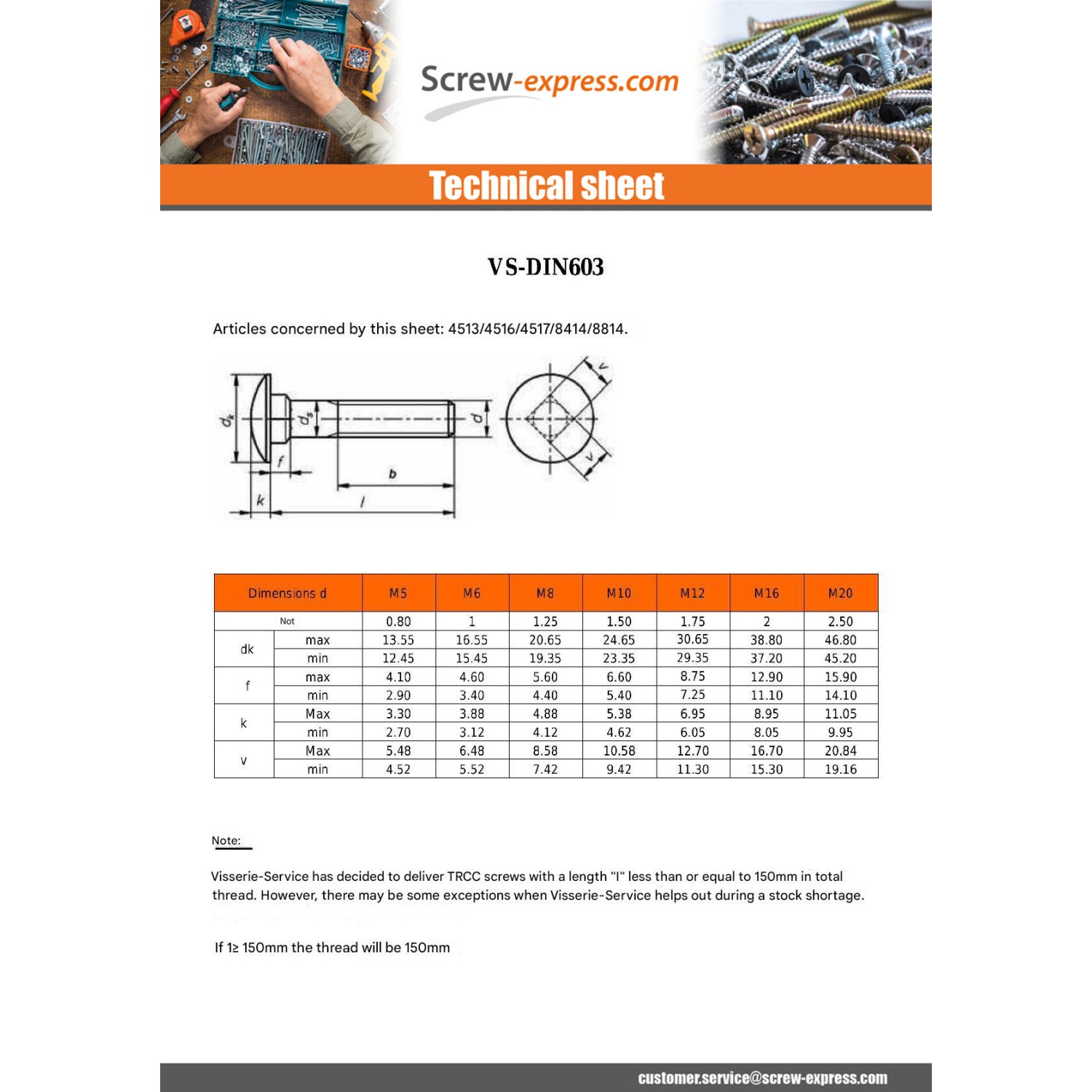

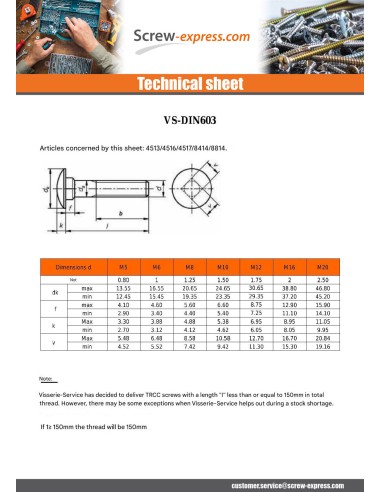

dimensional guide (mm)
Diameter 5 6 8 10 12
Head diameter 13.5 16.5 20.5 24.5 30.5
Head Tickness 3.3 3.9 5 5.4 7

Other Reference : 622138X100 A00002406 Y5K07156 603A208100 3339 730520060 730520060 730520060 730520060 730520060 730520060 730520060 730520060 730520060 730520060 730520060 730520060 0FIX200436 624314 VISTRCC8X100 3663072163157
Thierry D. (vis-express.fr)
2026-09-13

Used for fixing a plank trim to a sliding gate A2 stainless steel choice for greater durability and to prevent rust stains


Maxime B. (vis-express.fr)
2026-08-30

garden bench antique cast iron garden bench leg fixing


tanguy L. (vis-express.fr)
2026-07-26

post fixing dimensions 9x9


Bertrand B. (vis-express.fr)
2026-04-05

I'm going to use these screws for a garage service door. The door is held by hinges and counter-hinges thanks to these screws.


François M. (vis-express.fr)
2026-04-05

Assembling wooden planks with end joints. The wooden planks are acacia, for making a vegetable garden. Lifespan 40 years, therefore stainless steel is required.
