8414811218_1
In stock 6123 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included €1.70 €3.40 €9.70 €24.25 €97.00

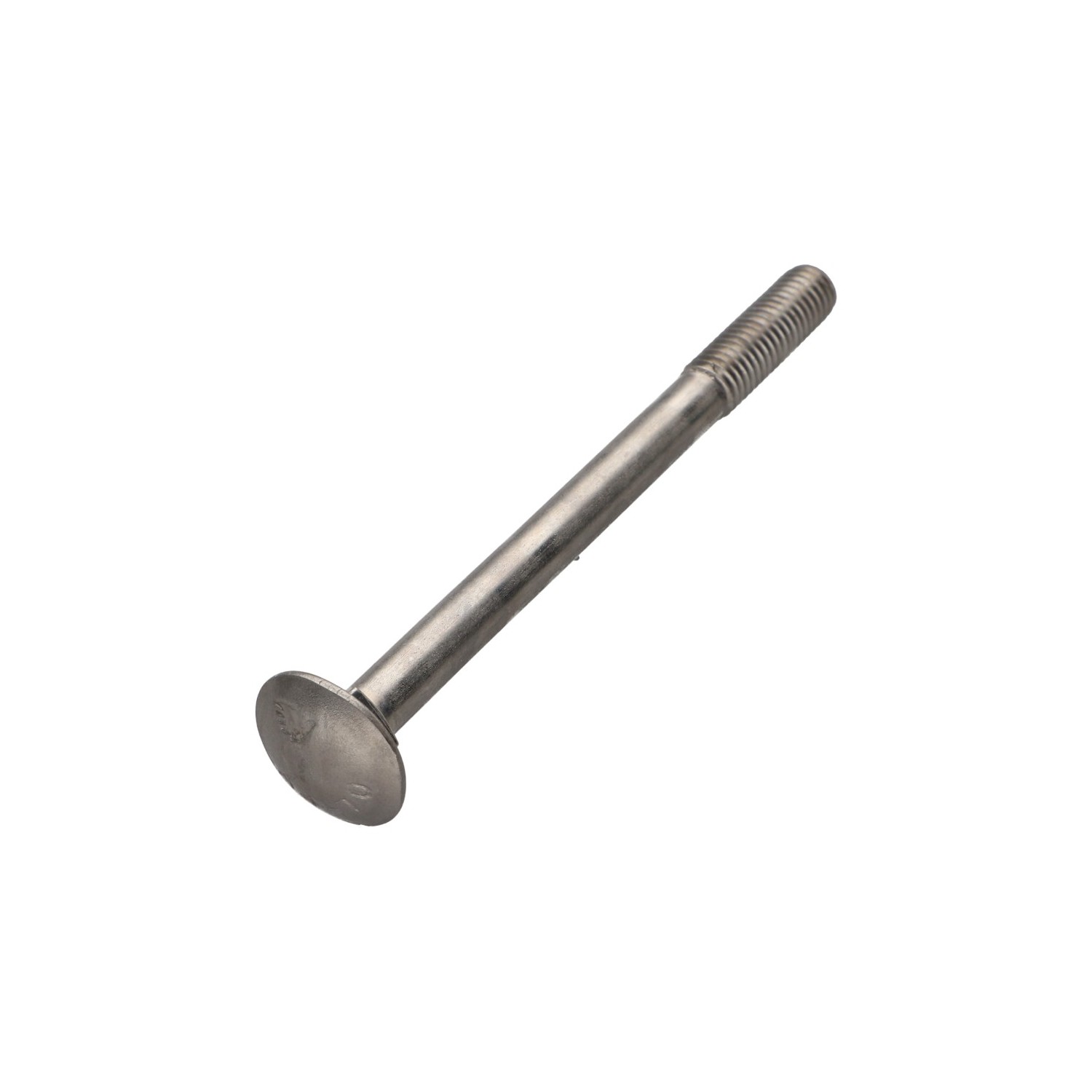

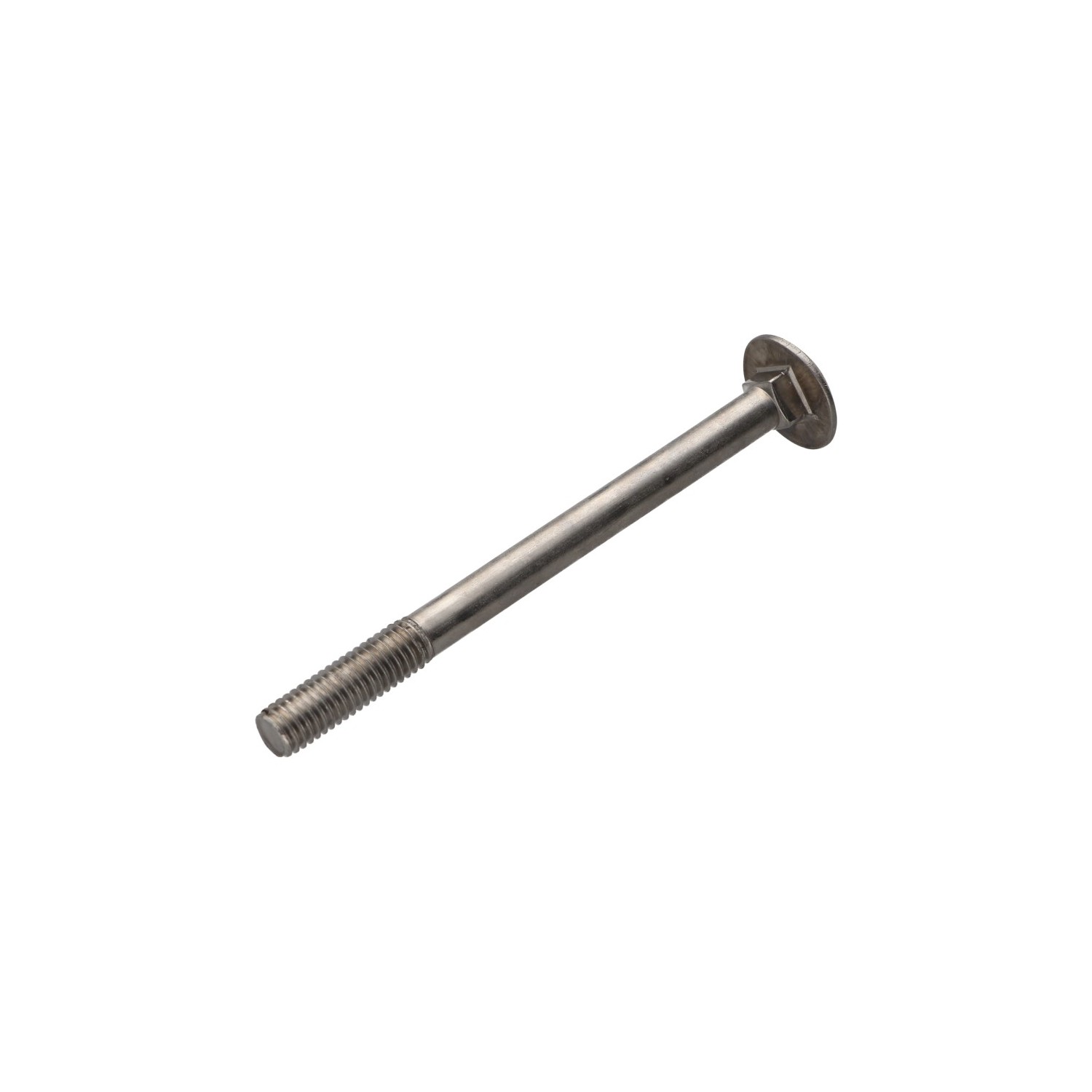

DIN 603 - Carriage Bolt Stainless Steel A2 M8X120 Partial Thread
MARTRCC
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
120
Thread
Partial Thread
Pitch
Standard pitch 125
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 603
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
52.8 GR
6123 Items
3663072163171
Carriage Bolt Stainless Steel A2 M8X120 Partial Thread
Diameter = M8, Length = 120, Material = Stainless Steel A2, Pitch = Standard pitch 125, Norm = DIN 603

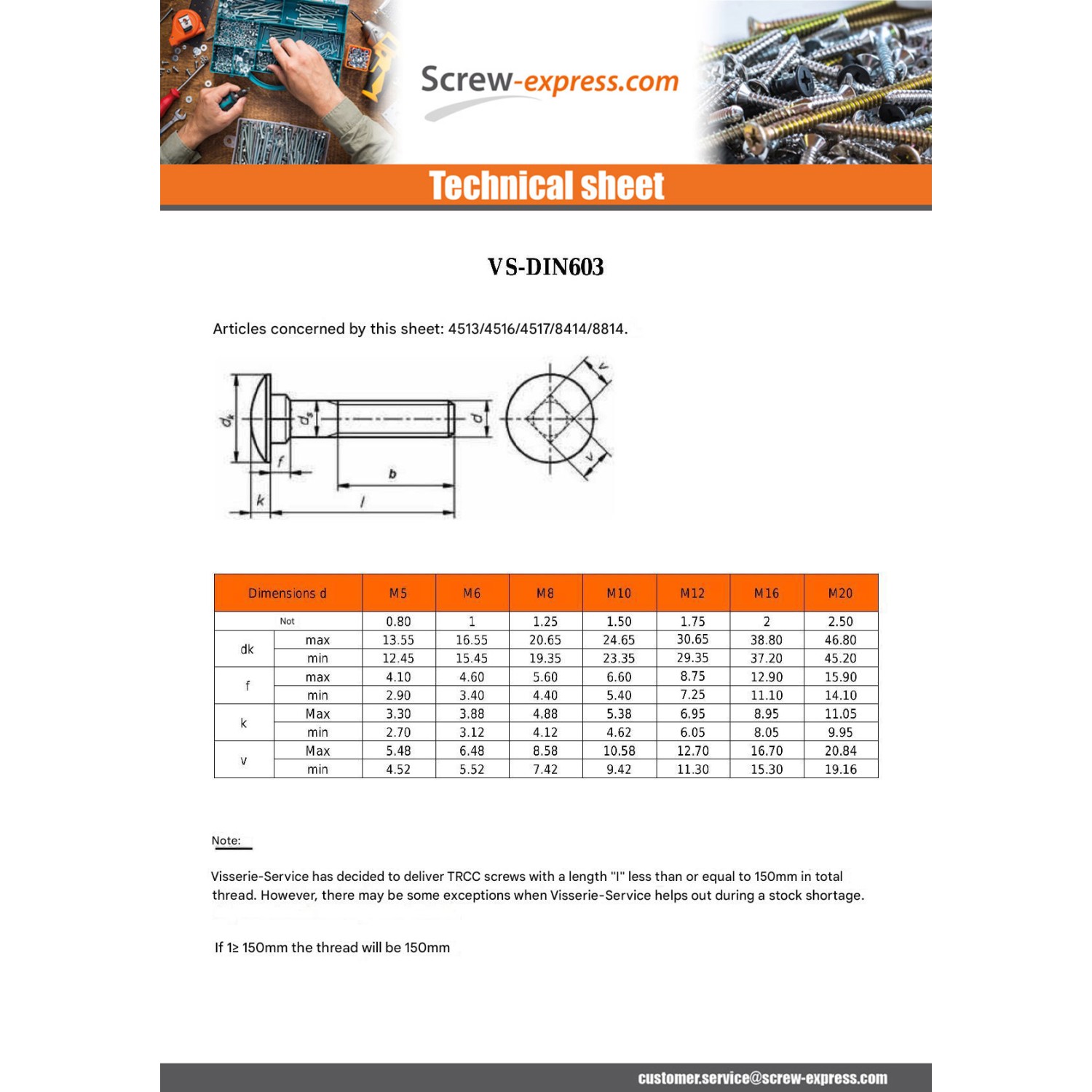

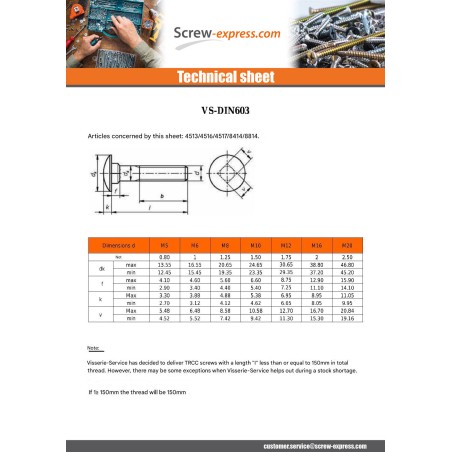

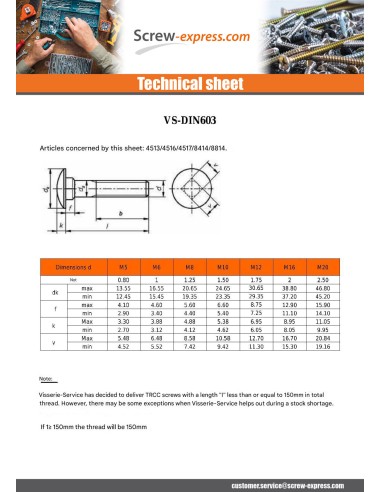

dimensional guide (mm)
Diameter 5 6 8 10 12
Head diameter 13.5 16.5 20.5 24.5 30.5
Head Tickness 3.3 3.9 5 5.4 7

Other Reference : 622138X120 QV-062 TRCC_8_120_I 3663072163171
Simon M.
2026-06-02

Used for making showjumps fixing 2x6 inch timber to 4 inch posts with lap joint and recessed nut head
