1 x Carriage Bolt Stainless Steel A2 M10X120 Partial Thread

8414111218_1
In stock 9307 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50 200
Lot price VAT included £1.48 £2.95 £11.67 £26.64 £106.47
DIN 603 - Carriage Bolt Stainless Steel A2 M10X120 Partial Thread
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M10
Length
120
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 603
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
82.3 GR
9307 Items
3663072162440
Carriage Bolt Stainless Steel A2 M10X120 Partial Thread
Diameter = M10, Length = 120, Material = Stainless Steel A2, Pitch = Standard pitch 150, Norm = DIN 603

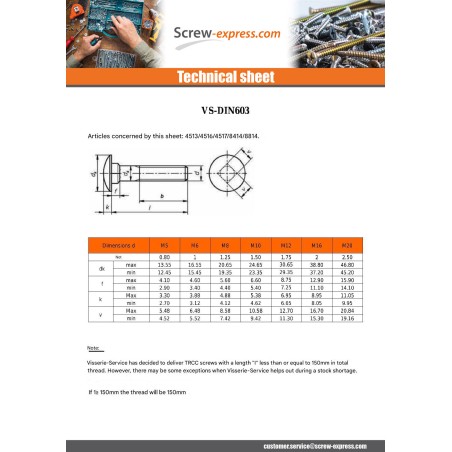

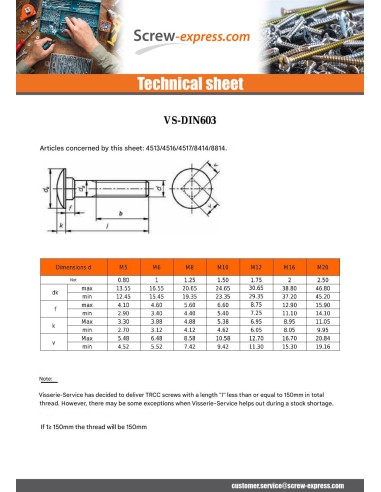

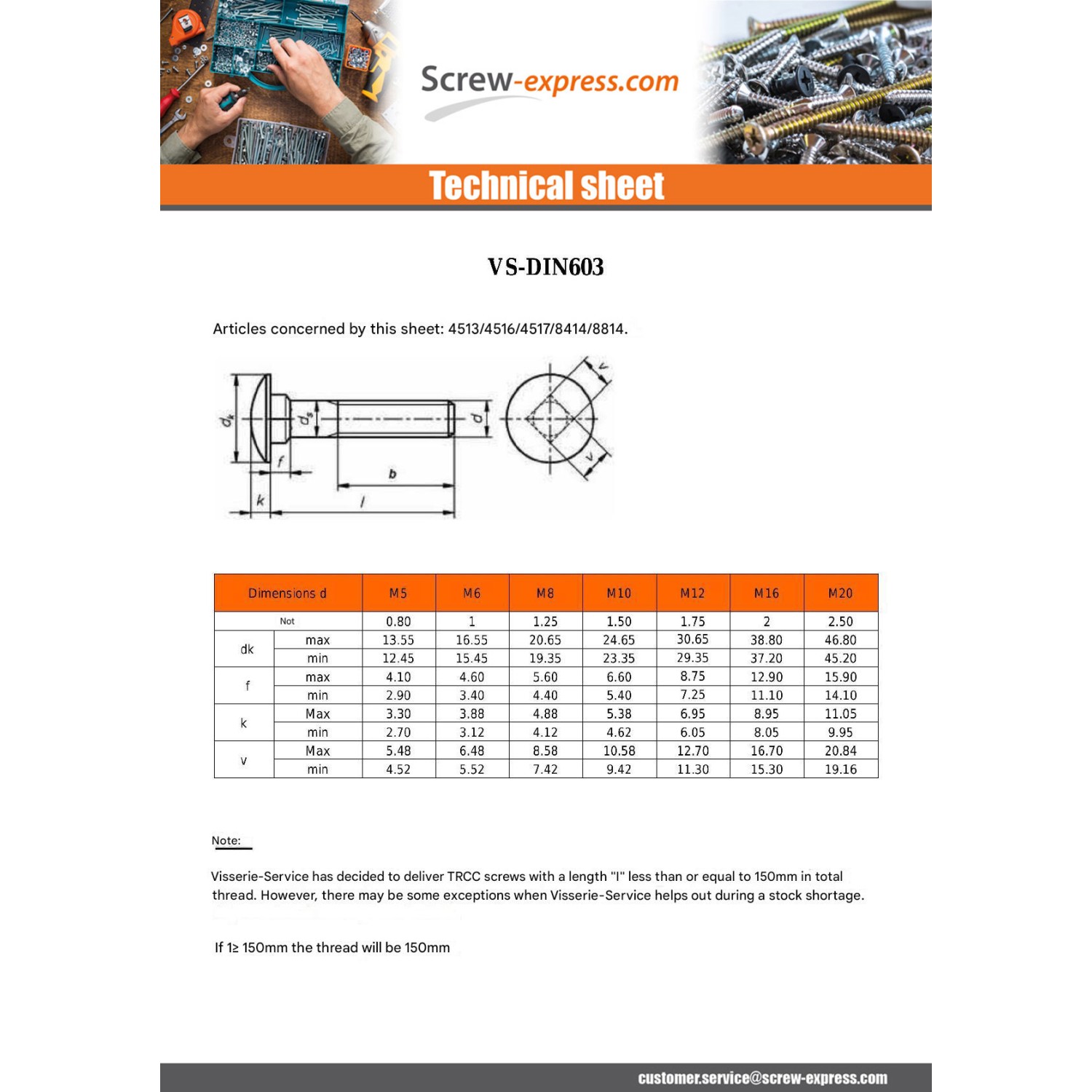

dimensional guide (mm)
Diameter 5 6 8 10 12
Head diameter 13.5 16.5 20.5 24.5 30.5
Head Tickness 3.3 3.9 5 5.4 7

Other Reference : 6221310X120 TRCCM10X120I VTRCC10*120 MVISINO00067 QV-050 TRCC_10_120_ 3663072162440
PHILIPPE P. (vis-express.fr)
2025-08-17

use to give a padded appearance to a wooden door I use INOX because the door is made of Douglas pine and this wood stains when rust is present


Alain V. (vis-express.fr)
2024-09-22

English fixing of wooden posts in wooden terrace M10 X 120 lag screw with M10 lock nut and M10 washer. A2 stainless steel


PATRICK D. (vis-express.fr)
2024-02-25

FOR ROOF REPAIR? IMPLEMENTATION OF SCREWS TO MAINTAIN THE STEEL SHEETS IN THE CASE OF A ROOF REPROOF? IMPLEMENTATION OF SCREWS IN ORDER TO MAINTAIN THE STEEL SHEETS IN THE CASE OF a building, hangar renovation
