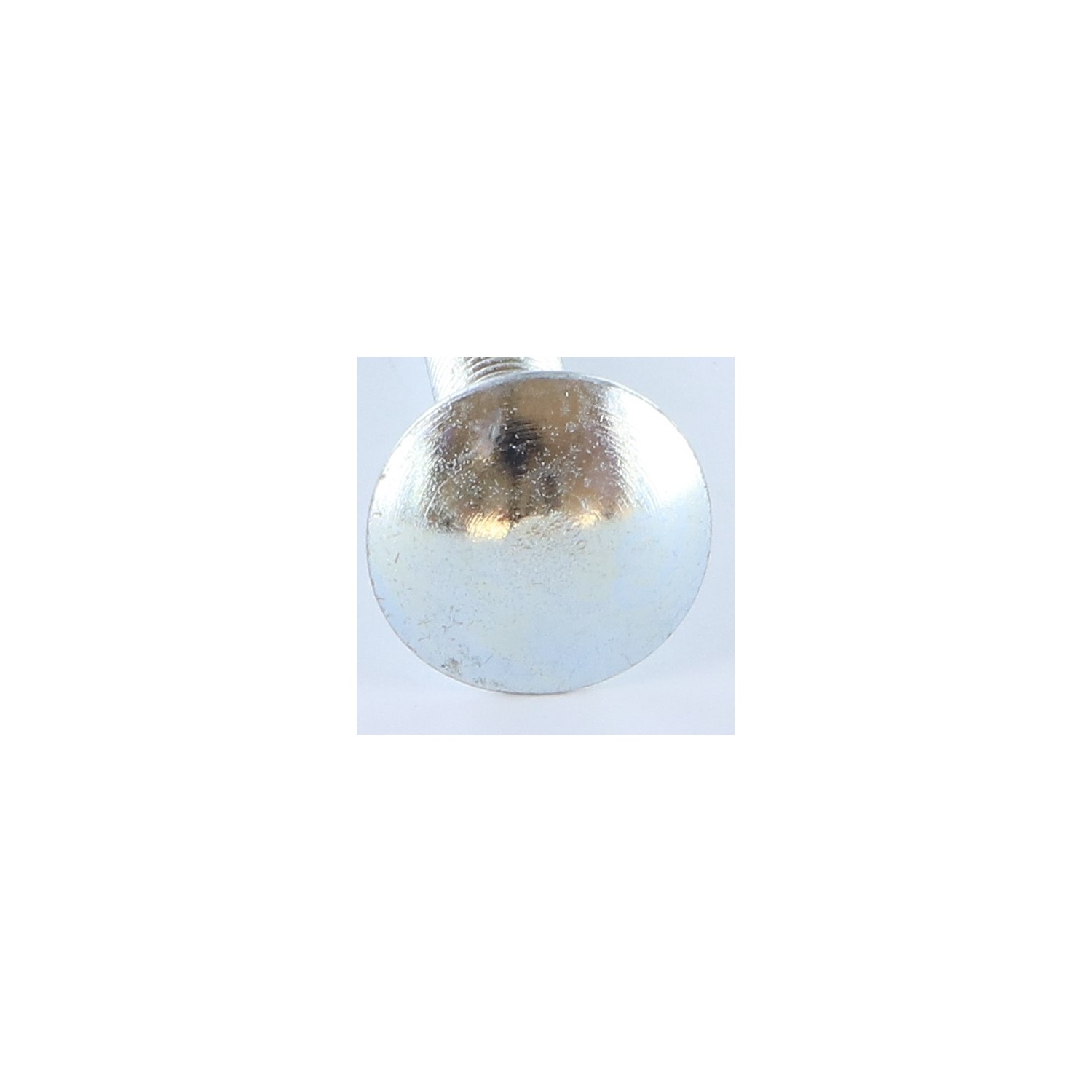

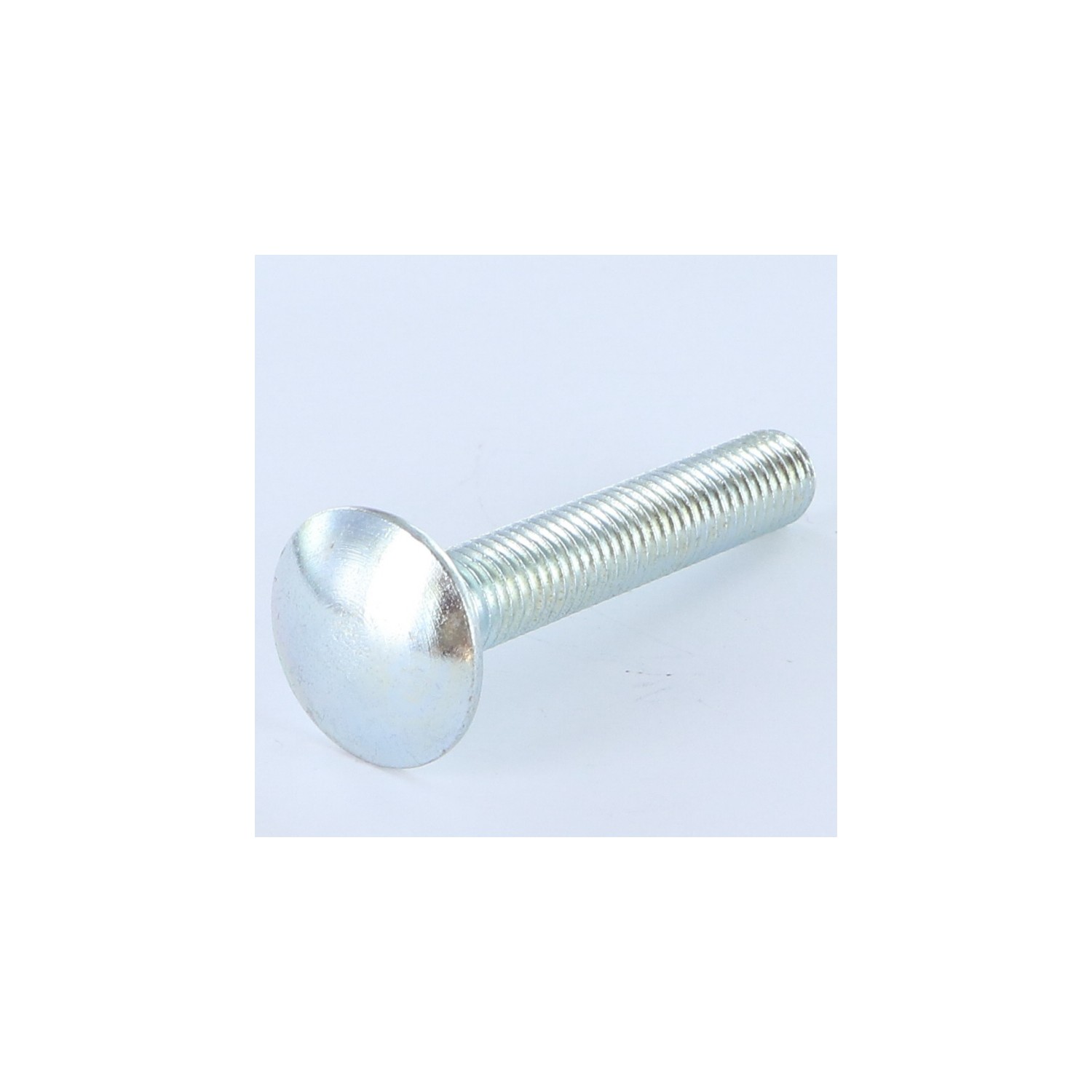

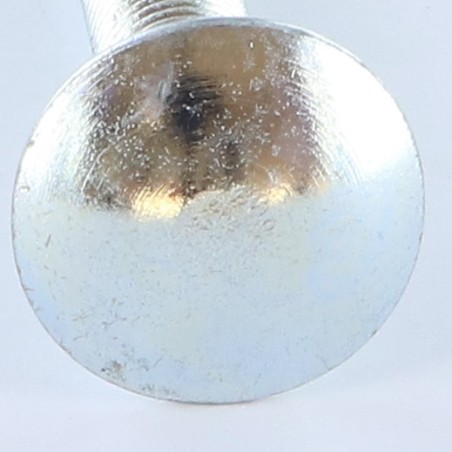

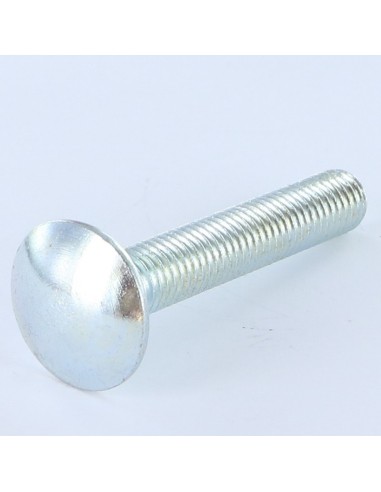

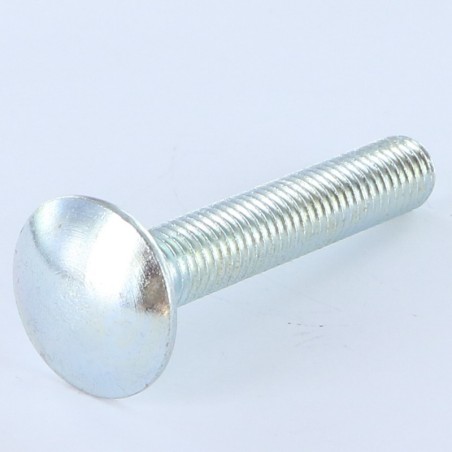

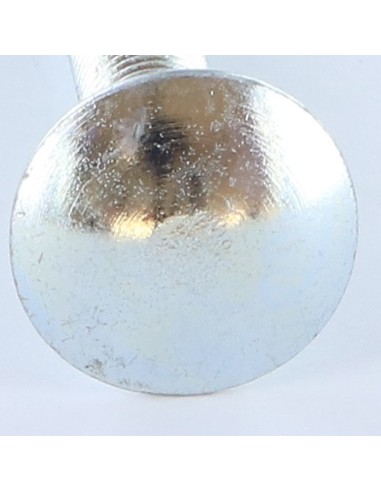

1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated
1 x Carriage Bolt M10X45 Full Thread Zinc Plated

1 x Carriage Bolt M10X45 Full Thread Zinc Plated

4516104502_1
In stock 3 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.34 £6.68 £8.07 £20.35
DIN603 FT VS4516 - Carriage Bolt M10X45 Full Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M10
Length
45
Thread
Full Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
36.3 GR
3 Items
3663072194243
Carriage Bolt M10X45 Full Thread Zinc Plated
Diameter = M10, Length = 45, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Full Thread VS4516

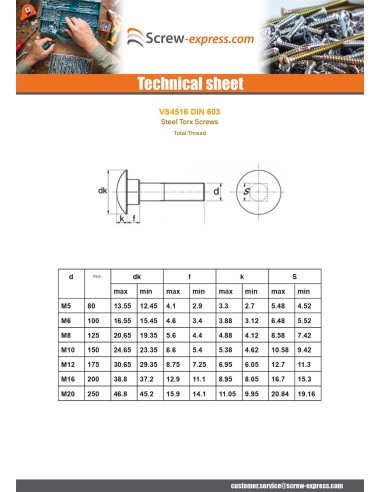

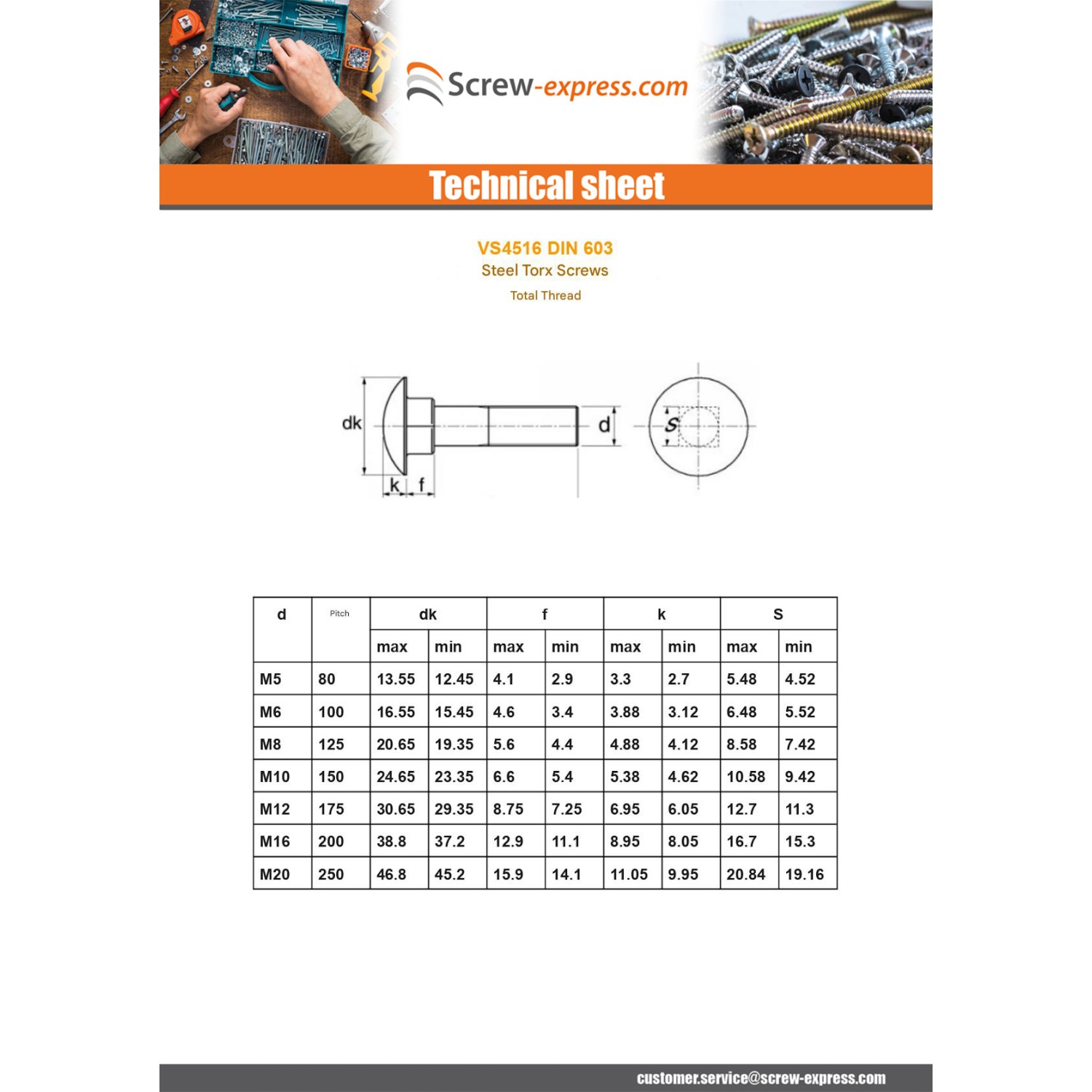

dimensional guide (mm)
Diameter567810121416
Head diameter13.516.51820.524.530.53239
Head Tickness3.33.94.855.47109

Other Reference : 3473571371980 VB053 1000060005 066501 07058120 BO745 VIU0010045 AEJAPY1045 VB053 VIU0010045 104458 104458 3663072194243
