4516504502_1
In stock 34104 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.69 £7.33 £8.85 £9.55

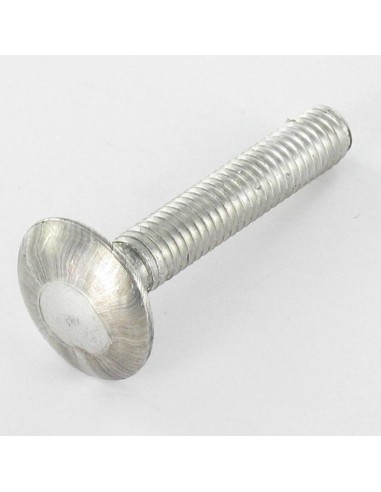

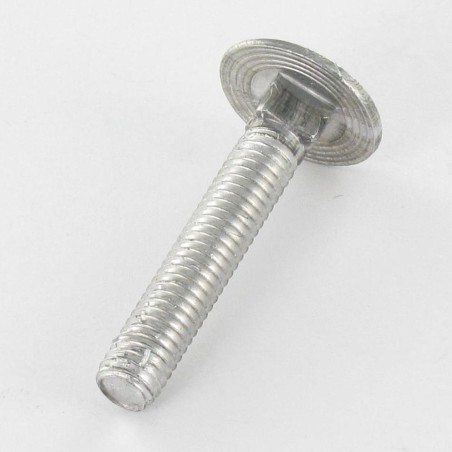

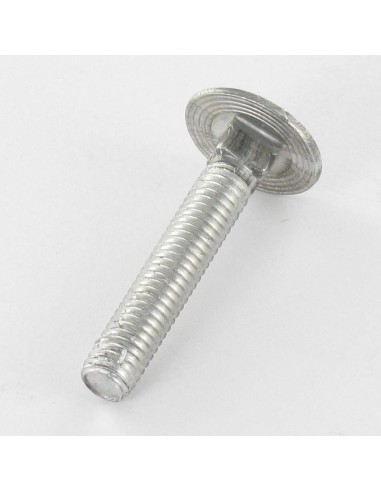

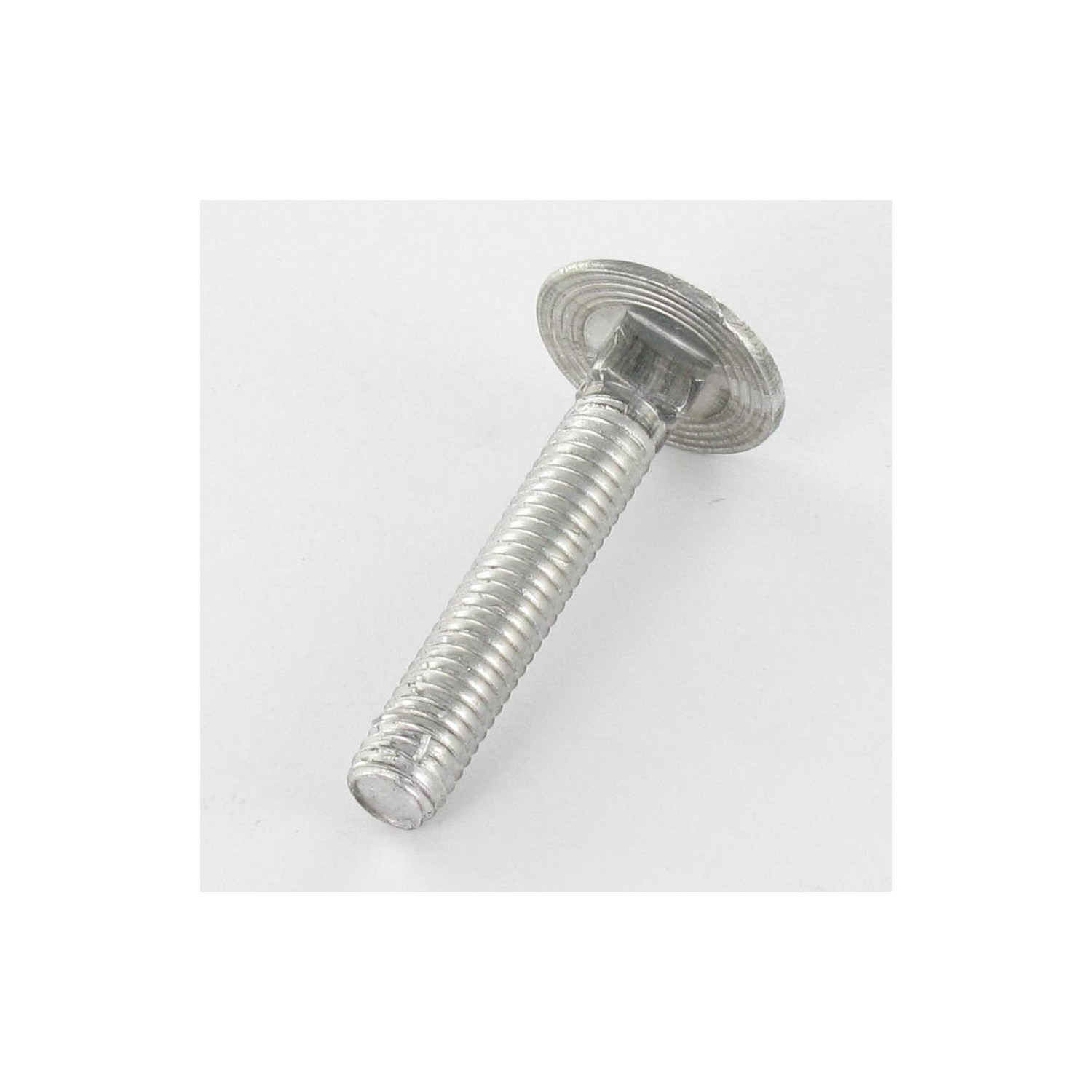

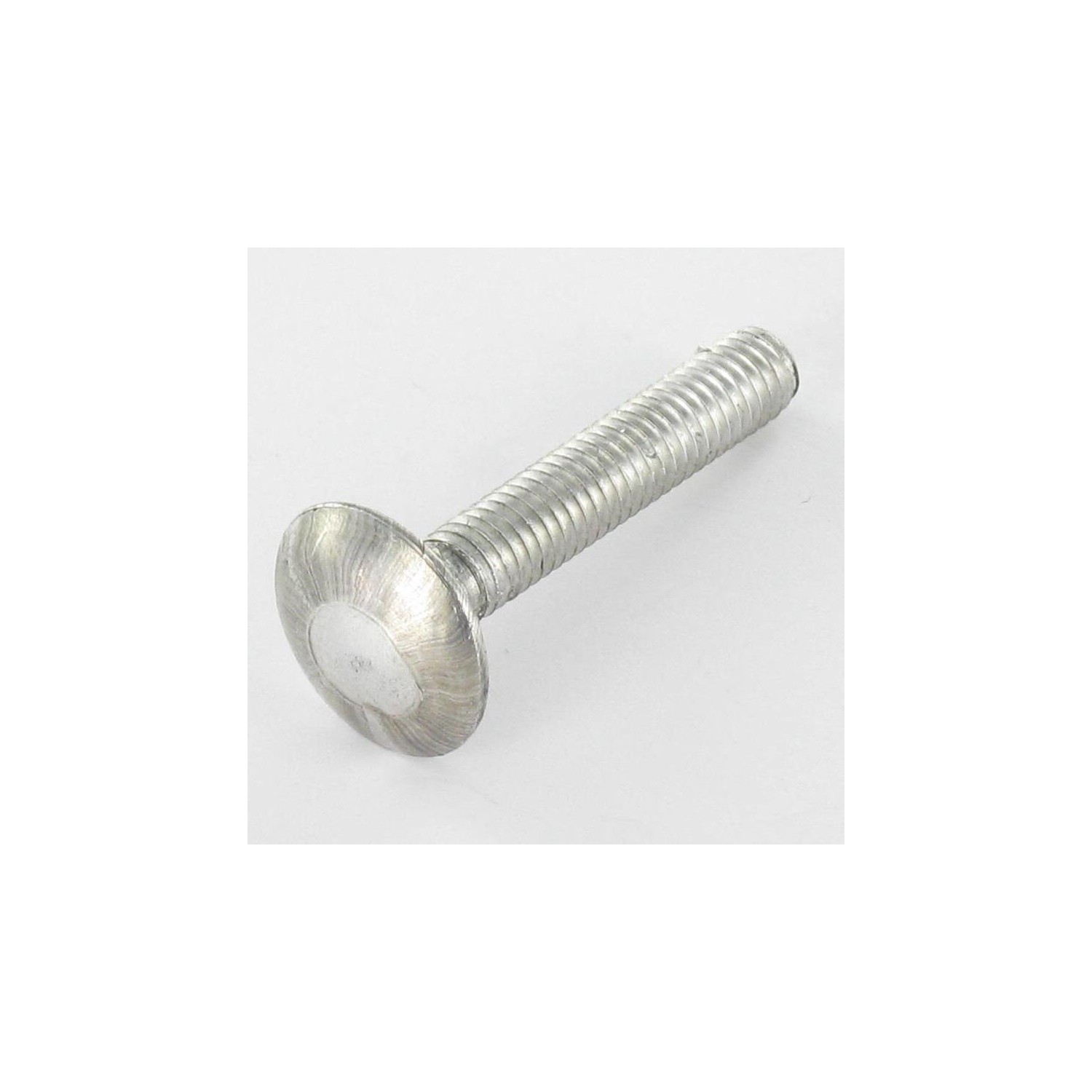

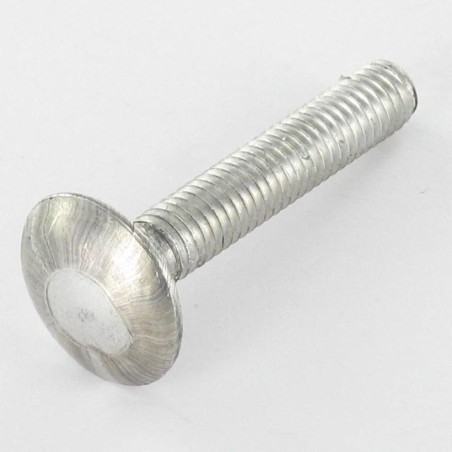

DIN603 FT VS4516 - Carriage Bolt M5X45 Full Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M5
Length
45
Thread
Full Thread
Pitch
Standard pitch 80
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
5X5X4.1
Diameter in mm
4.976 - 4.826
Unit weight
7.92 GR
34104 Items
3663072203259
Carriage Bolt M5X45 Full Thread Zinc Plated
Diameter = M5, Length = 45, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 80, Norm = DIN603 Full Thread VS4516

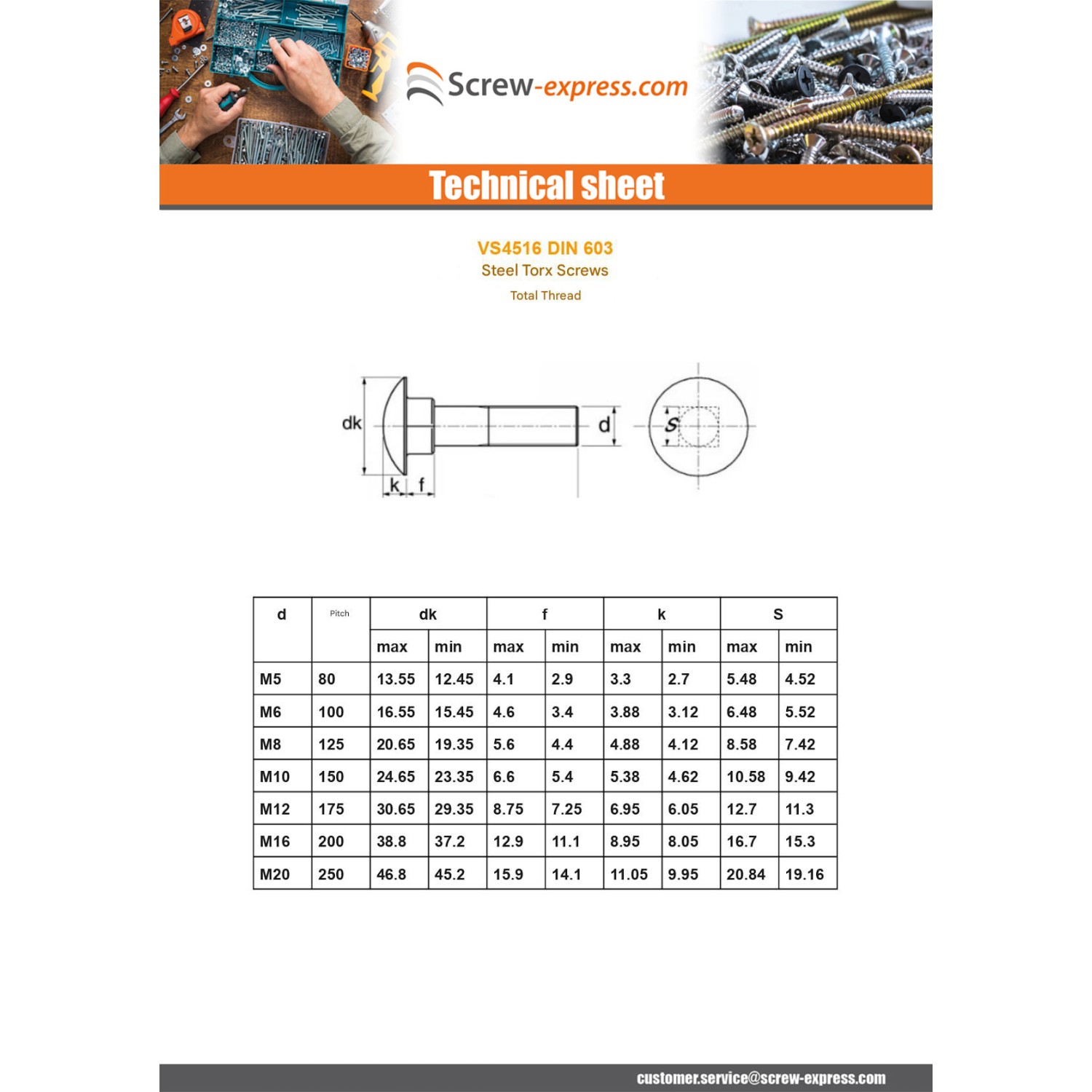

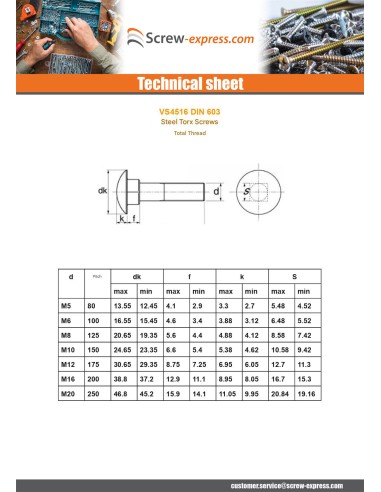

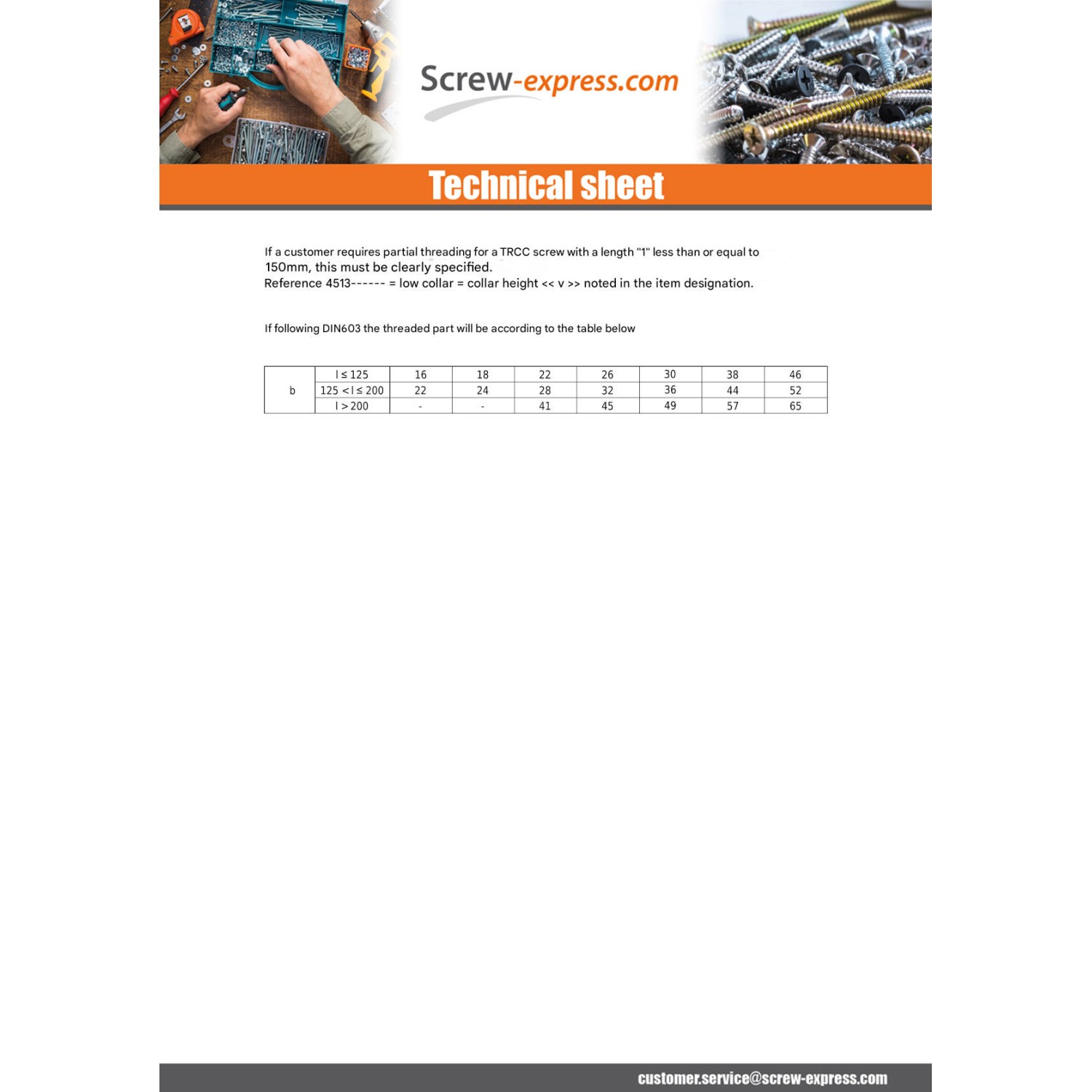

dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3473571374820 VI00108 004743805 539237 OS1004R 22.205.045 3663072203259
Thierry S. (vis-express.fr)
2023-11-19

To place shutter blocks Putiot wood shutter block brand
