DIN603 FT VS4516 - Carriage Bolt M12X170 Full Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M12
Length
170
Thread
Full Thread
Pitch
Standard pitch 175
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
12X12X8.75
Diameter in mm
11,966 - 11,718
Unit weight
156.5 GR
1493 Items
3663072095687

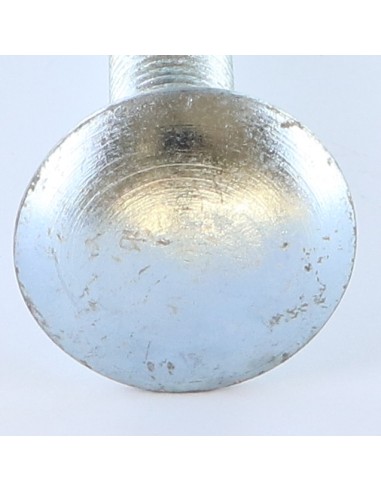

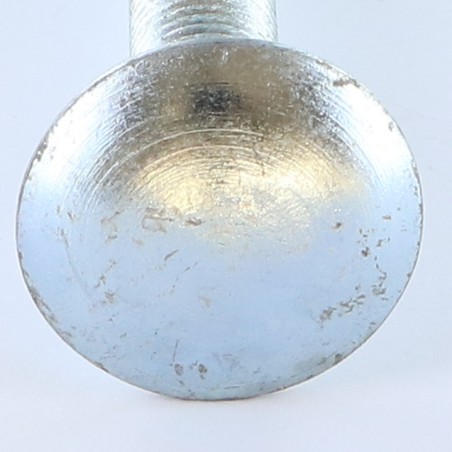

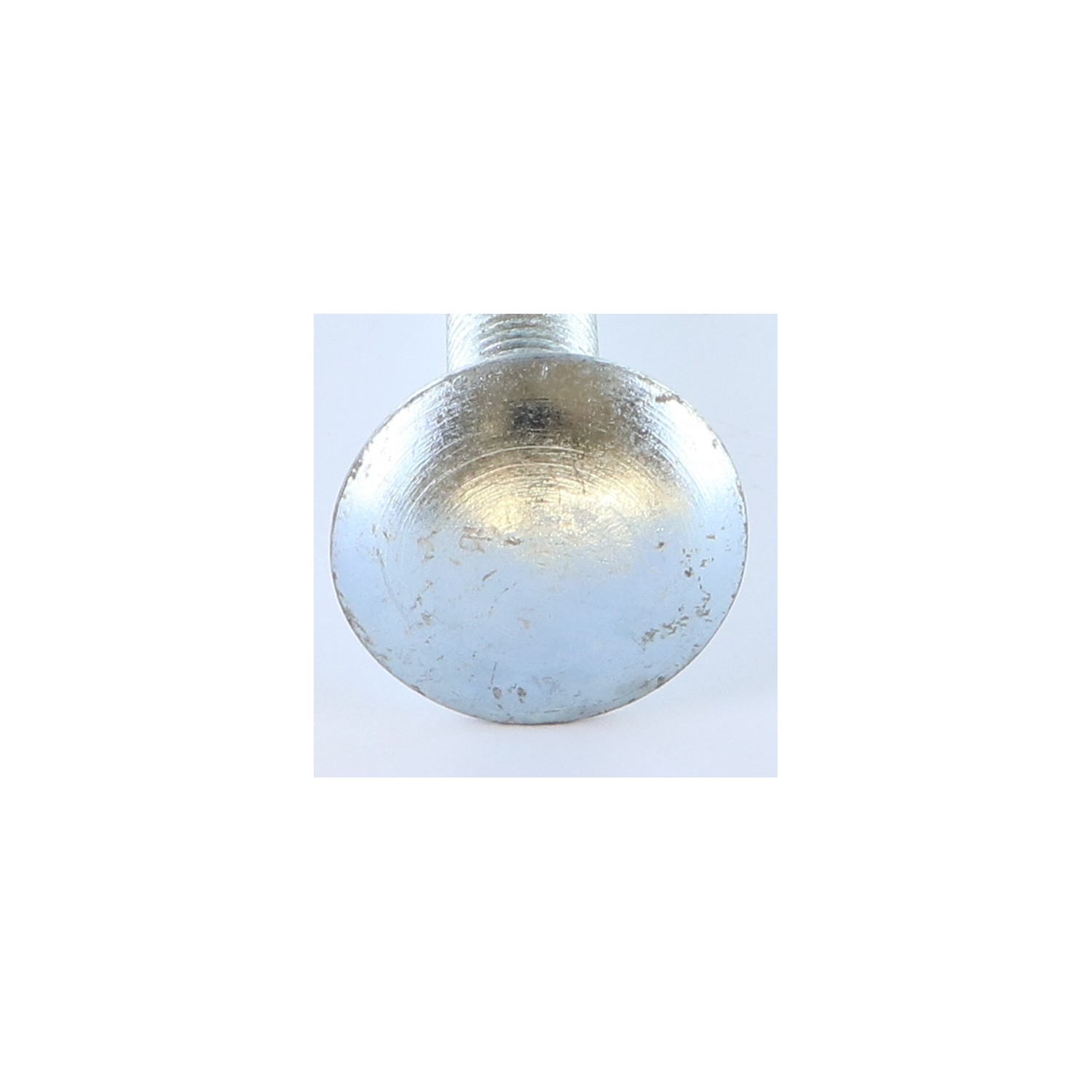

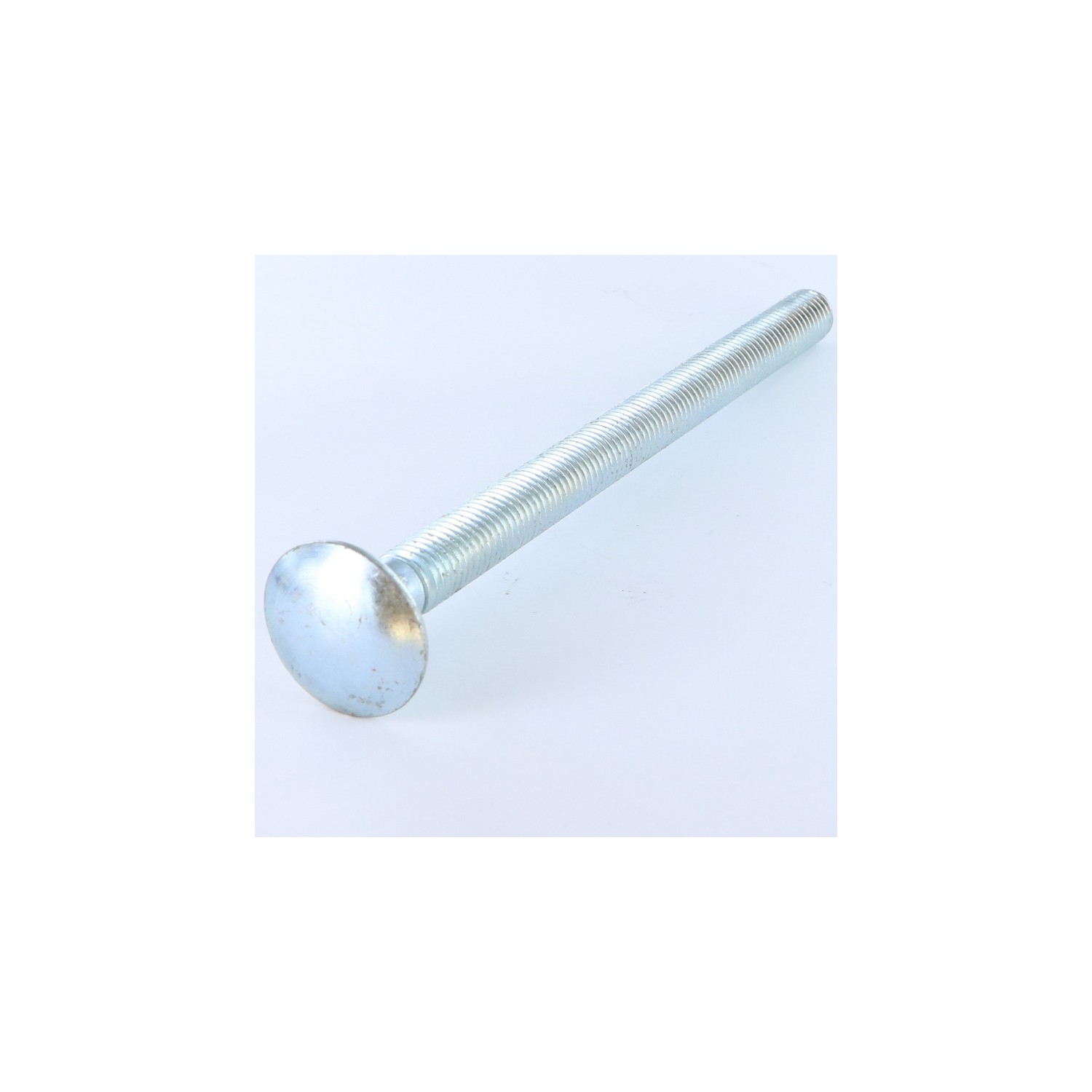

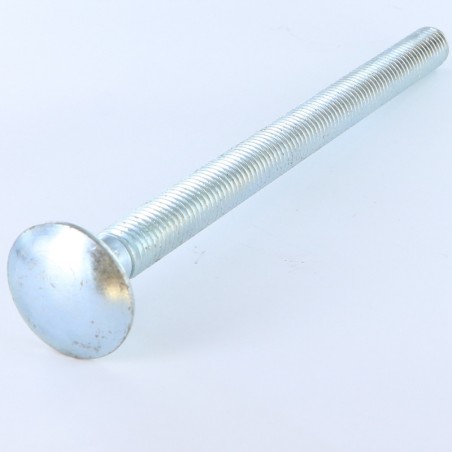

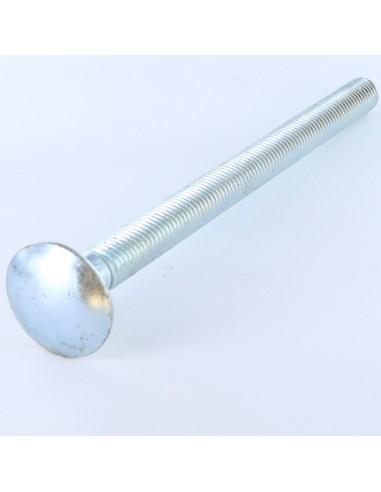

Carriage Bolt M12X170 Full Thread Zinc Plated
Diameter = M12, Length = 170, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 175, Norm = DIN603 Full Thread VS4516


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3473571375186 TRCZ12*170 TRCZ12*170 3663072095687
