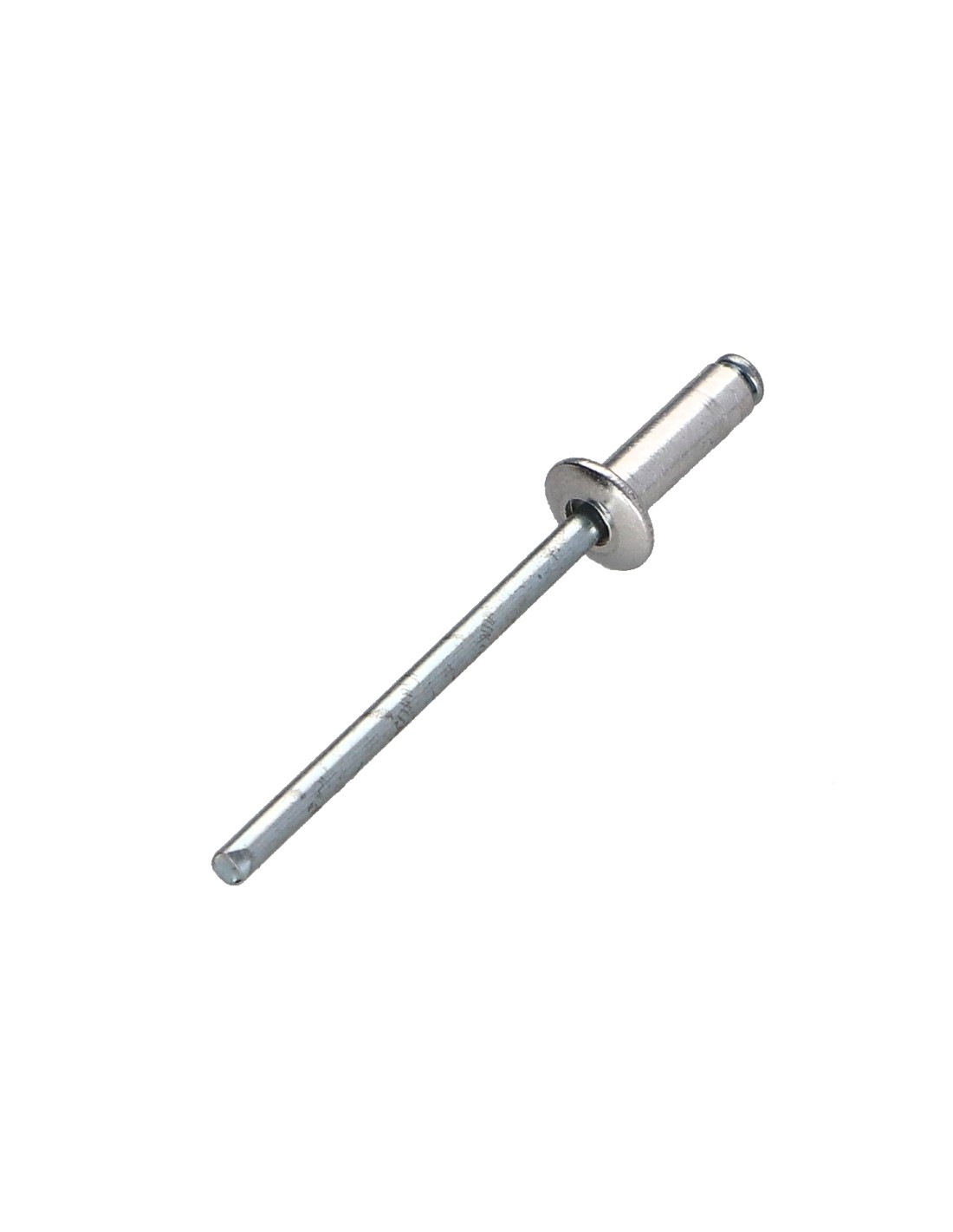

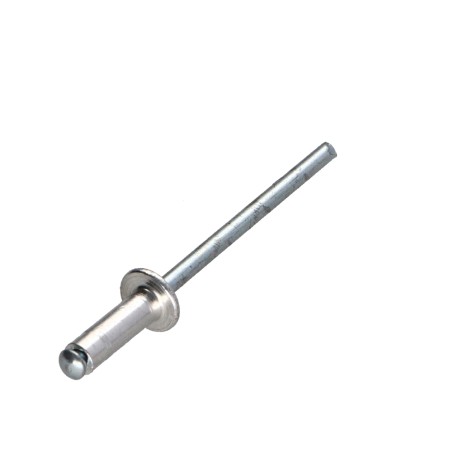

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX

3702401612_1
In stock 19562 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.48 £2.95 £3.51 £16.23 £56.75

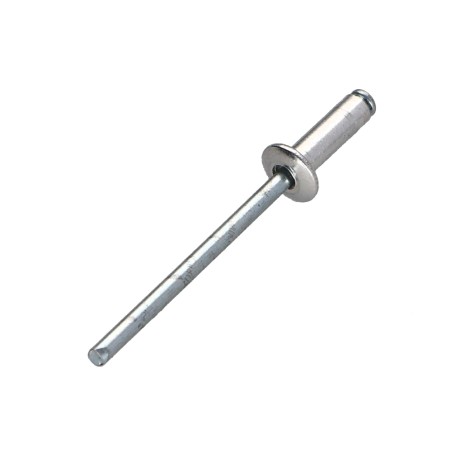

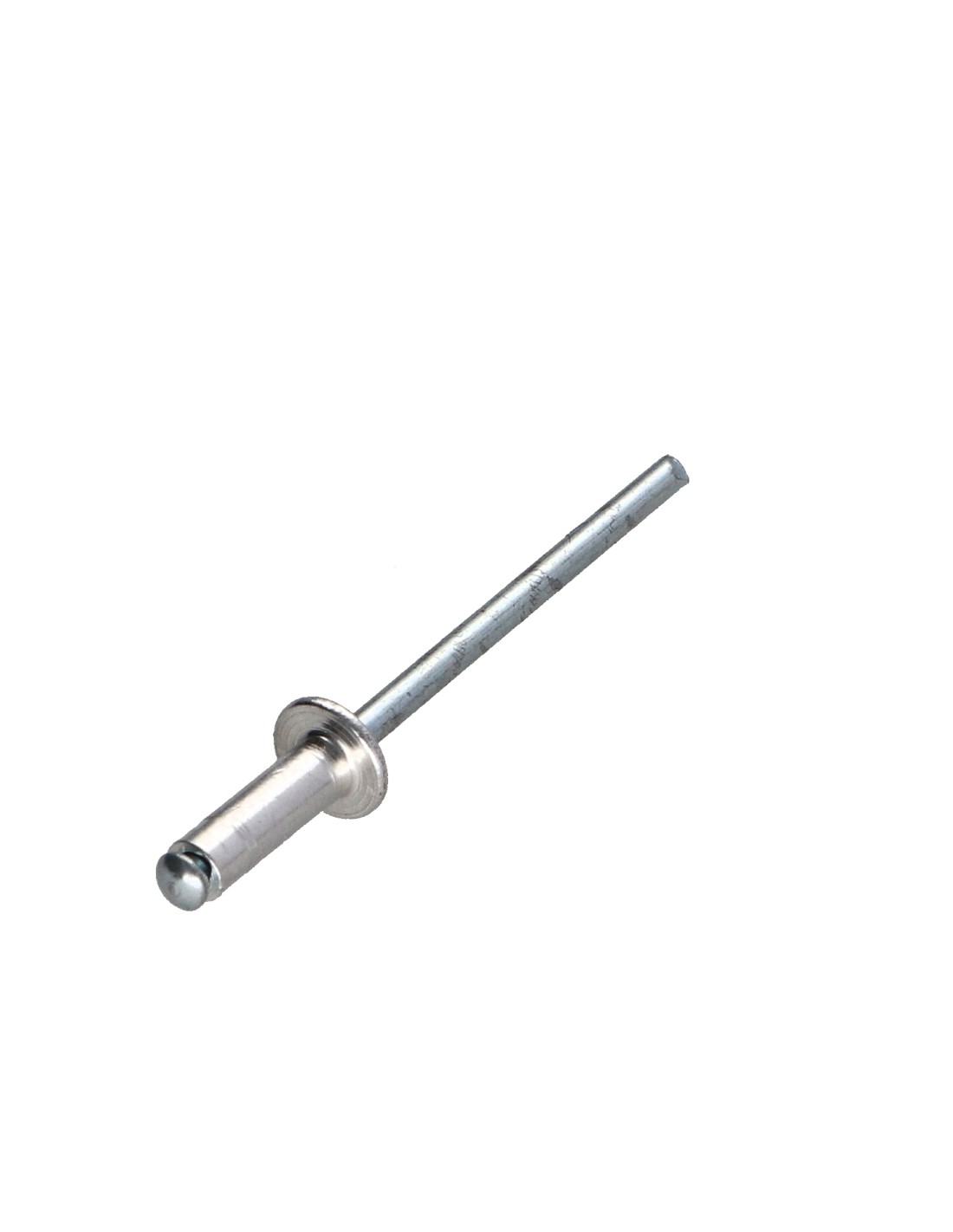

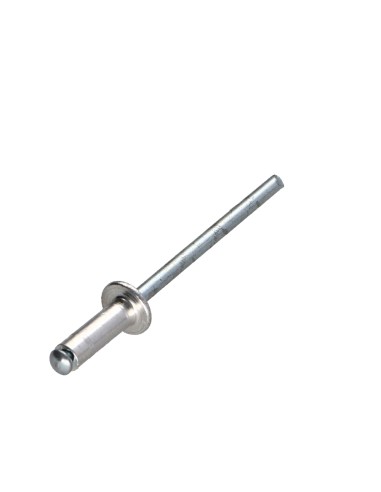

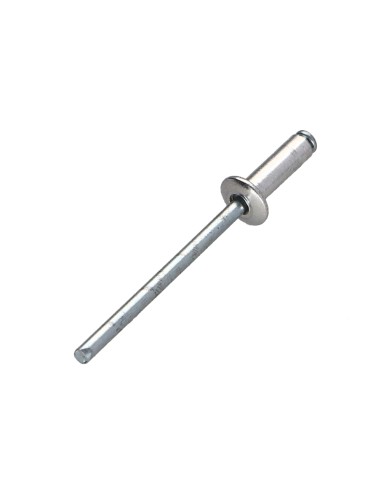

Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
Jobs
Carpenter
WEIGHT For THERE unit
2.1 GR
Clamping thickness
10 to 12 MM
Rivet body length
16
19562 Items
3663072064058

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
Diameter = 4, Jobs = Carpenter

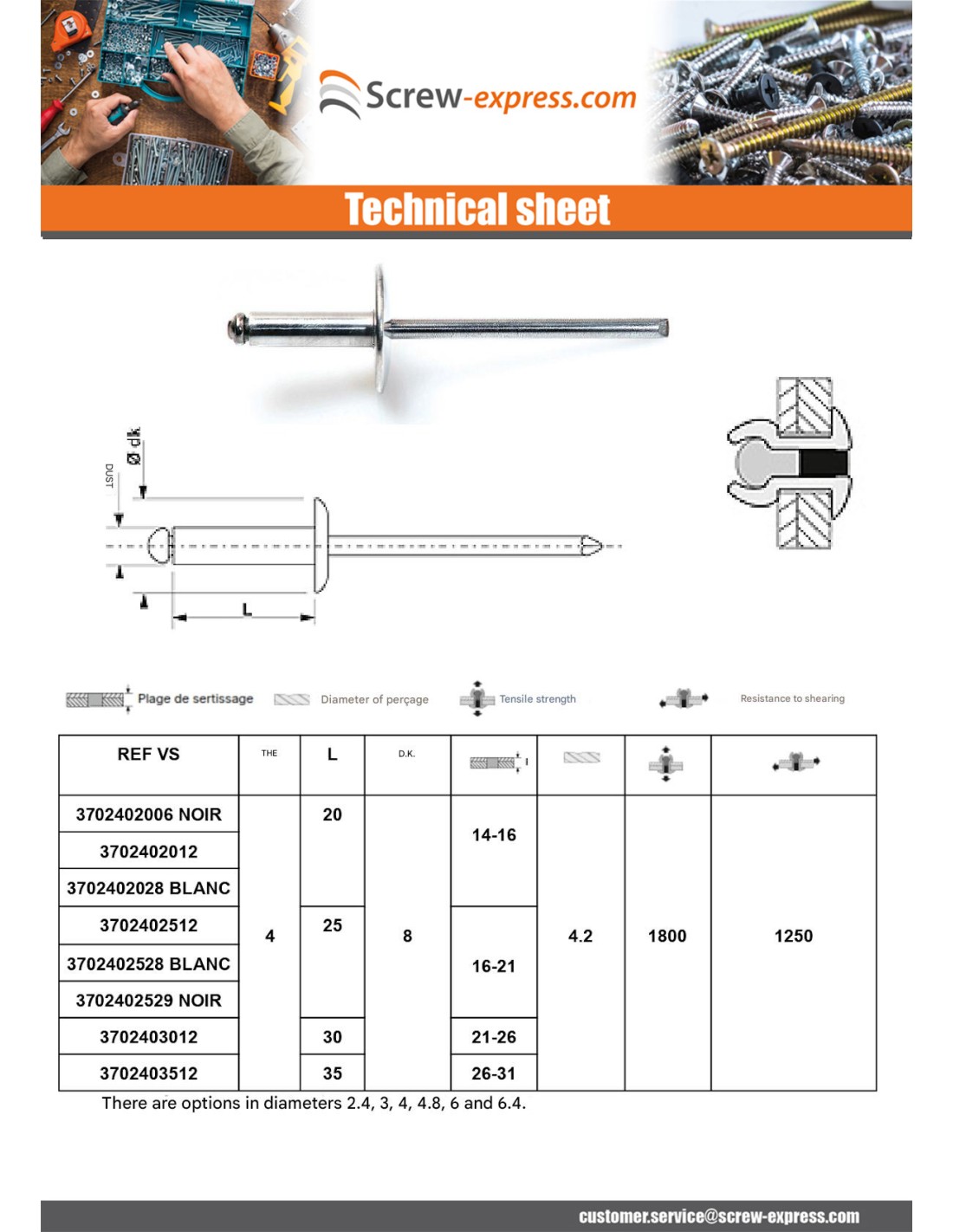

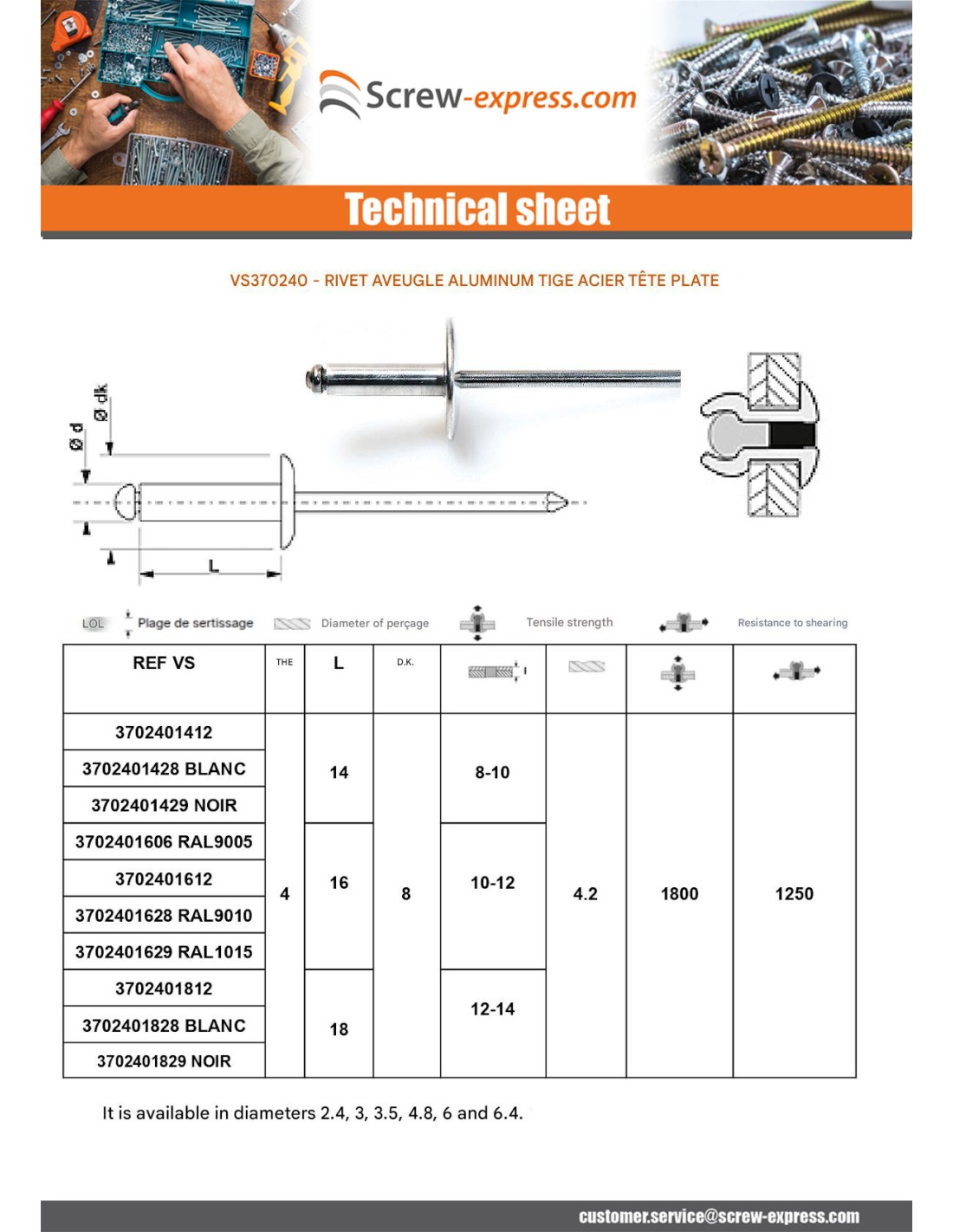

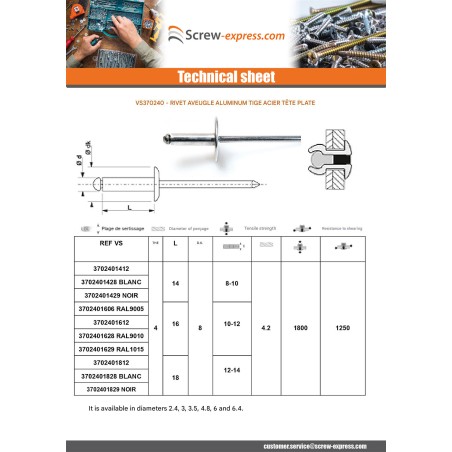

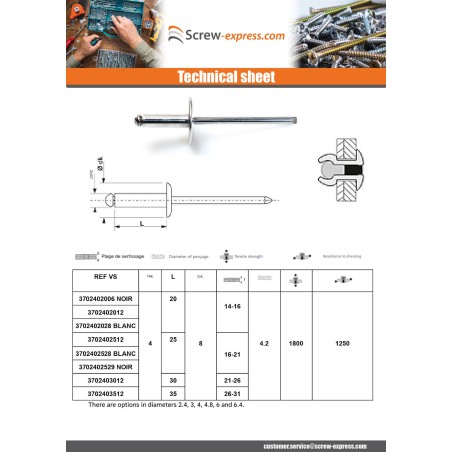

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140161 RIV4X16 2VIRIV008 803046 FIO1440 RIVE416 801416 801416 RIVET4X16 2= ACH3521 39754 11800 0609416 1519-000002 26661 RIVPOP4X16TP 0935098600 300 VU0023 RIVET4X16 39754 39754 RIPO0416 551719 107061 RIV4X16 803046 803046 WFI01440 212021 2741006 39754 RIPOP4X16 RIVAVEU4X16 0847/0416 40100094 300 VRI004816 MVISACI00040 54102 0977AC/4*16 0773 17101760 DMRIV0011 A-00664 39754 10300059 803046 803046 803046 803046 3663072064058
FATIMA B. (vis-express.fr)
2026-04-05

For attaching vehicle license plates Blind rivet, aluminum, steel shank 4x16, clamping thickness 10-12, flat head ALX


SALIM O. (vis-express.fr)
2025-11-23

For fixing license plates Blind rivet, aluminum, steel shank 4x16, clamping thickness 10-12, flat head ALX VS3702


SALIM O. (vis-express.fr)
2025-11-23

For fixing license plates Blind rivet, aluminum, steel shank 4x16, clamping thickness 10-12, flat head ALX VS3702
