3702321612_1
In stock 3626 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €15.55

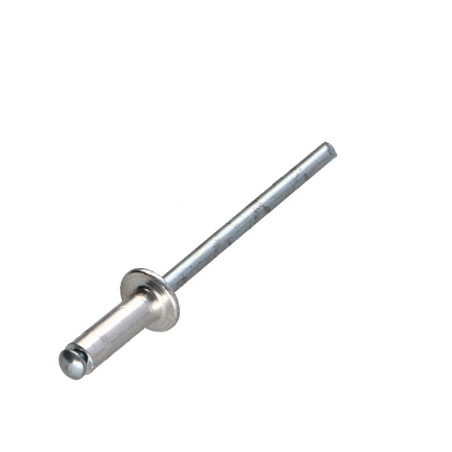

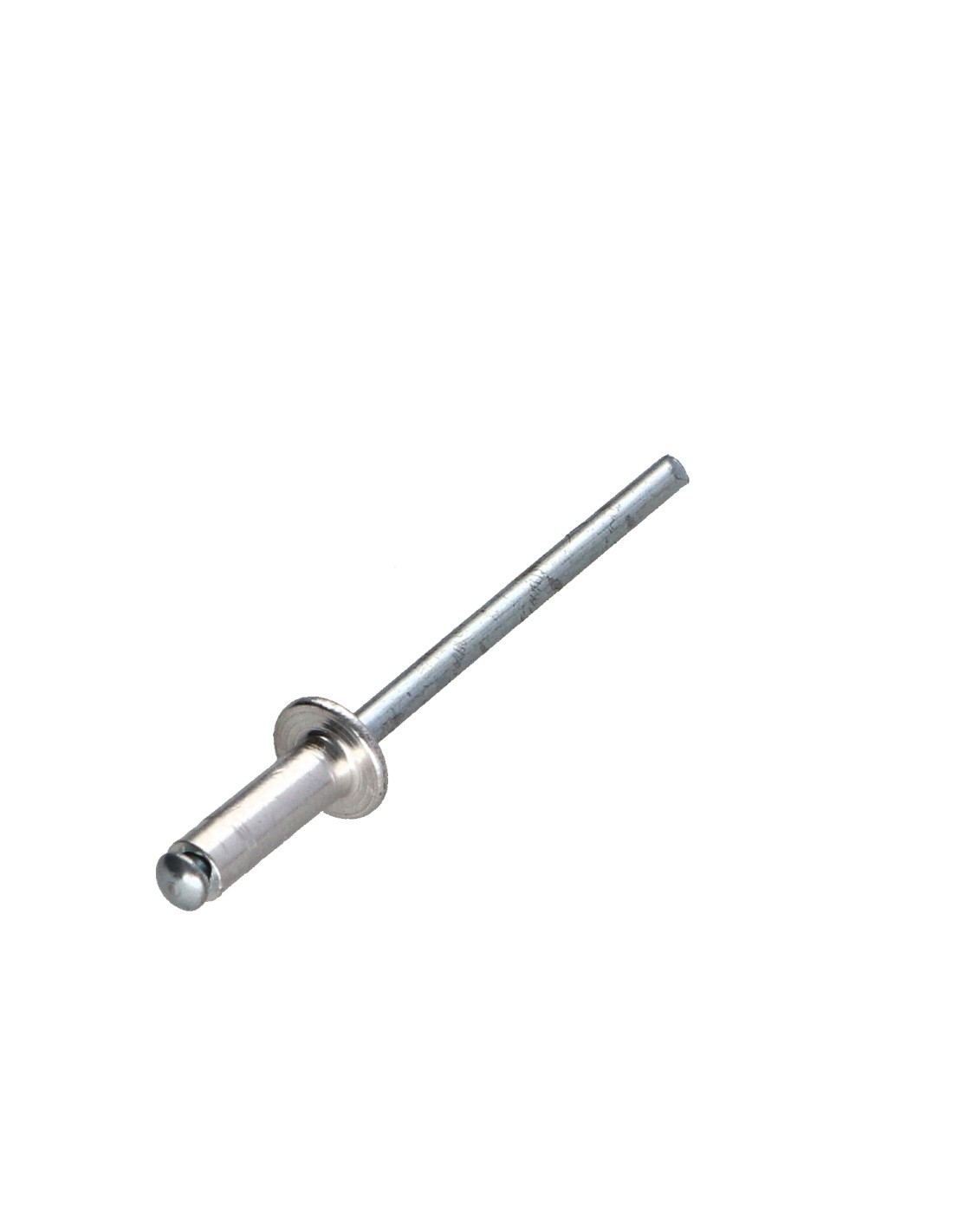

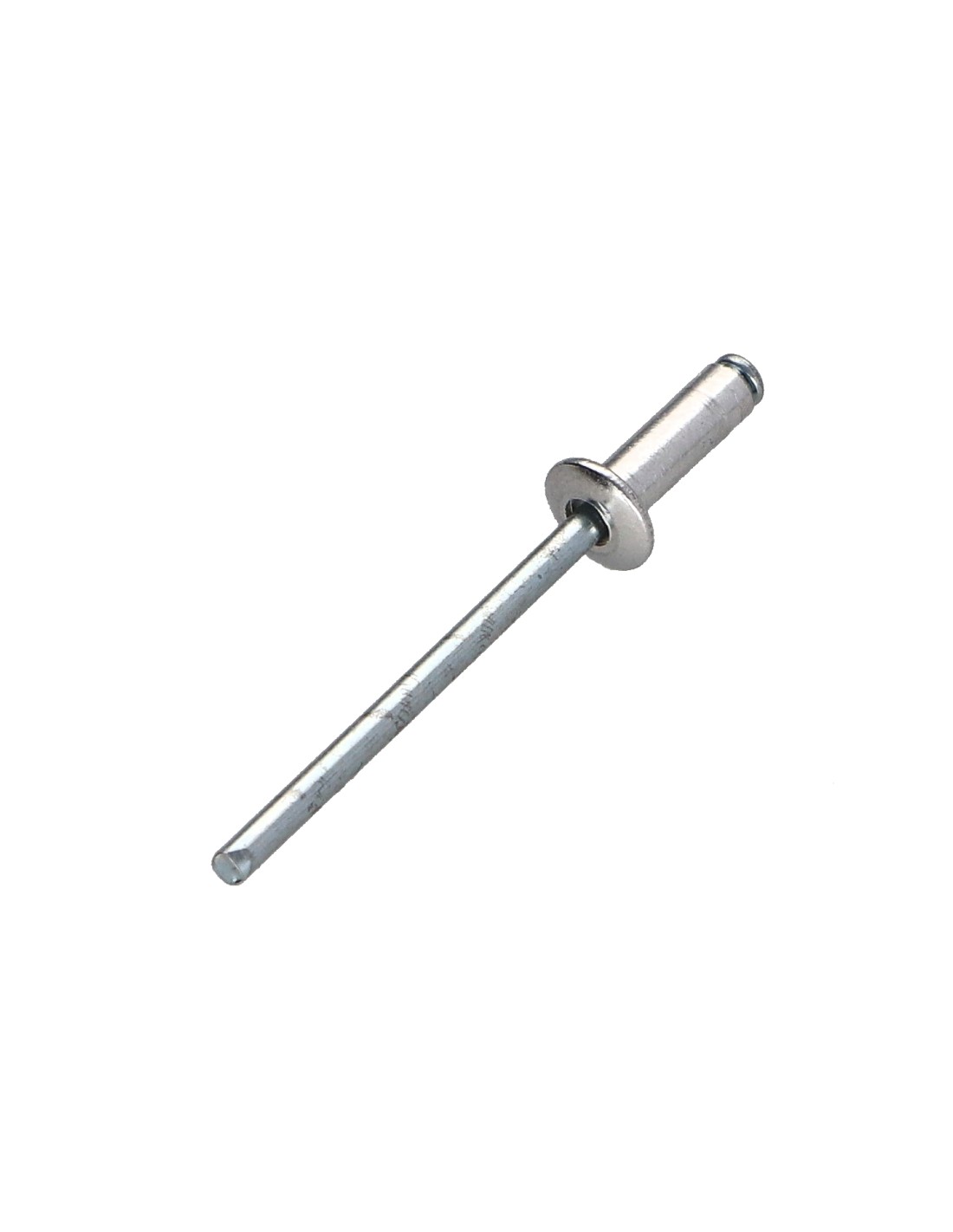

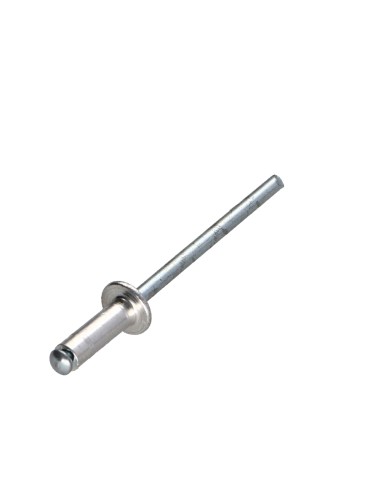

Blind rivets Aluminium Stahlgewinde 3.2X16 Thickness Of Panel 11 to 13 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Sub product family
Flat Head
WEIGHT For THERE unit
1.3 GR
Clamping thickness
11 to 13 MM
Rivet body length
16
3626 Items
3663072302044

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 3.2X16 Thickness Of Panel 11 to 13 Flat Head ALX
Diameter = 3.2

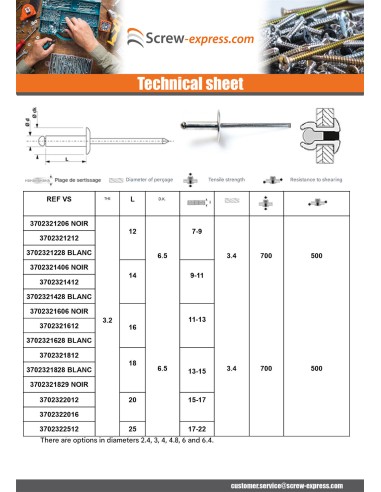

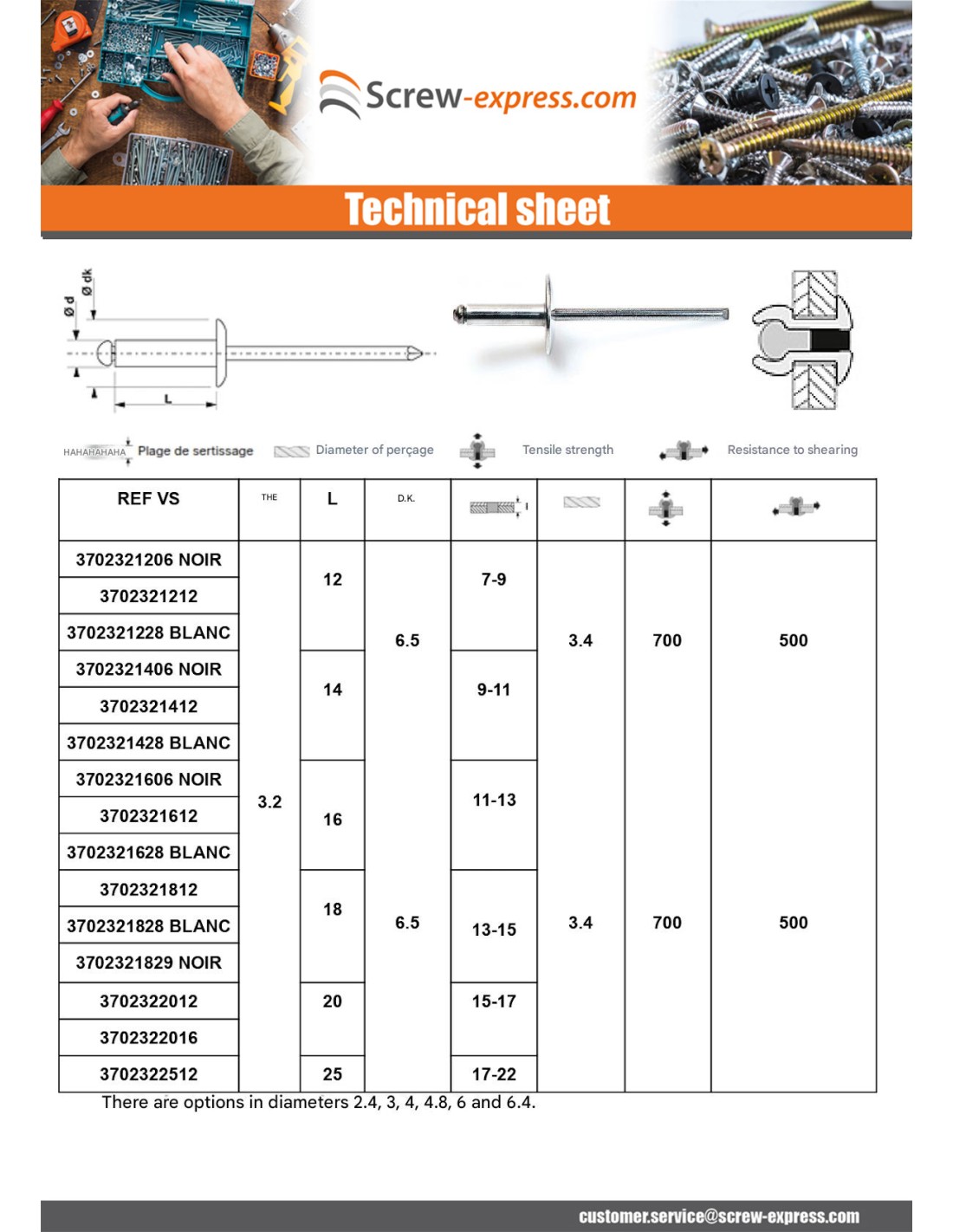

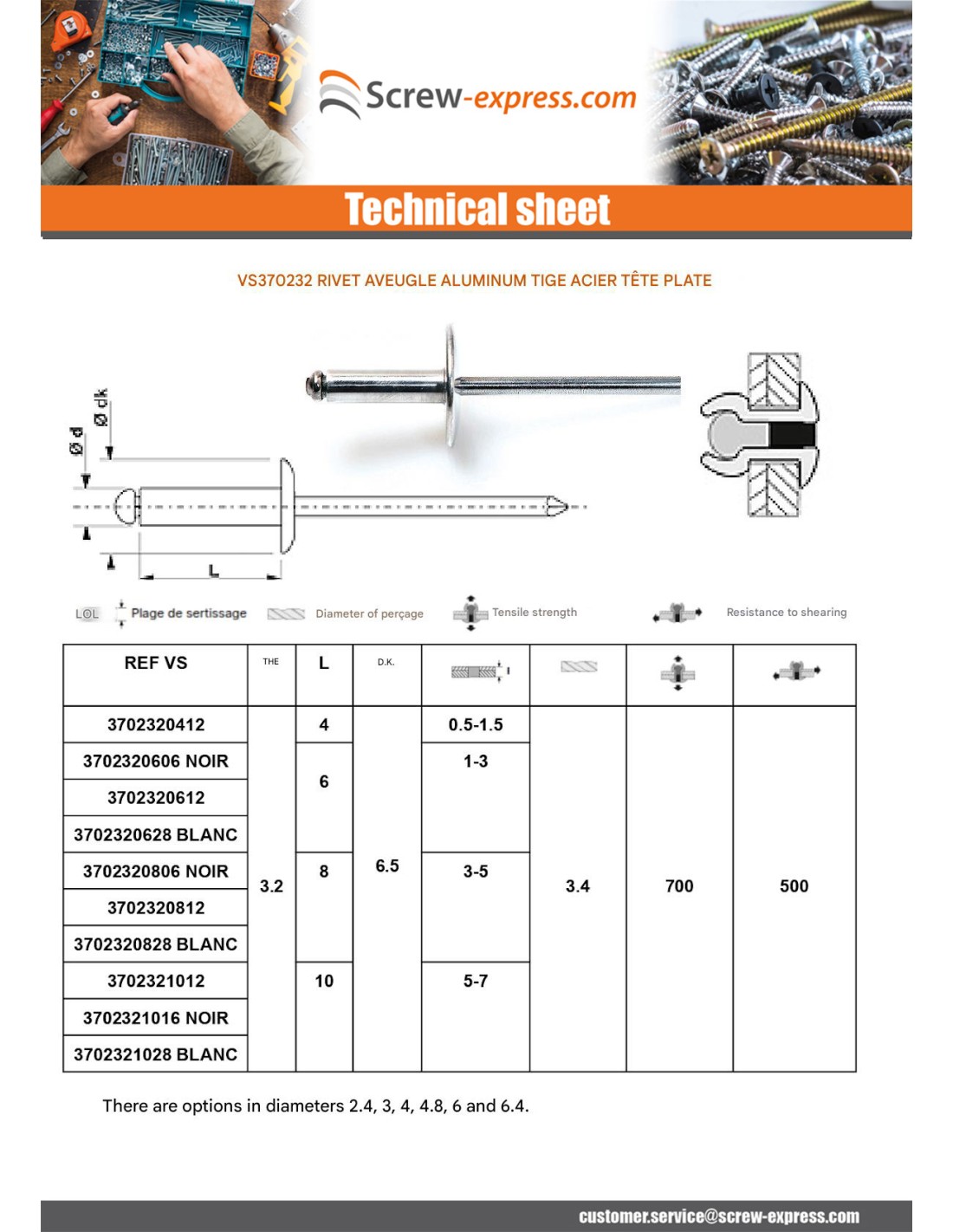

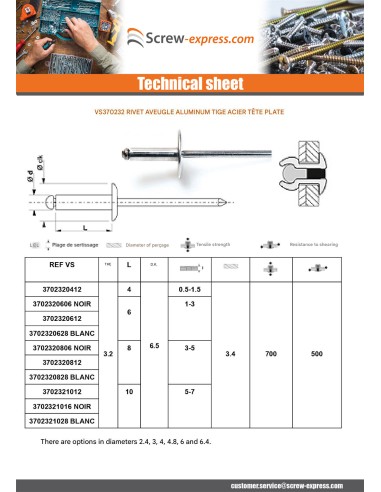

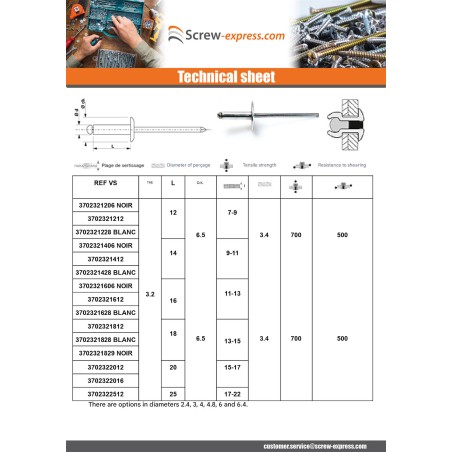

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103132161 636007 3663072302044
