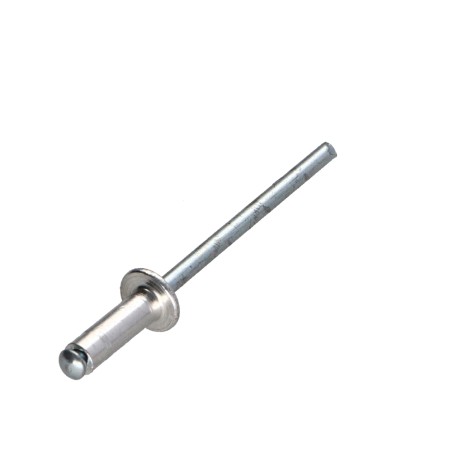

1 x Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head
1 x Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head
1 x Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head
1 x Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head

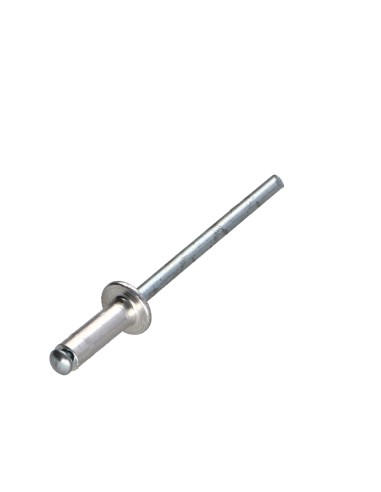

1 x Blind rivets Aluminium Stahlgewinde 4X6...
1 x Blind rivets Aluminium Stahlgewinde 4X6...
1 x Blind rivets Aluminium Stahlgewinde 4X6...
1 x Blind rivets Aluminium Stahlgewinde 4X6...

1 x Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head

3702400612_1
In stock 370829 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.48 £2.95 £3.51 £10.89 £38.18
Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
WEIGHT For THERE unit
1.31 GR
Clamping thickness
0.5 to 2 MM
Rivet body length
6
370829 Items
3663072063907

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X6 Thickness Of Panel 0.5 to 2 Flat Head
Diameter = 4


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140061 92000084 0412112 021.I.TP46AL VAP2400600 070C000516 RIVET4X6 RIV*AL*TP*4* A00168 30350 348-0025 47600406 01280002 2 RIVETTP4X06A 64RIV46.0 3RIVE001 1909799 AV0273 VIS0005 VB273 093746 LN07 47 093746 FRIACACTPA04 7 405262 025232 RV4X6N01 VB273 POP4-6 URIV10406 RIV0120 V001192 22020VRI4X6 V001192 CO220013 590971 AN 700216 093746 3663072063907
