1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head ALX

1 x Blind rivets Aluminium Stahlgewinde 4.8X12...

1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head ALX

Name: 1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head ALX
Brand: Vis-Express
SKU: 3702481212
Price: 1.7 EUR
Availability: InStock

Reference 3702481212_1

In stock 71221 Pièces

€1.70 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500	2000
Lot price VAT included	€1.70	€3.40	€4.80	€19.95	€79.80

Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head ALX

Packaging

1 unit
10 units
100 units
500 Units
2000 Units

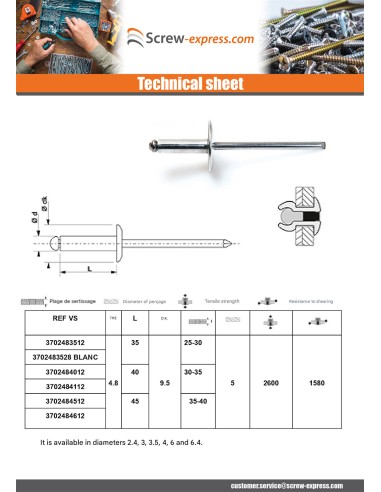

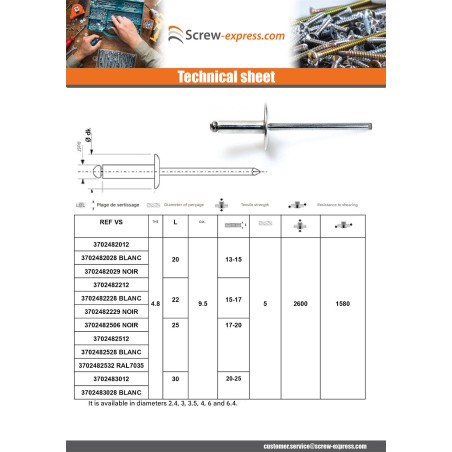

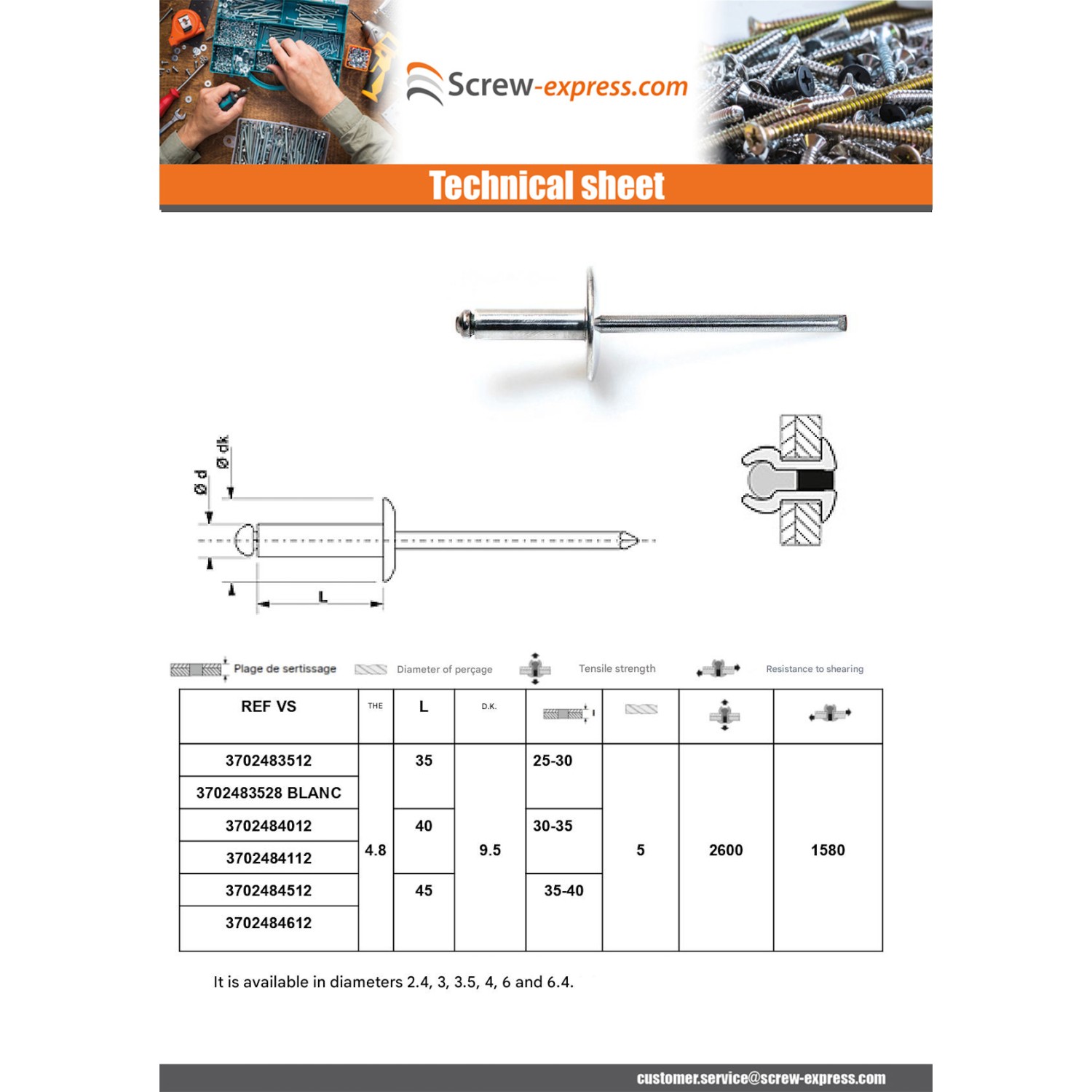

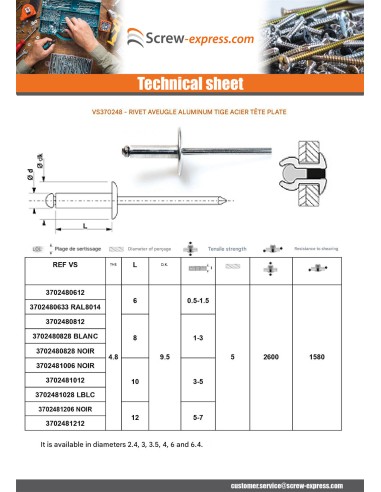

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 9.5
Material: BODY Aluminium / rod Steel
Sub product family: Rivets BLIND STANDARDS (USE GENERAL)
Shear (N): 1580
Clamping thickness: 5 a 7 mm
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 12
Unit weight: 2.6 GR
Head shape: Round Head standard
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 2600

In stock 71221 Items

ean13 3663072064171

Application

Securing thin sheets (steel, aluminum)
Assembly of panels, plates or profiles
Aluminium joinery work
Installation of ventilation ducts
DIY, light bodywork

Description

Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

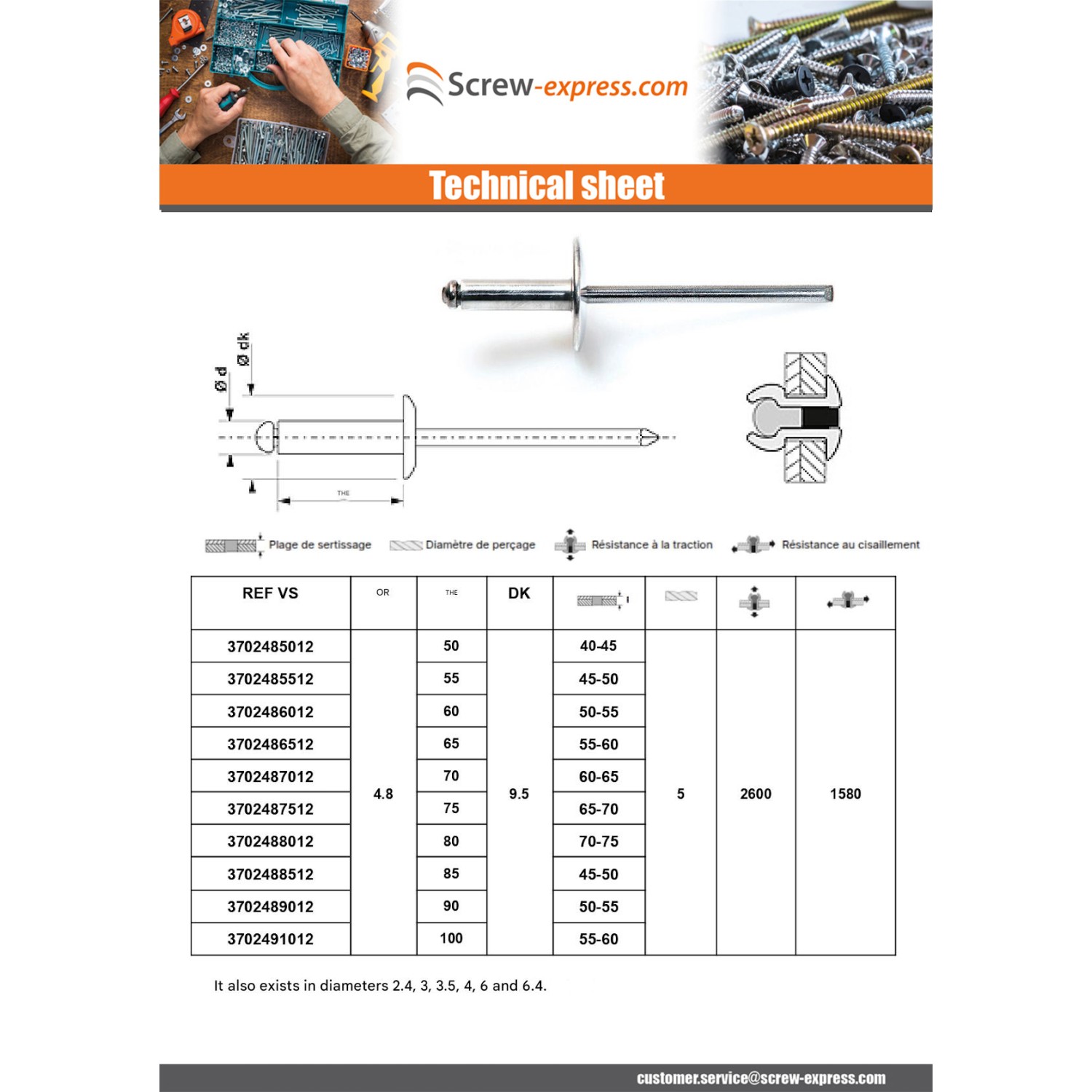

dimensional guide (mm)

Body diameter	2.4	3	3.2	4	4.8	6	6.4
Head diameter	5	6	6.5	8	9.5	11.5	12
Drilling diameter	2.6	3.2	3.4	4.2	5	6.2	6.6
resistance a la traction	500	800	1000	1600	2600	3800	4600
Shear strength	400	650	850	1300	2100	3000	3500
longueur tige	25	25	25	27	27	27	27	27

Other Reference : 103148121 YRIVACIALUTP A300104002 VAPARC4816 AN RIV4.8X12 RIVET4.8X12 RIV-ALU-4.8* 2299049 130511 VAPARC4816 A5390 0577 RIVALS4812 1002 N/A001 RIVALS4812 WD40001 6VIS1RA005 24528 RVT-AL0412R1 VIRIVD637T93 AC0422 38078 39761 AN 11802 X86014 VU051 RIVET-0001 64RIV4812P-C 21VI400 38078 30520368 q027209900 203579 R140645 WRT048012 0012303 1361058 9800002 39761 39761 RIVE0024 RIPO04812 0648512 RIV4.8X12 39761 RIVET4.8*12A 640300148110 22278 500 VIS062BIS RIVET*ALU*TP 020004020020 141027 212035 2741010 HMRIVET4812 503574 39761 09378412 VIRIVD637T93 014108 223051-CH POP4-12 URIV14812 07787 V001563 101076 MC4812 QUIRIVEZT4.8 VZ024 CO220030 6971 DMRIV0035 QRI10020 / AN 38078 39761 10300064 R4812 3663072064171

Use Cases

julien B. (vis-express.fr)
2026-02-15

boat decking construction

16 other products in the same category:

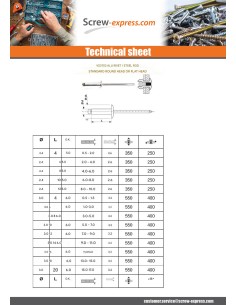

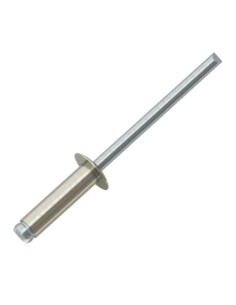

Blind rivets Aluminium Stahlgewinde 4X10 Thickness Of...

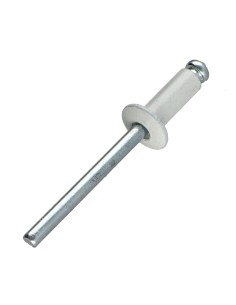

Blind rivets Aluminium Stahlgewinde 4X10 Thickness Of... 2
