3702481228_1
In stock 8842 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included £1.48 £2.95 £3.82 £16.66 £66.64

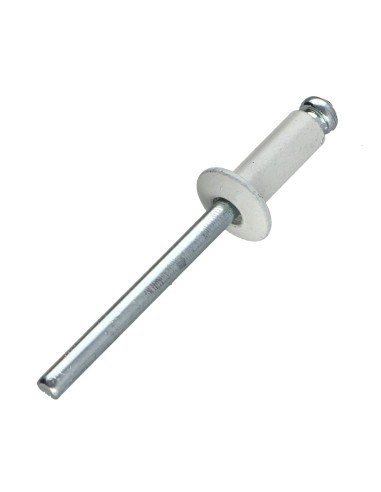

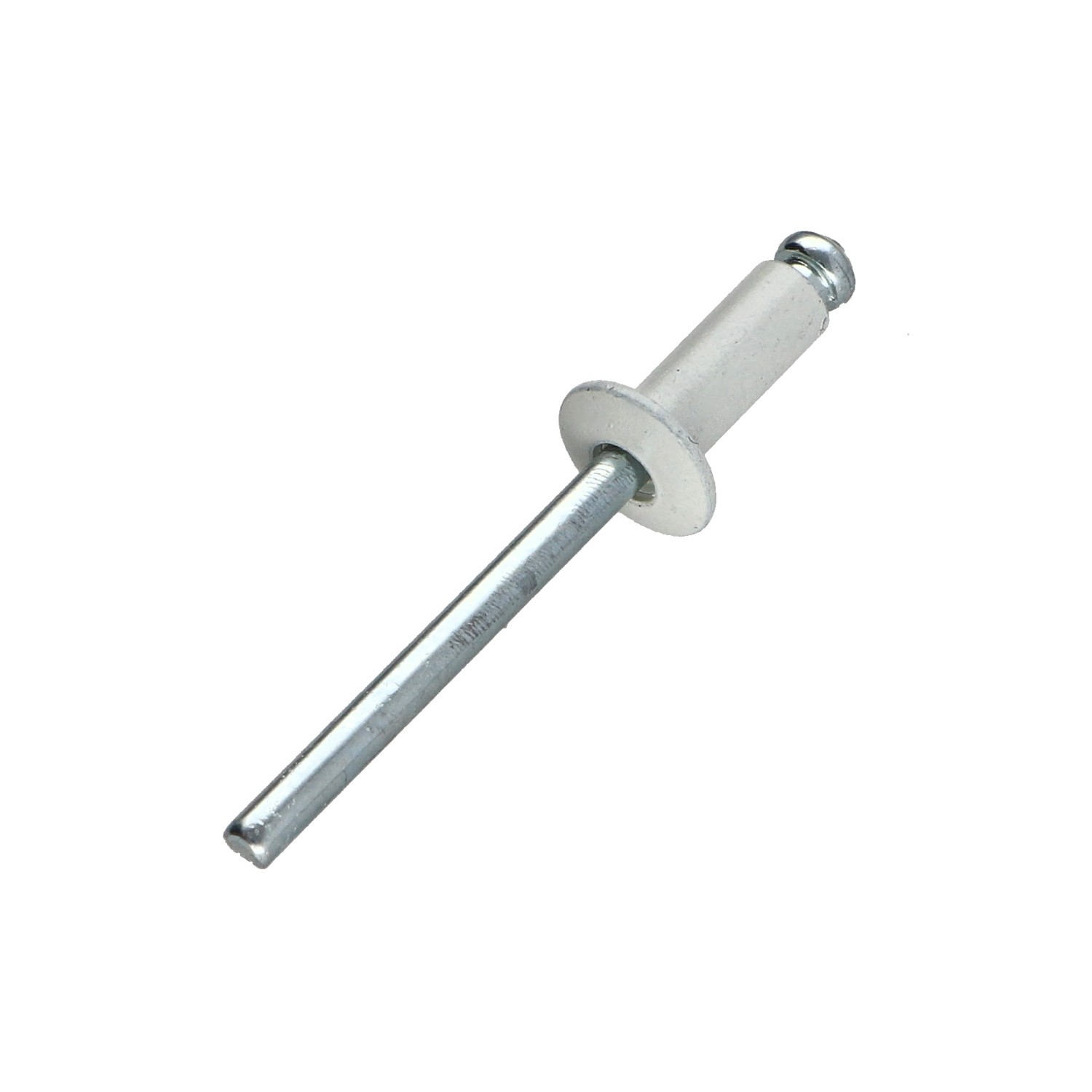

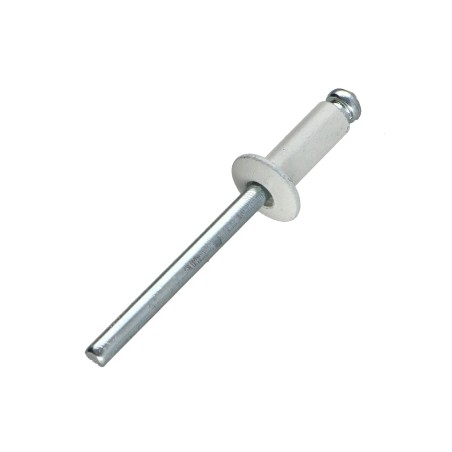

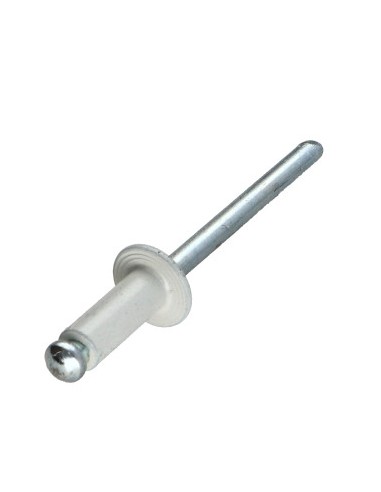

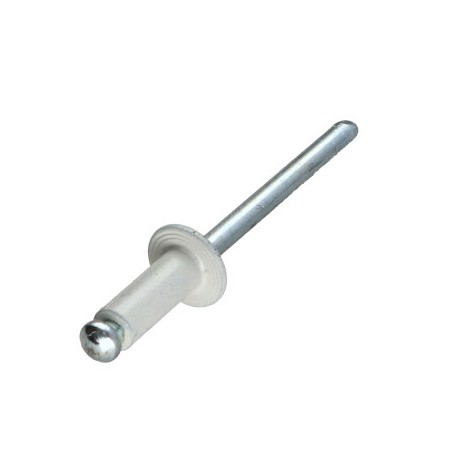

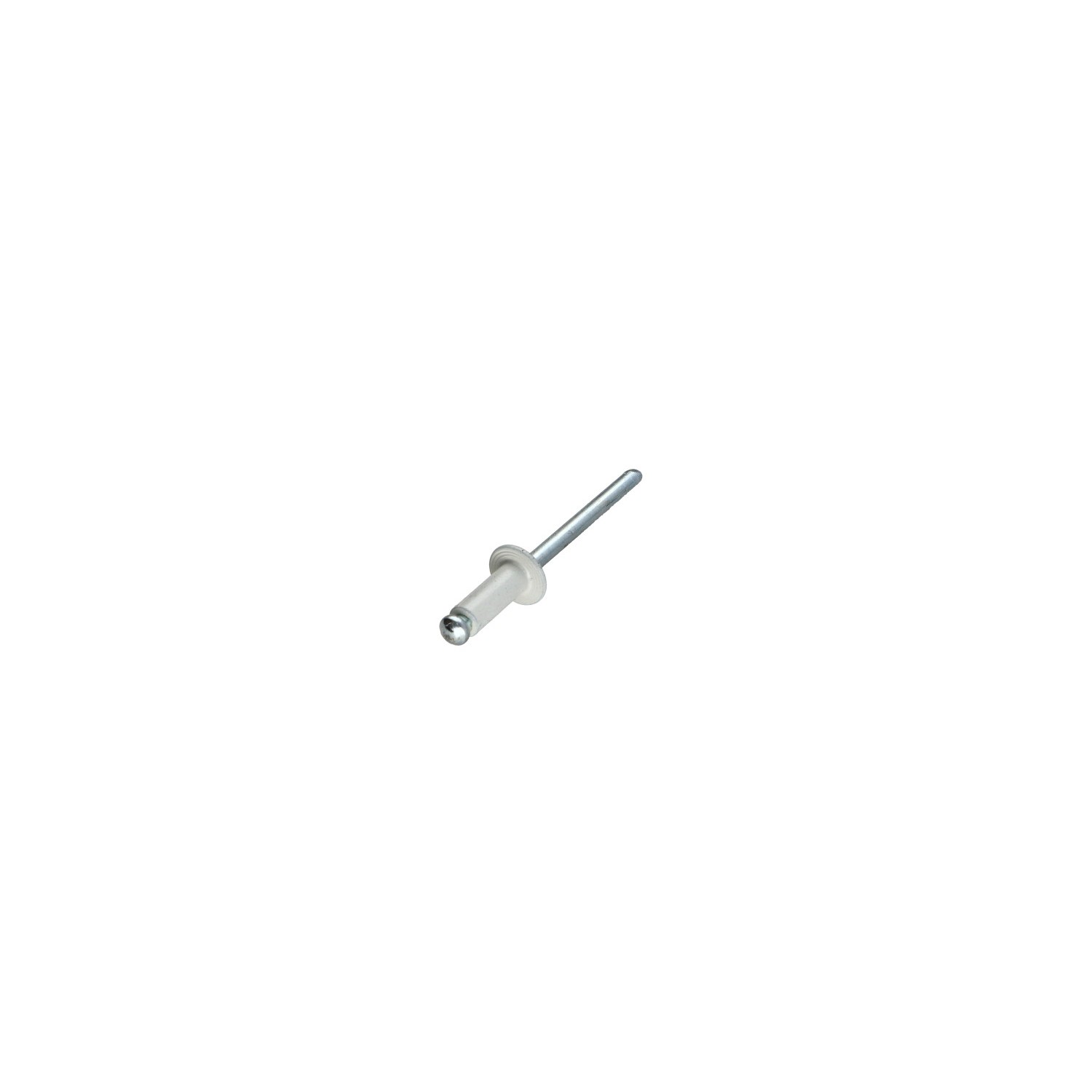

Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head Ral9010/Pure White
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
COLOR
Ral9010/Pure White
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
5 a 7 mm
Rivet body length
12
Unit weight
2.8 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2600
8842 Items
3663072064188

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Standard round head Ral9010/Pure White
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

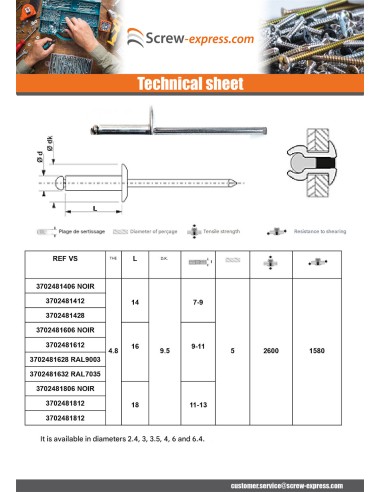

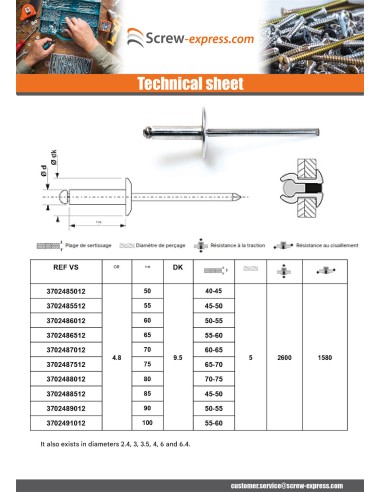

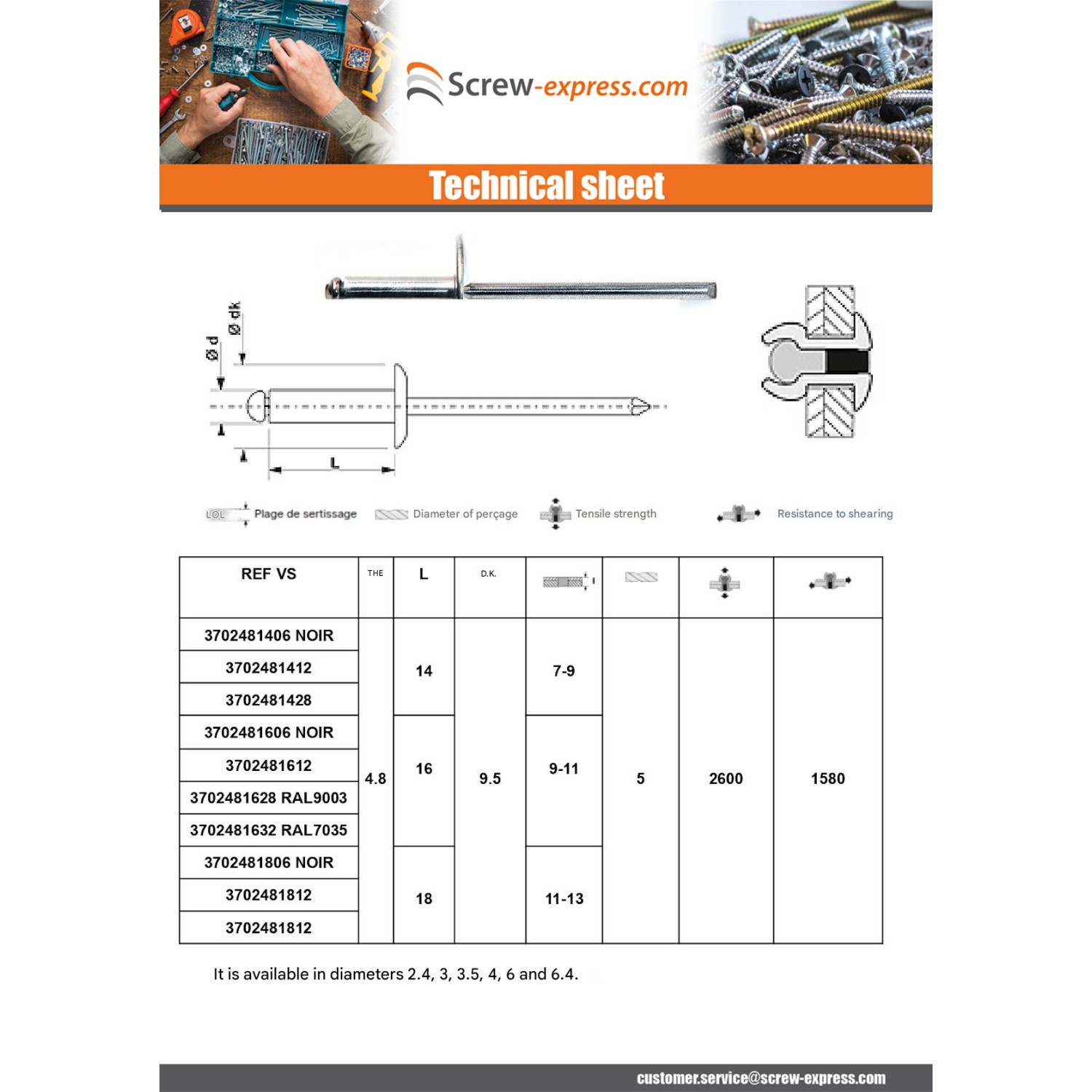

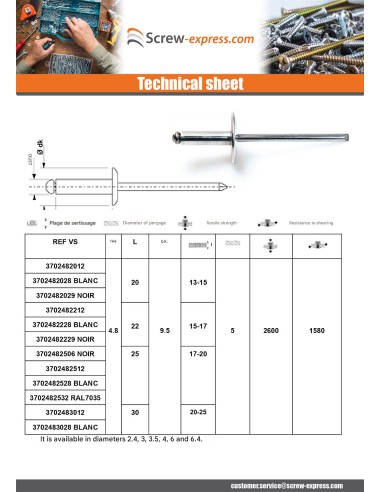

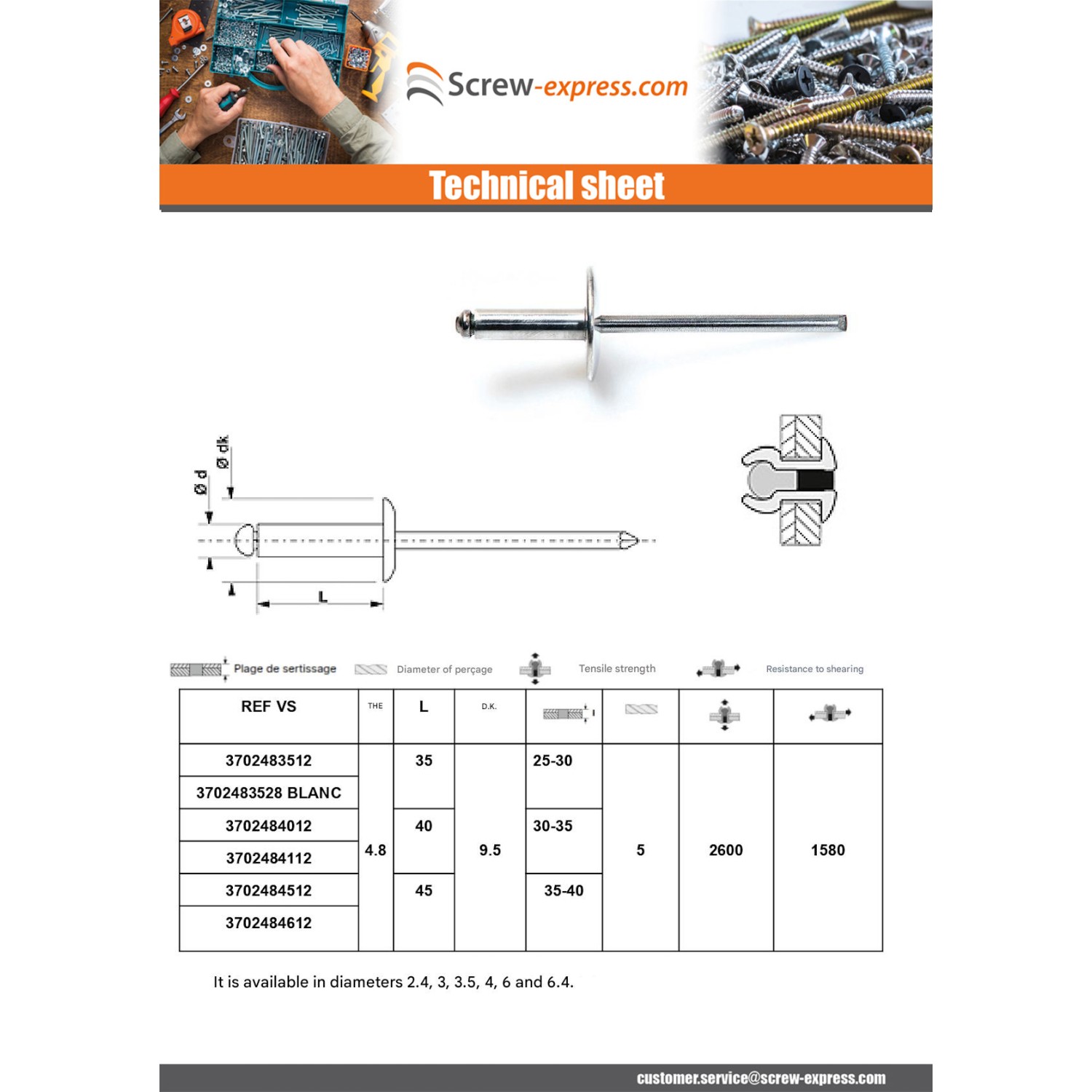

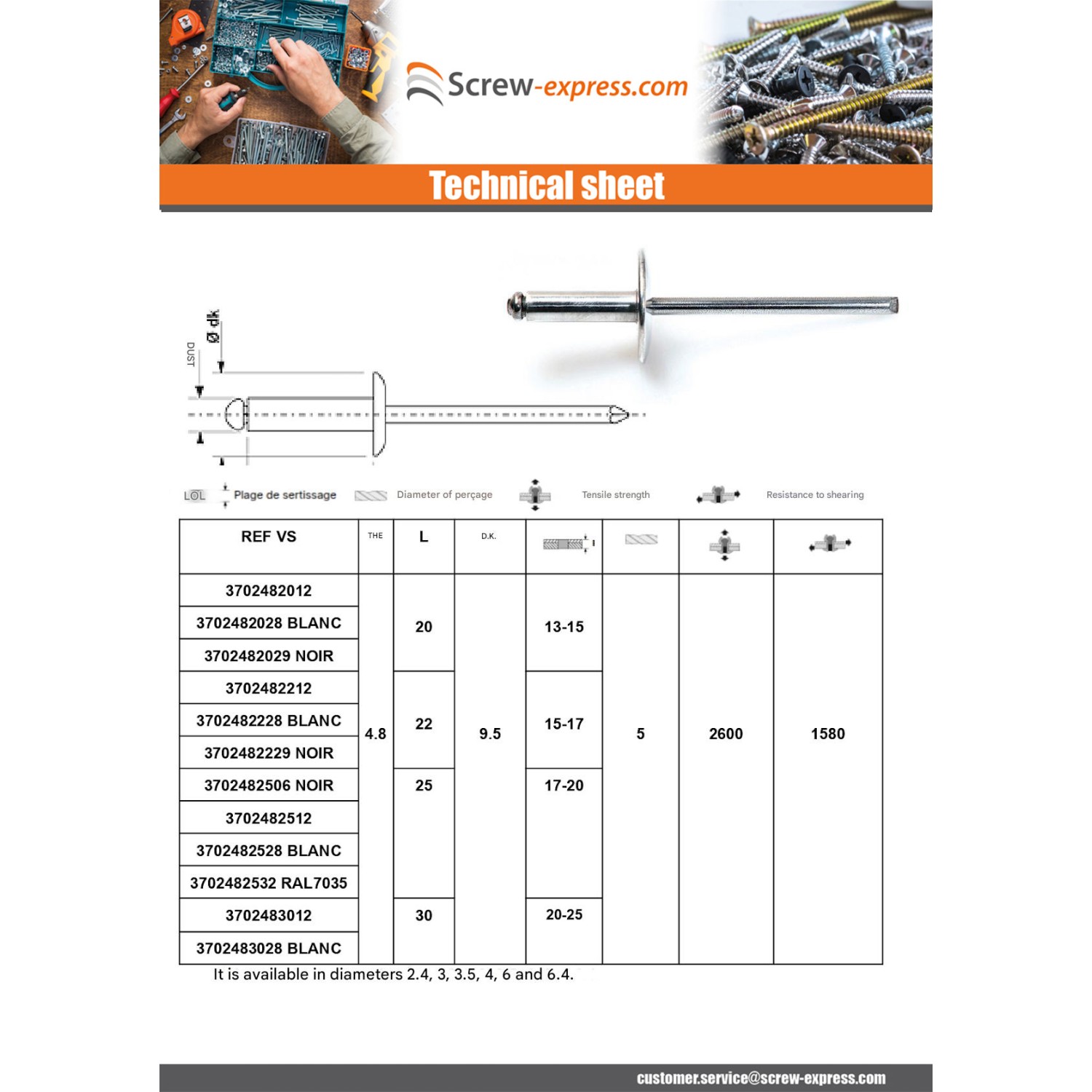

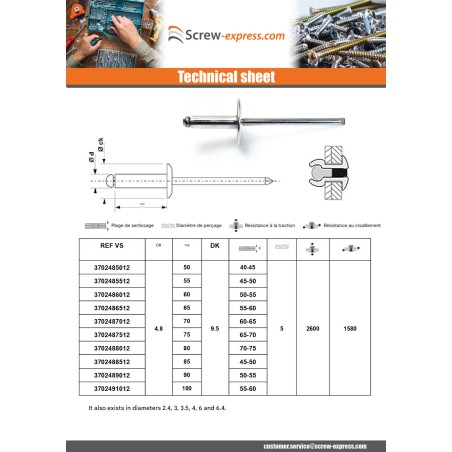

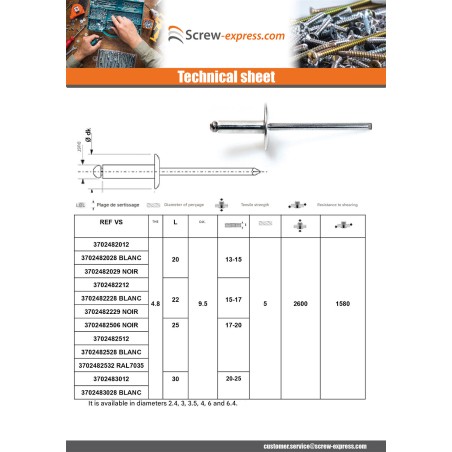

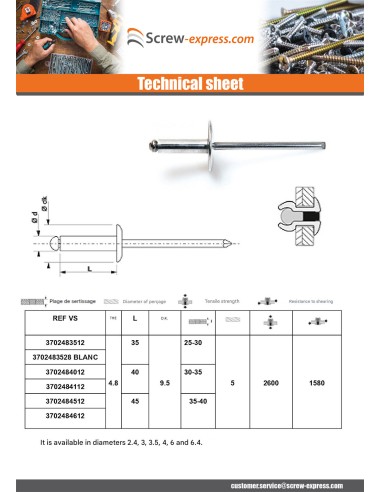

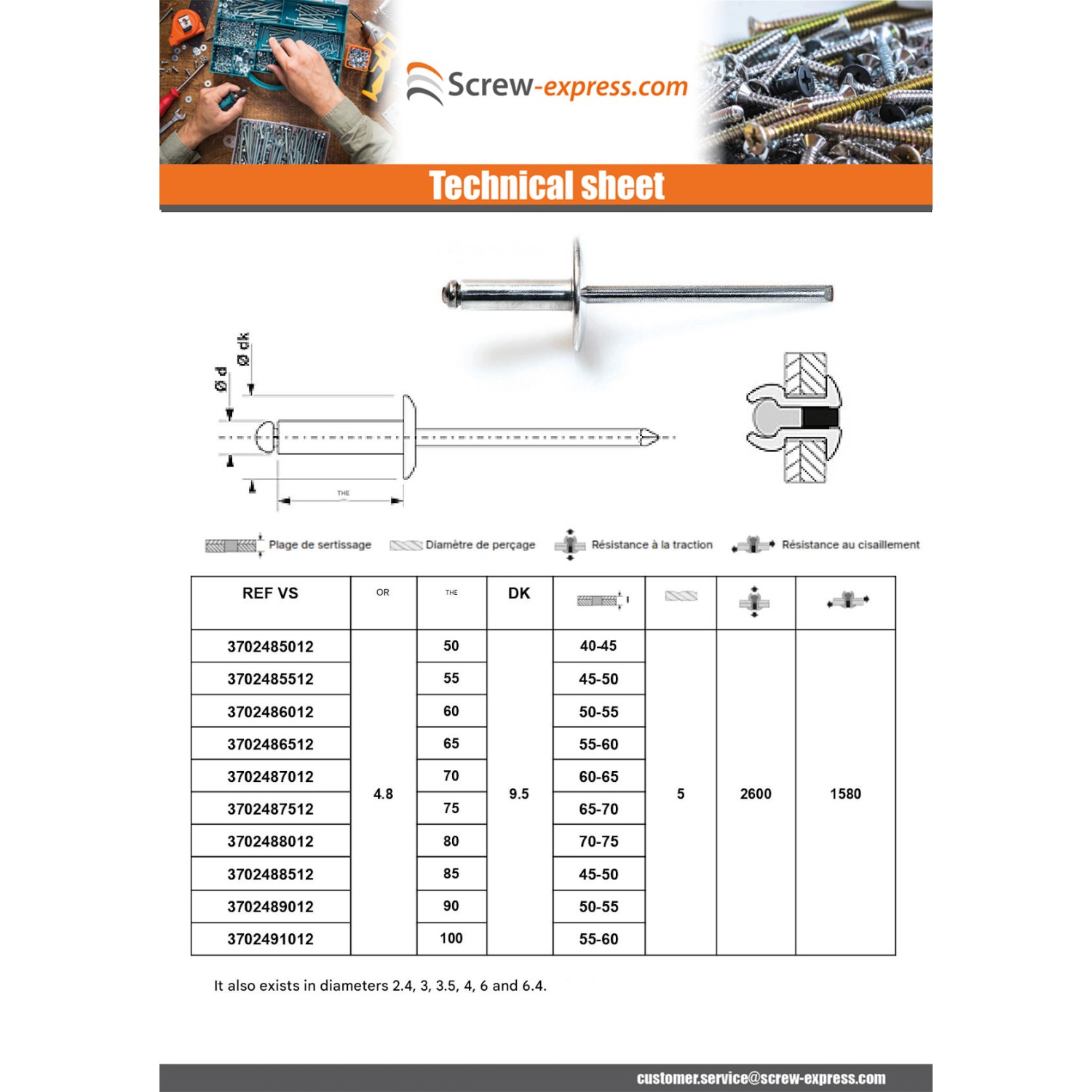

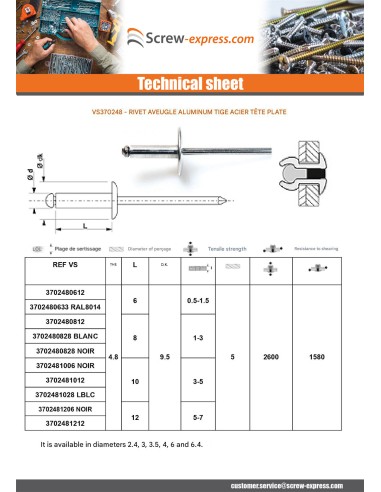

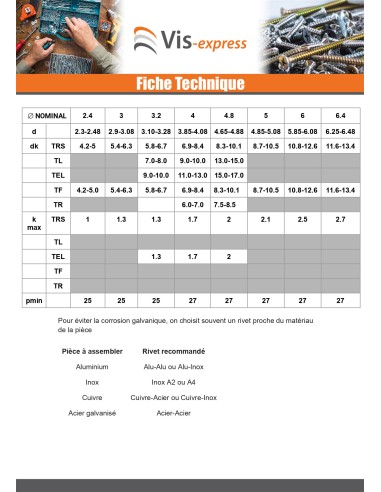

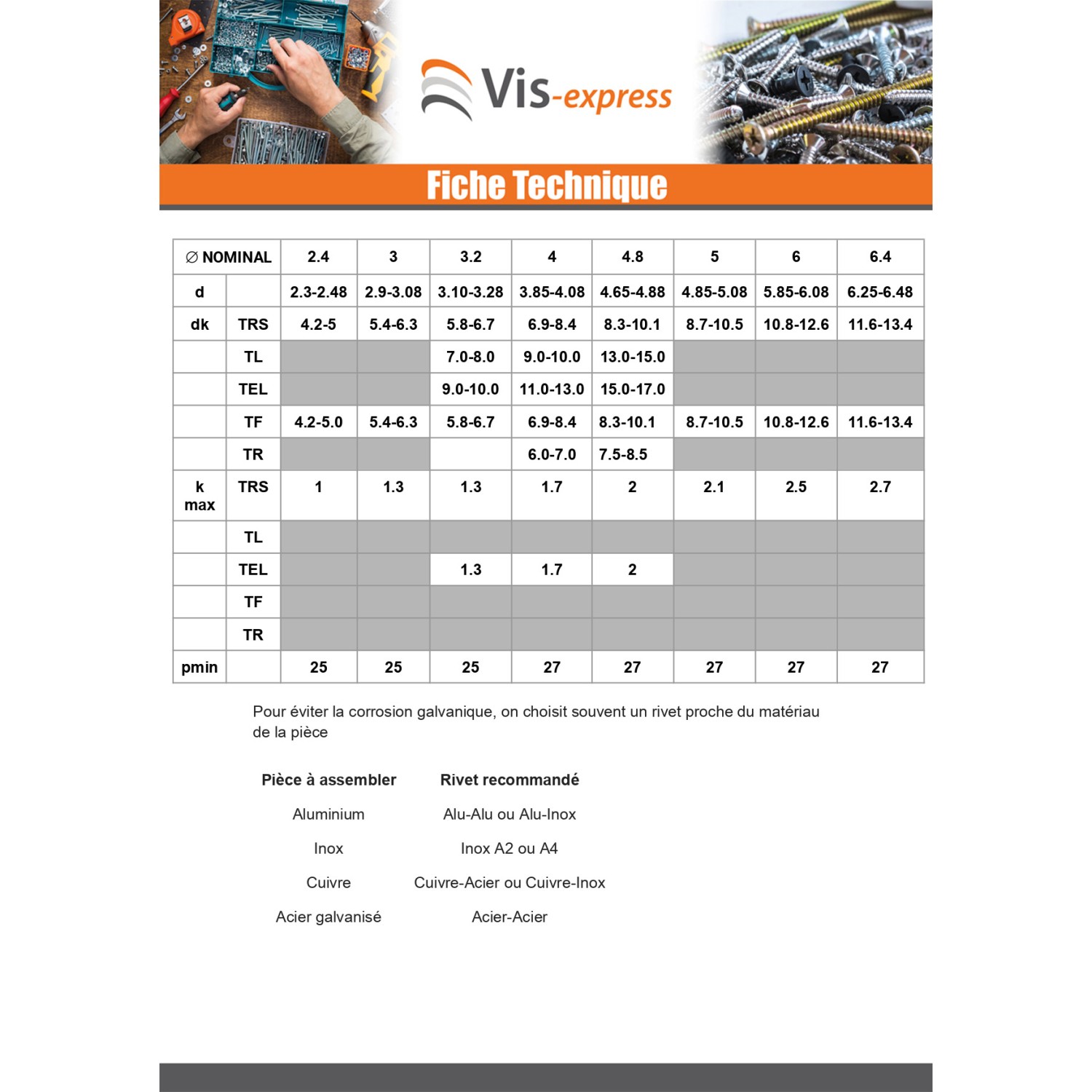

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 116148121 154894 RIVBLANC 1010086 26034 3663072064188
Pascal C. (vis-express.fr)
2024-01-07

fixing corrugated sheets to chassis total thickness 5 mm
