3703480812_1
In stock 6282 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €10.15 €24.50

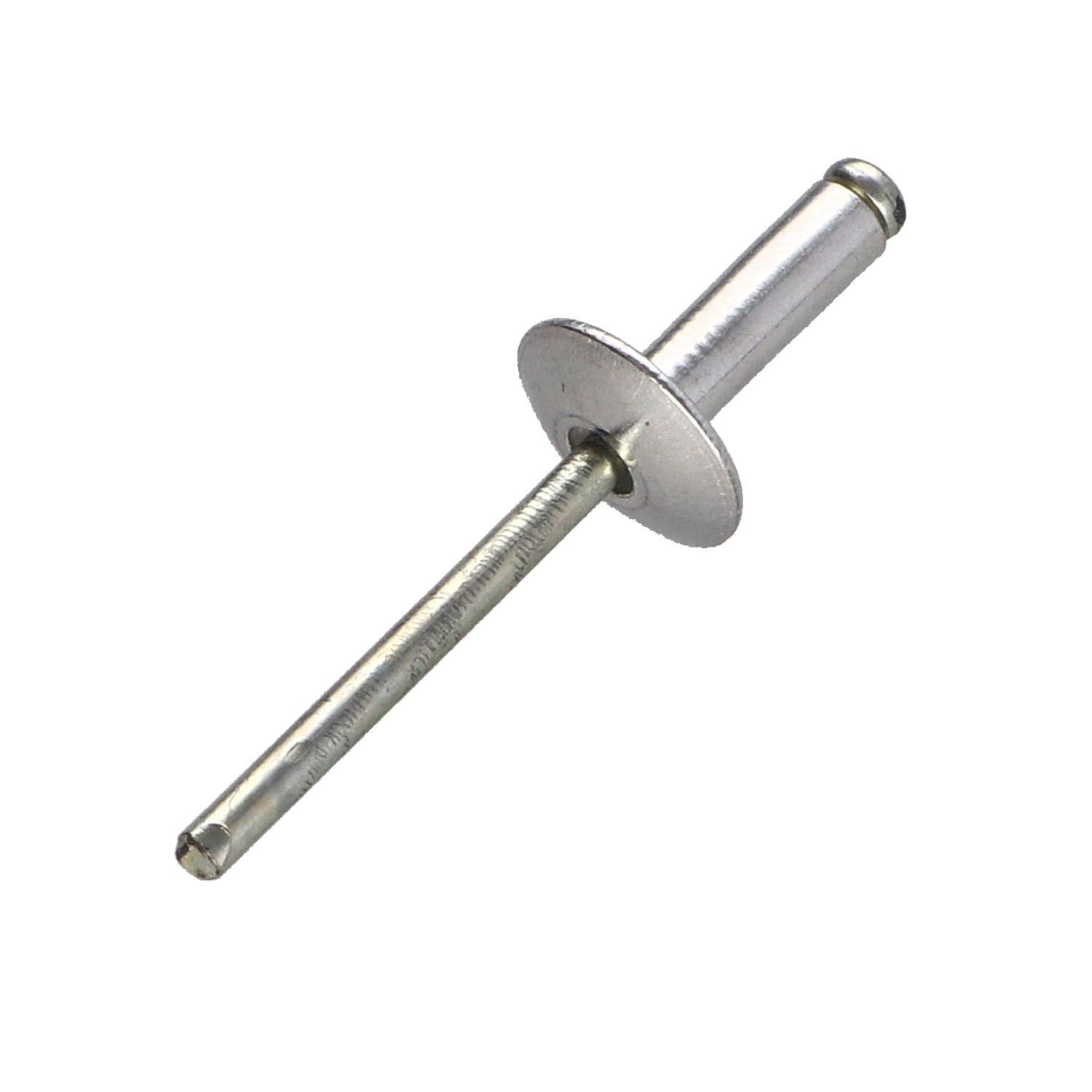

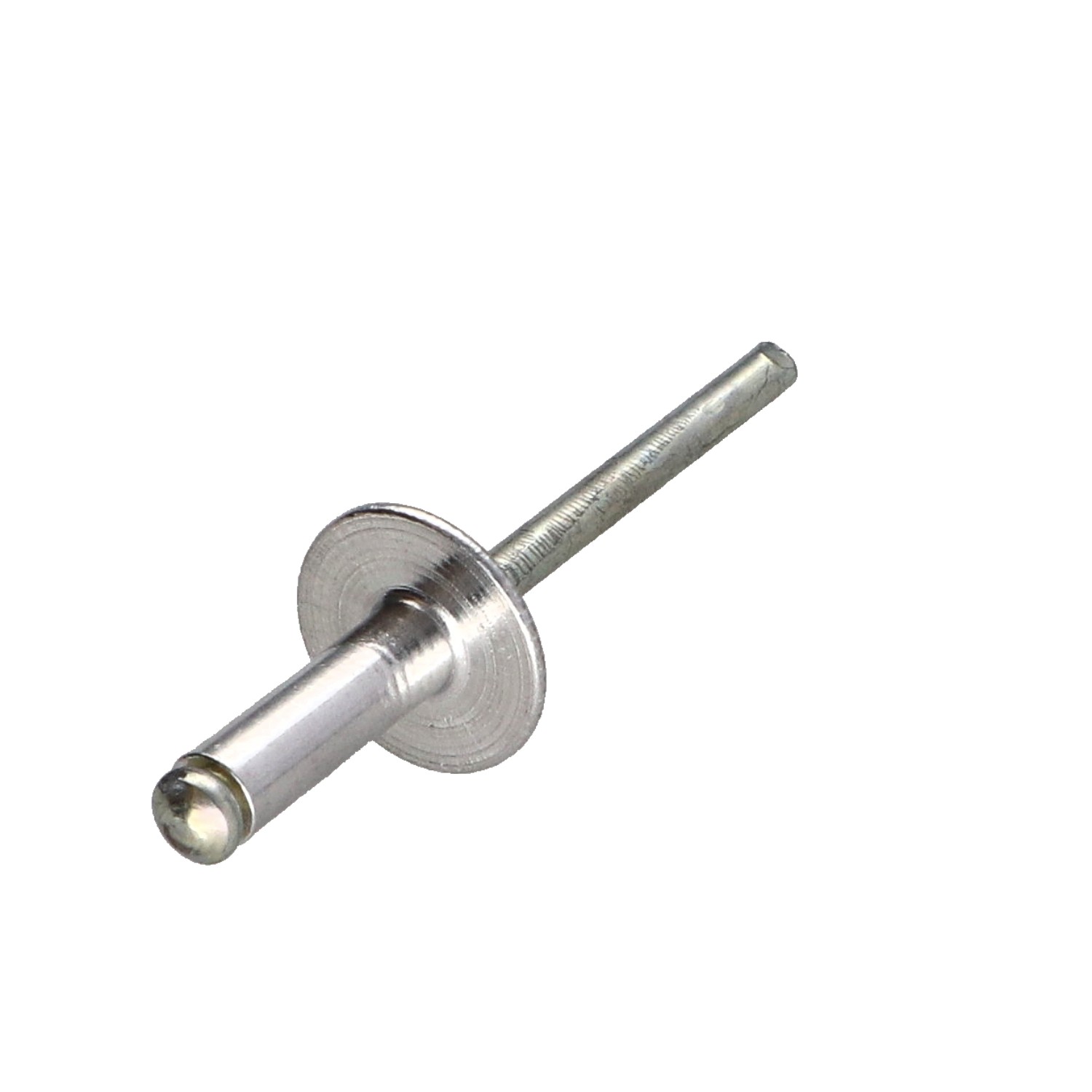

Blind rivets Aluminium Stahlgewinde 4.8X8 Thickness Of Panel 1 to 3 Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
14
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
1 a 3 mm
Rivet body length
8
Unit weight
2.7 GR
Head shape
Head Large
Hole diameter
5
Tensile strength
2600
6282 Items
3663072064386

Application

  • Thin sheets of aluminum or steel
  • Plastics, PVC, polycarbonate
  • Lightweight or insulating panels
  • Signage and branding
Blind rivets Aluminium Stahlgewinde 4.8X8 Thickness Of Panel 1 to 3 Large Head ALX
Diameter = Class 4.8

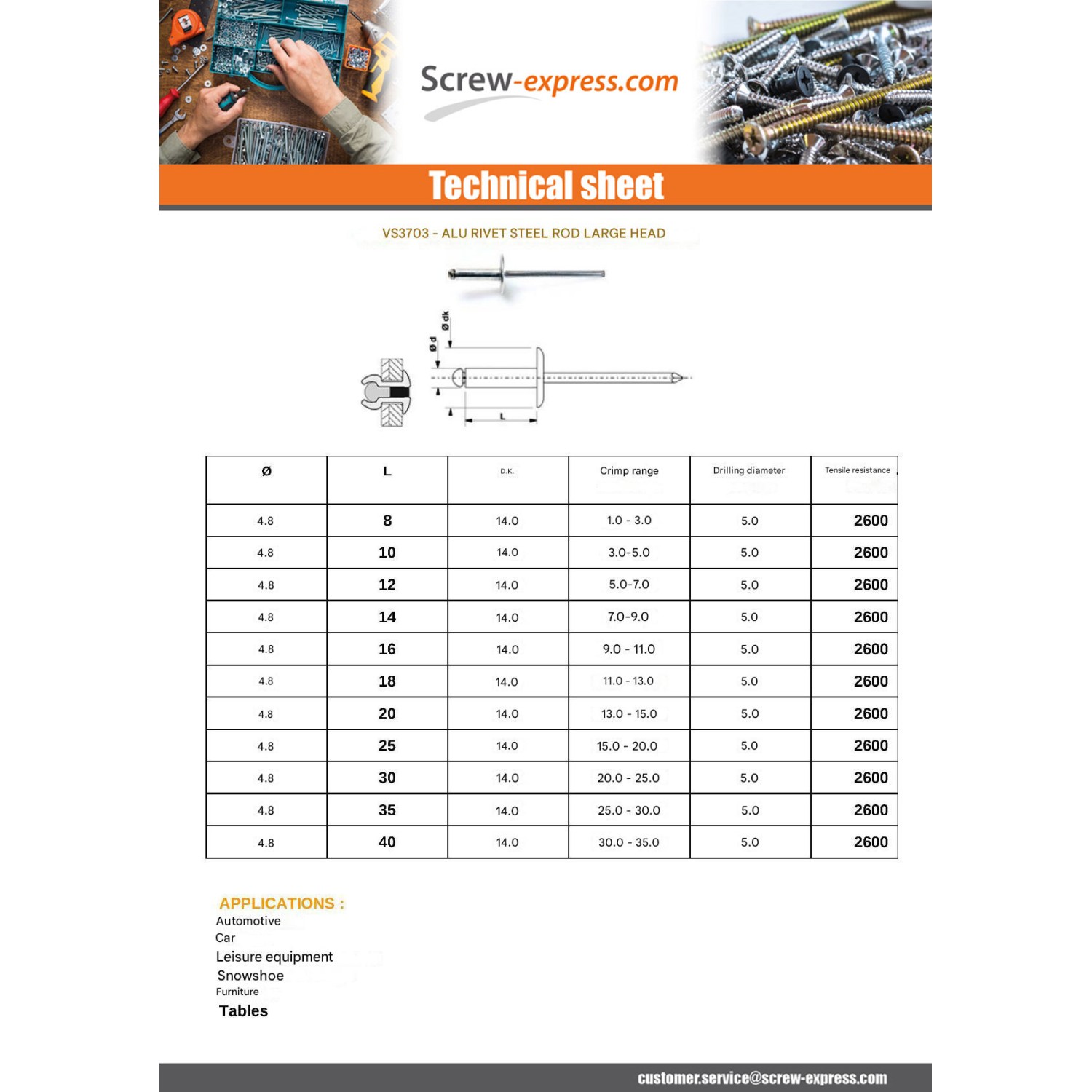

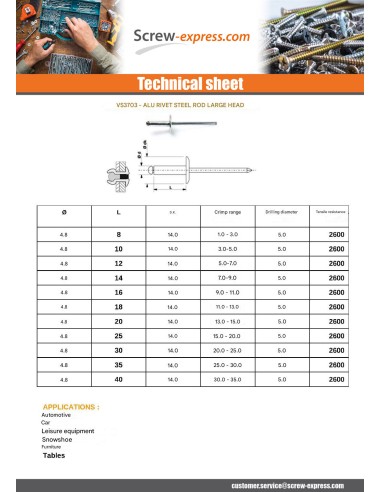

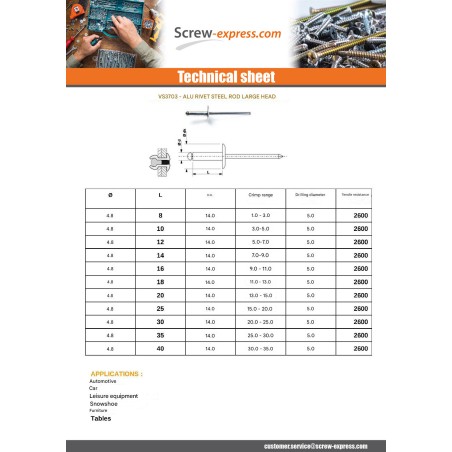

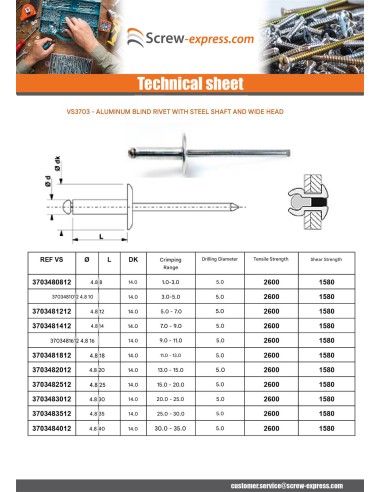

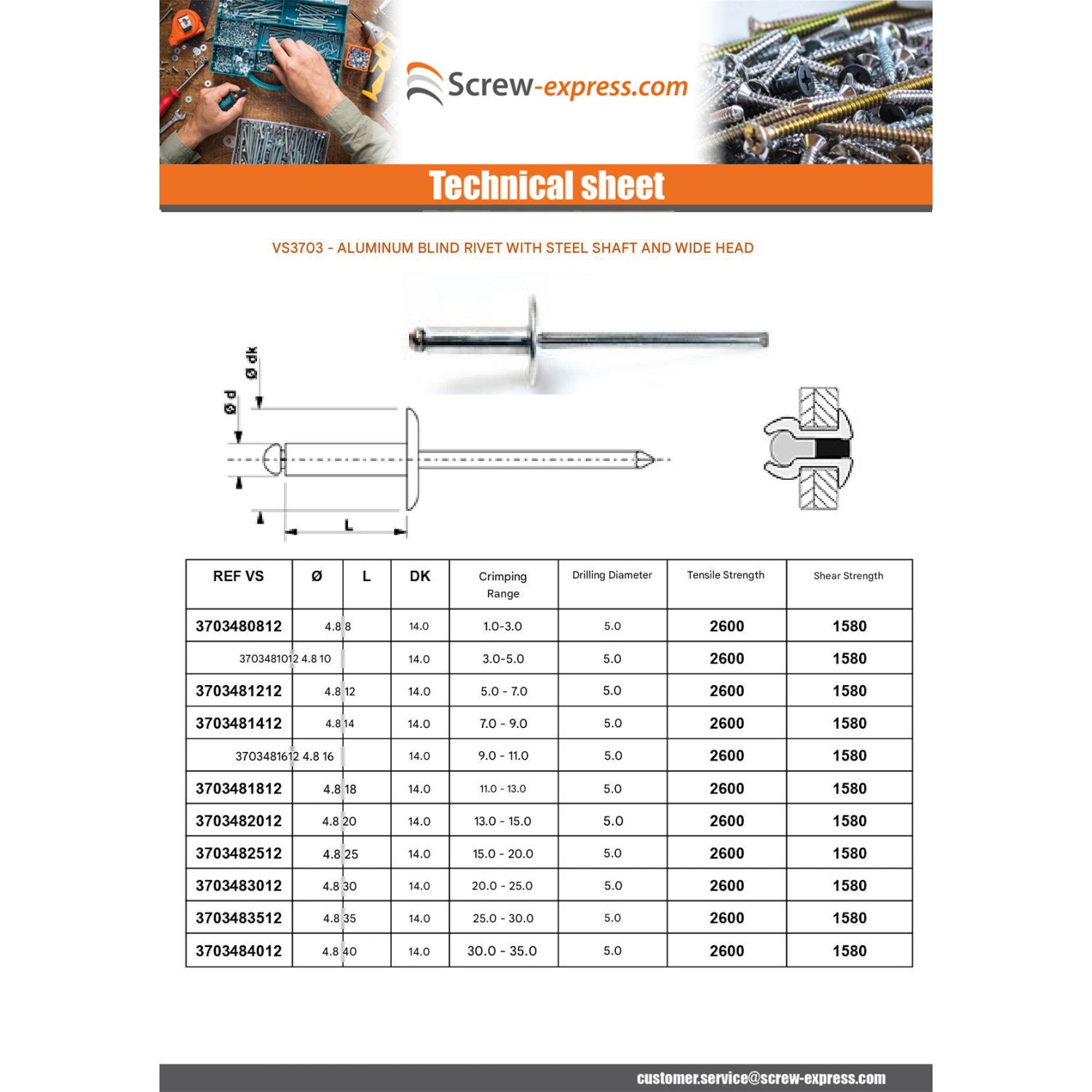

dimensional guide (mm)
Body diameter 4.8
Head diameter 14
Drilling diameter 5
longueur tige 27
resistance a la traction 2600
Shear strength 2100

Other Reference : 103248081 021.I.TL488A RIV*AL*TL*4. RIV.4,8x8 ELFARIVAL4.8 AN 3663072064386
Ghenadie M. (vis-express.fr)
2024-04-21

Fixing photovoltaic plastic labels, fixing wiring ducts in electrical cabinets All types of wiring ducts and all types of labels
