3703483512_1
In stock 29247 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €4.25 €8.45 €10.20 €62.05
Blind rivets Aluminium Stahlgewinde 4.8X35 Thickness Of Panel 25 to 30 Large Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
14
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
25 a 30 mm
Rivet body length
35
Unit weight
4.9 GR
Head shape
Head Large
Hole diameter
5
Tensile strength
2600
29247 Items
3663072064515

Application

  • Thin sheets of aluminum or steel
  • Plastics, PVC, polycarbonate
  • Lightweight or insulating panels
  • Signage and branding

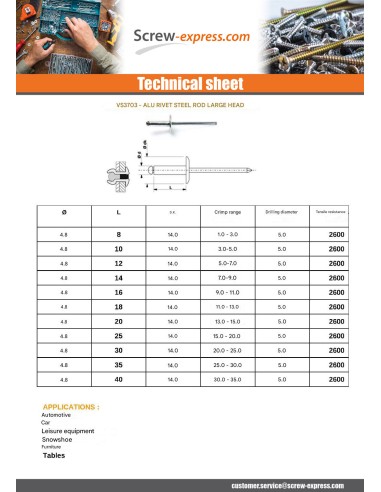

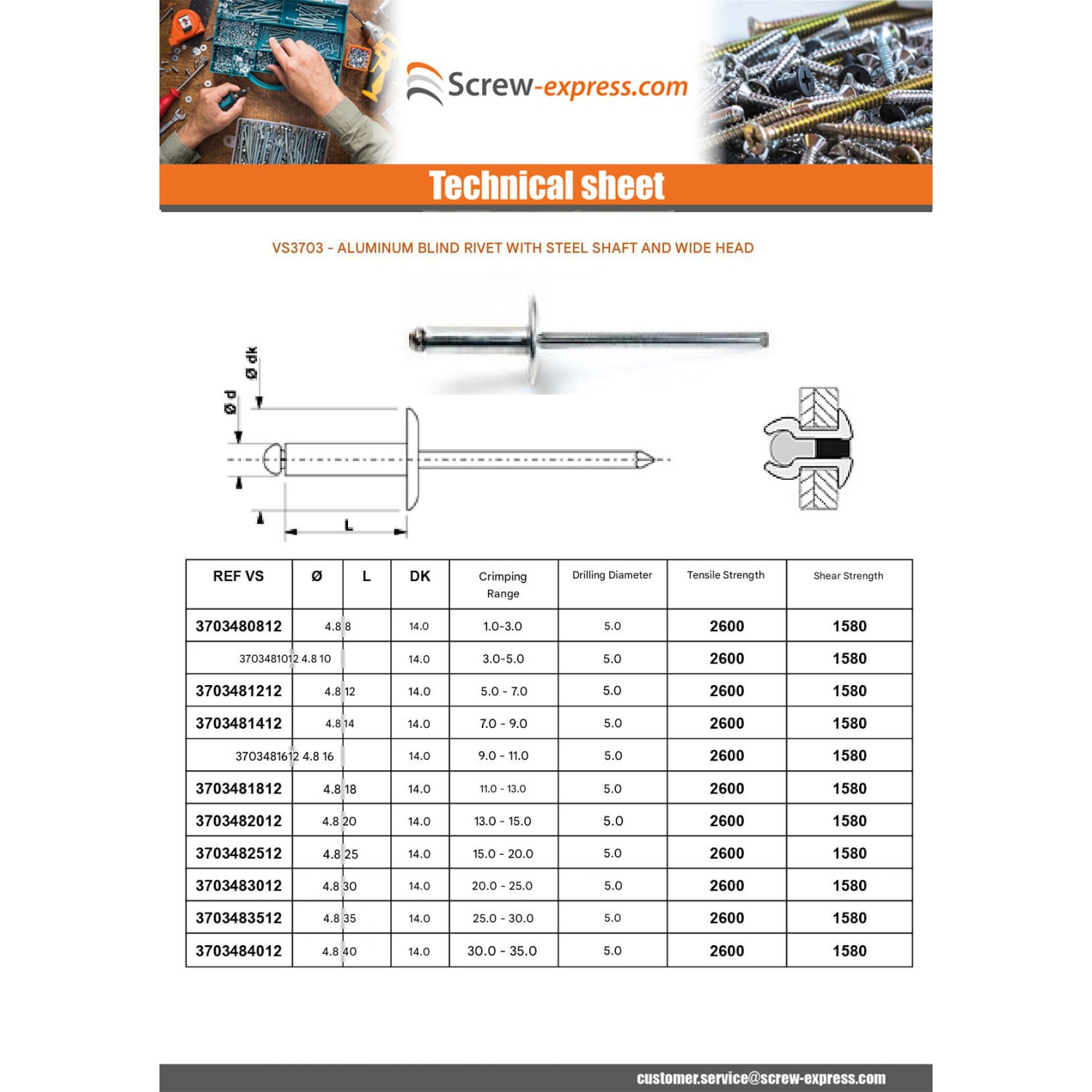

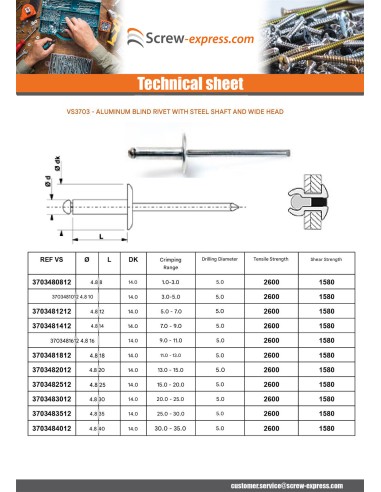

Blind rivets Aluminium Stahlgewinde 4.8X35 Thickness Of Panel 25 to 30 Large Head ALX
Diameter = Class 4.8

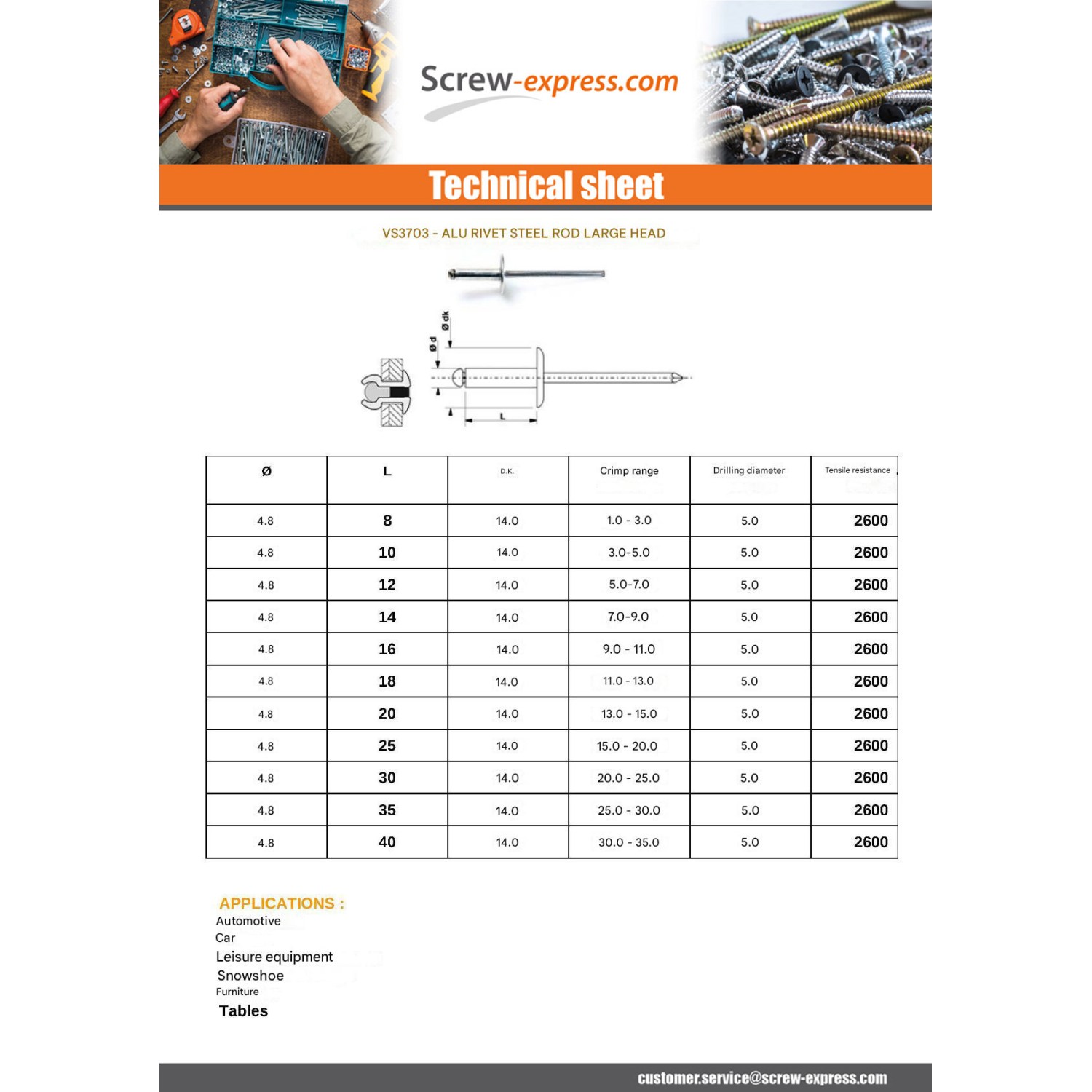

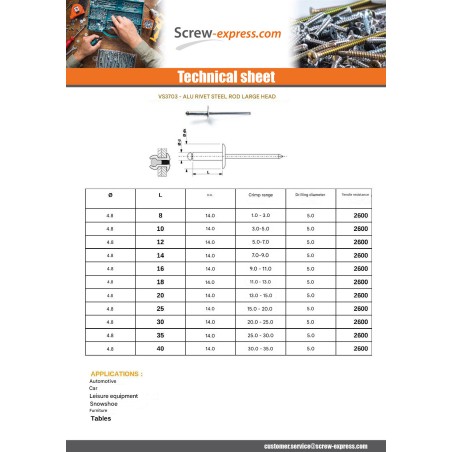

dimensional guide (mm)
Body diameter 4.8
Head diameter 14
Drilling diameter 5
longueur tige 27
resistance a la traction 2600
Shear strength 2100

Other Reference : 103248351 F316-05035 RIVET4.8X35 3663072064515
Alban M. (vis-express.fr)
2024-08-04

18mm plywood floor fixing I use the 4.8x35 steel rod aluminum rivets to fix 18MM plywood floors (coll + rivet)
