3703483506_1
In stock 8031 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included €1.85 €3.85 €11.55 €77.00 €292.40

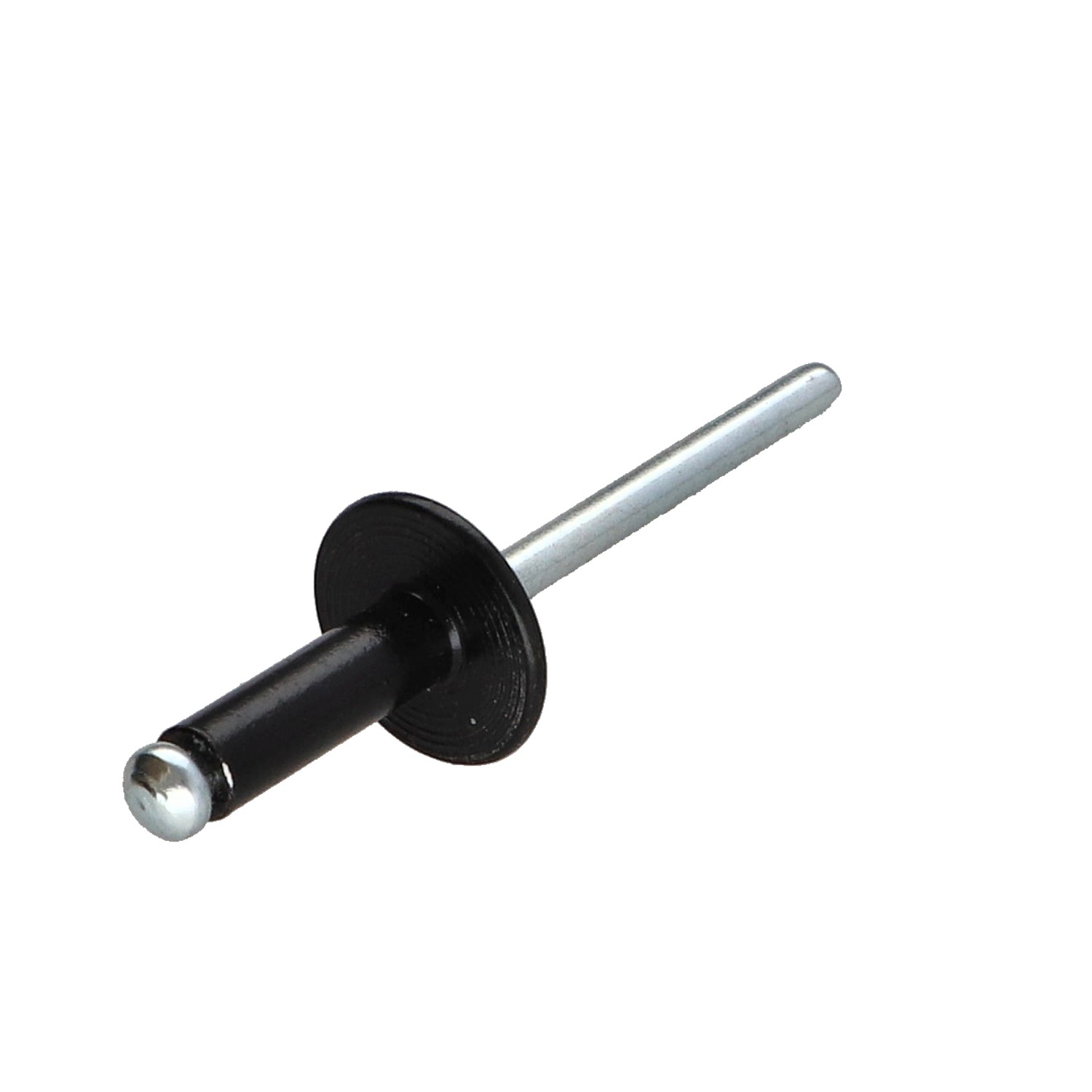

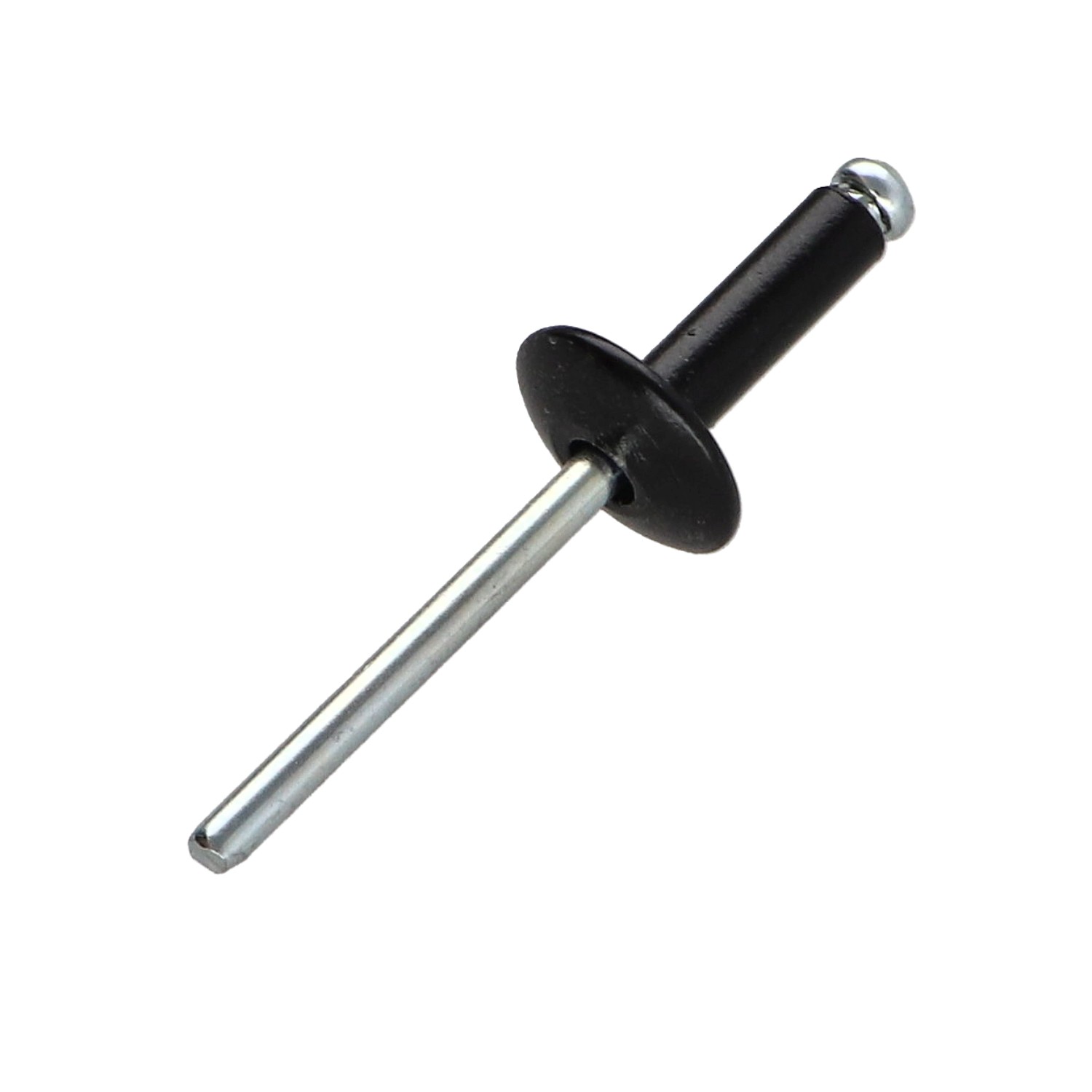

Blind rivets Aluminium Stahlgewinde 4.8X35 Thickness Of Panel 25 to 30 Large Head Black
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
14
Material
BODY Aluminium / rod Steel
COLOR
Black
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
25 a 30 mm
Rivet body length
35
Unit weight
4.5 GR
Head shape
Head Large
Hole diameter
5
Tensile strength
2600
8031 Items
3663072064508

Application

  • Thin sheets of aluminum or steel
  • Plastics, PVC, polycarbonate
  • Lightweight or insulating panels
  • Signage and branding
Blind rivets Aluminium Stahlgewinde 4.8X35 Thickness Of Panel 25 to 30 Large Head Black
Diameter = Class 4.8

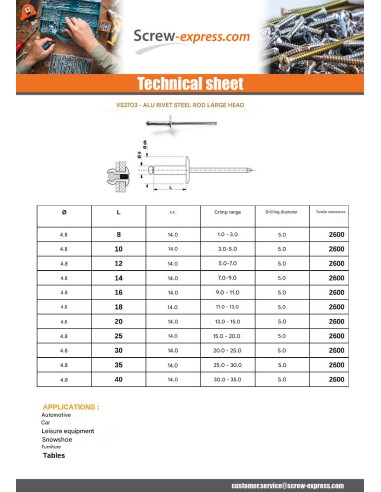

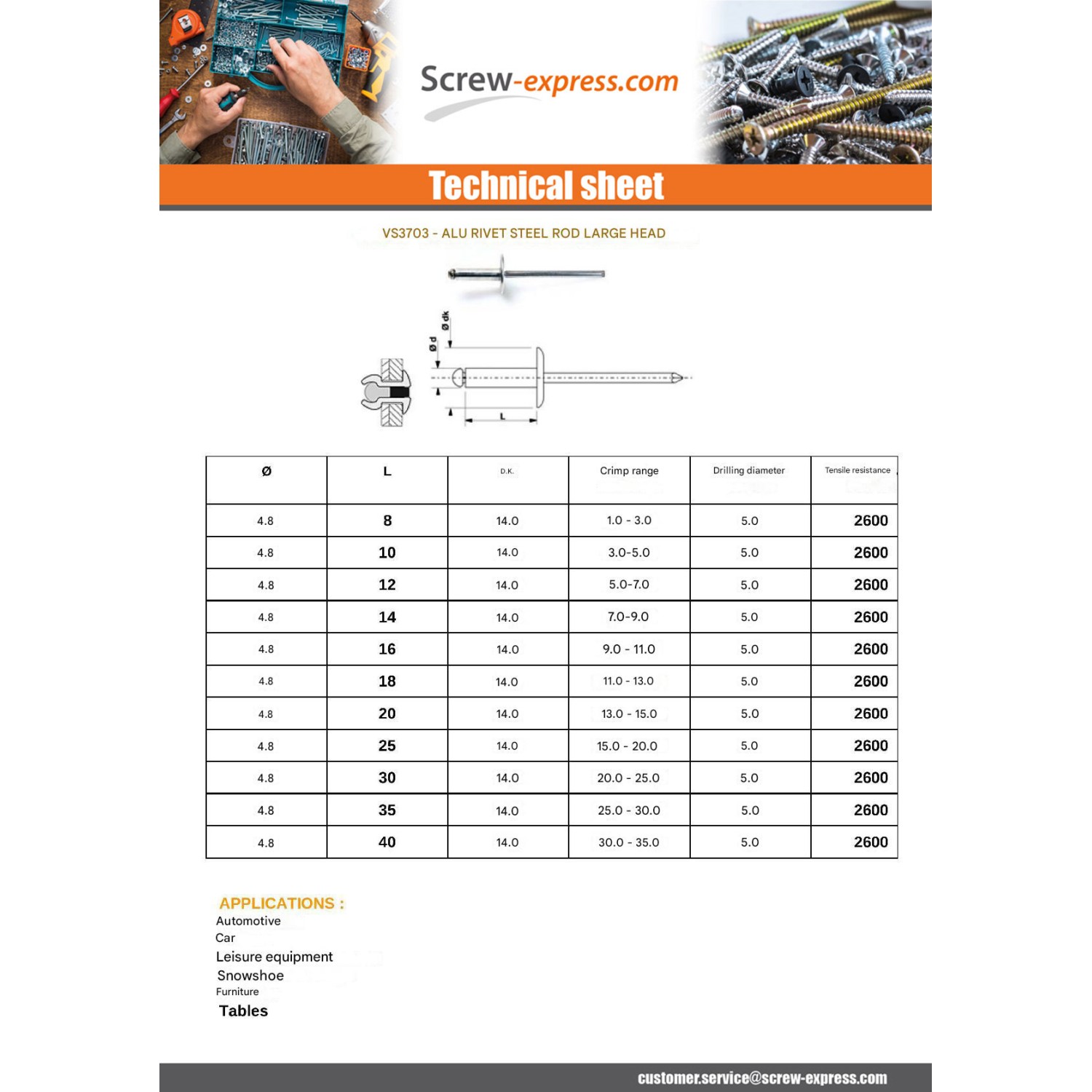

dimensional guide (mm)
Body diameter 4.8
Head diameter 14
Drilling diameter 5
longueur tige 27
resistance a la traction 2600
Shear strength 2100

Other Reference : 3617500055453 800.01.940 3663072064508
benjamin v. (vis-express.fr)
2024-10-20

To fix obd wood lacquer in van
