3703481606_1
In stock 43733 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250 1000
Lot price VAT included €1.70 €3.40 €4.05 €16.70 €63.50

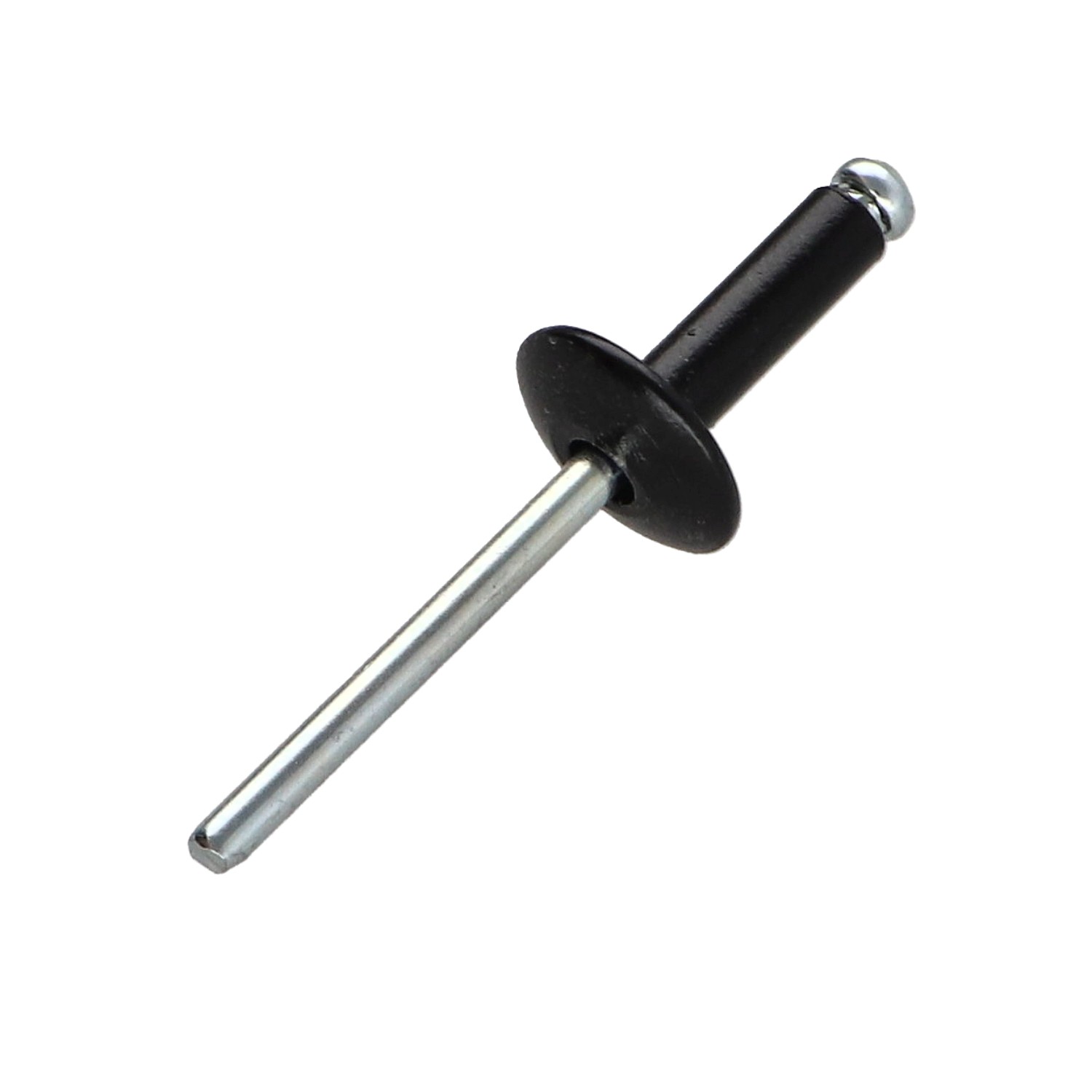

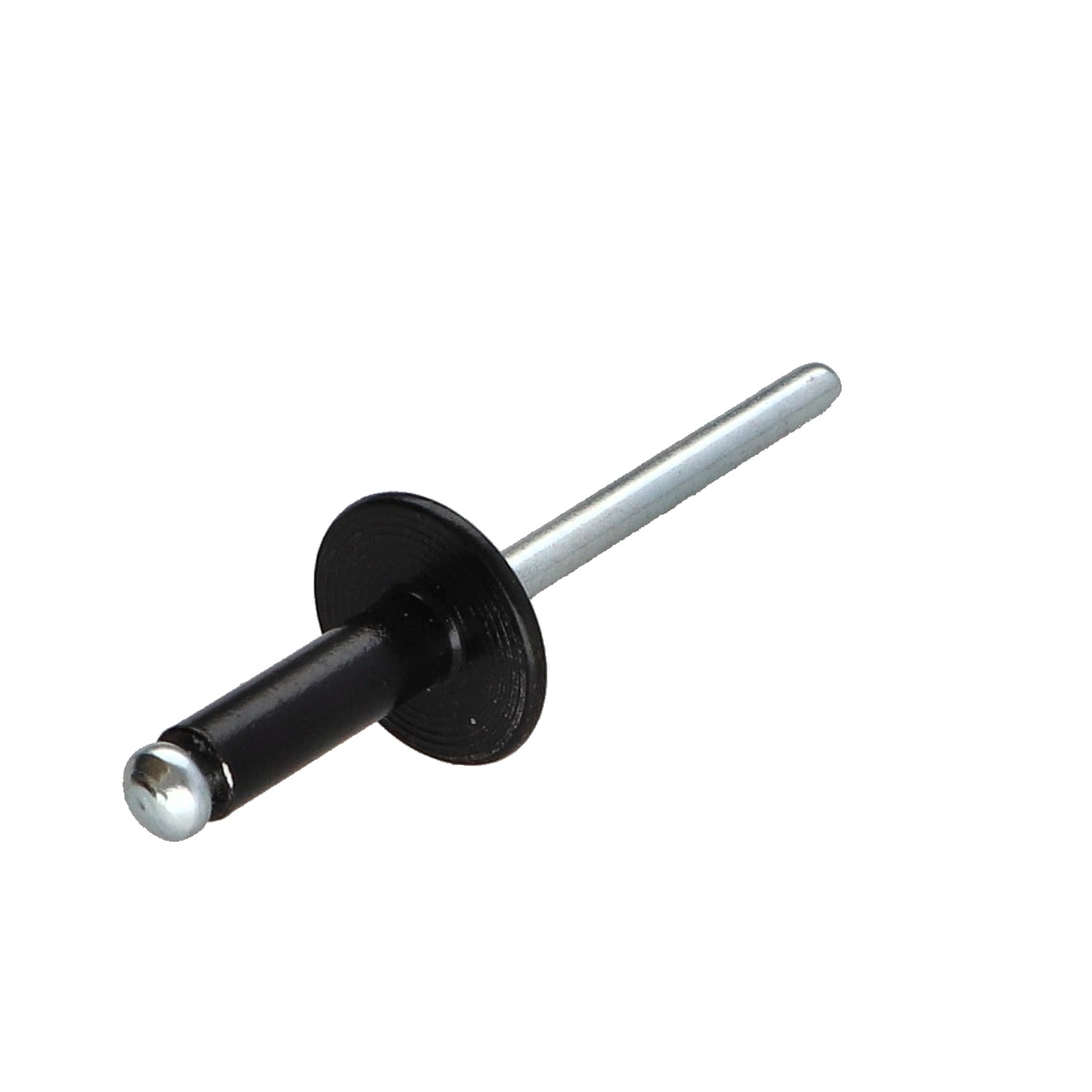

Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Large Head ALX Black
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
14
Material
BODY Aluminium / rod Steel
COLOR
Black
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
9 a 11 mm
Rivet body length
16
Unit weight
3.4 GR
Head shape
Head Large
Hole diameter
5
Tensile strength
2600
43733 Items
3663072064430

Application

  • Thin sheets of aluminum or steel
  • Plastics, PVC, polycarbonate
  • Lightweight or insulating panels
  • Signage and branding

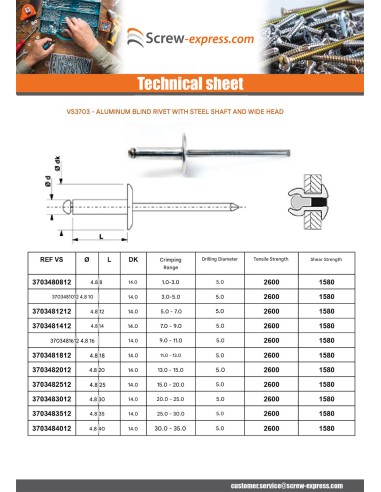

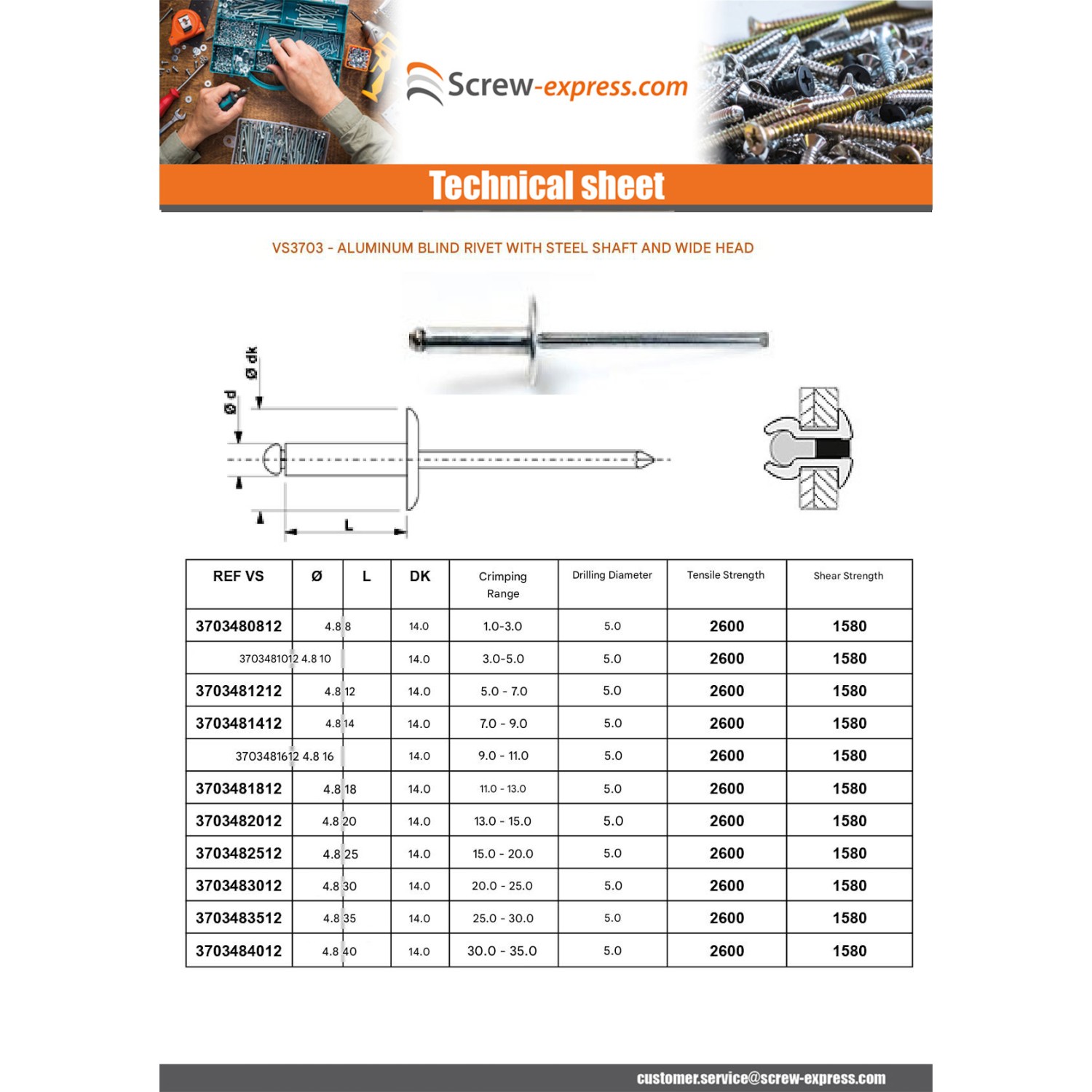

Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Large Head ALX Black
Diameter = Class 4.8


dimensional guide (mm)
Body diameter 4.8
Head diameter 14
Drilling diameter 5
longueur tige 27
resistance a la traction 2600
Shear strength 2100

Other Reference : 3617501746145 CMEFRV019 Z126284 3663072064430
