3701300612_1
In stock 75800 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €22.80

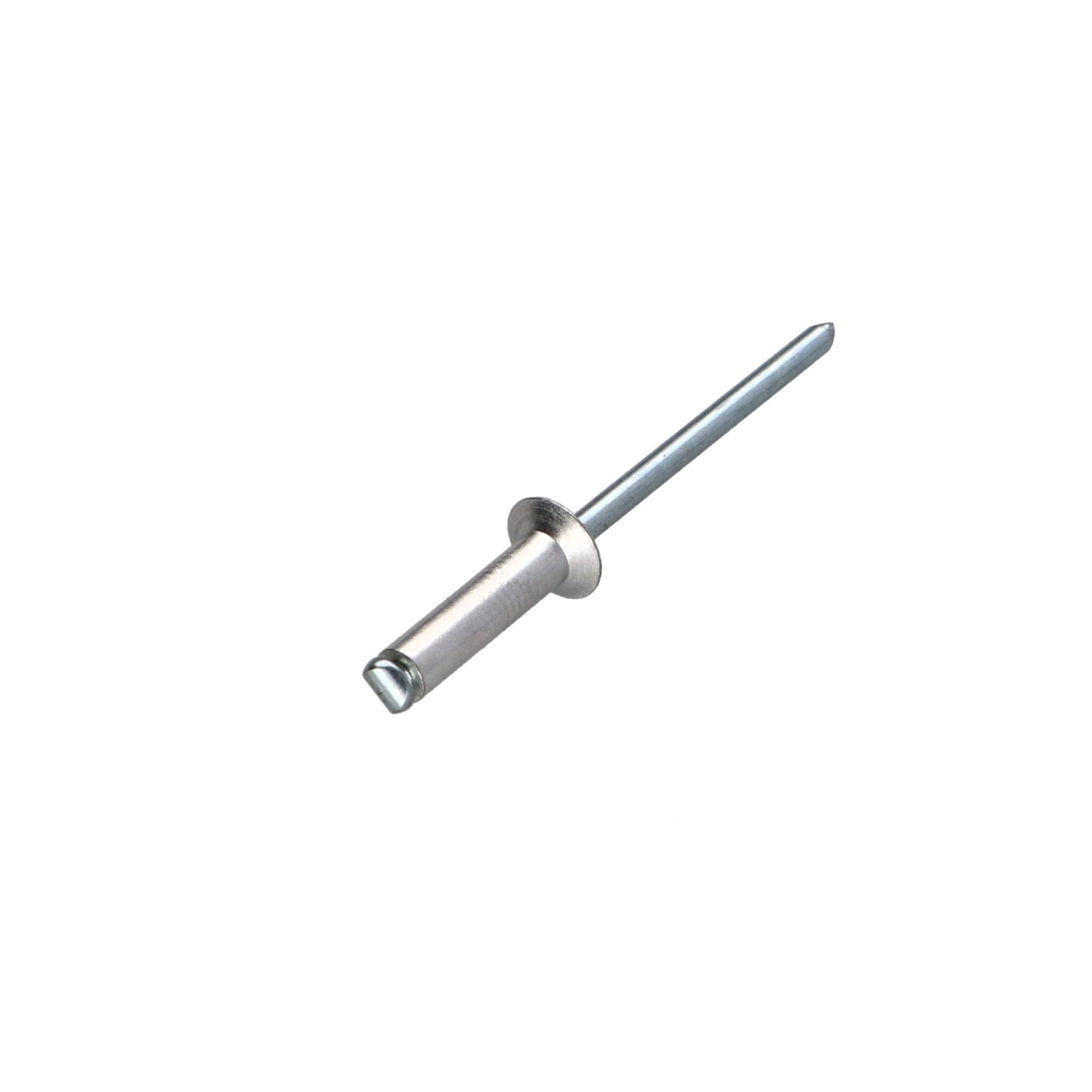

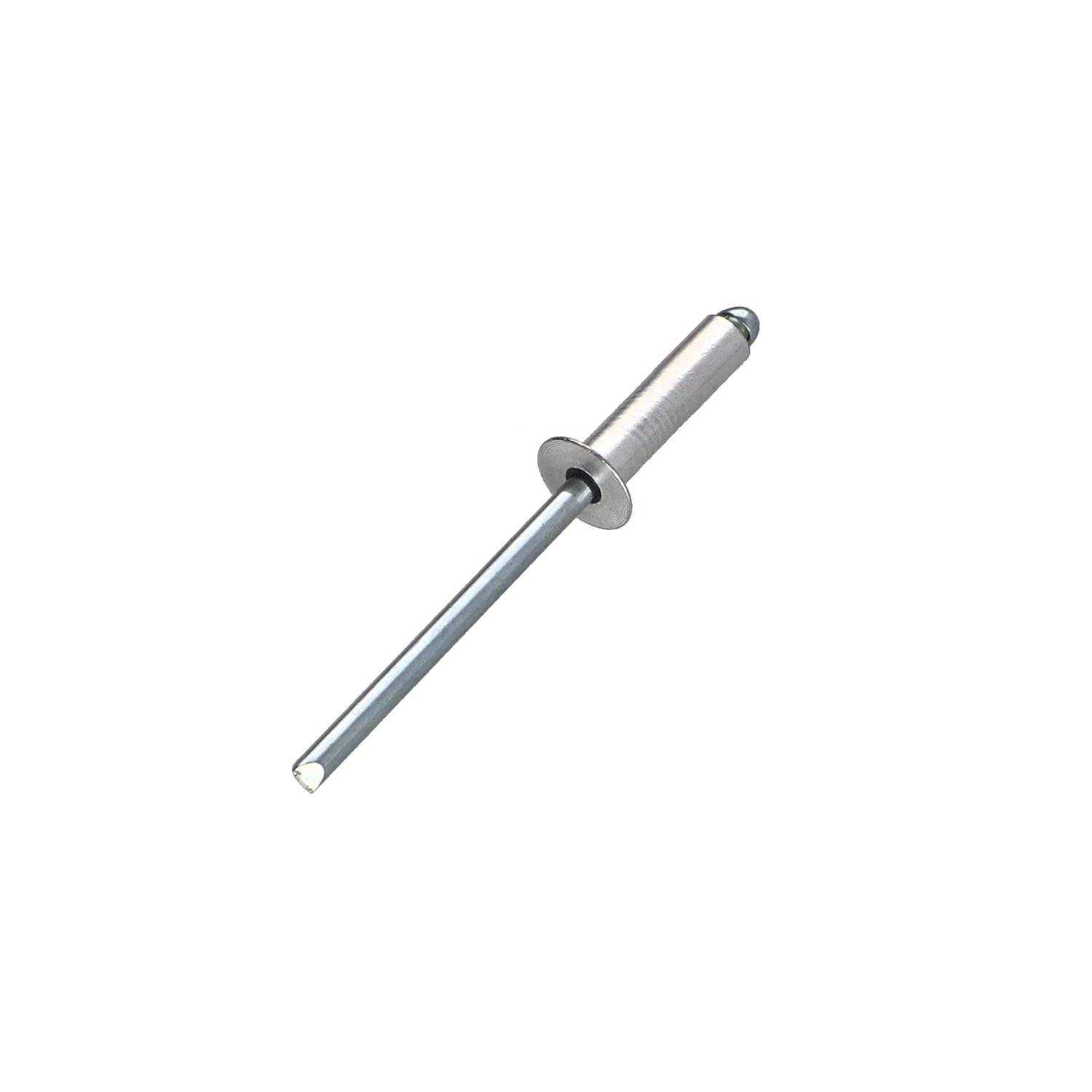

Blind rivets Aluminium Stahlgewinde 3X6 Thickness Of Panel 1.5 to 3 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
3
Diameter Head
6
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
600
Clamping thickness
1.5 a 3 mm
Rivet body length
6
Unit weight
0.96 GR
Head shape
Countersunk Head
Hole diameter
3.2
Tensile strength
550
75800 Items
3663072301788

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 3X6 Thickness Of Panel 1.5 to 3 Countersunk Head ALX
Diameter = 3, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 6


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)

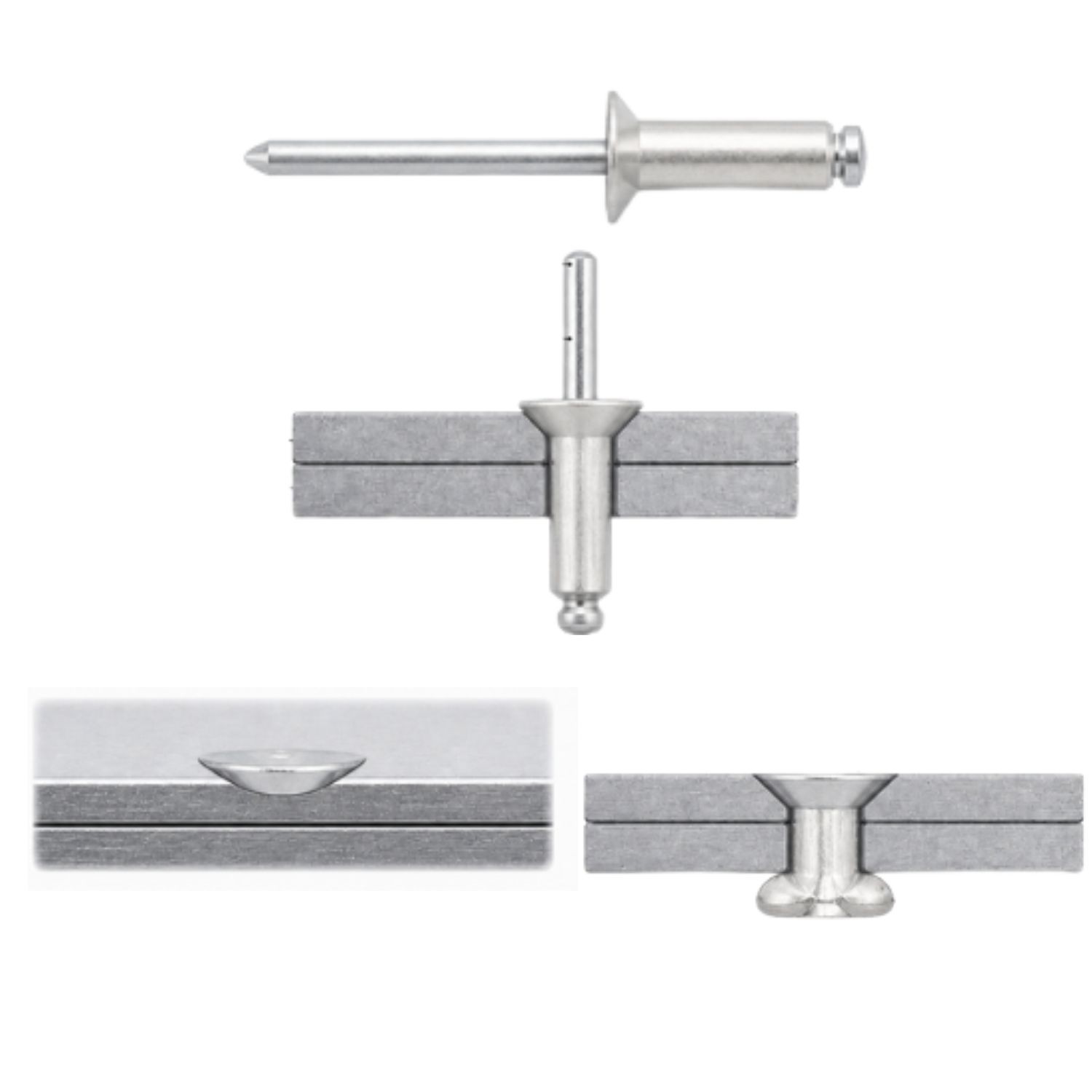

tete fraisee a 120 degres

Other Reference : 103430061 0412115 MF0026A MF0026A A00047974 013258 V001045 V001045 3663072301788
