3701401812_1
In stock 462 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €4.25 €8.45 €10.15 €23.35

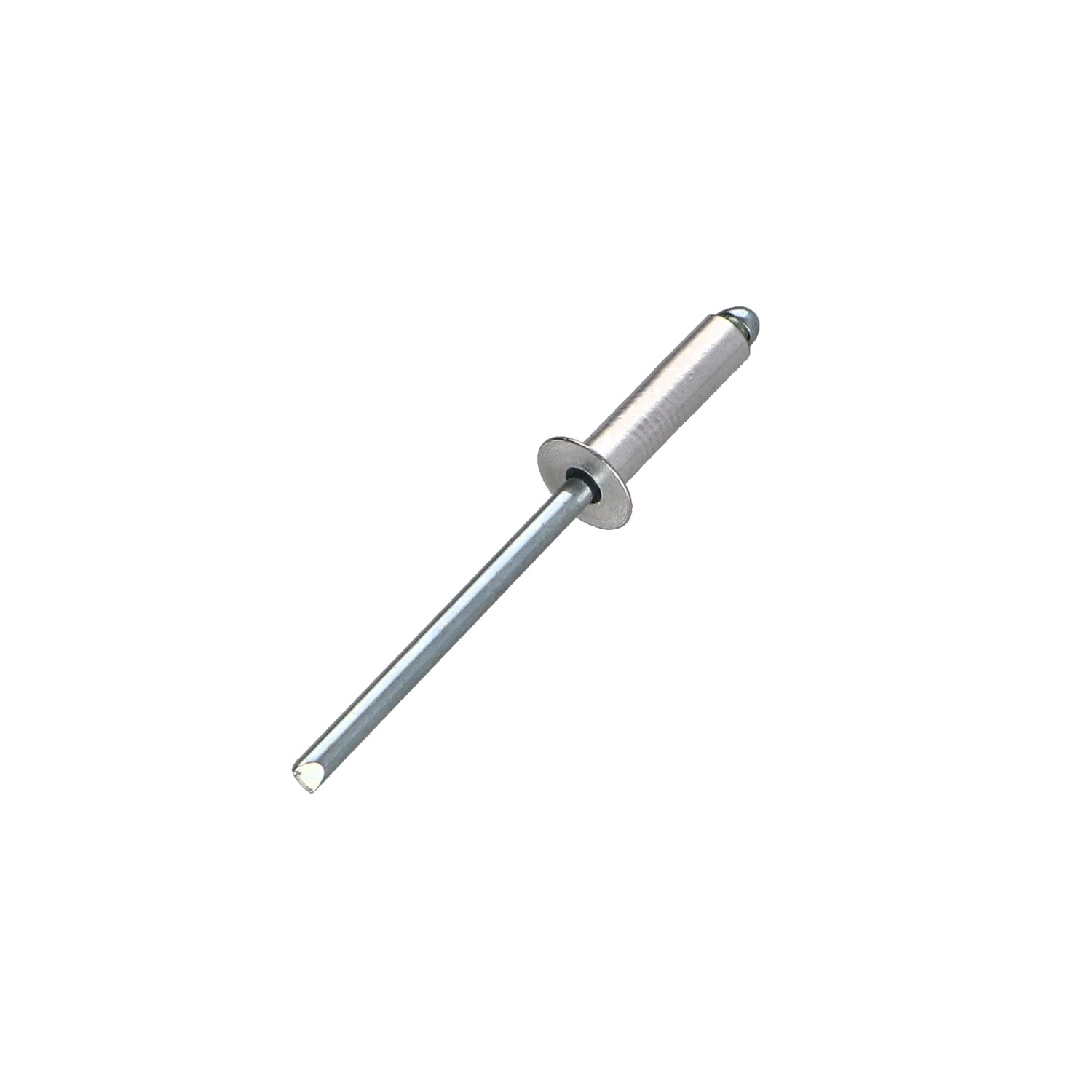

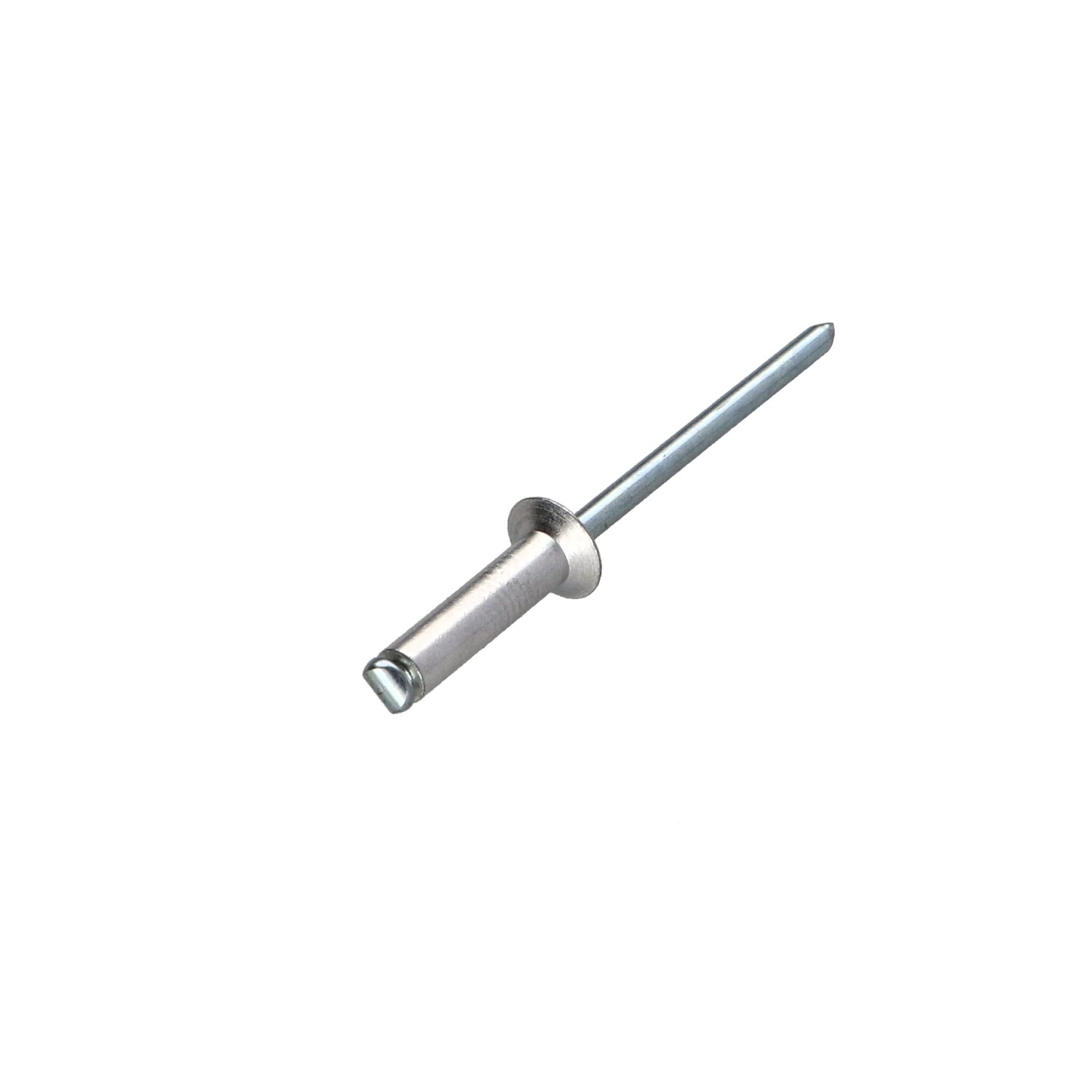

Blind rivets Aluminium Stahlgewinde 4X18 Thickness Of Panel 12 to 14 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
12 a 14 mm
Rivet body length
18
Unit weight
2.12 GR
Head shape
Countersunk Head
Hole diameter
4.2
Tensile strength
1800
462 Items
3663072232402

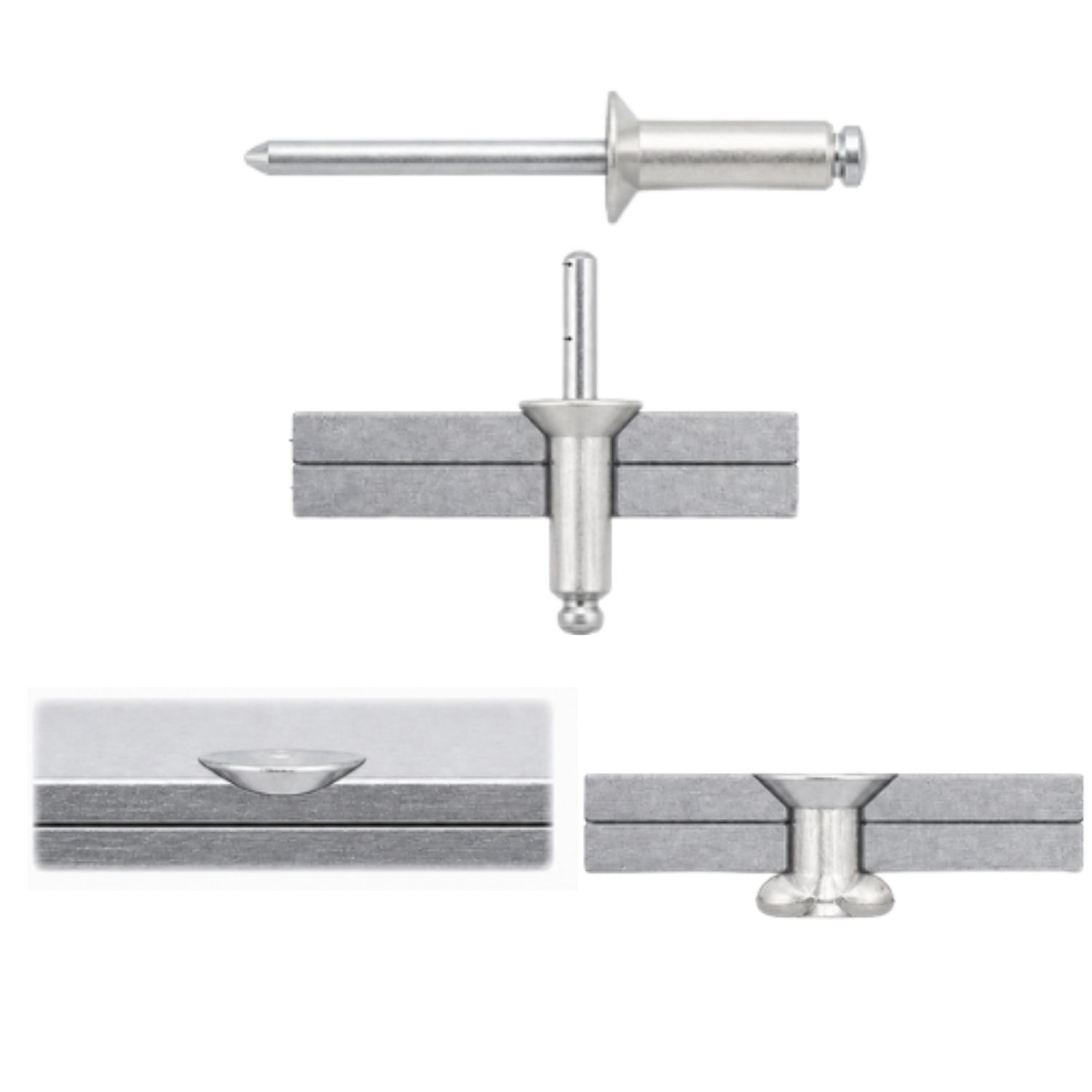

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 4X18 Thickness Of Panel 12 to 14 Countersunk Head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103440181 A29006 VIS0196 3663072232402
