3701481612_1
In stock 9674 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £8.81 £24.34
Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
9 a 11 mm
Rivet body length
16
Unit weight
3 GR
Head shape
Countersunk Head
Hole diameter
5
Tensile strength
2600
9674 Items
3663072063679

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 4.8X16 Thickness Of Panel 9 to 11 Countersunk Head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

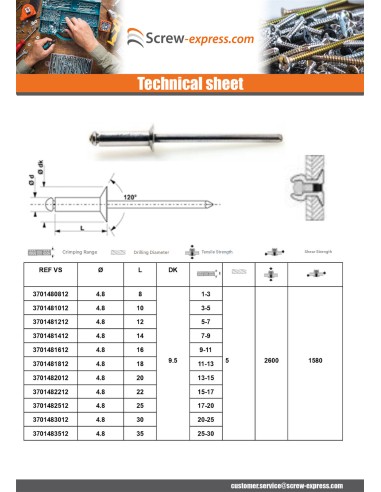

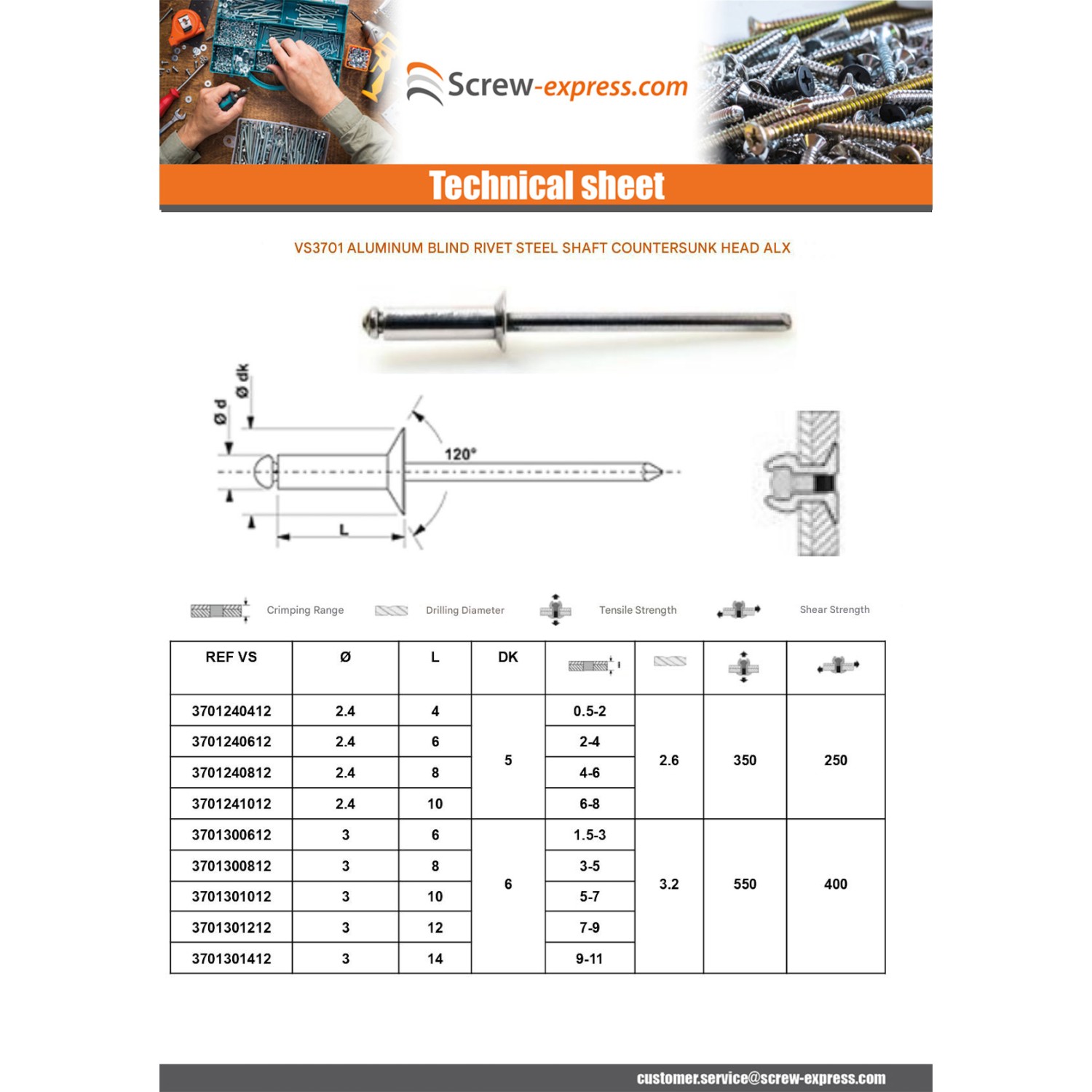

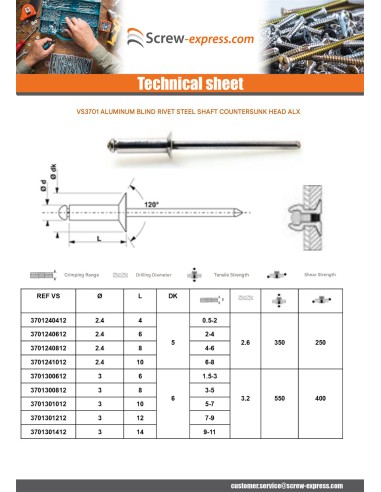

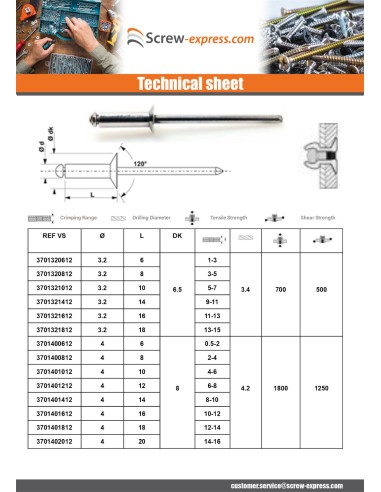

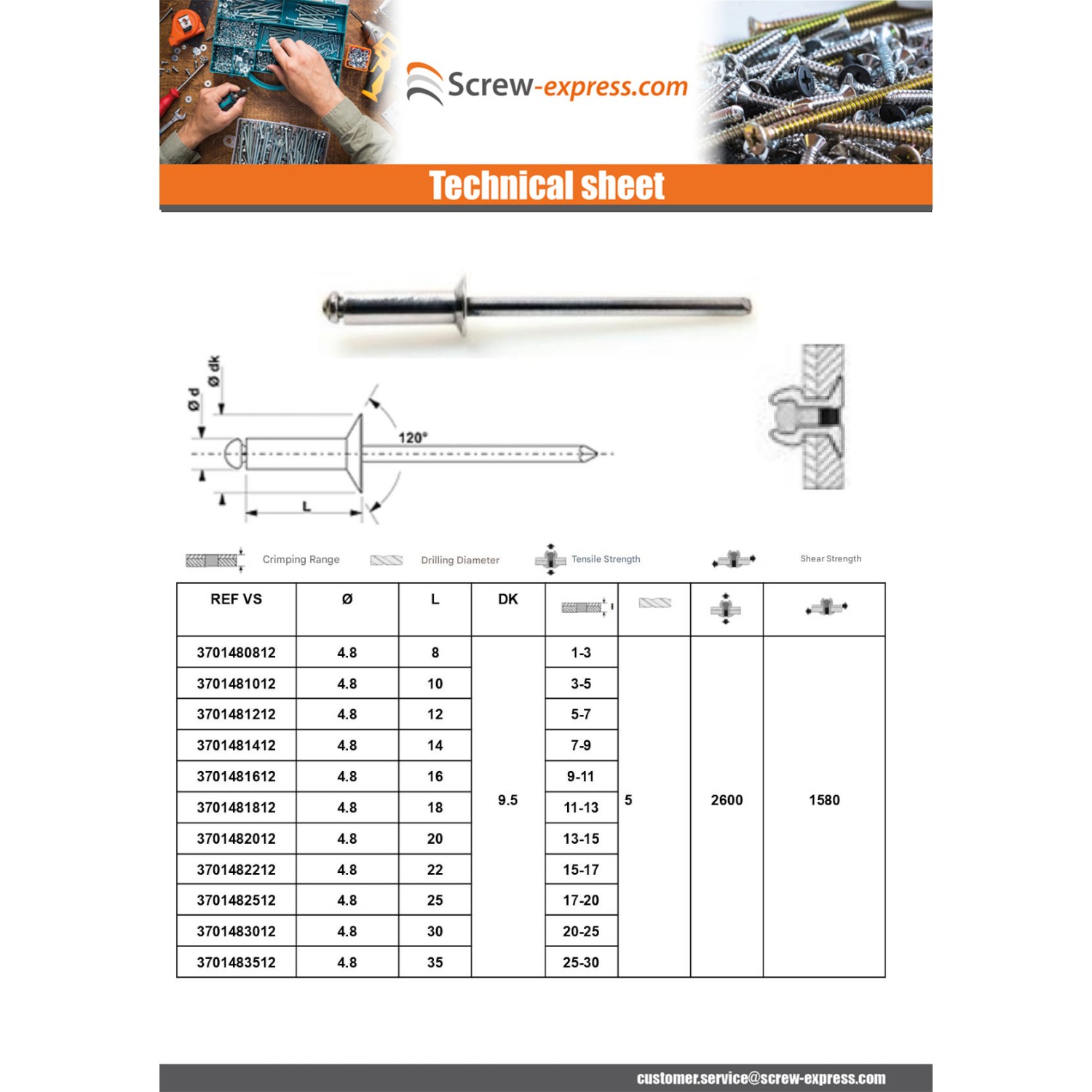

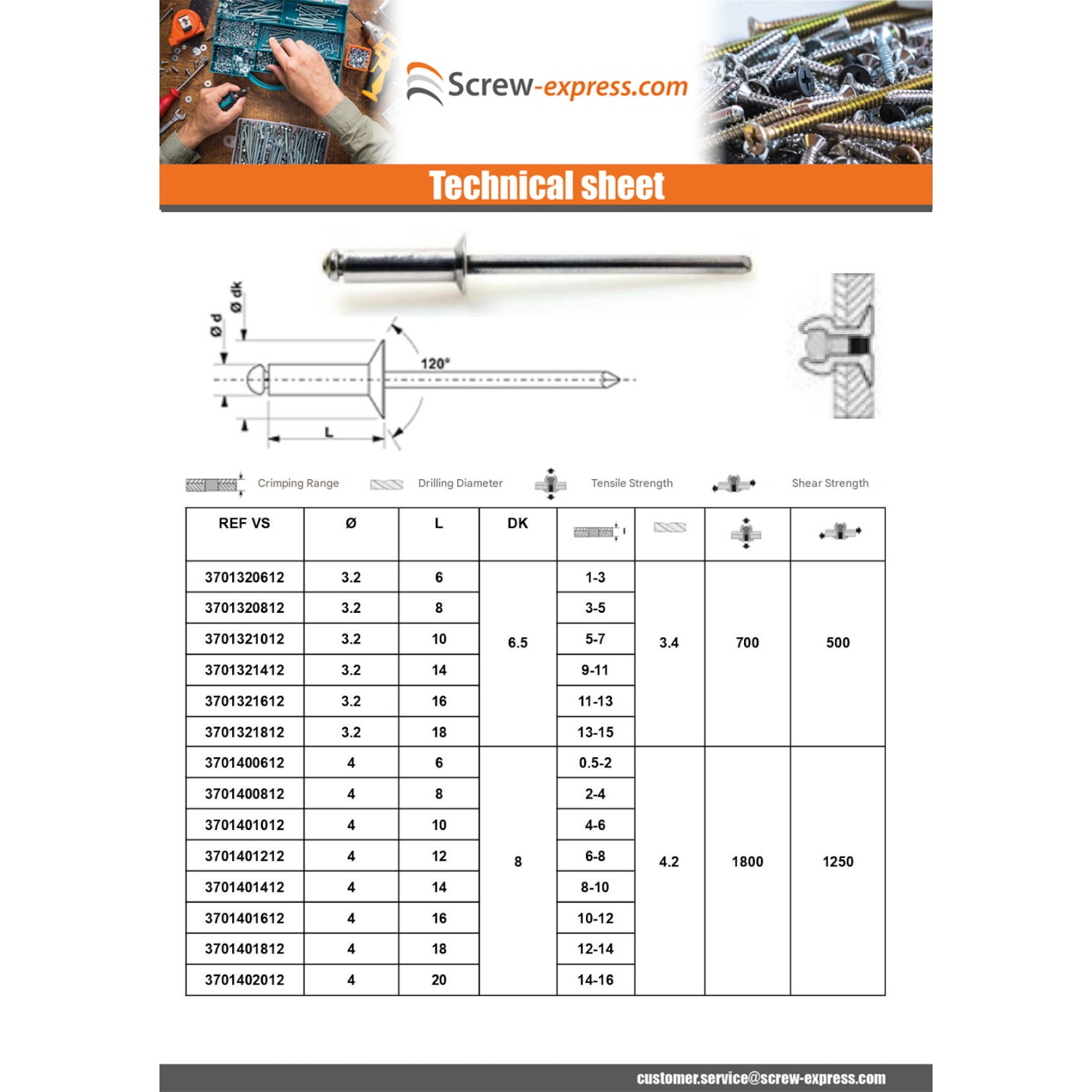

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103448161 10089 RA/AL/AC/F/4 VI1089 VP030022 9334812 2951 QRI20030 210111 3663072063679
Louis B. (vis-express.fr)
2024-06-16

Assembly of parts on aluminum ladders for tanker trucks. Neptune Rear Ladder D035900-00
