3701481012_1
In stock 54676 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €15.35

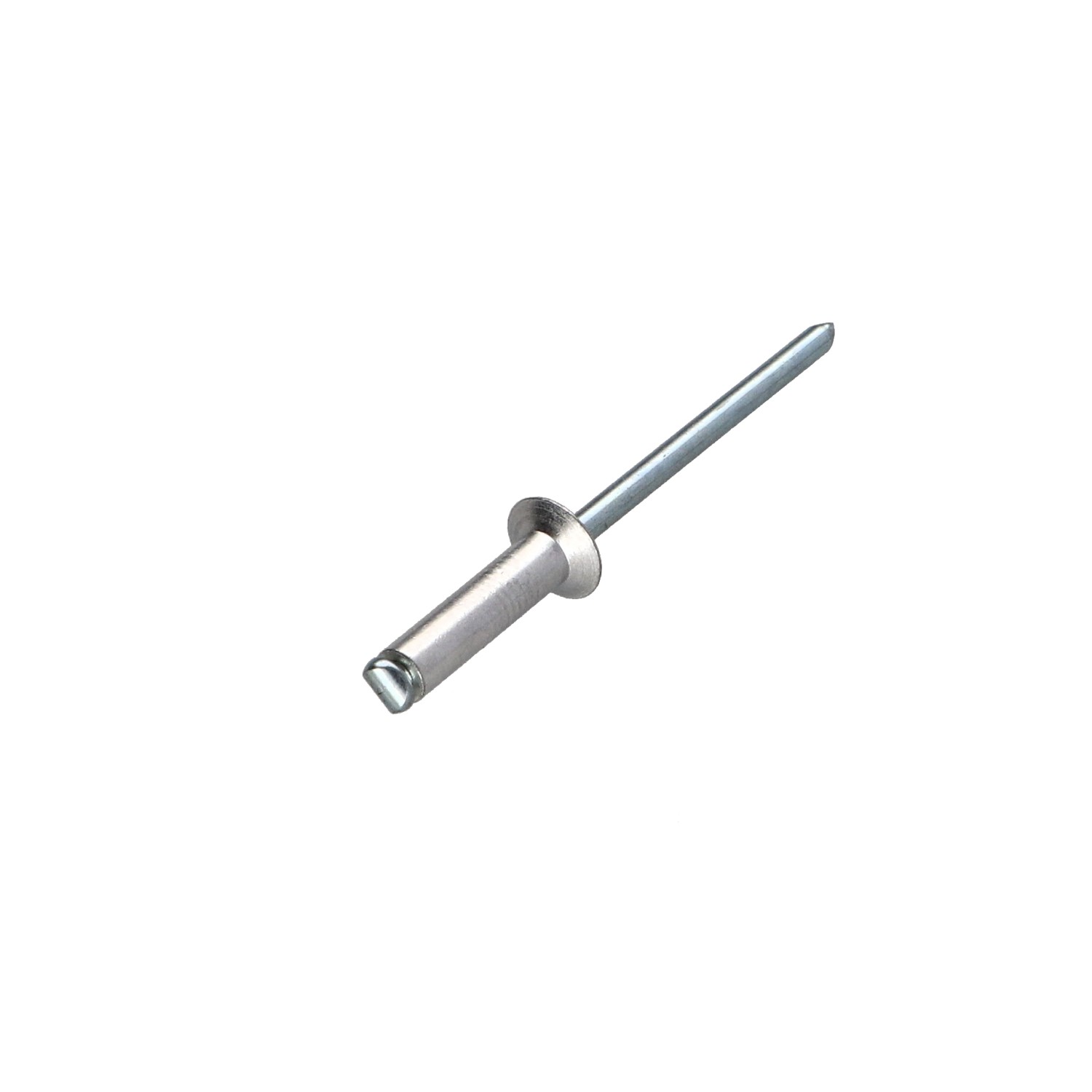

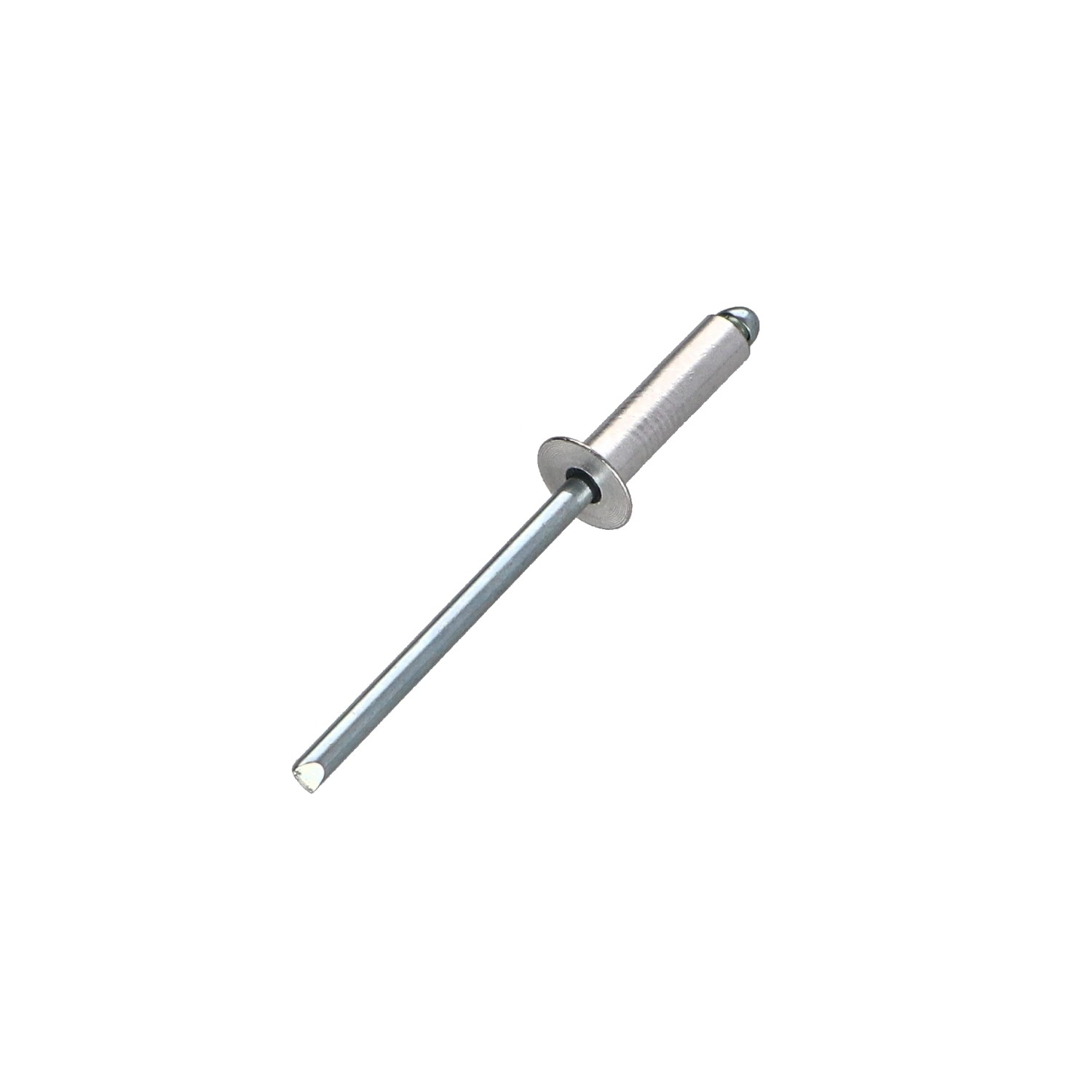

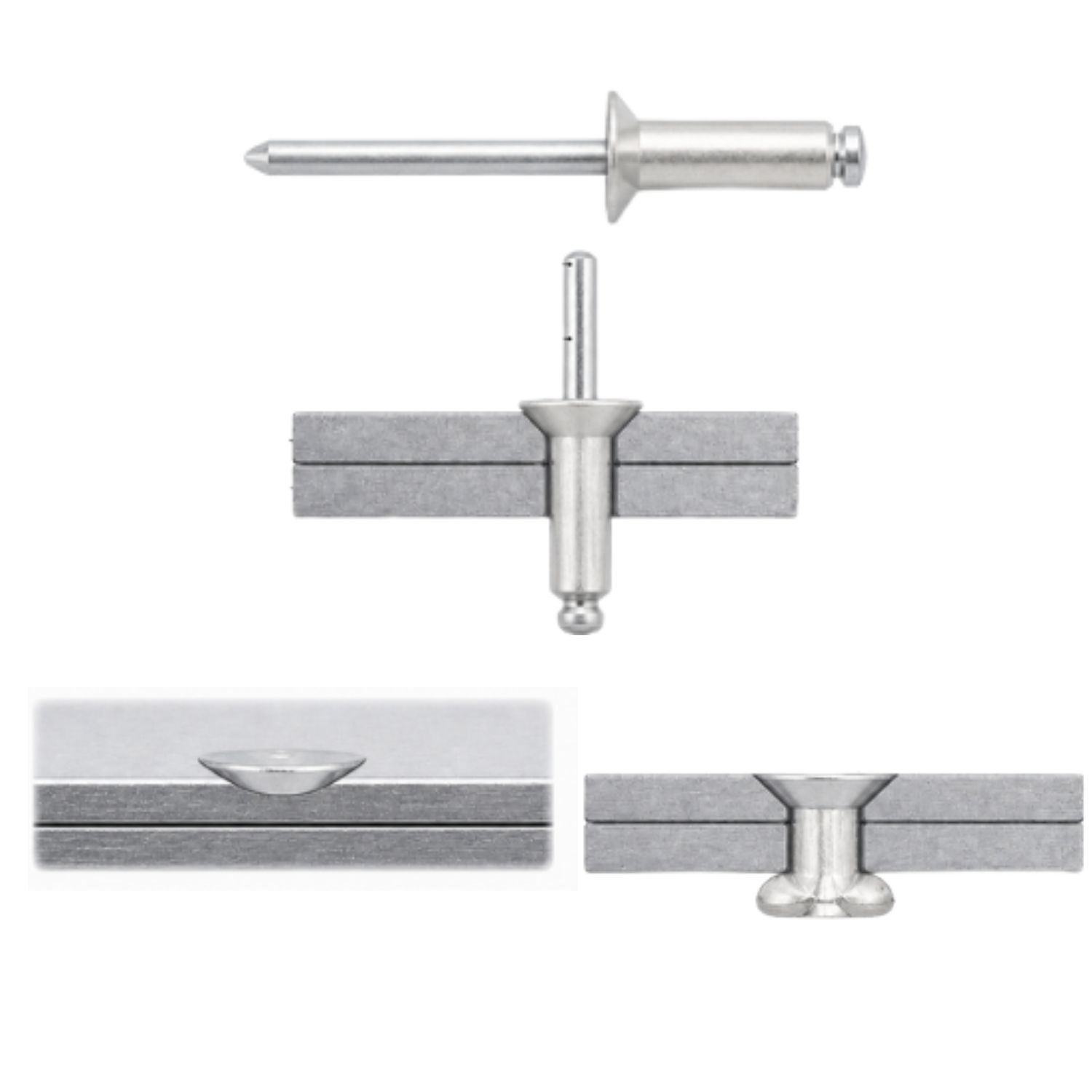

Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1580
Clamping thickness
3 a 5 mm
Rivet body length
10
Unit weight
2.4 GR
Head shape
Countersunk Head
Hole diameter
5
Tensile strength
2600
54676 Items
3663072063648

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 4.8X10 Thickness Of Panel 3 to 5 Countersunk Head ALX
Diameter = Class 4.8, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 9.5

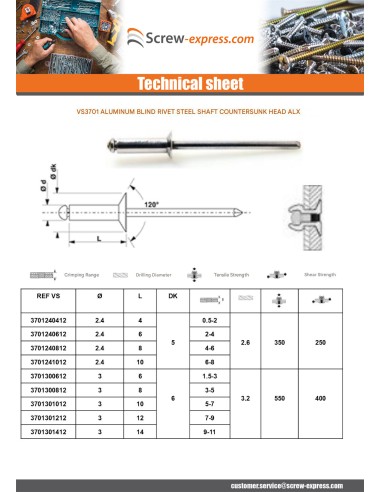

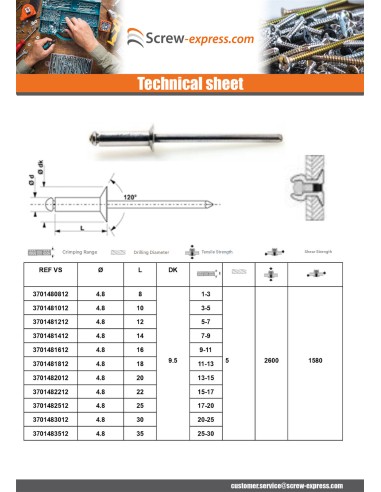

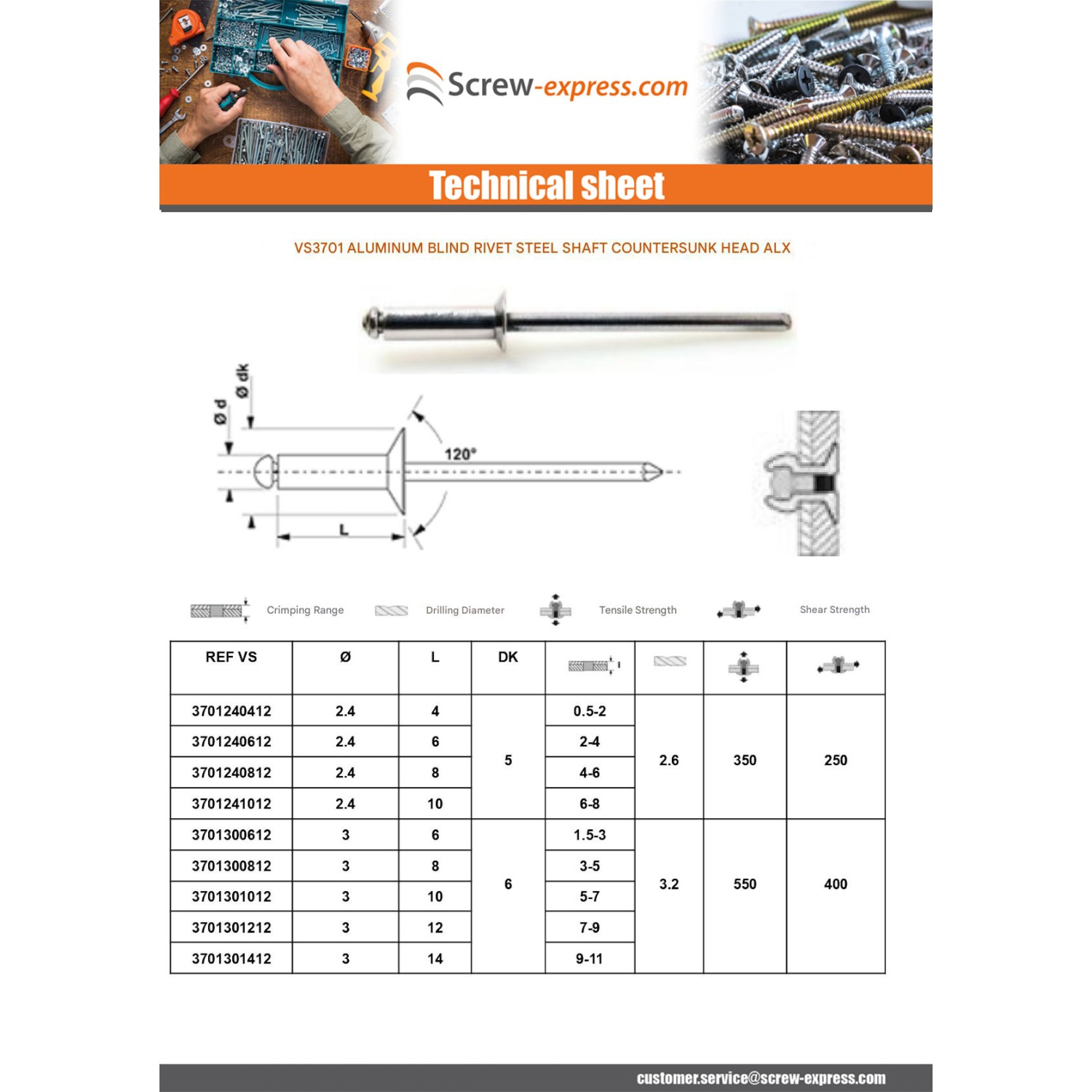

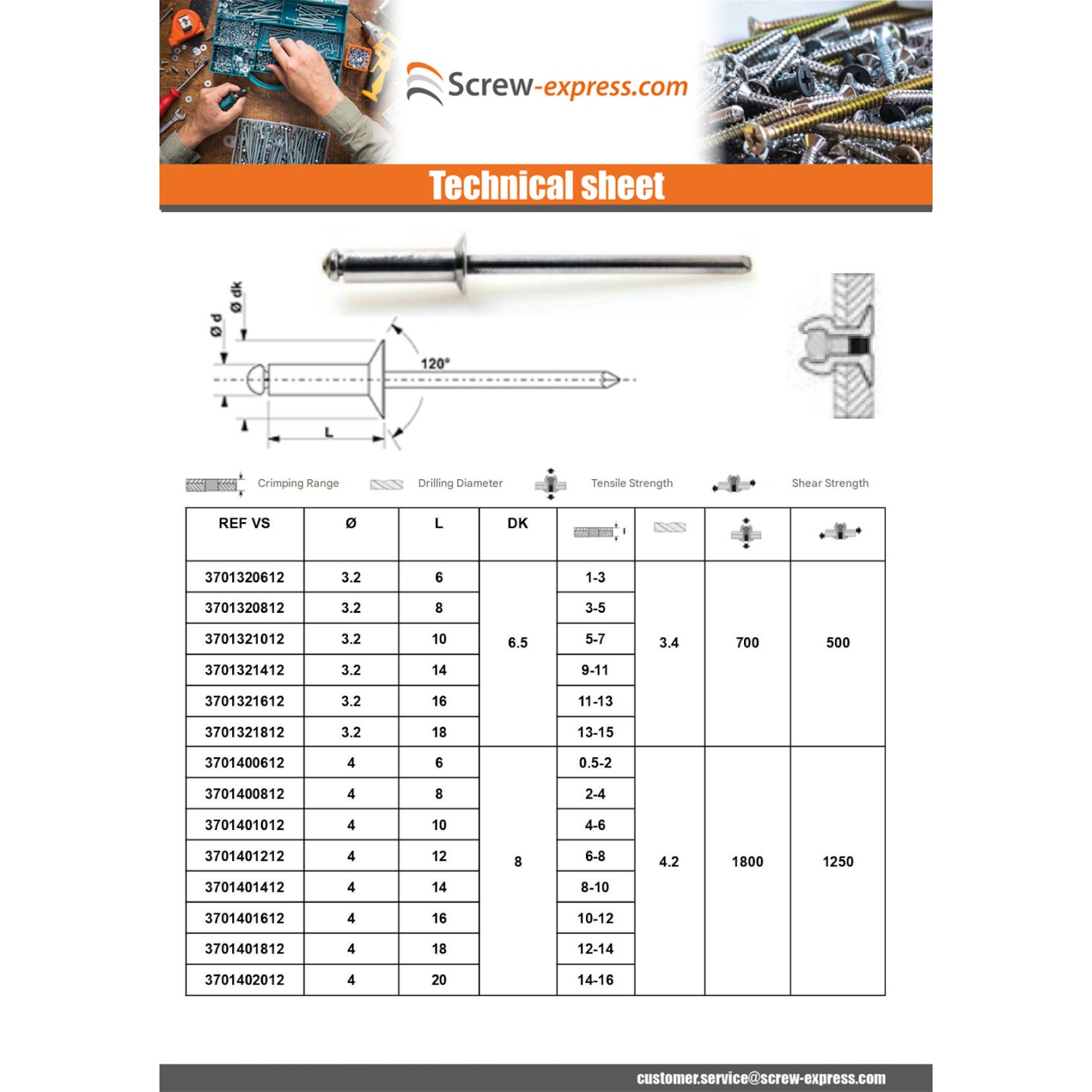

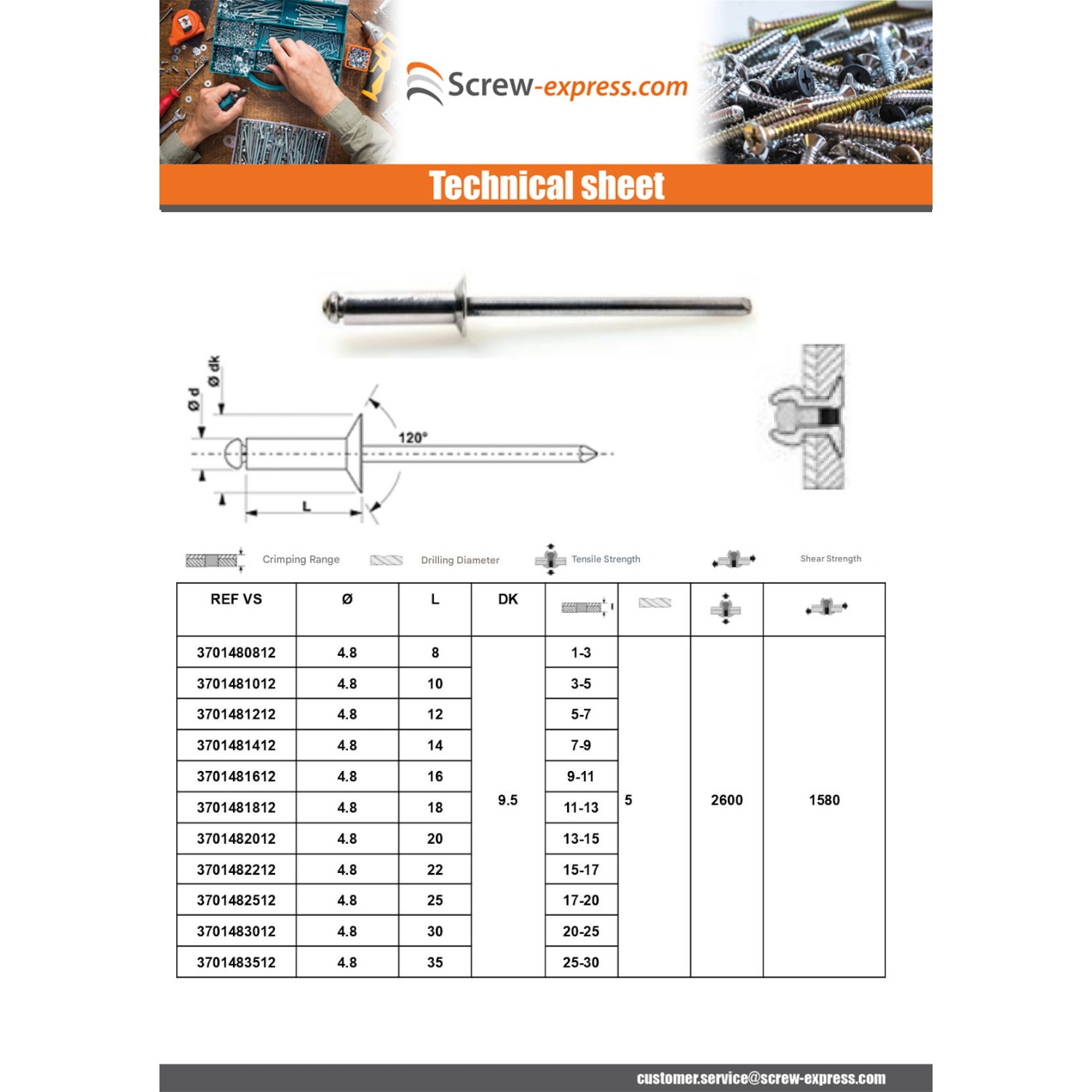

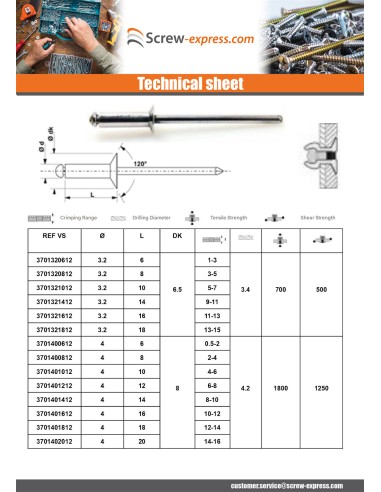

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103448101 YRIVALUACITF RIVTF4.8X10 RIV-ALU-TETE 1 5179999 33228 RIVTF4.8X10 2600-4.8-10 PA002383 5316 1010083 QRI20020 RI4 0003 01 210110 3663072063648
