1 x Blind rivets Aluminium Stahlgewinde 3X12 Thickness Of Panel 7 to 9 Countersunk Head ALX

3701301212_1
In stock 13260 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €26.90 €231.20

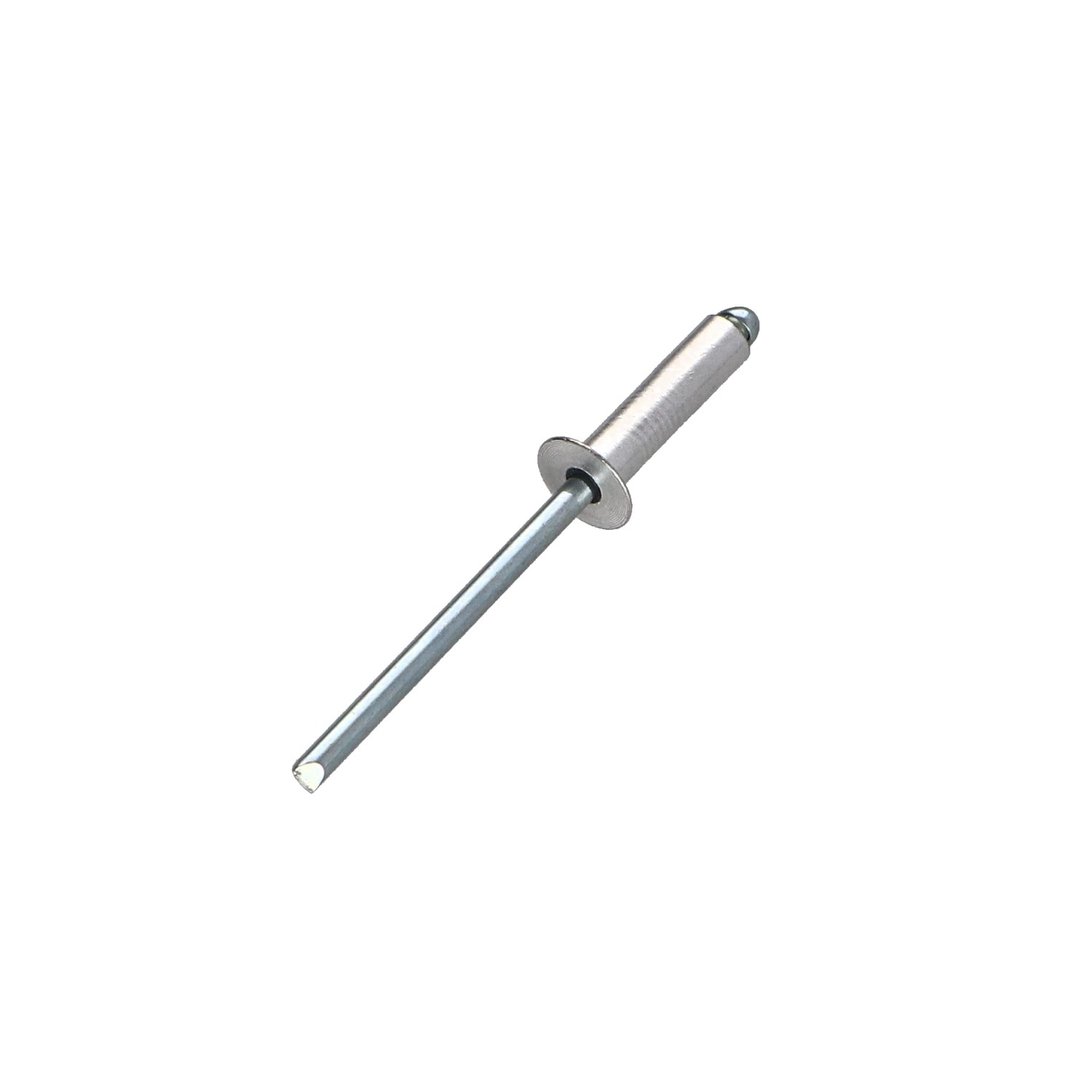

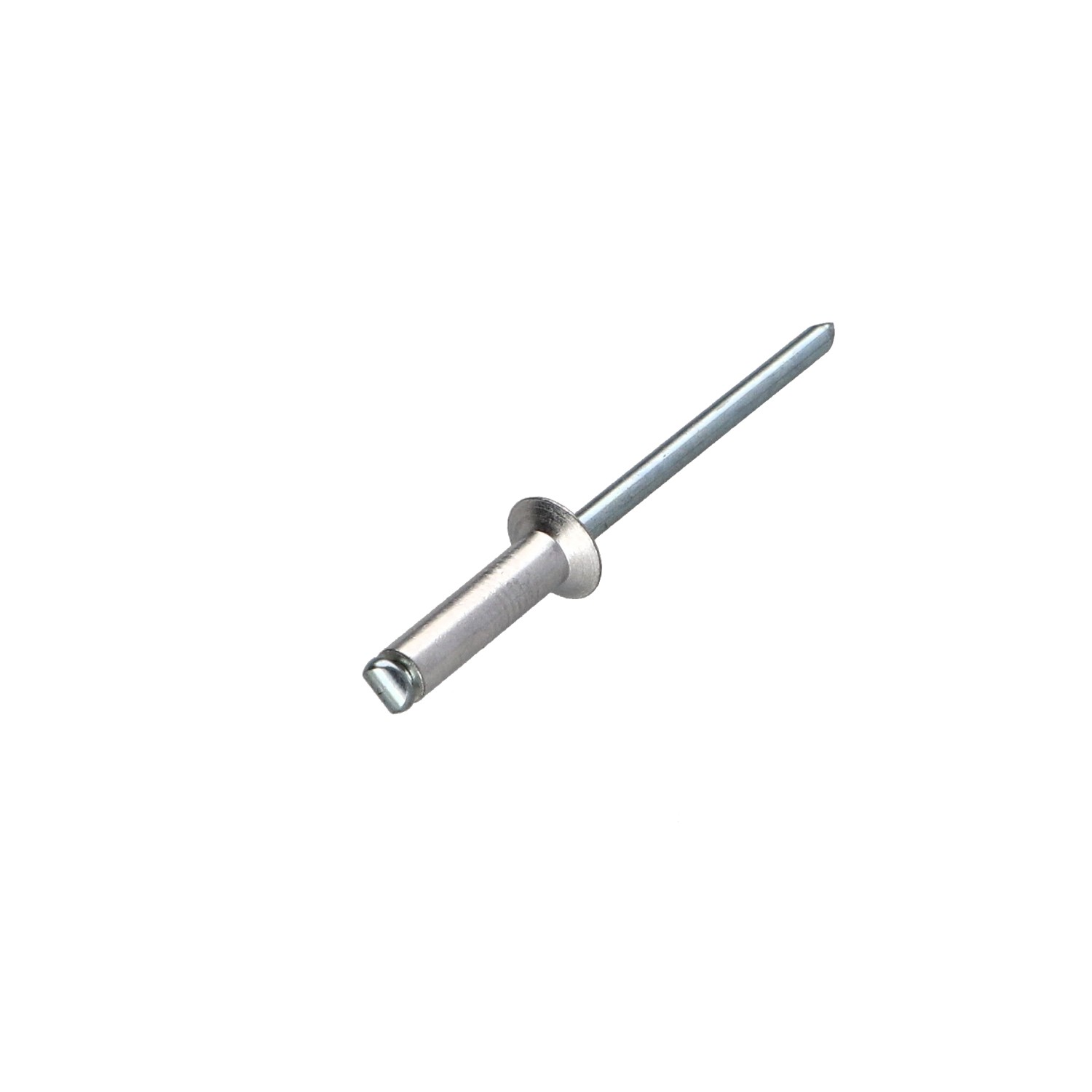

Blind rivets Aluminium Stahlgewinde 3X12 Thickness Of Panel 7 to 9 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
3
Diameter Head
6
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
400
Clamping thickness
7 a 9 mm
Rivet body length
12
Unit weight
1.1 GR
Head shape
Countersunk Head
Hole diameter
3.2
Tensile strength
550
13260 Items
3663072301795

Application

  • bodywork
  • metal cladding
  • aluminium joinery
  • equipment requiring a smooth surface
Blind rivets Aluminium Stahlgewinde 3X12 Thickness Of Panel 7 to 9 Countersunk Head ALX
Diameter = 3, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 6


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)

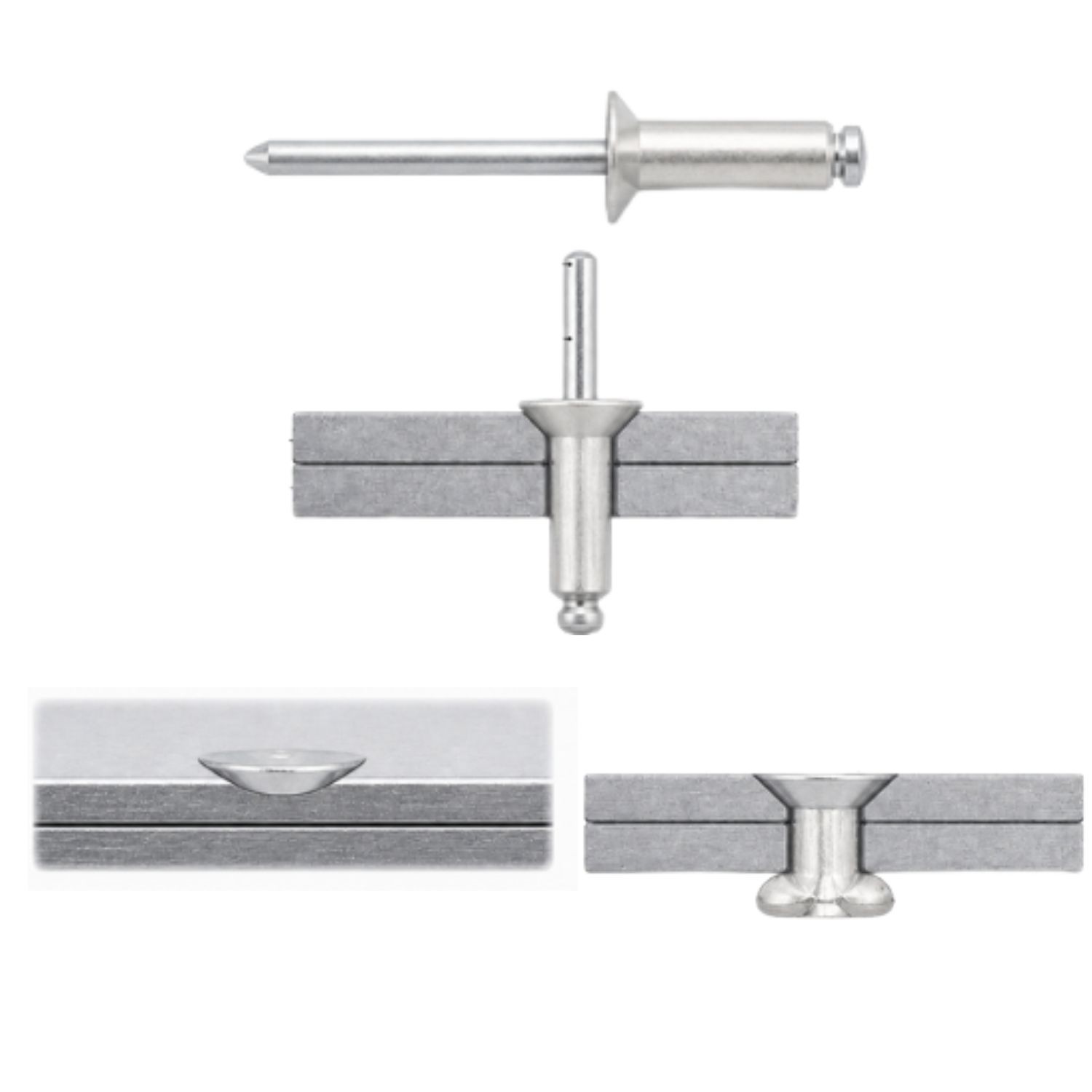

tete fraisee a 120 degres

Other Reference : 103430121 ACT-20067 3663072301795
