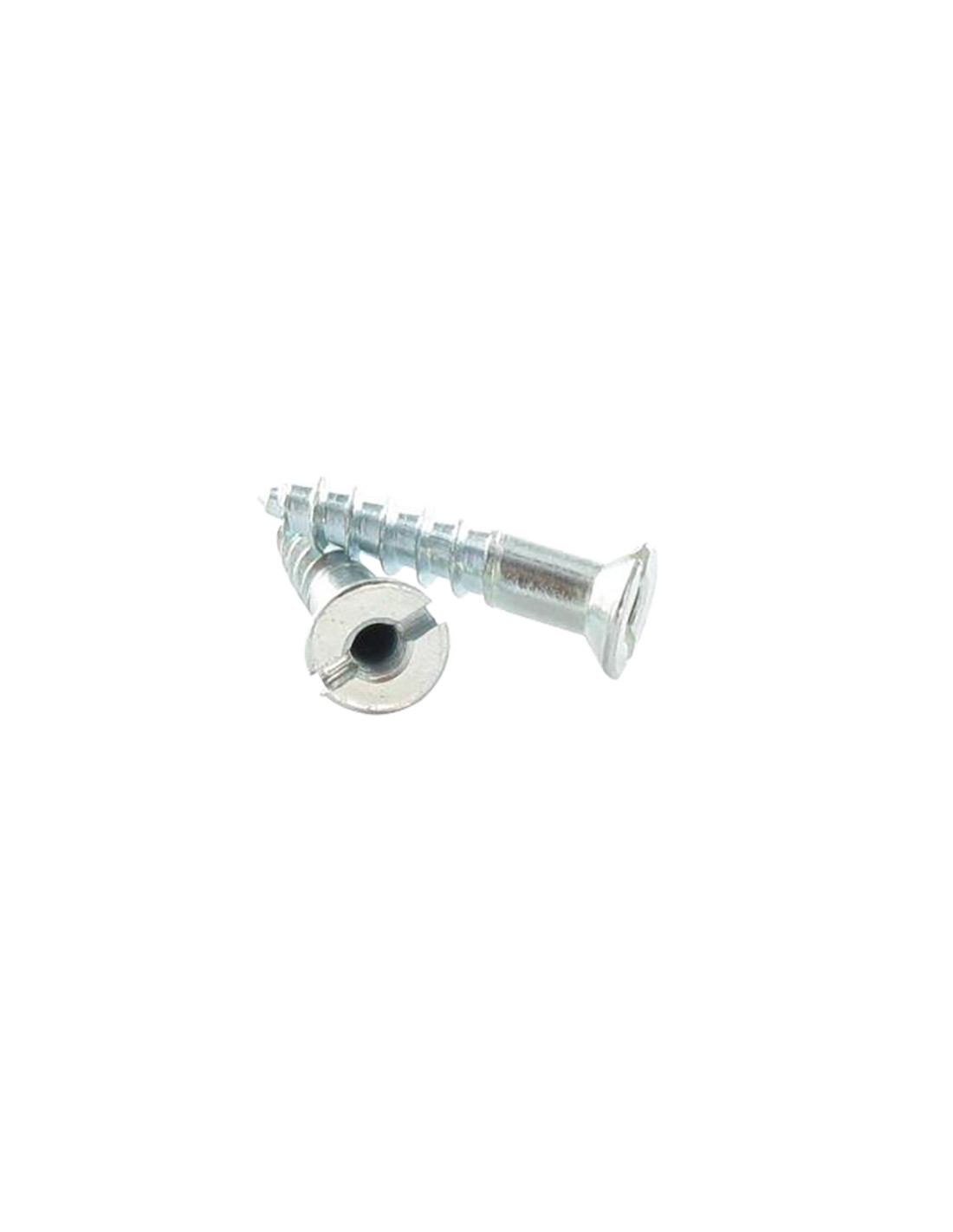

1 x Wood Screw Zinc Plated 6X30 Hole And Drill...

1 x Wood Screw Zinc Plated 6X30 Hole And Drill M3 Step 60

1124603002_1
In stock 400 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.50 €7.05 €8.40 €16.80
DIN 97 PET - Wood Screw Zinc Plated 6X30 Hole And Drill M3 Step 60
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
6
Length
30
Thread
Wood
Pitch
Step 60
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 97 Hole And Drill
Product Family
Wood Screws
Unit weight
5.41 GR
400 Items
3663072000339
Wood Screw Zinc Plated 6X30 Hole And Drill M3 Step 60
Diameter = 6, Length = 30, Coating = ZINGUE White, Material = Steel, Pitch = Step 60, Norm = DIN 97 Hole And Drill, Product Family = Wood Screws


dimensional guide (mm)
Diameter 3.5 4 4.5 5 6 8
Pitch 1.5 1.75 2 2 2.5 3.5
Head diameter 7 8.2 8.7 9 11 14.8
Head Tickness 2.3 2.7 2.7 2.7 3.3 4
Slot width 1 1.2 1.2 1.2 1.6 2
Blind hole diameter/pitch 2/0.4 3/0.6 3/0.6 3/0.6 3/0.6

Other Reference : 3617501252462 3663072000339
