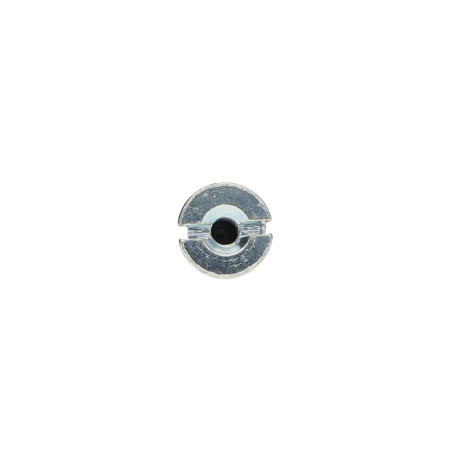

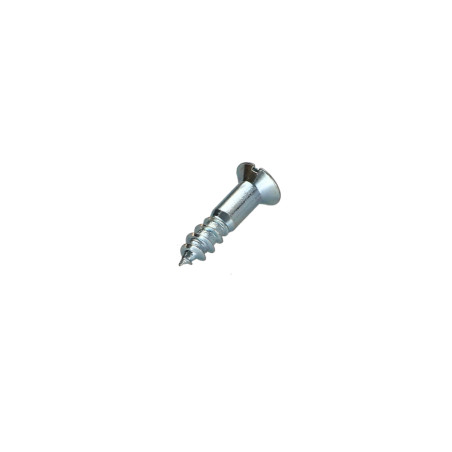

1 x Wood Screw Zinc Plated 4.5X25 Hole And Drill M3 Step 60
1 x Wood Screw Zinc Plated 4.5X25 Hole And Drill M3 Step 60
1 x Wood Screw Zinc Plated 4.5X25 Hole And Drill M3 Step 60

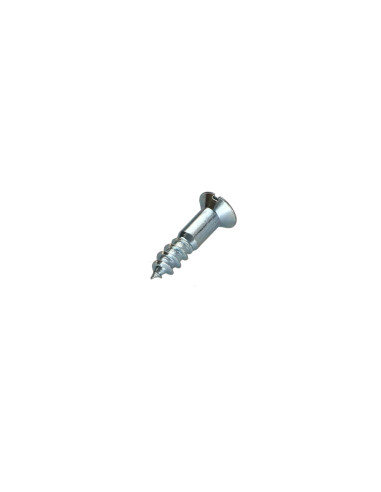

1 x Wood Screw Zinc Plated 4.5X25 Hole And...
1 x Wood Screw Zinc Plated 4.5X25 Hole And...
1 x Wood Screw Zinc Plated 4.5X25 Hole And...

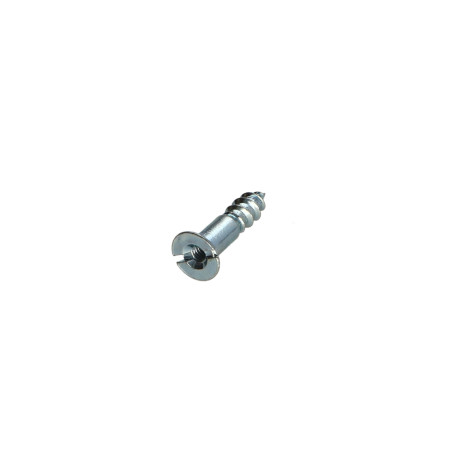

1 x Wood Screw Zinc Plated 4.5X25 Hole And Drill M3 Step 60

1124452502_1
In stock 1544 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.04 £6.12 £7.29 £7.33
DIN 97 PET - Wood Screw Zinc Plated 4.5X25 Hole And Drill M3 Step 60
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
4.5
Length
25
Thread
Wood
Pitch
Step 60
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 97 Hole And Drill
Product Family
Wood Screws
Unit weight
2.83 GR
1544 Items
3663072000155
Wood Screw Zinc Plated 4.5X25 Hole And Drill M3 Step 60
Diameter = 4.5, Length = 25, Coating = ZINGUE White, Material = Steel, Pitch = Step 60, Norm = DIN 97 Hole And Drill, Product Family = Wood Screws


dimensional guide (mm)
Diameter 3.5 4 4.5 5 6 8
Pitch 1.5 1.75 2 2 2.5 3.5
Head diameter 7 8.2 8.7 9 11 14.8
Head Tickness 2.3 2.7 2.7 2.7 3.3 4
Slot width 1 1.2 1.2 1.2 1.6 2
Blind hole diameter/pitch 2/0.4 3/0.6 3/0.6 3/0.6 3/0.6

Other Reference : 3617501318786 OVBTPT4525 3663072000155
MICKAEL R. (vis-express.fr)
2024-11-03

TO ASSEMBLE AN ANGLE BRACKET ON A PLYWOOD TO MAKE AN IMITATION OF A BEAM
