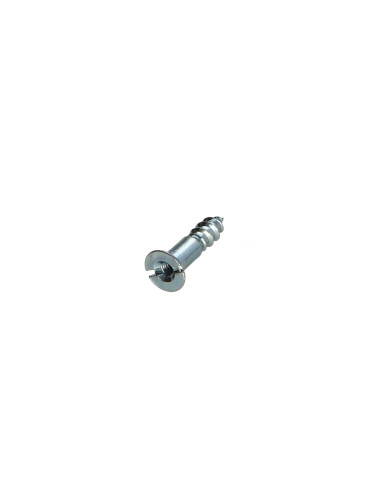

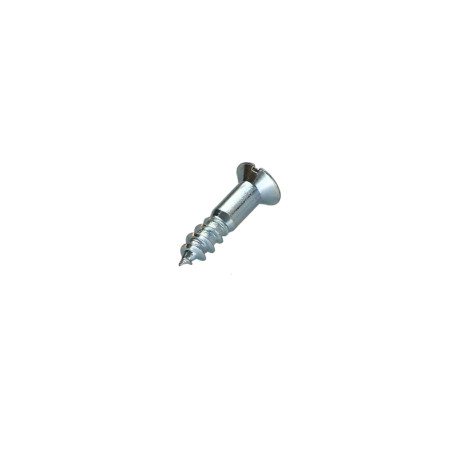

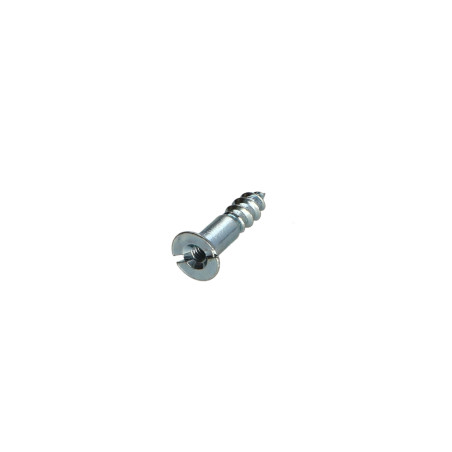

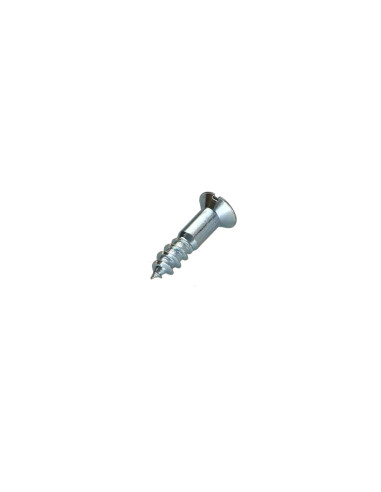

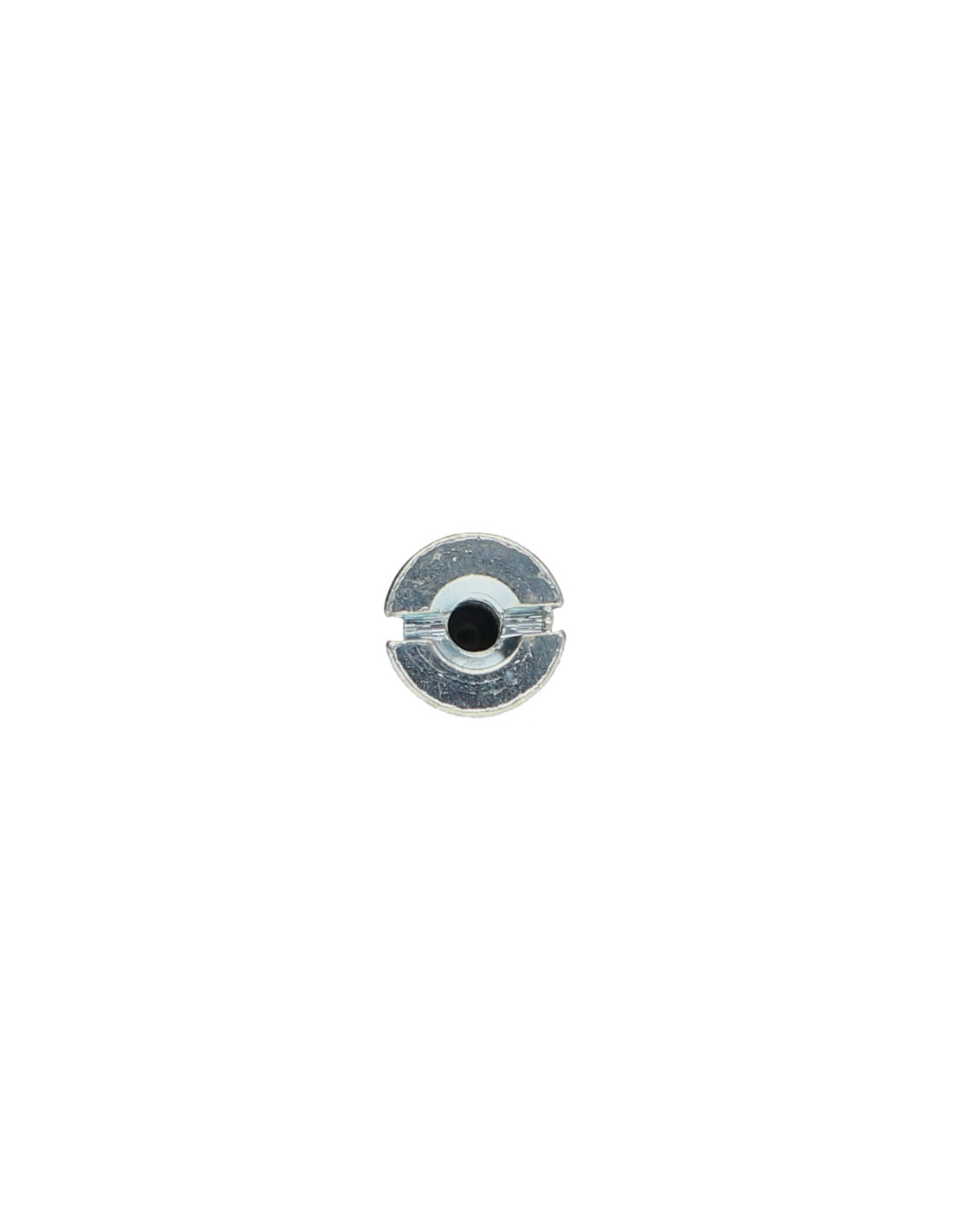

1 x Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Step 60

1124502102_1
In stock 44287 Pièces
€2.10 Incl VAT €3.50 -40%
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €2.10 €4.23 €5.04 €5.07

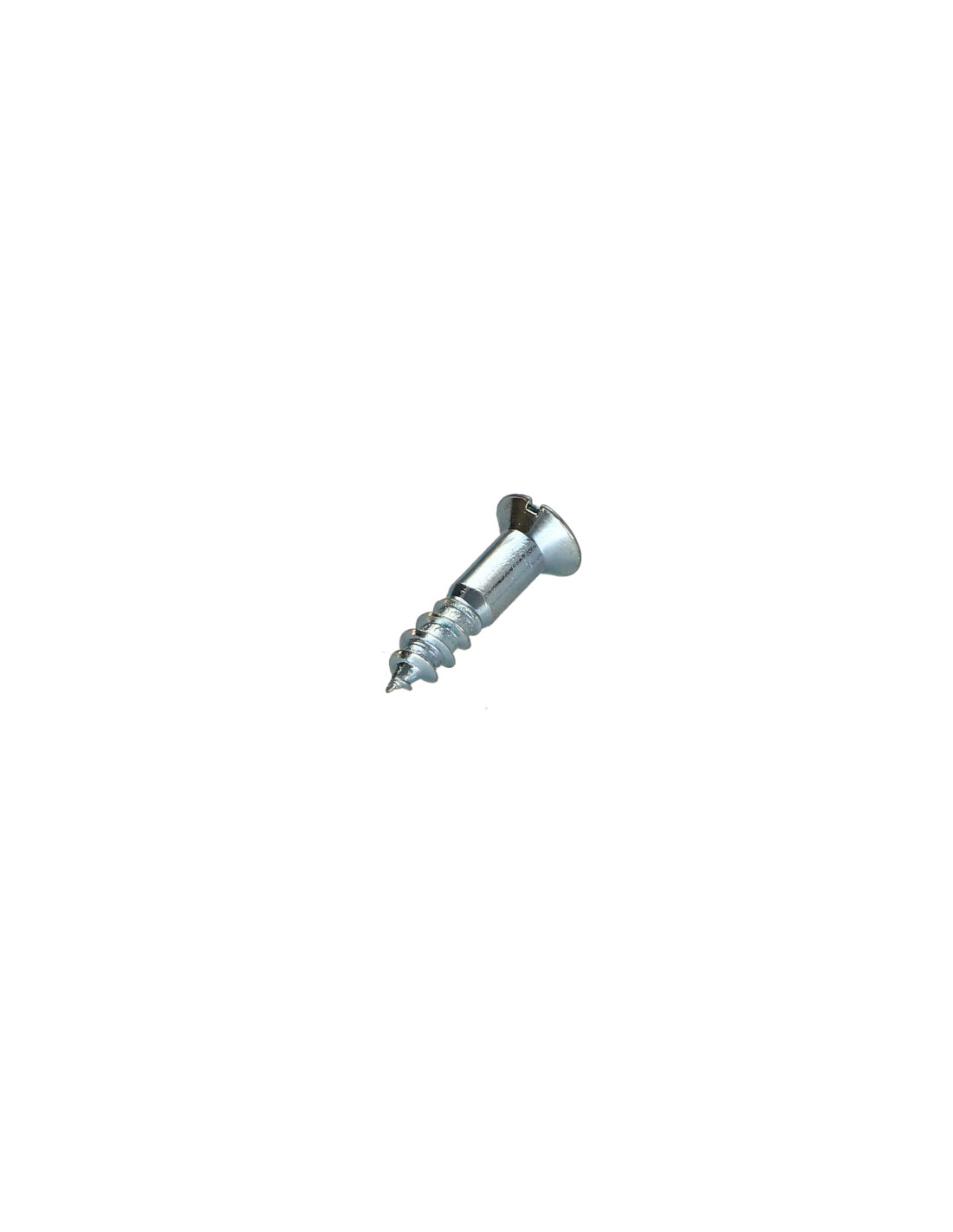

DIN 97 PET - Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Step 60
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
5
Length
20
Thread
Wood
Pitch
Step 60
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 97 Hole And Drill
Product Family
Wood Screws
Unit weight
3.09 GR
44287 Items
3663072000223
Wood Screw Zinc Plated 5X20 Hole And Drill M3.5 Step 60
Diameter = 5, Length = 20, Coating = ZINGUE White, Material = Steel, Pitch = Step 60, Norm = DIN 97 Hole And Drill, Product Family = Wood Screws

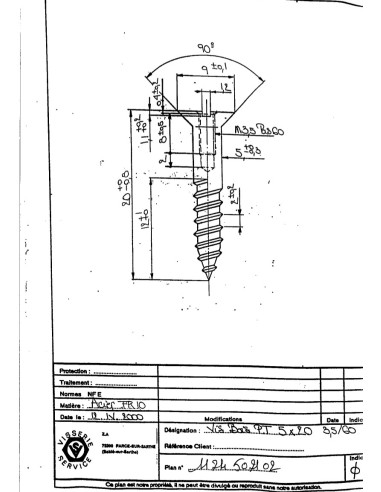

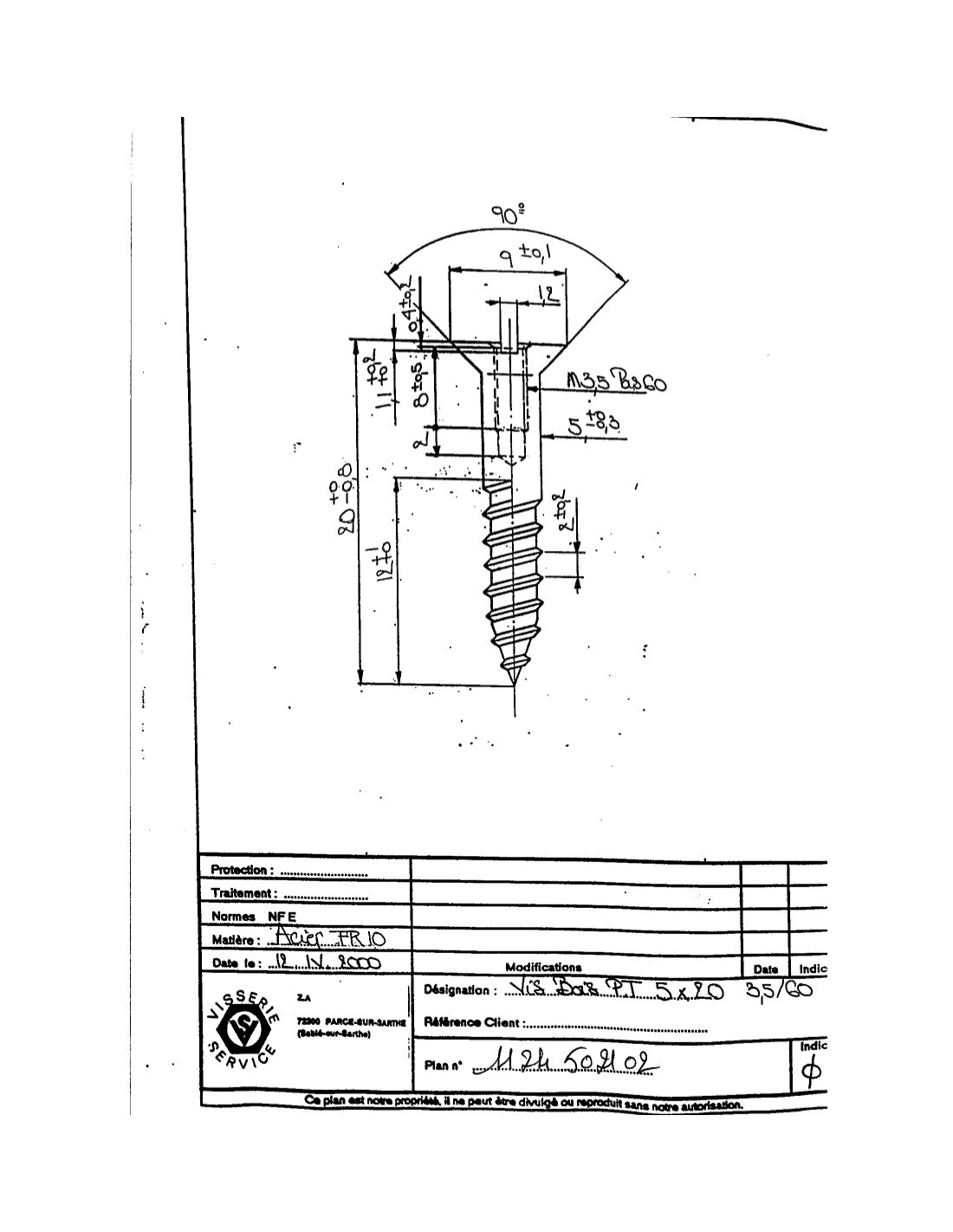

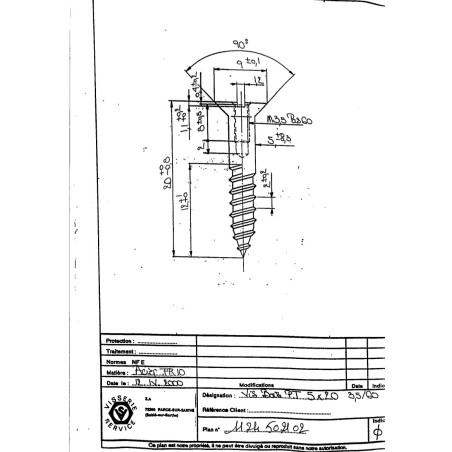

dimensional guide (mm)
Diameter 3.5 4 4.5 5 6 8
Pitch 1.5 1.75 2 2 2.5 3.5
Head diameter 7 8.2 8.7 9 11 14.8
Head Tickness 2.3 2.7 2.7 2.7 3.3 4
Slot width 1 1.2 1.2 1.2 1.6 2
Blind hole diameter/pitch 2/0.4 3/0.6 3/0.6 3/0.6 3/0.6

Other Reference : 3617501244719 52407Q P870479900 3663072000223
