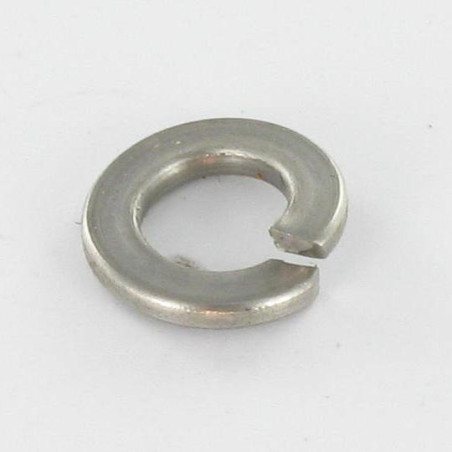

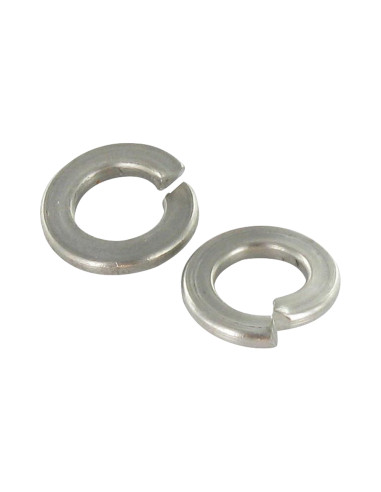

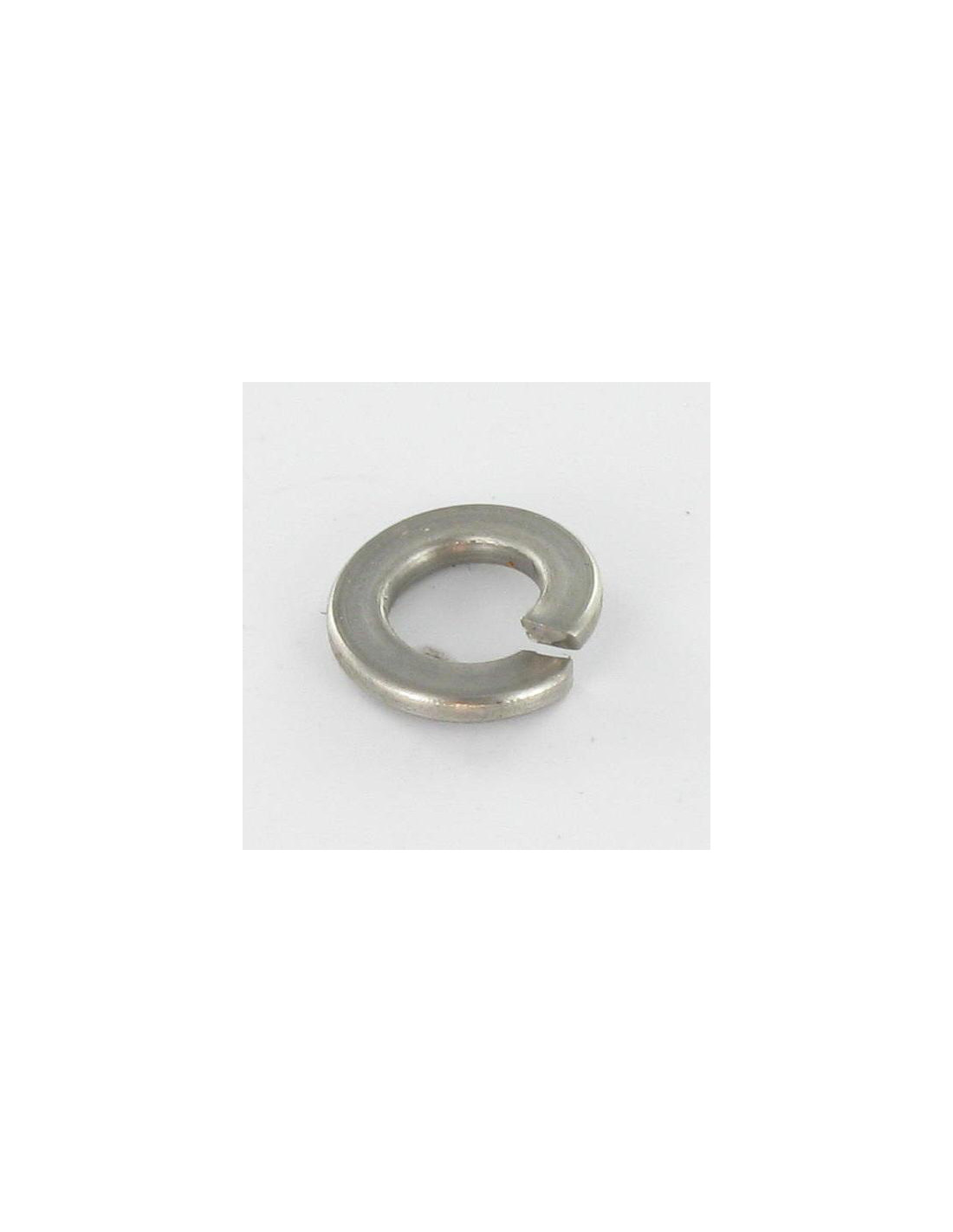

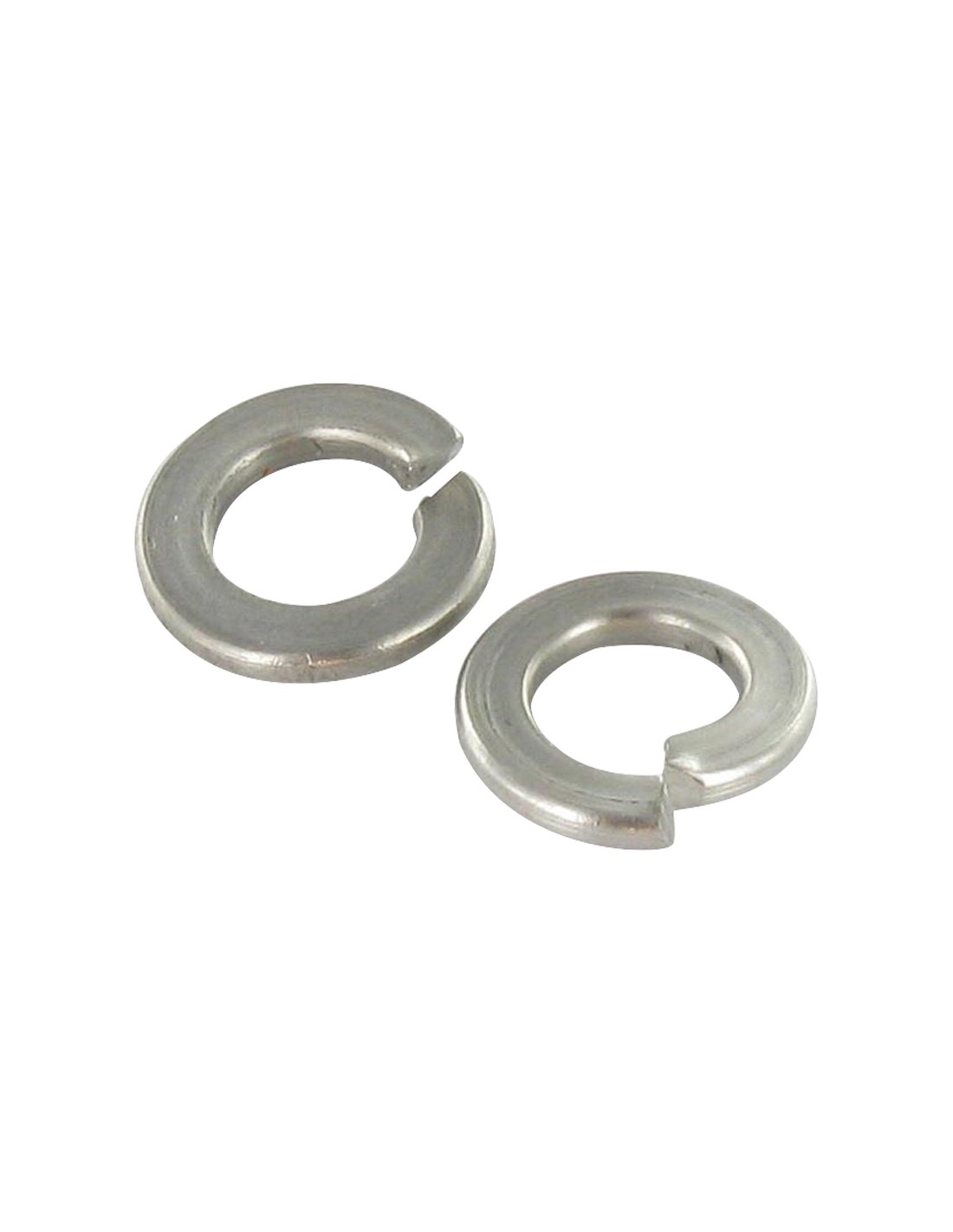

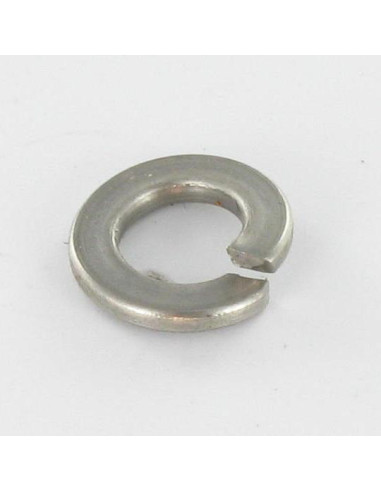

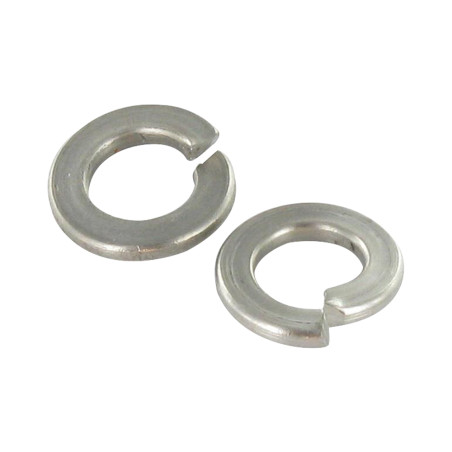

1 x Washer Split Lock Stainless Steel A2 Linch Pin Screw M24

1 x Washer Split Lock Stainless Steel A2 Linch Pin Screw M24

Name: 1 x Washer Split Lock Stainless Steel A2 Linch Pin Screw M24
Brand: Screw Express
SKU: 8551002418
Price: 3.04 GBP
Availability: InStock

Reference 8551002418_1

In stock 13 Pièces

£3.04 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	100
Lot price VAT included	£3.04	£6.12	£6.38	£31.85

Washer Split Lock Stainless Steel A2 Linch Pin Screw M24

Packaging

1 unit
5 units
20 units
100 units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M24
Thickness: MM
Linch Pin Screw: M24
Material: Stainless Steel Stainless Steel A2
COLOR: Grey
Norm: VS-DIN127B
Unit weight: 26.2 GR

In stock 13 Items

EAN13 3663072168954

Description

Washer Split Lock Stainless Steel A2 Linch Pin Screw M24
Diameter = M24, Thickness = MM, Material = Stainless Steel Stainless Steel A2, Norm = VS-DIN127B

dimensional guide (mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Interior diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Exterior diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tickness	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7
