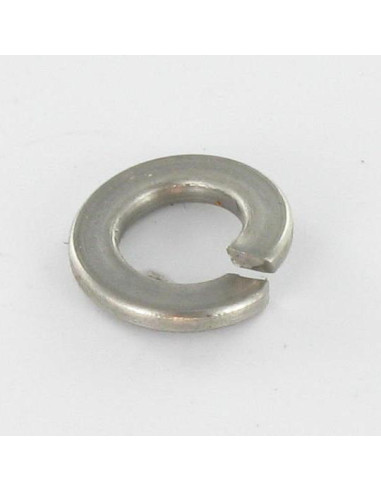

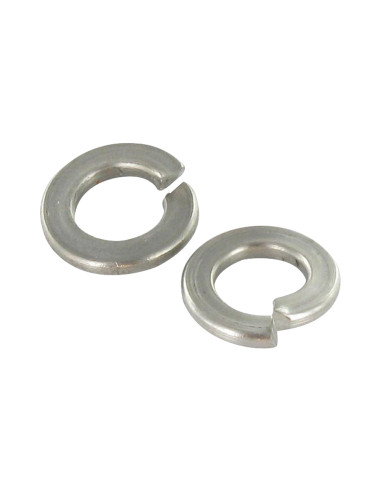

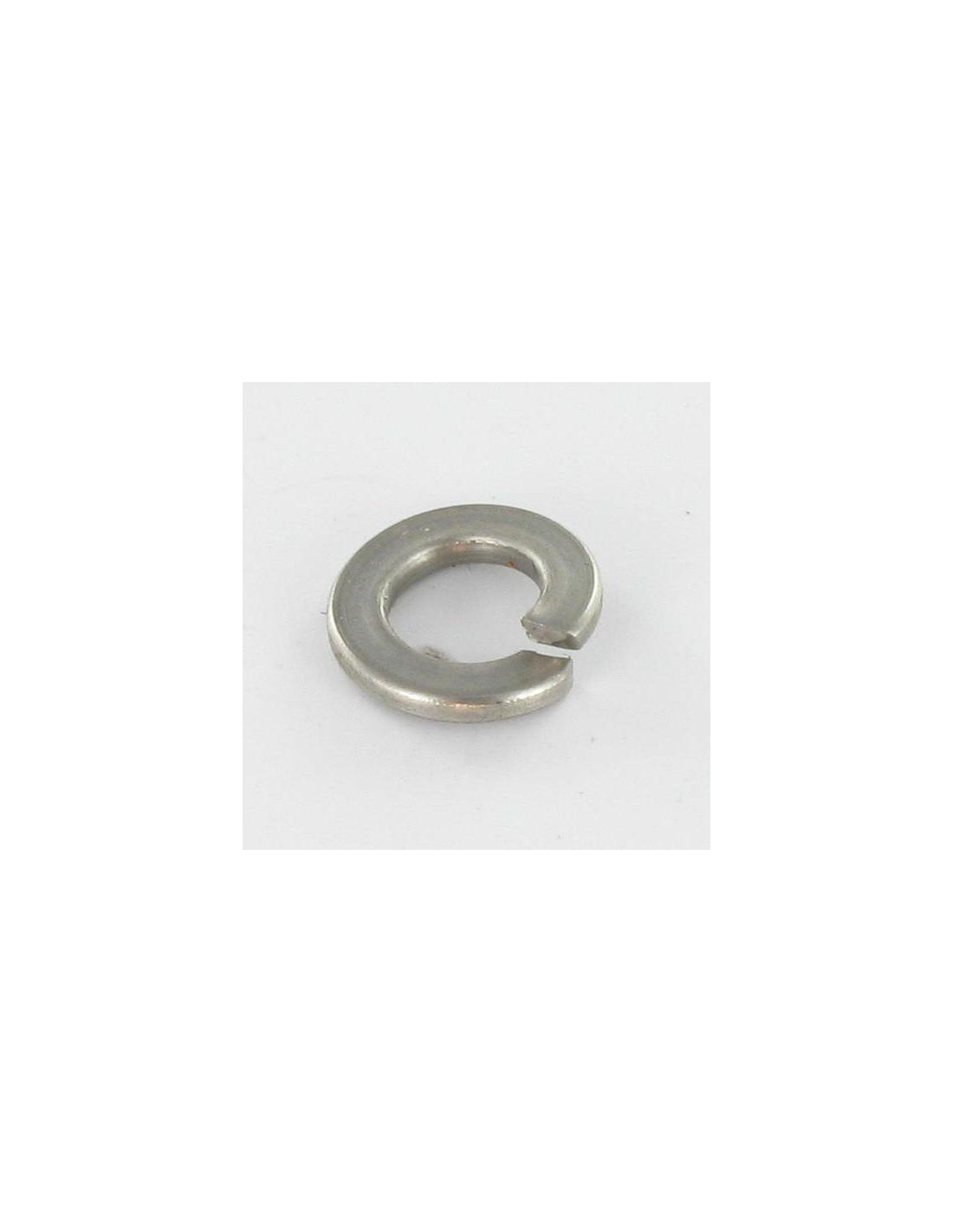

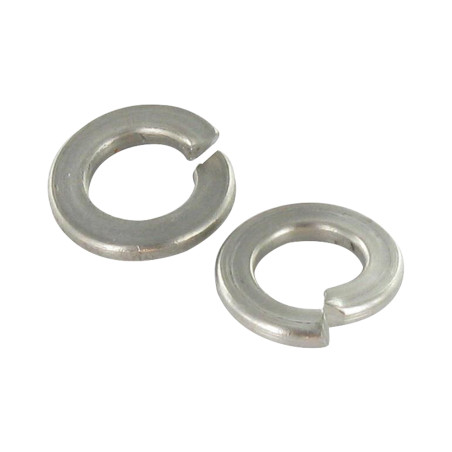

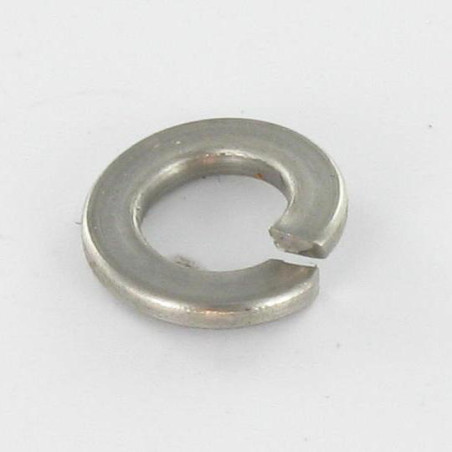

1 x Washer Split Lock Stainless Steel A2 Linch Pin Screw M10

1 x Washer Split Lock Stainless Steel A2 Linch Pin Screw M10

Name: 1 x Washer Split Lock Stainless Steel A2 Linch Pin Screw M10
Brand: Screw Express
SKU: 8551001018
Price: 0.45 EUR
Availability: InStock

Reference 8551001018_1

In stock 67306 Pièces

€0.45 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	€0.45	€0.90	€1.05	€2.30	€8.80

Washer Split Lock Stainless Steel A2 Linch Pin Screw M10

Packaging

1 unit
10 units
30 units
100 units
400 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M10
Thickness: MM
Linch Pin Screw: M10
Material: Stainless Steel Stainless Steel A2
COLOR: Grey
Norm: VS-DIN127B
Unit weight: 2.53 GR

In stock 67306 Items

ean13 3663072168909

Description

Washer Split Lock Stainless Steel A2 Linch Pin Screw M10
Diameter = M10, Thickness = MM, Material = Stainless Steel Stainless Steel A2, Norm = VS-DIN127B

dimensional guide (mm)

Diameter	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Interior diameter	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Exterior diameter	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Tickness	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7

Other Reference : 6251210 AVR11378 F621163 000283 A04515 070C000291 05680 24936 05680 1816010 QUGRO001A RDL-A2010G 1012404 RONDGROW10 079965 AF30011 AF307011 944930 RONDELLEGROW A0015591 46516603 65550 05342 65550 T30113000030 645 546025 546025 W10I 9868101 1816010 560021 11044 y5k06510 1333119 2520370000 4625 CO9624017 S510001722 1012404 1012404 ABN0000042 TGW18ZN AR06431 50430451 RONDW10A2 RDX3010 175010 WZ10-IN 30177 2763000 BE36010000 T47449 T47449 CPF91 RDL.1002000 RONDELLEGRWM S186RF RIWA210 270132 ACHDIV BL52510 10030445 270132 B500004 QVI.235 41000240008 044710 V0020 NFE25515.011 DMRONI038 0044710 DIV034 9401586 ROND GROW10 0445 10 SC00170 5687 1140360 FF8400101300 RDL-A2010G AO2718 961201016001 BI905-100000 3663072168909
