1 x Washer Split Lock Stainless Steel A1...

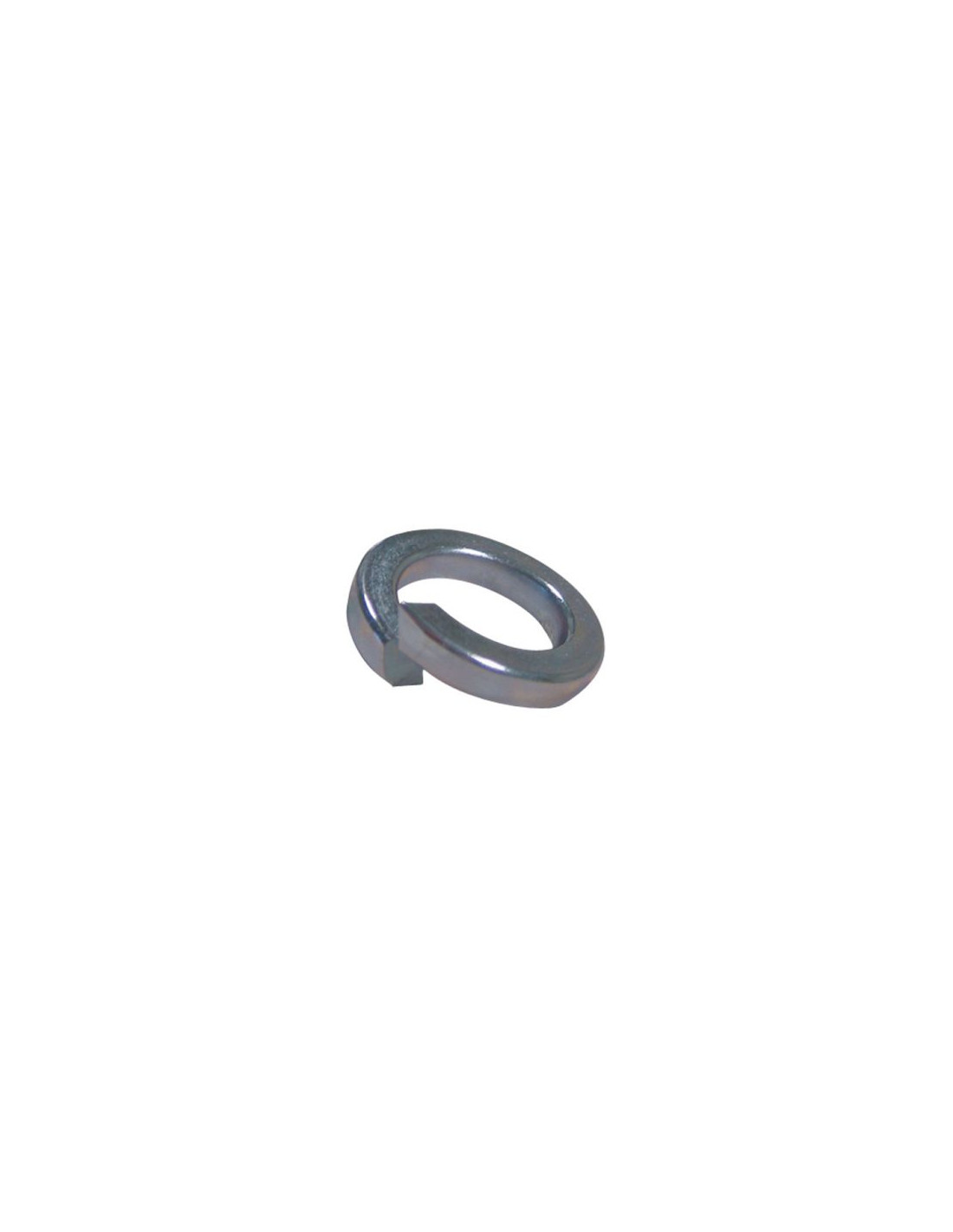

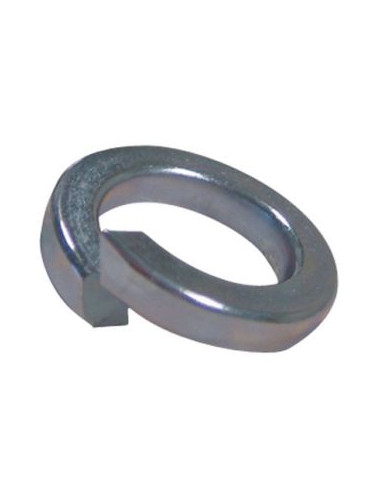

1 x Washer Split Lock Stainless Steel A1 10.2X18.1X2.2 Linch Pin Screw M10

8552010018_1
In stock 6516 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €1.60 €3.85 €5.80 €13.70
Washer Split Lock Stainless Steel A1 10.2X18.1X2.2 Linch Pin Screw M10
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
M10
Diameter External
M10
Material
Stainless Steel
Norm
VS-DIN127B
WEIGHT For THERE unit
2.53 GR
6516 Items
3663072367098
Washer Split Lock Stainless Steel A1 10.2X18.1X2.2 Linch Pin Screw M10
Thickness = 2.2 MM, Material = Stainless Steel Stainless Steel A1, Norm = VS-DIN127B


dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80
Interior diameter 3.5 4.5 5.5 6.5 7.5 8.5 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 49 54 58 62 66 70 74 78 82
Exterior diameter 5.2 7.3 8.3 10.4 11.4 13.4 16.5 20 23 25 29 31 33 37 40 45 48 53 56 61 64 69 74 80 84 90 94 100 104 110
Tickness 1 1 1.5 2 2 2.5 3 3.5 4 4 5 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14

Other Reference : 0127210 5S0501056 3663072367098
CORENTIN P. (vis-express.fr)
2024-12-01

Prevents the bolt from loosening Stainless steel vibrating machine


CORENTIN P. (vis-express.fr)
2024-11-24

Screwing with M10 bolts Prevents loosening on a vibrating machine
