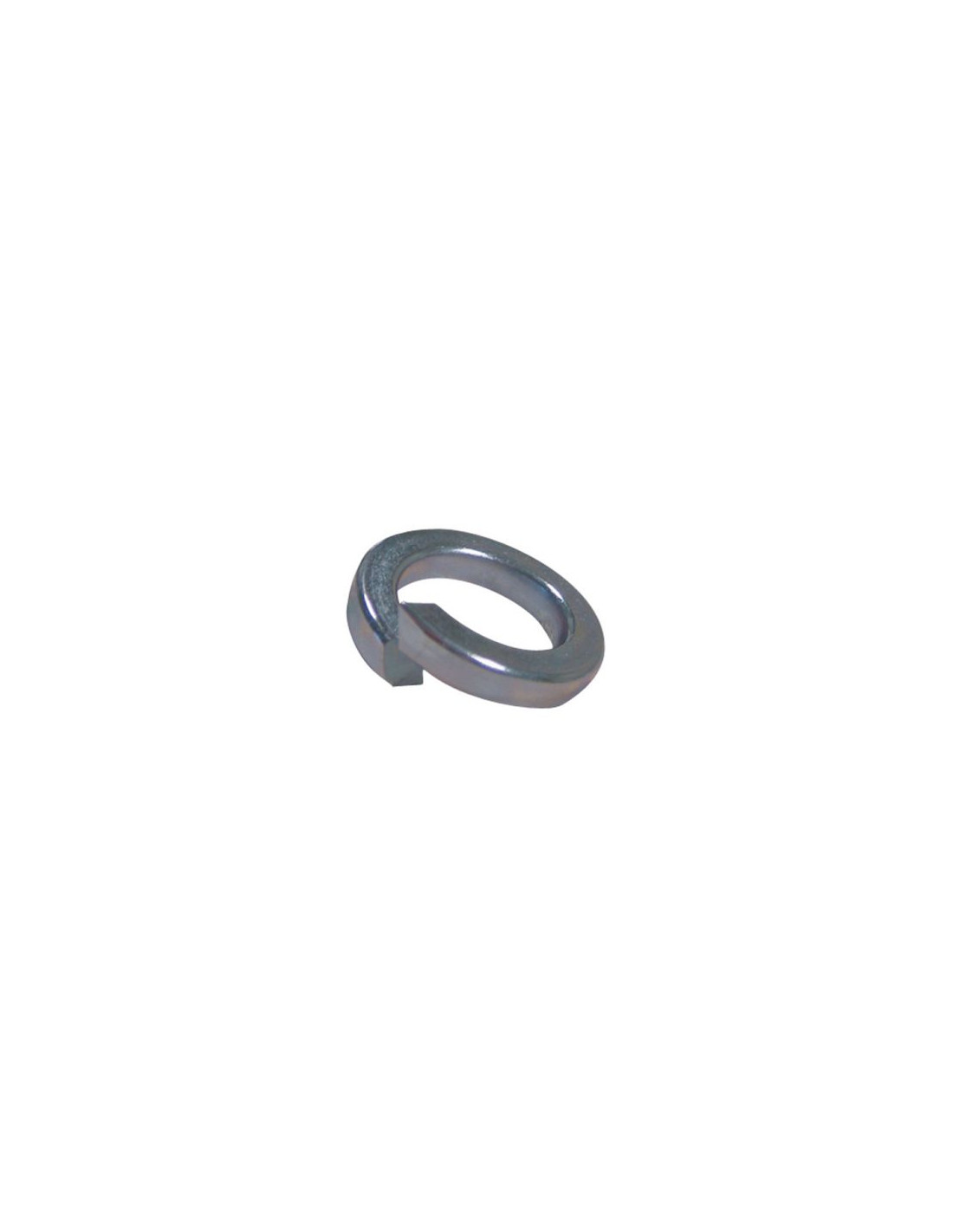

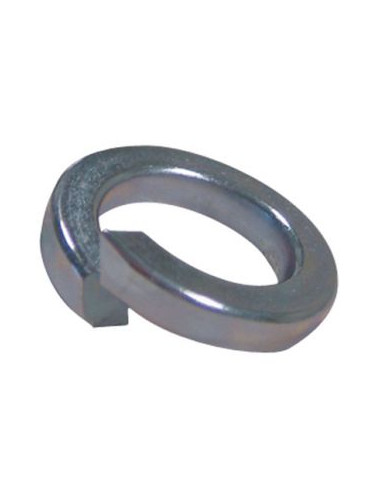

1 x Washer Split Lock Stainless Steel A1...

1 x Washer Split Lock Stainless Steel A1 2.1X4.4X0.5 Linch Pin Screw M2

8552002018_1
In stock 72 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £3.04 £7.33 £7.98 £7.98
Washer Split Lock Stainless Steel A1 2.1X4.4X0.5 Linch Pin Screw M2
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
M2
Diameter External
M2
Material
Stainless Steel
Norm
VS-DIN127B
WEIGHT For THERE unit
0.05 GR
72 Items
3663072478374
Washer Split Lock Stainless Steel A1 2.1X4.4X0.5 Linch Pin Screw M2
Thickness = 0.5 MM, Material = Stainless Steel Stainless Steel A1, Norm = VS-DIN127B


dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80
Interior diameter 3.5 4.5 5.5 6.5 7.5 8.5 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 49 54 58 62 66 70 74 78 82
Exterior diameter 5.2 7.3 8.3 10.4 11.4 13.4 16.5 20 23 25 29 31 33 37 40 45 48 53 56 61 64 69 74 80 84 90 94 100 104 110
Tickness 1 1 1.5 2 2 2.5 3 3.5 4 4 5 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14

Other Reference : 3617500495242 523200157 3663072478374
