1 x Washer Split Lock Stainless Steel A1...

1 x Washer Split Lock Stainless Steel A1 8.1X14.8X2 Linch Pin Screw M8

8552008018_1
In stock 6910 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €1.60 €3.20 €3.90 €4.20

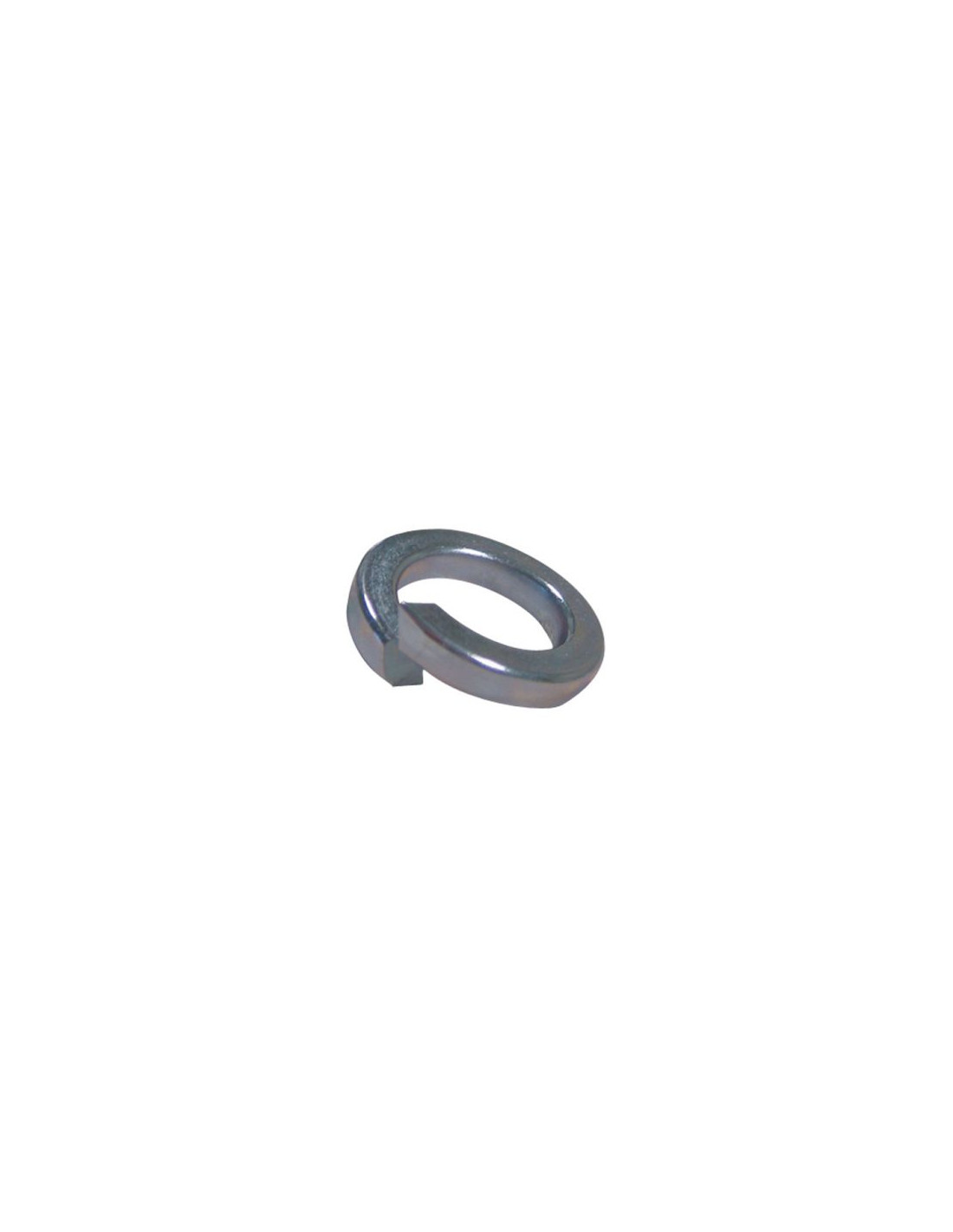

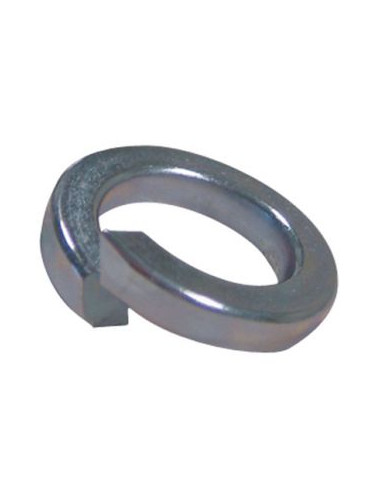

Washer Split Lock Stainless Steel A1 8.1X14.8X2 Linch Pin Screw M8
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M8
Diameter External
M8
Material
Stainless Steel
Norm
VS-DIN127B
WEIGHT For THERE unit
1.6 GR
6910 Items
3663072427266
Washer Split Lock Stainless Steel A1 8.1X14.8X2 Linch Pin Screw M8
Thickness = 2 MM, Material = Stainless Steel Stainless Steel A1, Norm = VS-DIN127B


dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80
Interior diameter 3.5 4.5 5.5 6.5 7.5 8.5 10.5 13 15 17 19 21 23 25 28 31 34 37 40 43 46 49 54 58 62 66 70 74 78 82
Exterior diameter 5.2 7.3 8.3 10.4 11.4 13.4 16.5 20 23 25 29 31 33 37 40 45 48 53 56 61 64 69 74 80 84 90 94 100 104 110
Tickness 1 1 1.5 2 2 2.5 3 3.5 4 4 5 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14

Other Reference : 3617501417984 5S0501047 VRW08L 1 611179 280121sq 3663072427266
