8326703218_1
In stock 18699 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €10.00

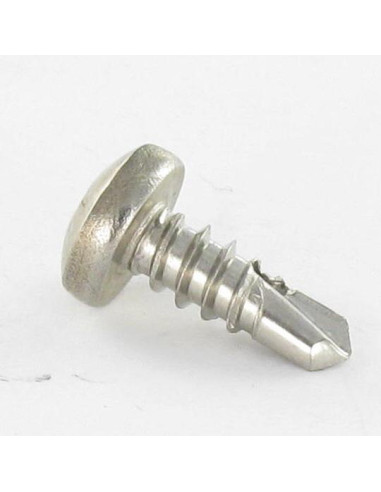

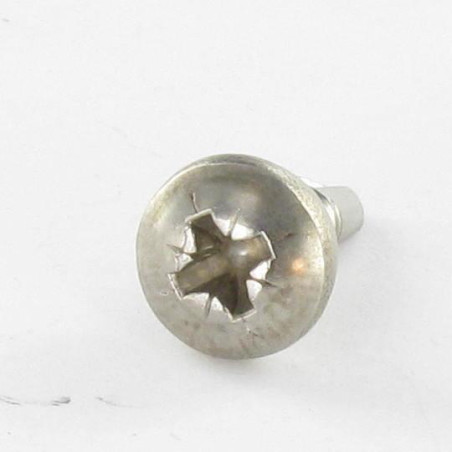

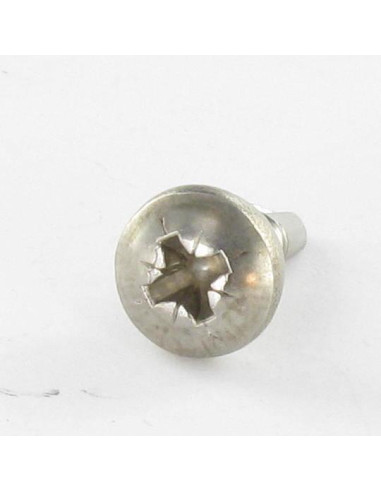

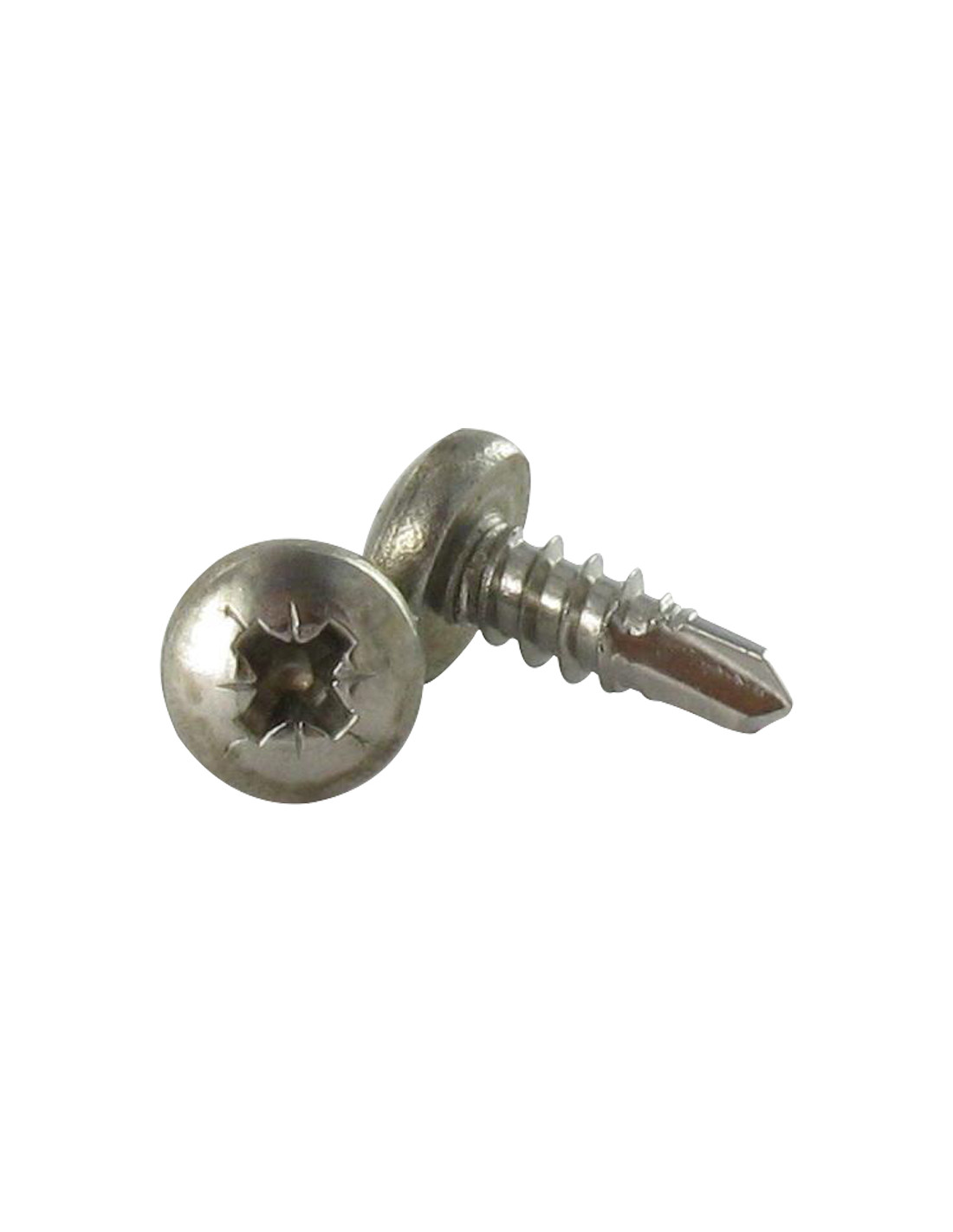

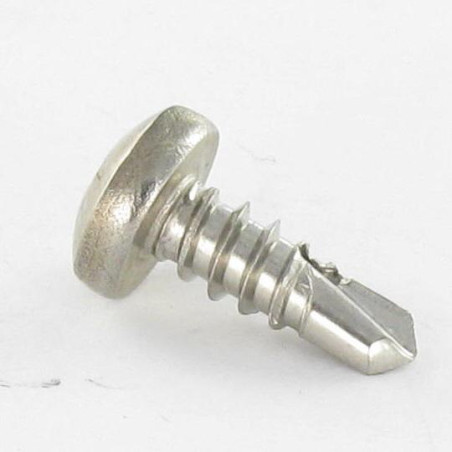

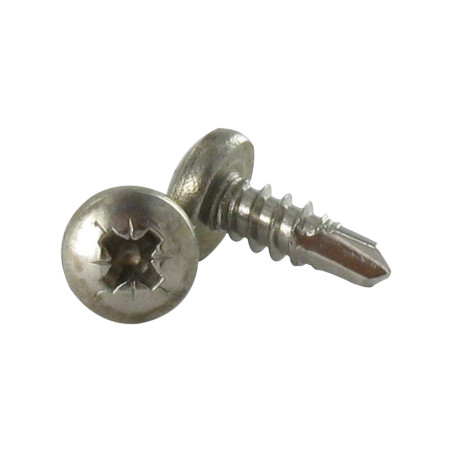

DIN 7504 N,VS3124 - Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X32
Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
32
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N,VS3124
Sub product family
Cylindrical Head Pan Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
24.5
Unit weight
2.6 GR
Material to be drilled
Aluminium
18699 Items
3663072153691
Self Drilling Stainless Steel A2 Cylindrical Button Head Pozi 3.9X32
Diameter = 3.9, Length = 32, Material = Stainless Steel A2, Norm = DIN 7504 N,VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number 6 7 8 10
Diameter 3.5 3.9 4.2 4.8
Pitch 6.9 7.5 8.2 9.5
Head Tickness 2.6 2.8 3.05 3.55
Pozi 1 2 2 2

Other Reference : 3617500368690 6200572 A-P A2 TCB P 3020023 38169 38169 3663072153691
