8326600818_1
In stock 1639 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.85 €7.70 €9.30 €9.25

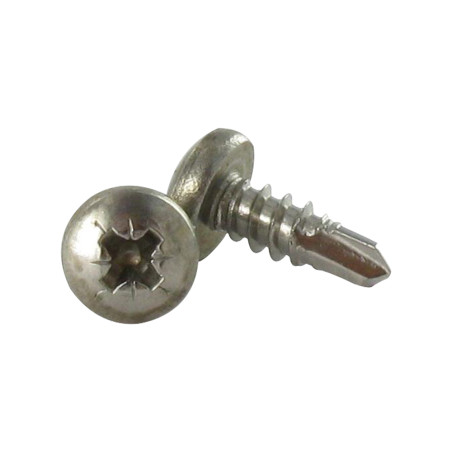

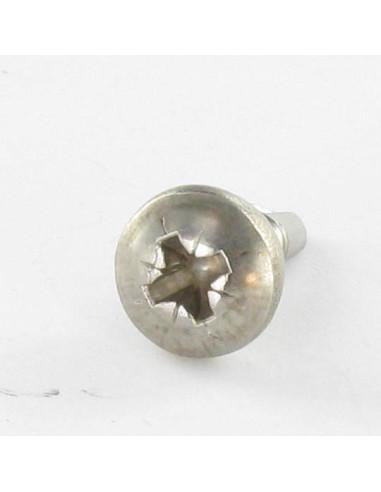

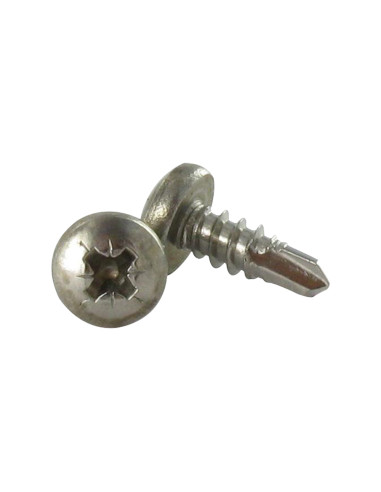

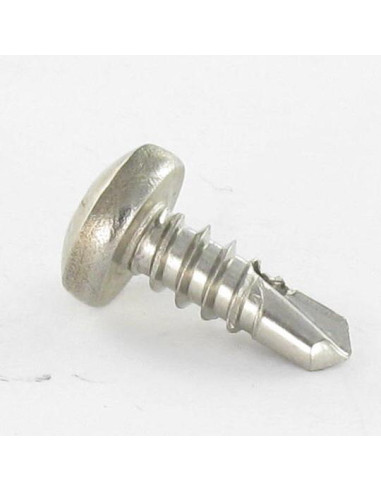

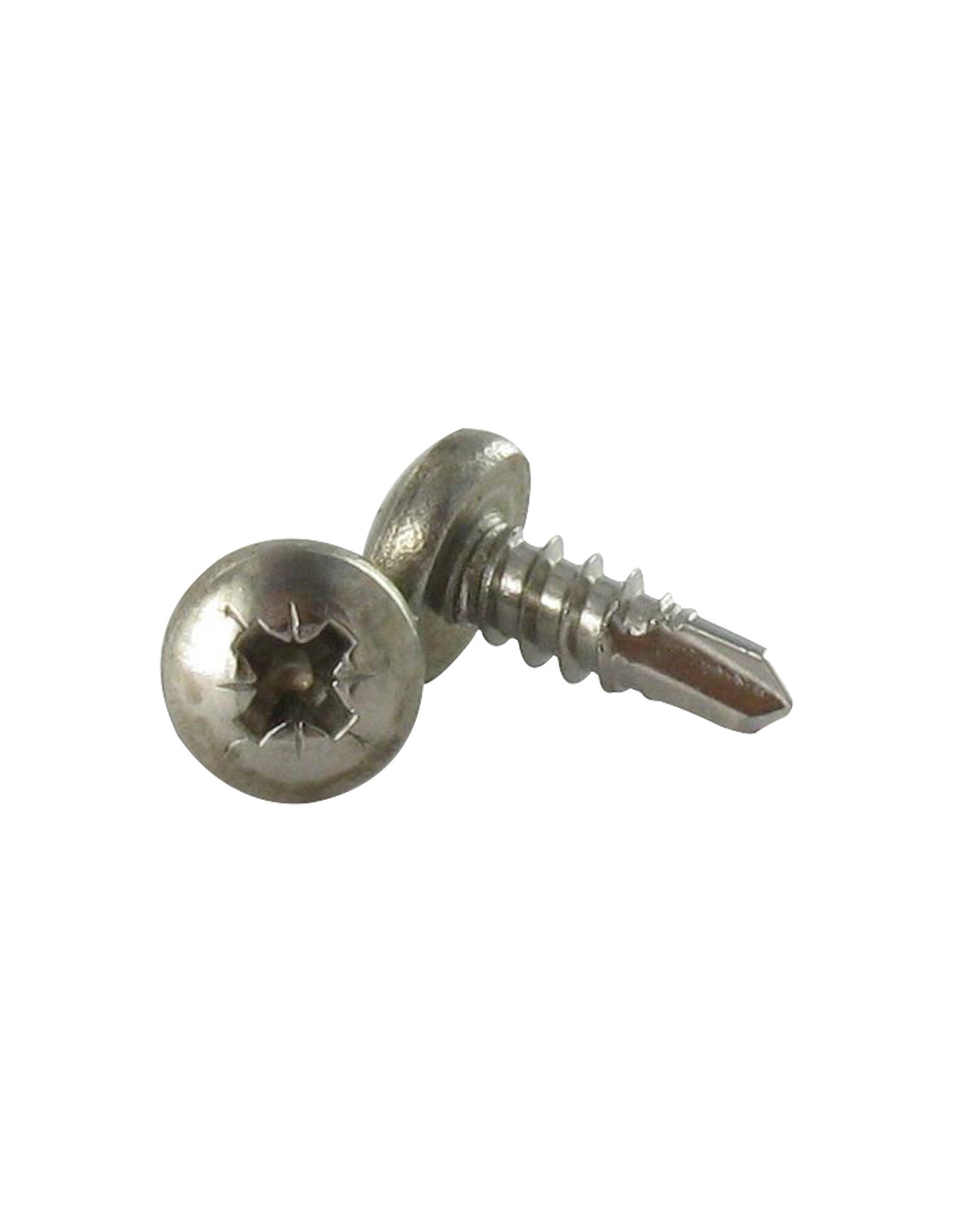

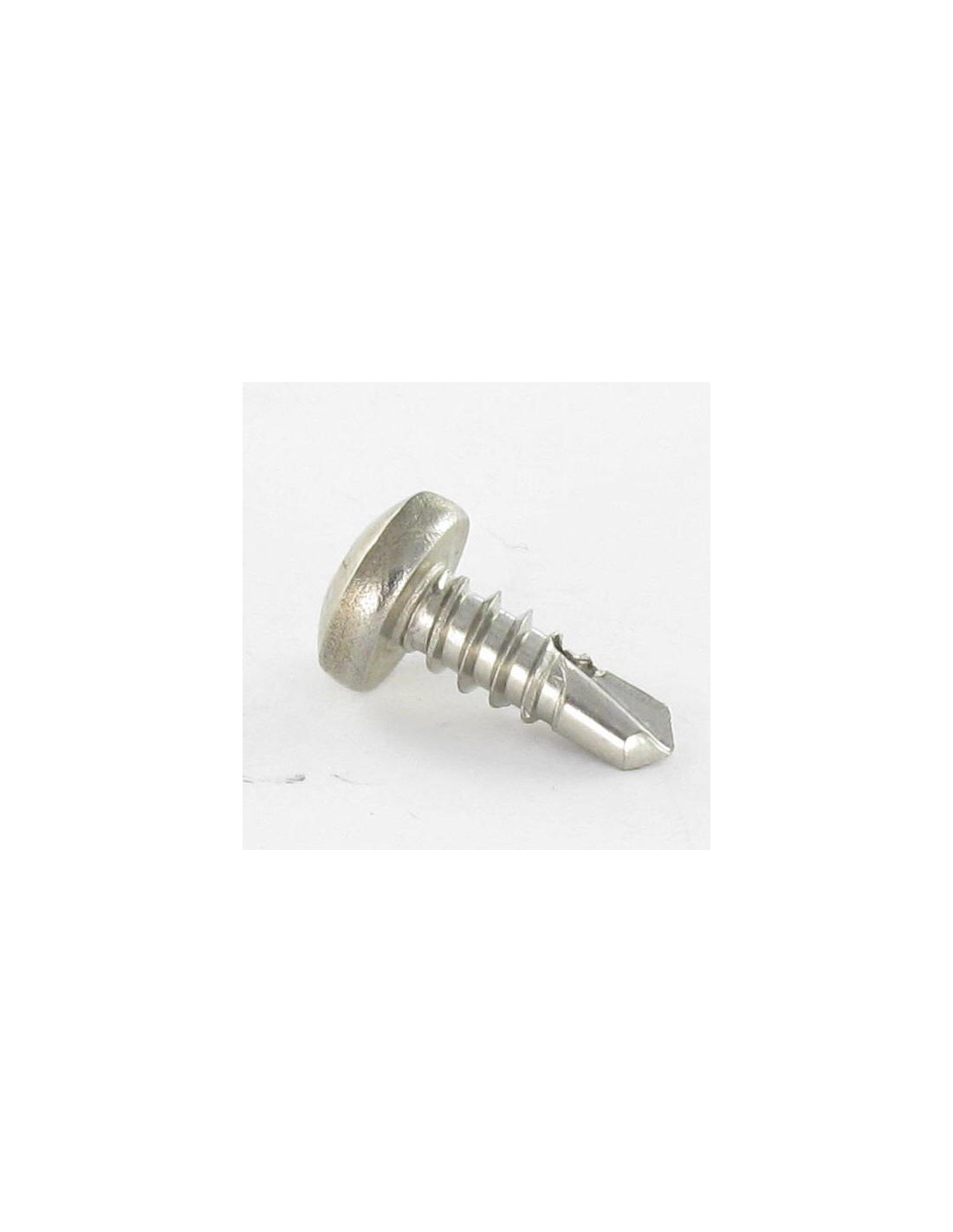

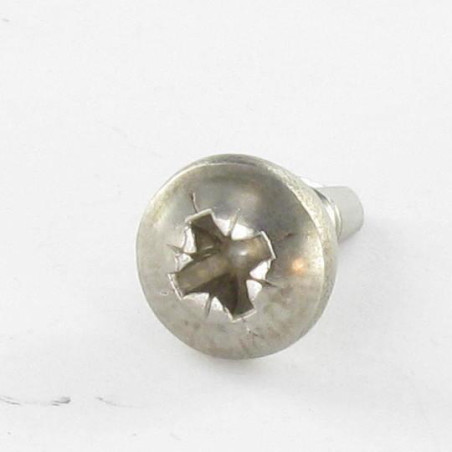

DIN 7504 N,VS3124 - Self Drilling Stainless Steel A2 Cylindrical Button Head Phillips 3.5X9.5
Only pierces aluminum
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
9.5
Drive Type
PHILLIPS
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N,VS3124
Sub product family
Cylindrical Head Pan Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
2.85
Unit weight
0.61 GR
Material to be drilled
Aluminium
1639 Items
3663072188778
Self Drilling Stainless Steel A2 Cylindrical Button Head Phillips 3.5X9.5
Diameter = 3.5, Length = 9.5, Material = Stainless Steel A2, Drive Type = PHILLIPS, Norm = DIN 7504 N,VS3124, Size Drive Type = Spanner 5.5


dimensional guide (mm)
Jauge number 6 7 8 10
Diameter 3.5 3.9 4.2 4.8
Pitch 6.9 7.5 8.2 9.5
Head Tickness 2.6 2.8 3.05 3.55
Pozi 1 2 2 2

Other Reference : 3617500291493 3663072188778
