1 x Self Drilling Cylindrical Button Head Phillips 3.5X19 Sheet Metal Thread Black Zinc Plated
1 x Self Drilling Cylindrical Button Head Phillips 3.5X19 Sheet Metal Thread Black Zinc Plated
1 x Self Drilling Cylindrical Button Head...
1 x Self Drilling Cylindrical Button Head...

1 x Self Drilling Cylindrical Button Head Phillips 3.5X19 Sheet Metal Thread Black Zinc Plated

3125601906_1
In stock 7478 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €3.50 €8.45 €9.20 €26.20

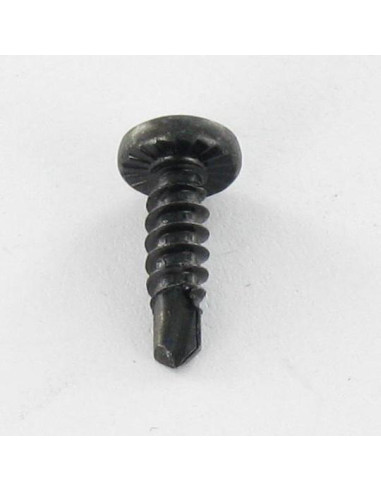

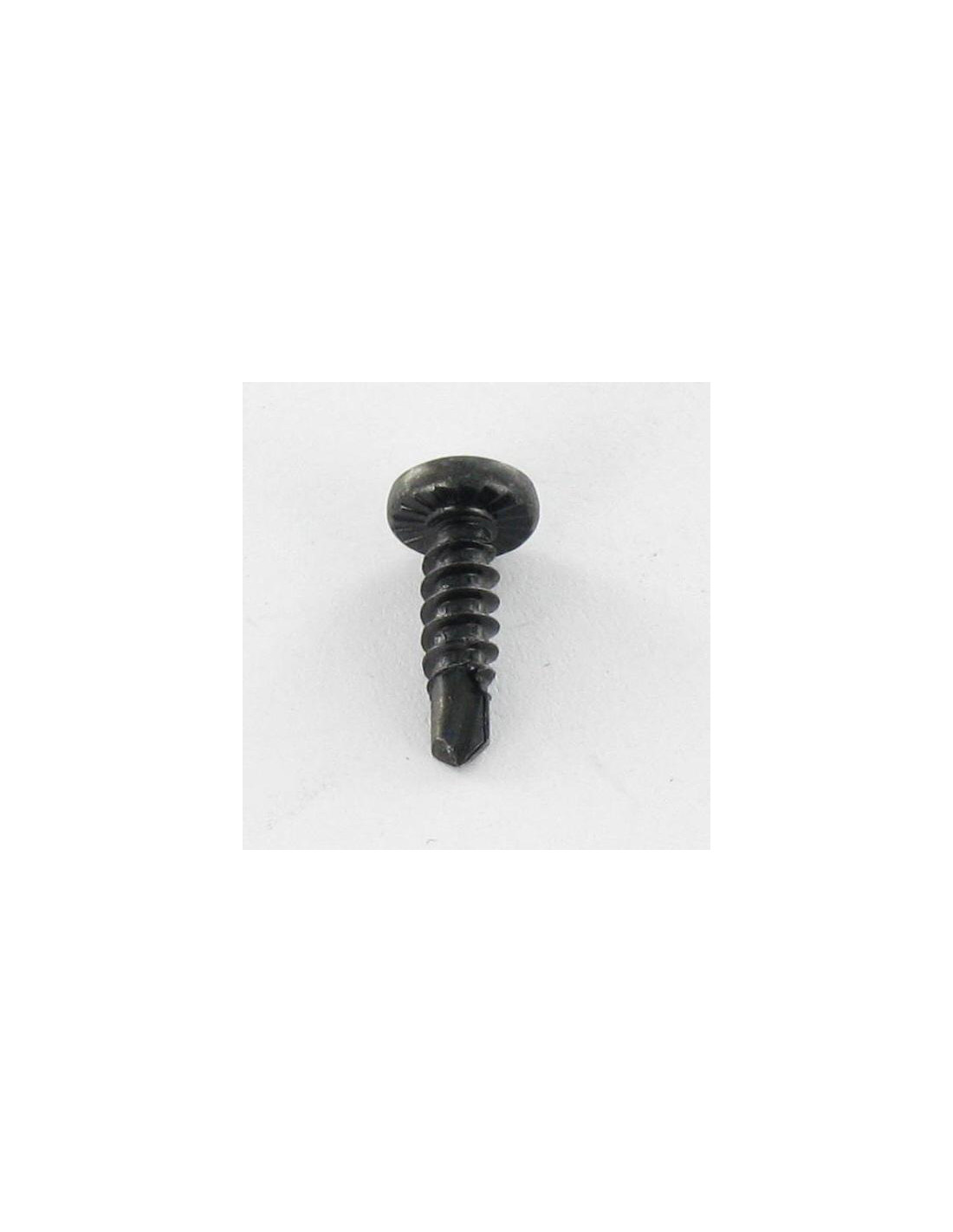

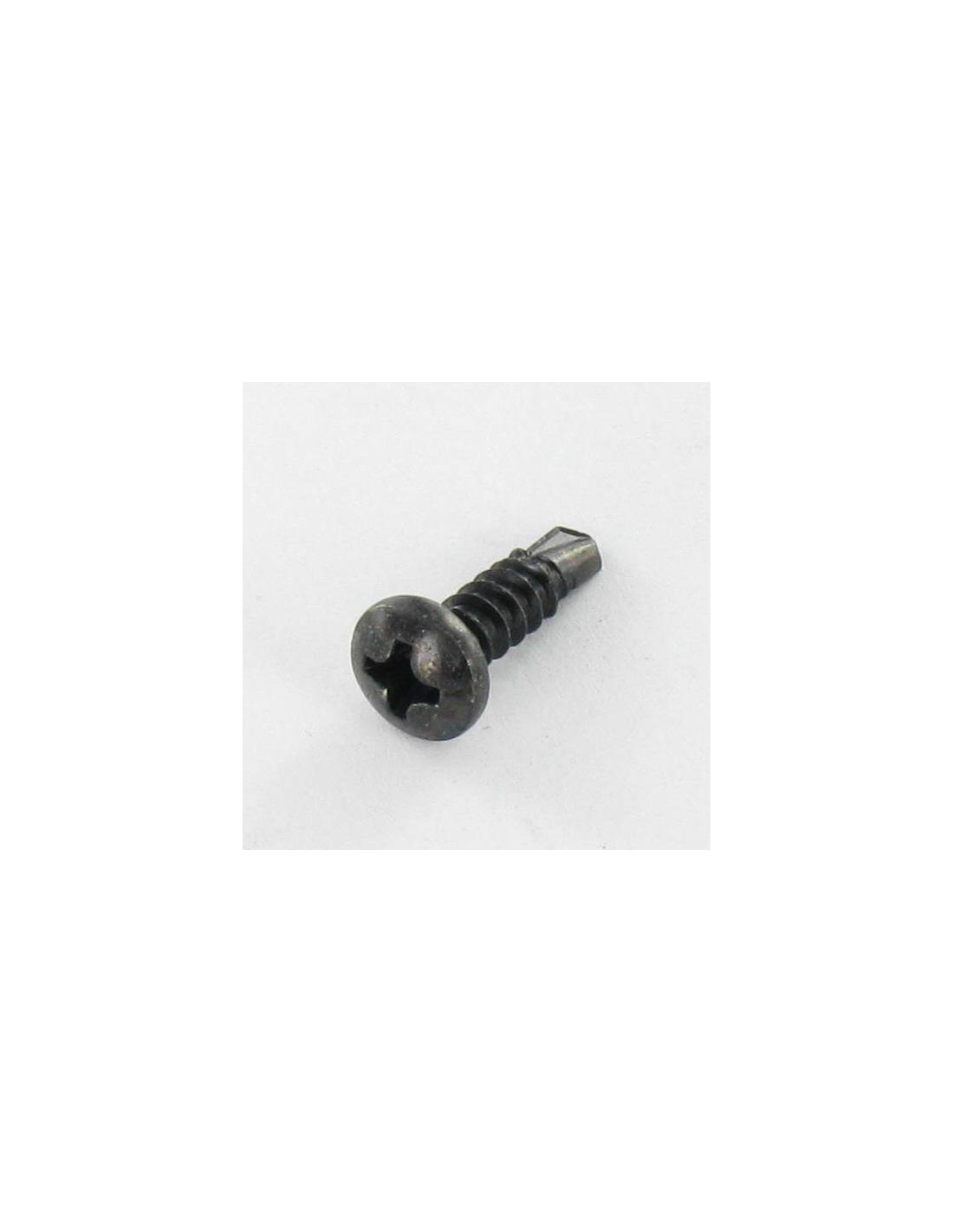

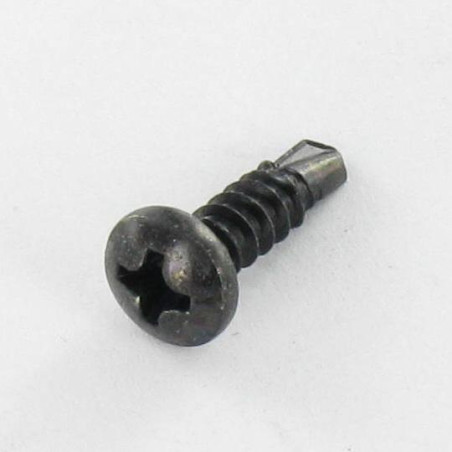

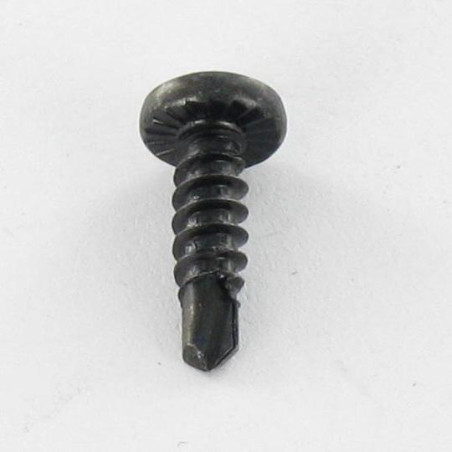

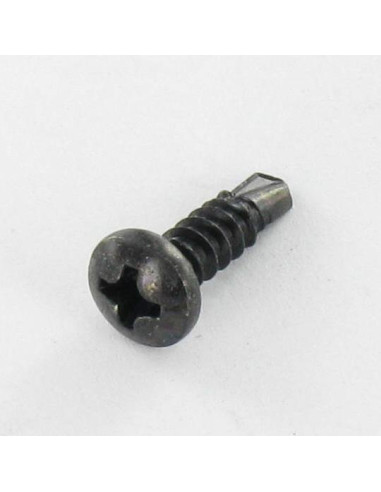

DIN 7504N + CR - VS3124 - Self Drilling Cylindrical Button Head Phillips 3.5X19 Sheet Metal Thread Black Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
19
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC Black
COLOR
Black
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.34 GR
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
12.1
7478 Items
3663072317321
Self Drilling Cylindrical Button Head Phillips 3.5X19 Sheet Metal Thread Black Zinc Plated Other Reference : 3617500187185 VBPT035 3663072317321
thierry v. (vis-express.fr)
2025-07-13

Fixing of optima rails and Styl furring strips Lengths 3 m for rails and uprights
