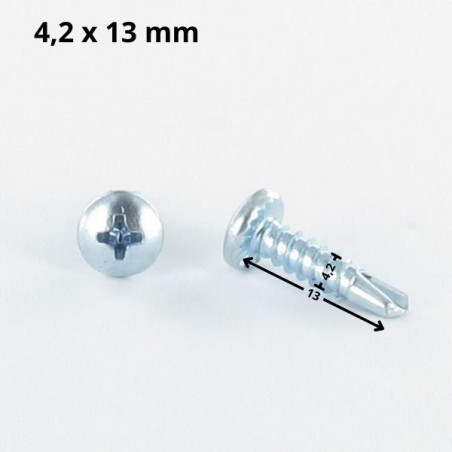

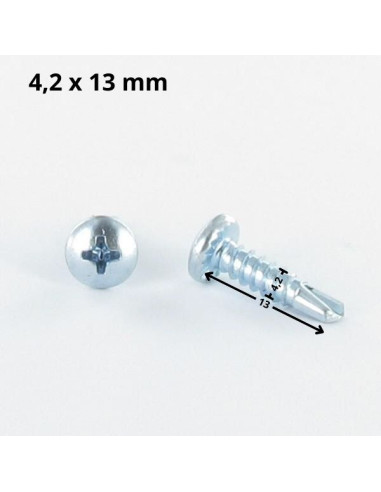

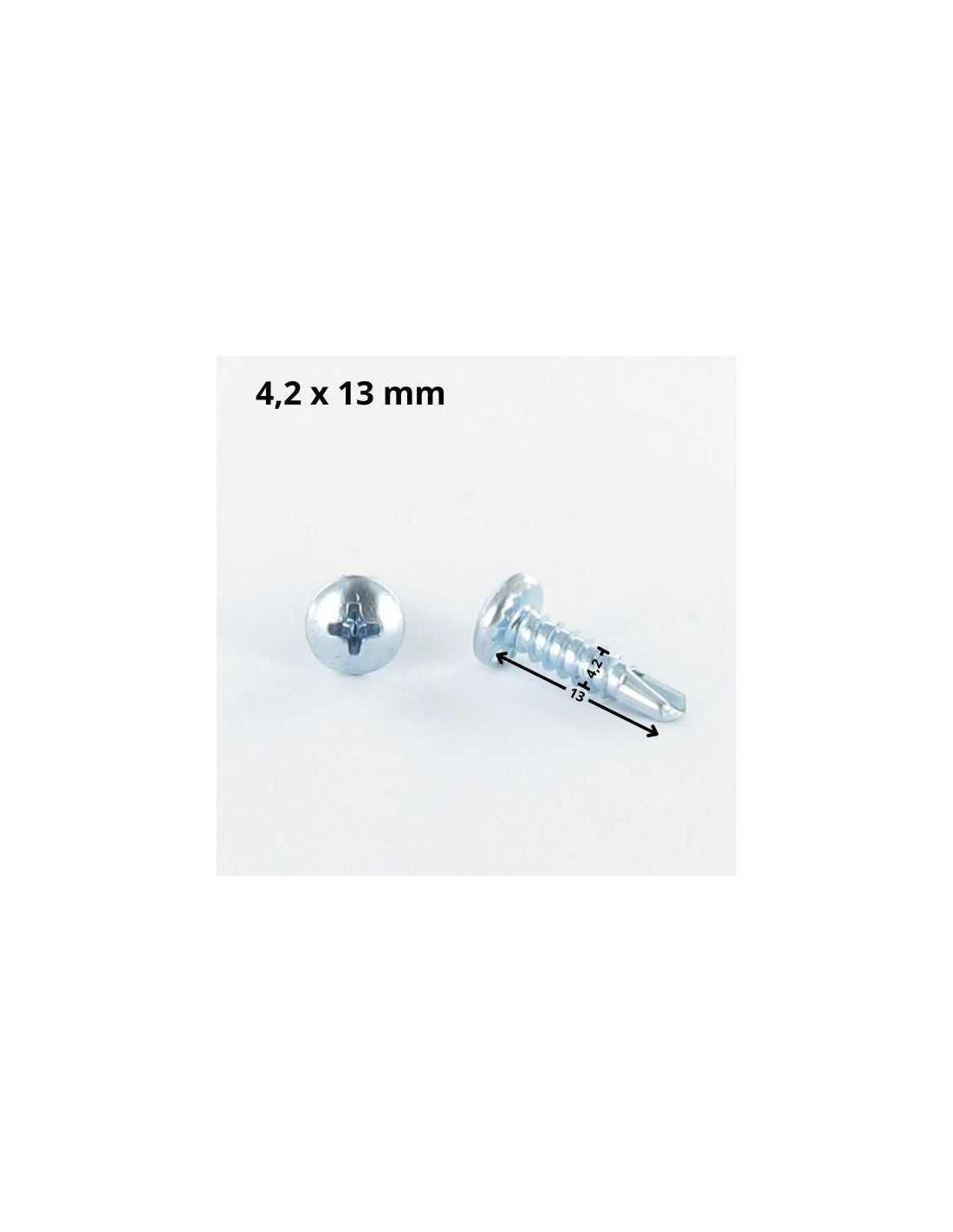

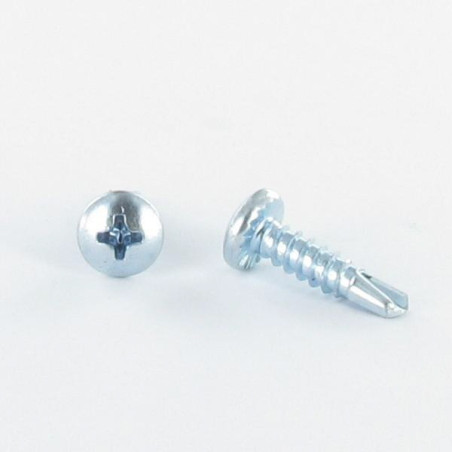

1 x Self Drilling Cylindrical Button Head Phillips 4.2X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Cylindrical Button Head Phillips 4.2X13 Sheet Metal Thread Zinc Plated
1 x Self Drilling Cylindrical Button Head...
1 x Self Drilling Cylindrical Button Head...

1 x Self Drilling Cylindrical Button Head Phillips 4.2X13 Sheet Metal Thread Zinc Plated

3125801302_1
In stock 108773 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £1.39 £3.34 £3.64 £8.94
DIN 7504N + CR - VS3124 - Self Drilling Cylindrical Button Head Phillips 4.2X13 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
13
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.51 GR
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
4.3
108773 Items
3663072038943
Self Drilling Cylindrical Button Head Phillips 4.2X13 Sheet Metal Thread Zinc Plated Other Reference : TCC42013 &2160630 81975 970495000 VI02803 VISQ550 EA009903X A05145 AN 4000 6301827 102225 CC20086169 5040142130 11865 204110063 740281 52004134 0405000 ACC220302 15233250 VI1063 31804213 6925889900 VISA/FTC4.2X 1 VA/21930 PA013334 0140457M85 40280A0000 0140457M85 VI02803 5063753 42500002 QV0000 VTAP42X13 02113932 TTCP4213 A 000791 PC0614 13122 VAUTO4.2X13 VA4.2X12.7 FV0017 210101 874541 021142 13 4626 970495000 WVI02803 MOIS 970495000 102225 6301827 13122 10006283 02064213 3663072038943
