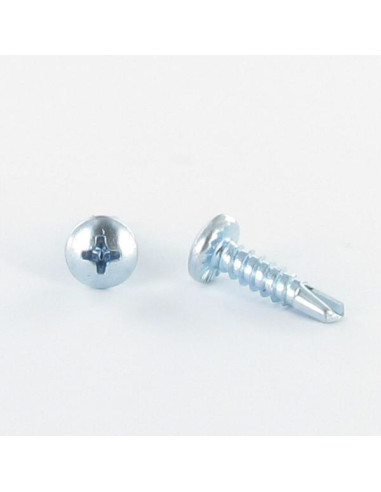

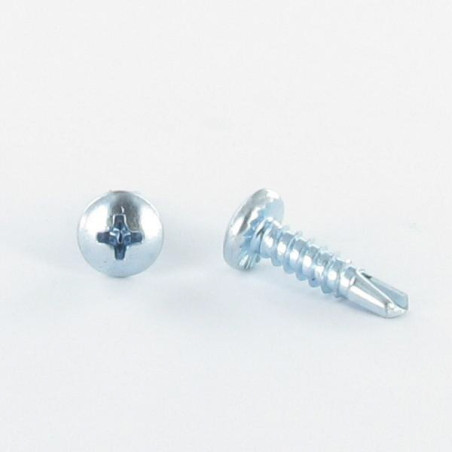

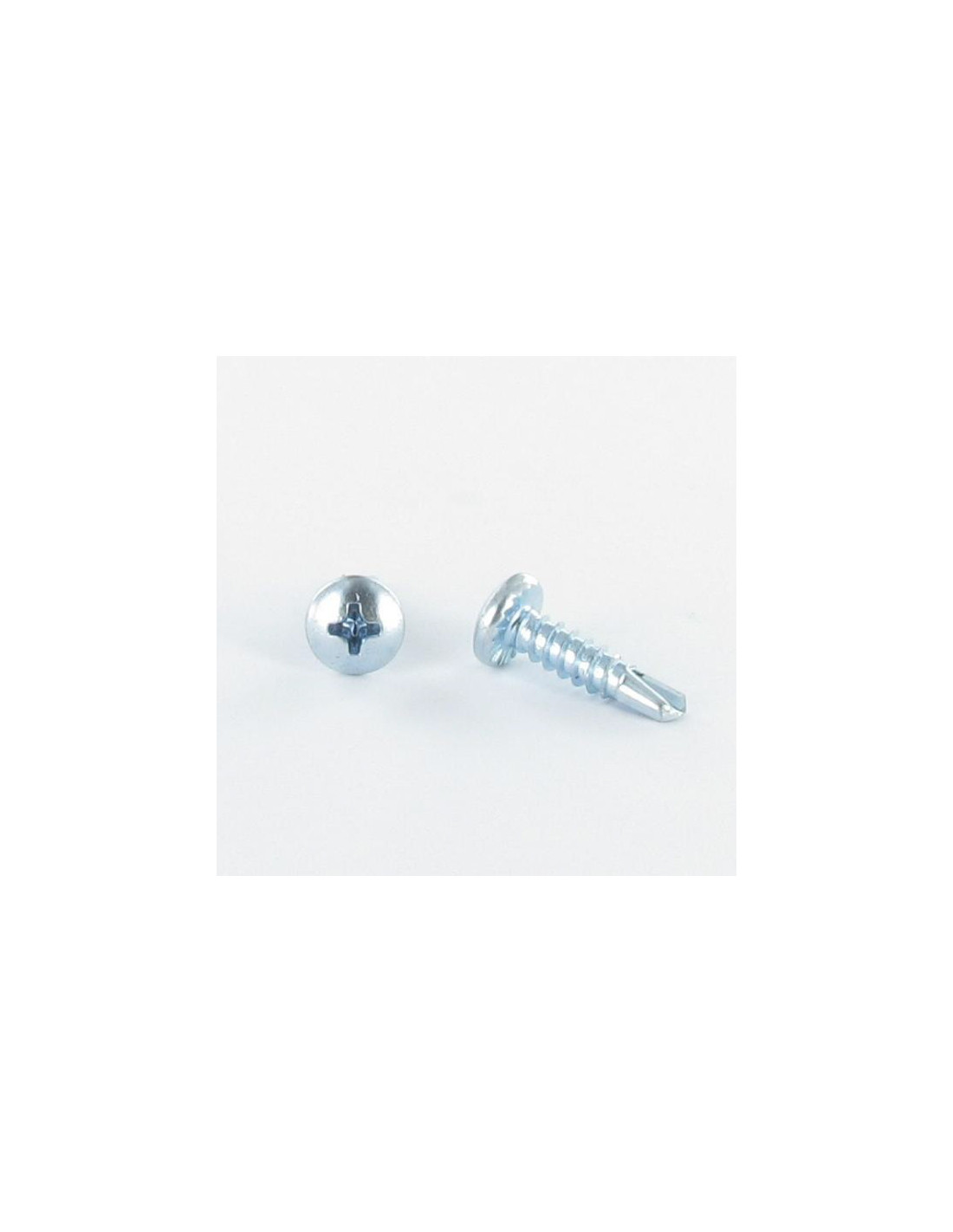

1 x Self Drilling Cylindrical Button Head Phillips 4.2X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Cylindrical Button Head Phillips 4.2X16 Sheet Metal Thread Zinc Plated
1 x Self Drilling Cylindrical Button Head...
1 x Self Drilling Cylindrical Button Head...

1 x Self Drilling Cylindrical Button Head Phillips 4.2X16 Sheet Metal Thread Zinc Plated

3125801602_1
In stock 536537 Pièces
£1.39 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £1.39 £3.34 £3.64 £9.37
DIN 7504N + CR - VS3124 - Self Drilling Cylindrical Button Head Phillips 4.2X16 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

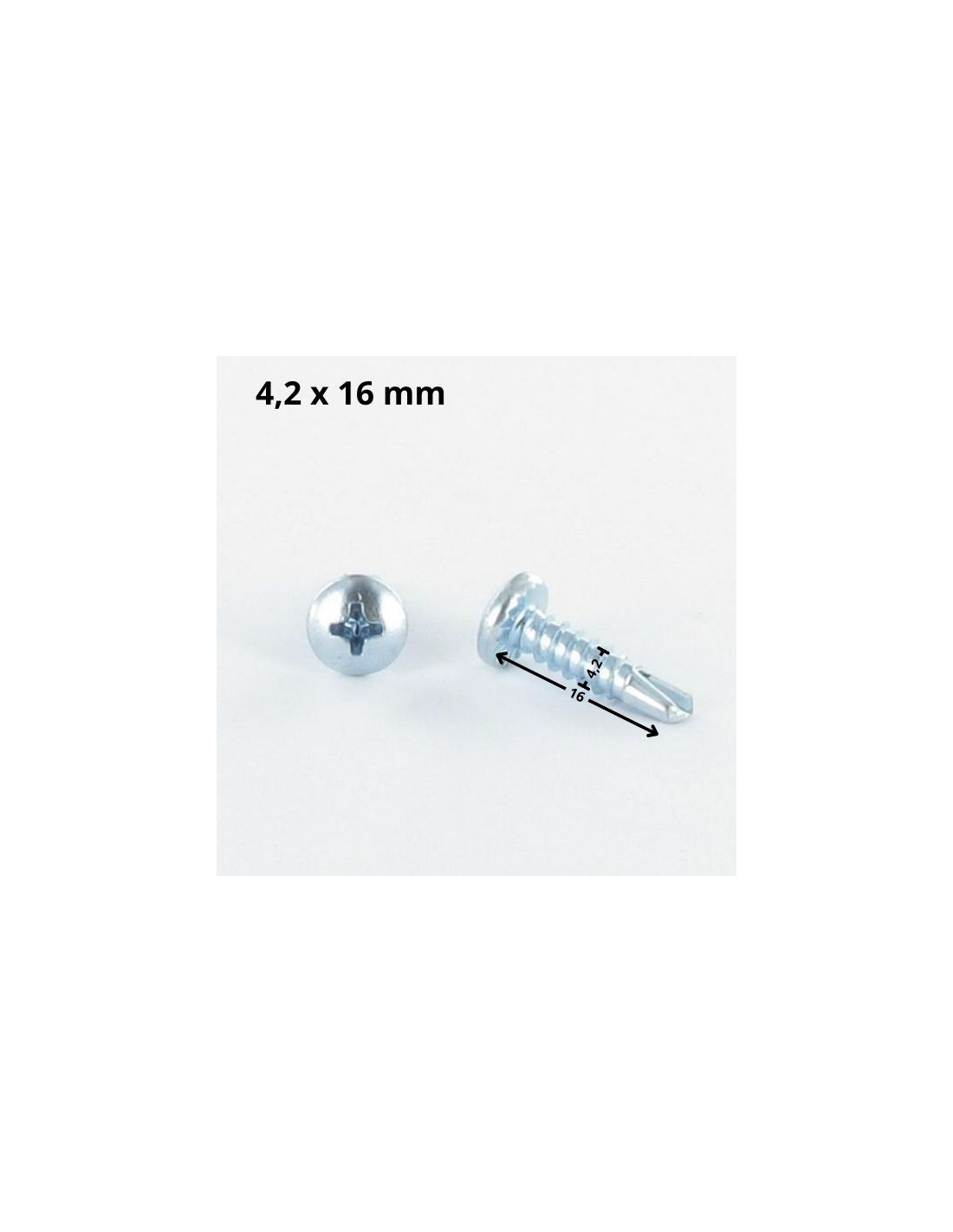

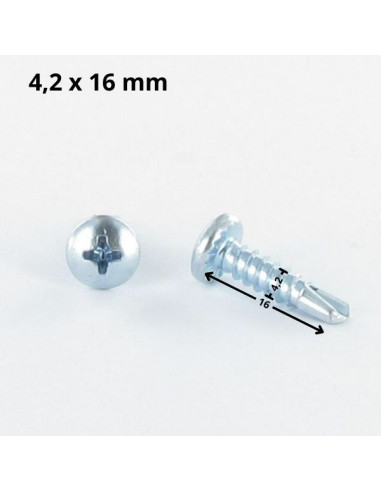

Dimensions shown in millimeters (mm)

Diameter
4.2
Length
16
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.72 GR
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
4.5
Maximum thickness to be fixed
7.3
536537 Items
3663072038967
Self Drilling Cylindrical Button Head Phillips 4.2X16 Sheet Metal Thread Zinc Plated Other Reference : TCC42016 VISAAPTC0421 VAUTCB4X16Z VB113 20304216B 47308002 TC4.2X16 AIBCX4.2X16T VCKC4216 403260 EUVP04CZ16 A 13920A 4216.067 317901 317901-000 317901-000 7504N42159ZN Q01471F VIS0538 VIS021740 VIS4.2X16AUT 514699 0008780 MAVISVIS112 VA/21931 021114216 VAUTCB4X16Z SB28161 660725 0BVA0416 PLBA90001 508185 VTAP42X16 AF1016 02114216 68041 264004 VB113 VISTR4216Z VIS0073 VISAAPTC0421 A000947 VAF4x16 021142 16 MP263000 MP263000 3663072038967
Sébastien S. (vis-express.fr)
2024-10-27

I use these screws to fix small steel profiles together. I use these self-drilling screws with a domed cylindrical head TCB Philips 4.2x16 in zinc-plated steel to fix steel tray finishing profiles.
