3125701606_1
In stock 127877 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €11.60

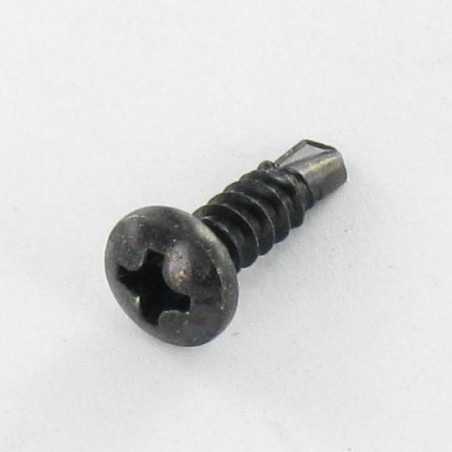

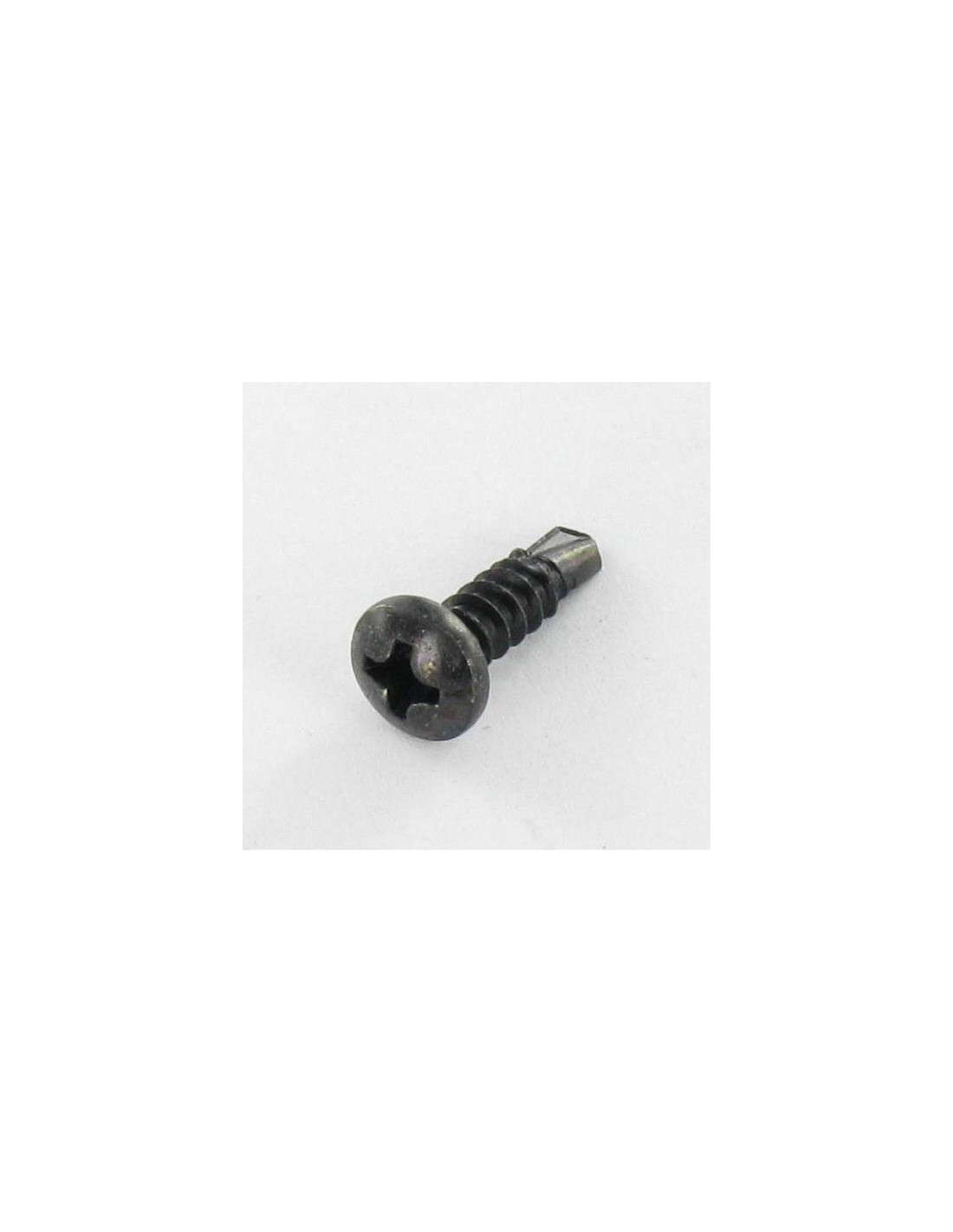

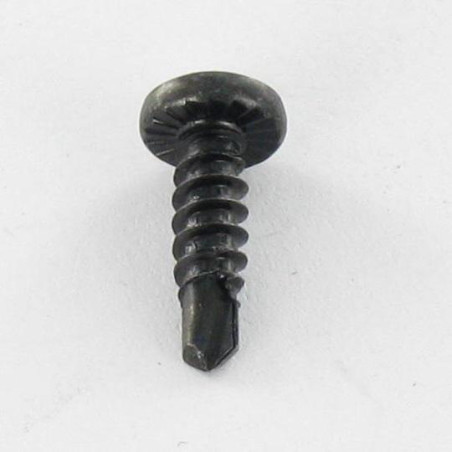

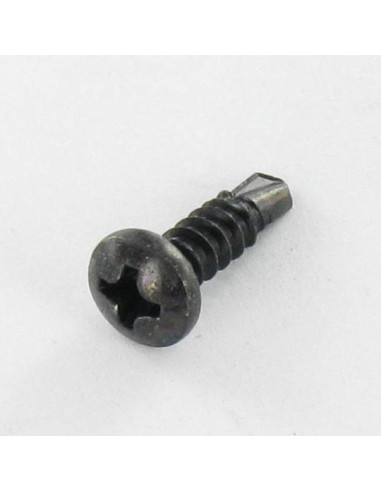

DIN 7504N + CR - VS3124 - Self Drilling Cylindrical Button Head Phillips 3.9X16 TO Black Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

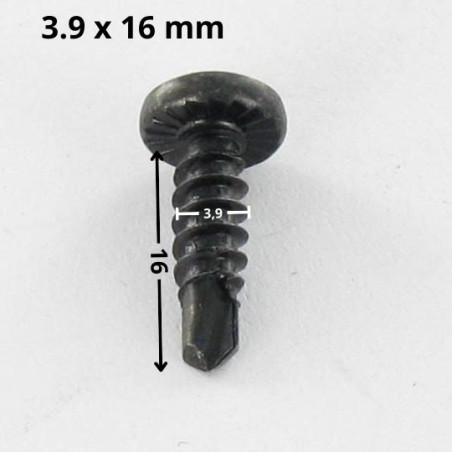

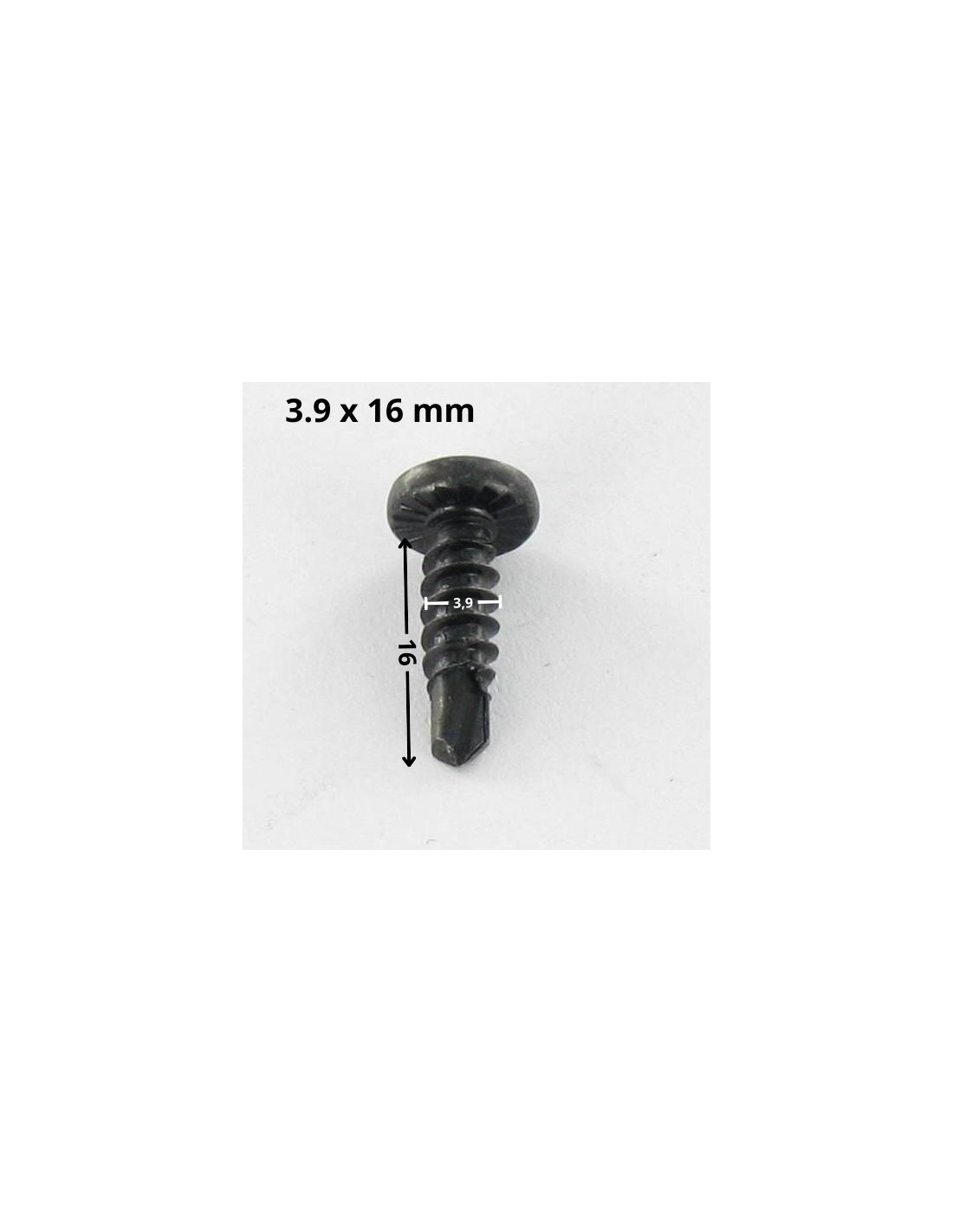

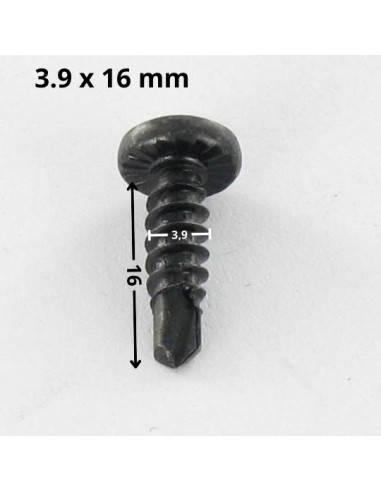

Dimensions shown in millimeters (mm)

Diameter
3.9
Length
16
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC Black
COLOR
Black
Norm
DIN 7504N + With Serration - VS3124
Sub product family
Cylindrical Head Pan Head
WEIGHT For THERE unit
1.5 GR
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
3.4
Maximum thickness to be fixed
Class 8.8
127877 Items
3663072038882
Self Drilling Cylindrical Button Head Phillips 3.9X16 TO Black Zinc Plated Other Reference : 3617500182623 0571499900 117-000-626 VIS057 ZQV8B3.916AZ 0451489900 191469900 VIS057 3663072038882
Philippe R. (vis-express.fr)
2025-11-30

screws to fix a sheet metal on a steel tube chassis this construction will be an outdoor piece of furniture under a shelter to store removable car seats.


Patrice J. (vis-express.fr)
2025-01-12

Fix underside To foxer underside of shutter box
