1 x Self Drilling Countersunk Head EMP Square Square 2 4.8X50 Zinc Plated
1 x Self Drilling Countersunk Head EMP Square Square 2 4.8X50 Zinc Plated
1 x Self Drilling Countersunk Head EMP Square Square 2 4.8X50 Zinc Plated
1 x Self Drilling Countersunk Head EMP Square...
1 x Self Drilling Countersunk Head EMP Square...
1 x Self Drilling Countersunk Head EMP Square...

1 x Self Drilling Countersunk Head EMP Square Square 2 4.8X50 Zinc Plated

3138105002_1
In stock 74462 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €22.55

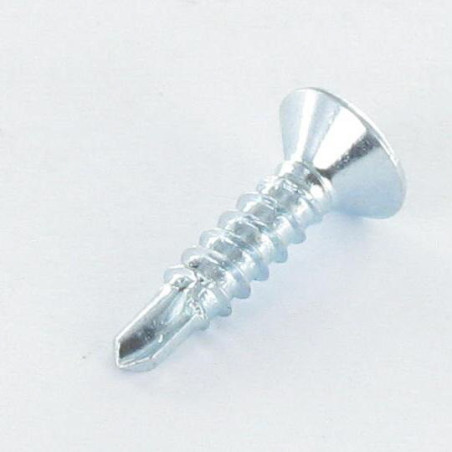

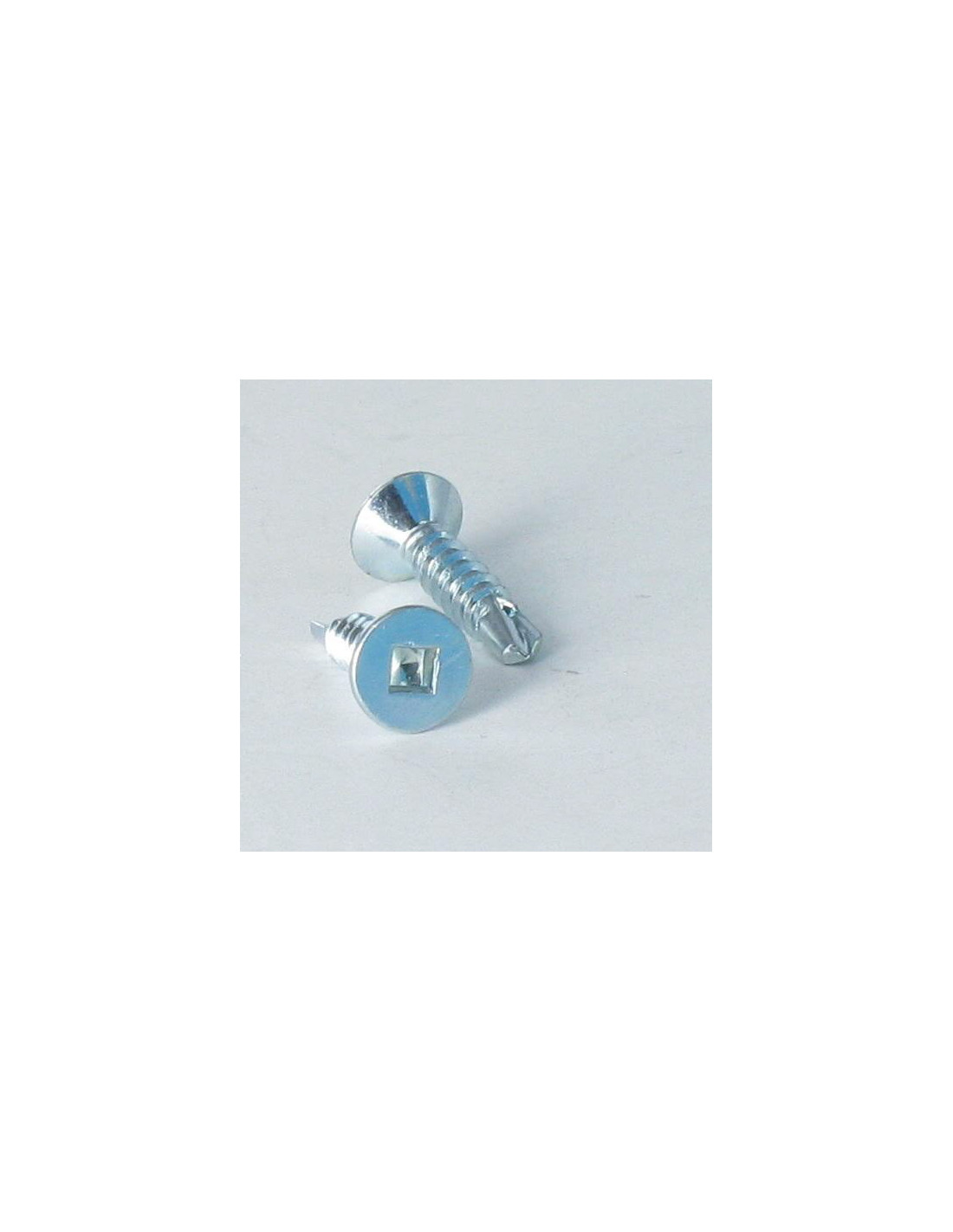

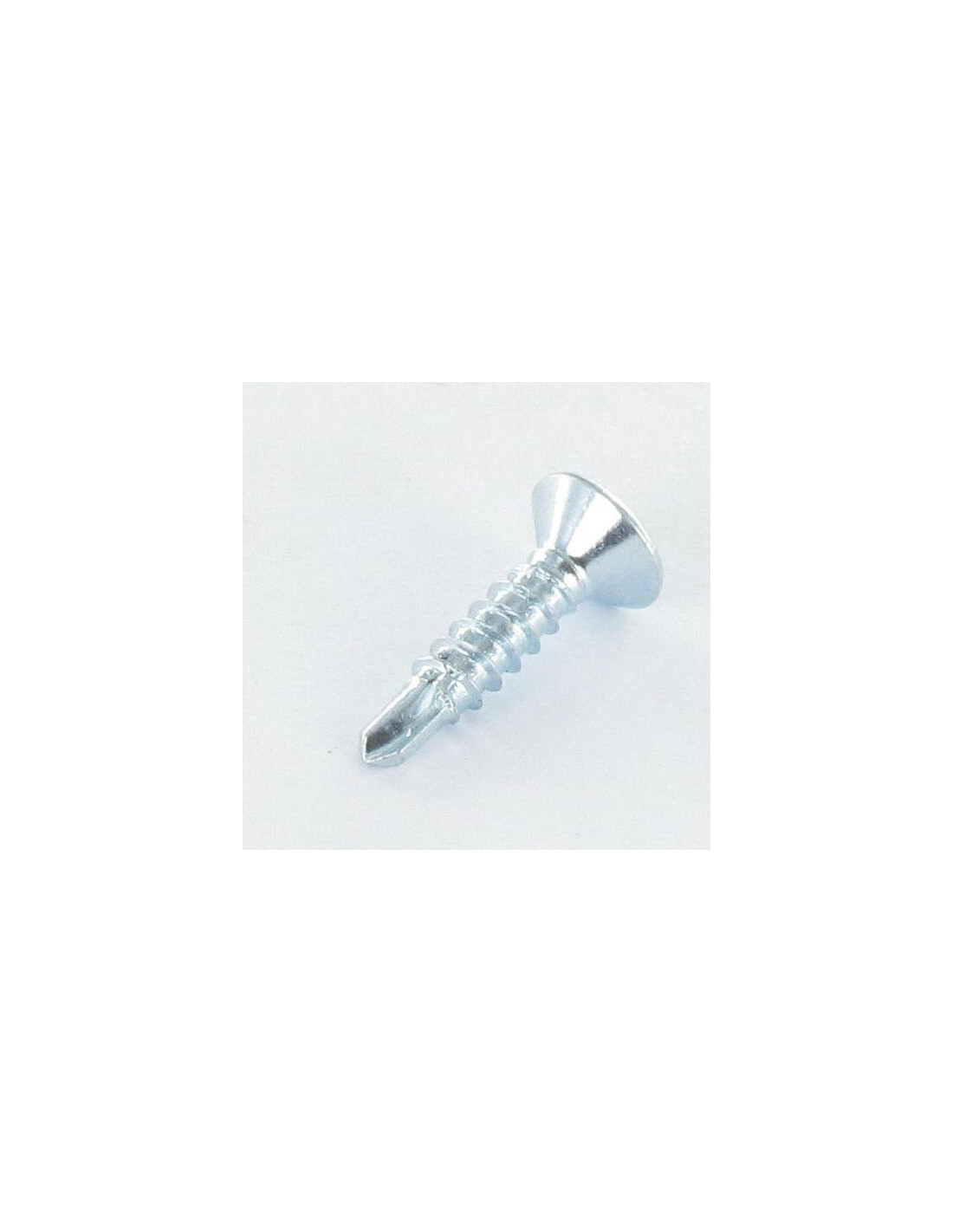

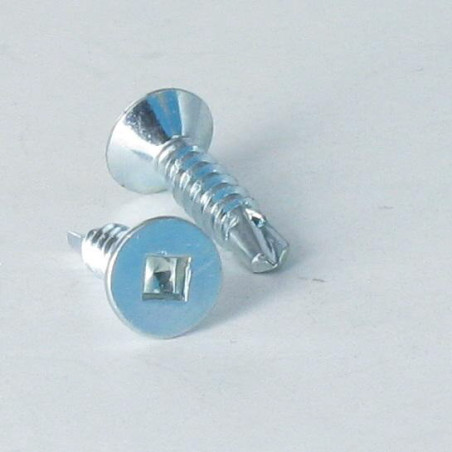

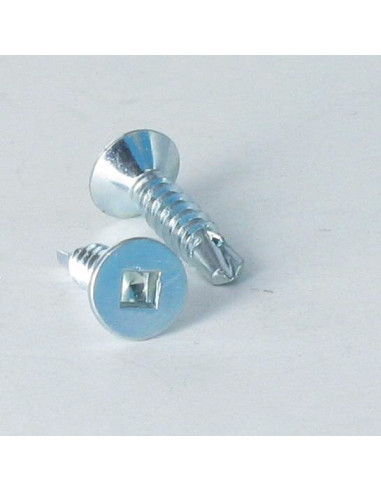

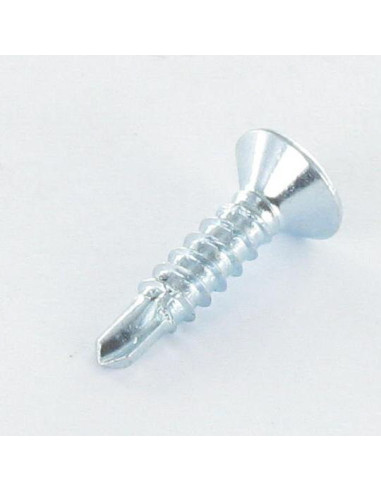

DIN 7504P+ CARRE,VS3124 - Self Drilling Countersunk Head EMP Square Square 2 4.8X50 Zinc Plated
"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
16
Drive Type
Square
Size Drive Type
Square 2
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P+ SQUARE, VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
Class 4.8 GR
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
39.5
74462 Items
3663072041547
Self Drilling Countersunk Head EMP Square Square 2 4.8X50 Zinc Plated
Diameter = Class 4.8, Length = 50, Coating = Zinc Plated, Material = Steel, Drive Type = Square, Norm = DIN 7504P+ SQUARE,VS3124, Size Drive Type = Square 2


dimensional guide (mm)
Jauge number8
Diameter4.2
Head diameter8.1
Head Tickness2.5
SQ2

Other Reference : TFQ48050 1QUIVIS2606 VB146 3663072041547
