3124103202_1
In stock 230016 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €1.60 €3.85 €4.20 €17.50

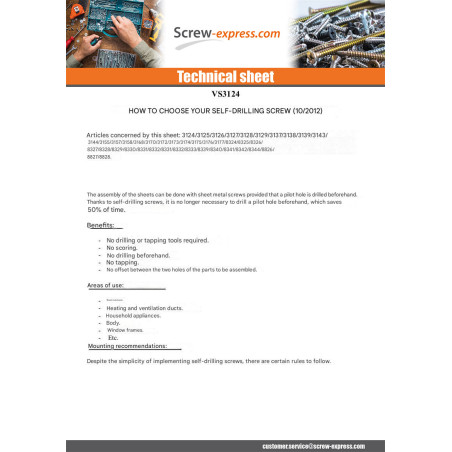

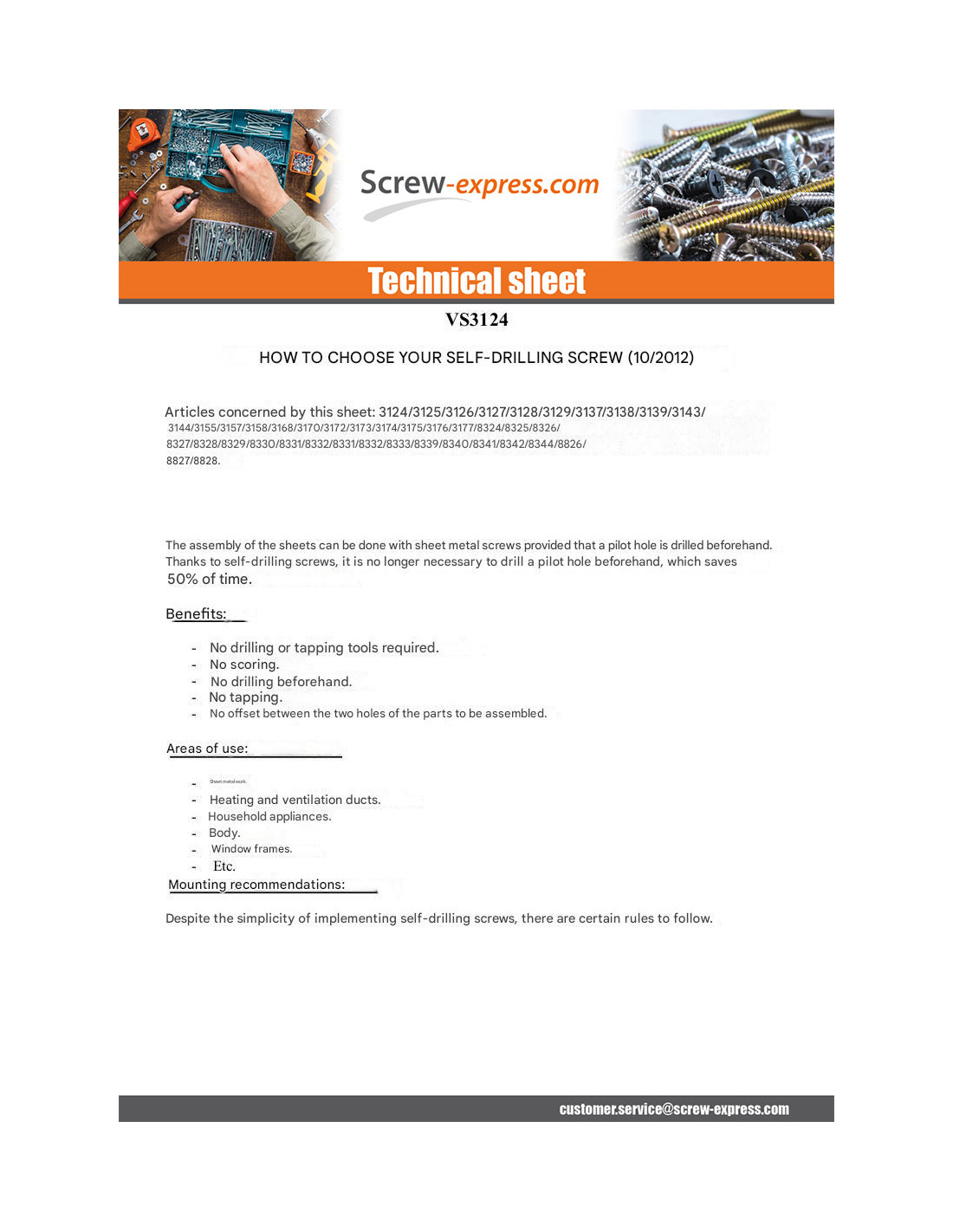

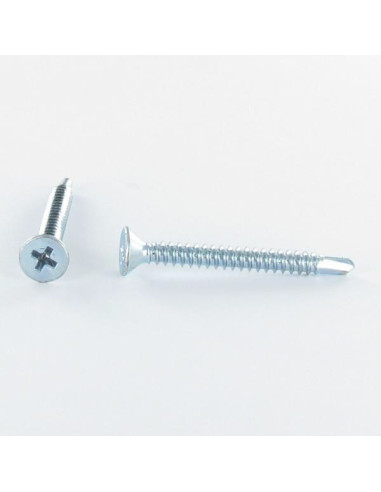

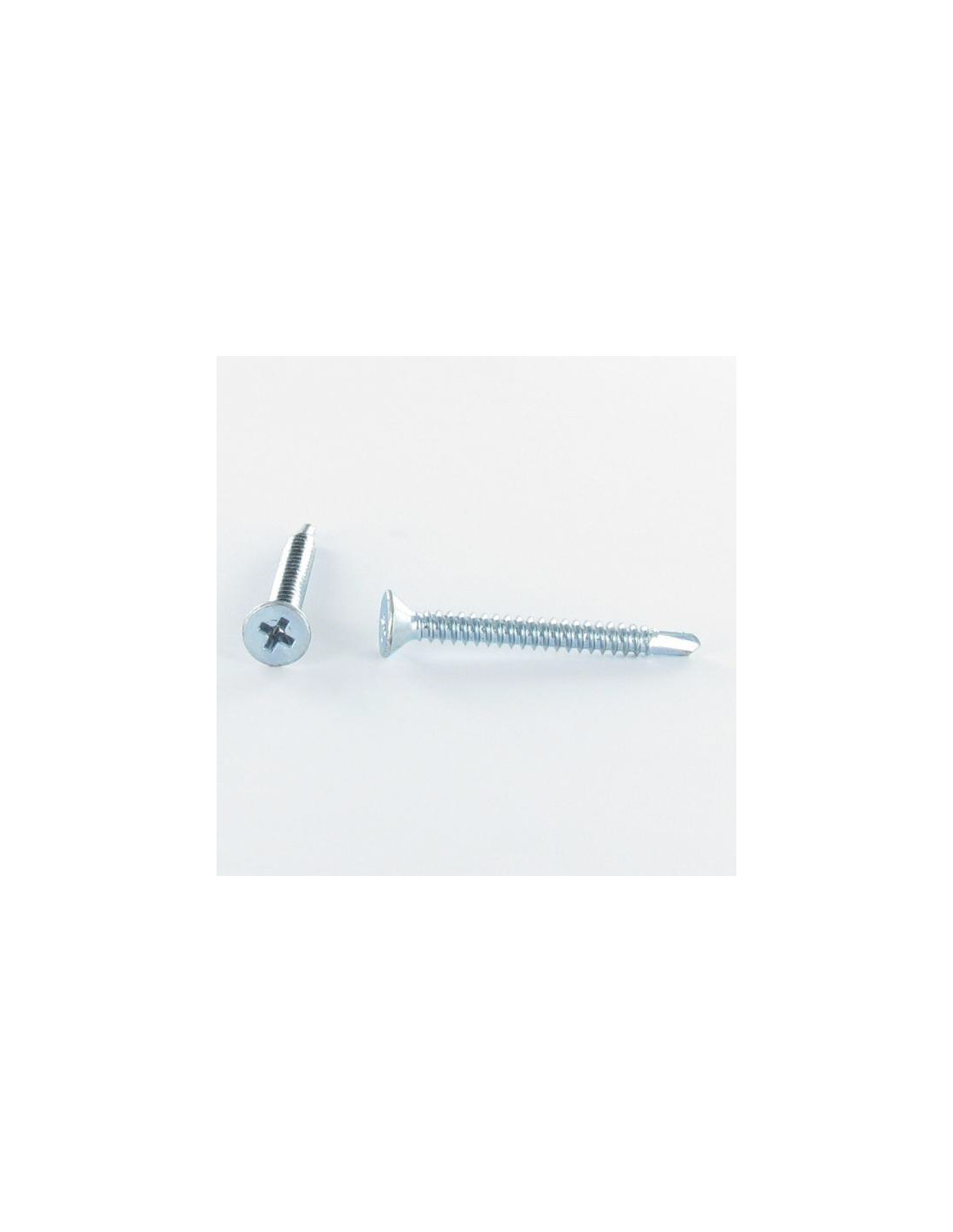

DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 4.8X32 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
32
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
3.35 GR

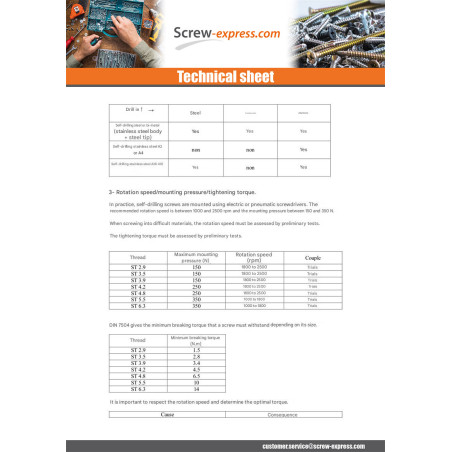

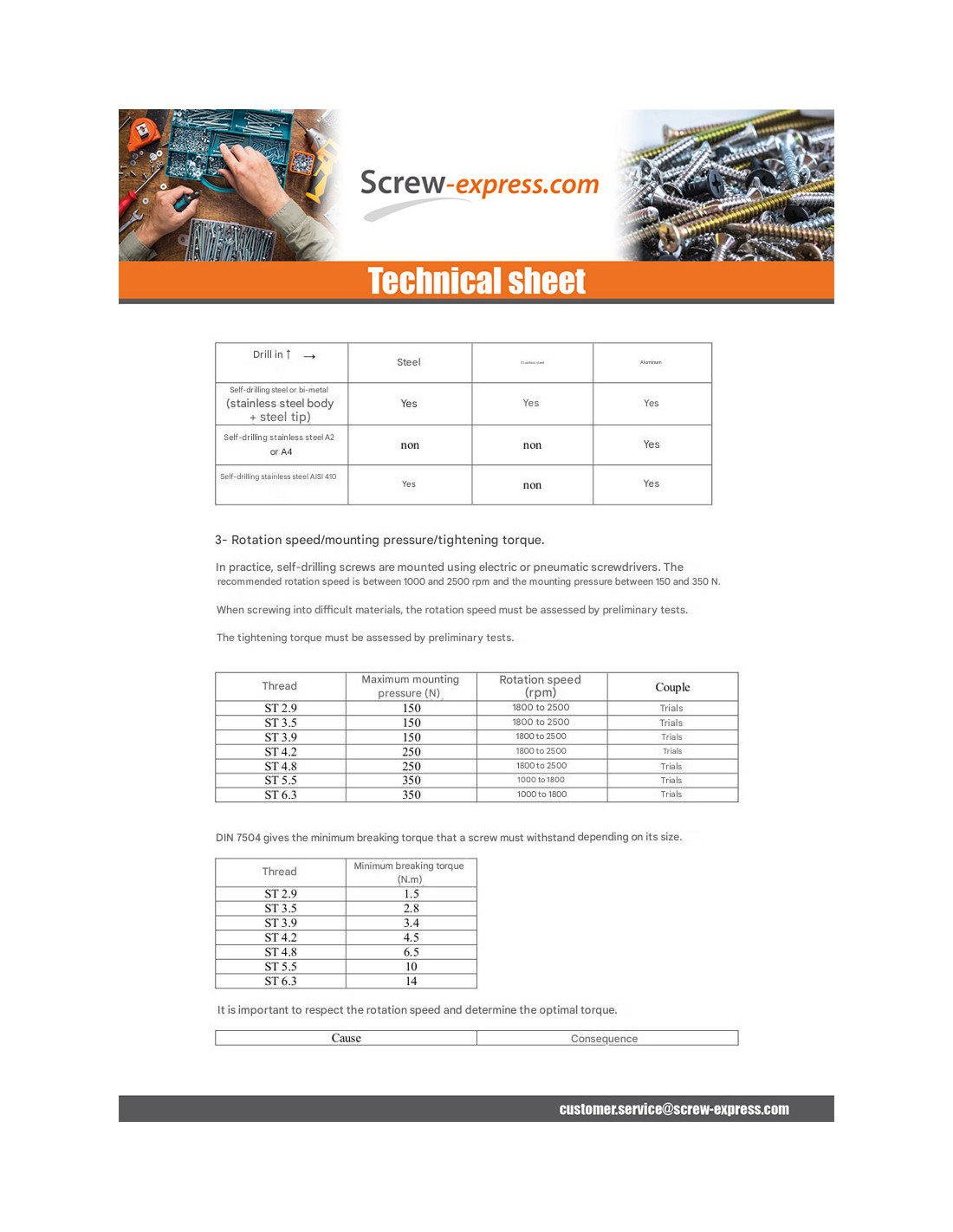

Mounting pressure (N)
250

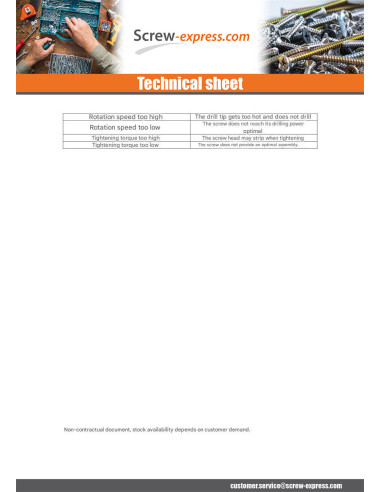

Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5

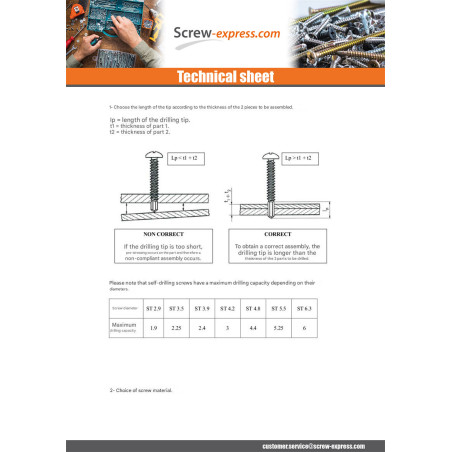

Maximum thickness to be fixed
21.5
230016 Items
3663072037953
Self Drilling Countersunk Head Phillips 4.8X32 Sheet Metal Thread Zinc Plated Other Reference : TFC48032 42500014 170010029 1140248 VAATFP48317 OVAPTFP532 VI-ZPETFD04. AIBACO4.8X35 A30162432 01G05014 10148 14232.067 FIXVISTF4.8X 9VATF148032 VIS0012 D11.TF48X32 MV0156 400368 606310 MP015025 1007179 42500014 ALBVIFRN1032 ALBVIFRN1032 VTAPTFPH48X3 02124832 1394312 265009 VISAP4832 1394312 V021143200 A01650 12185035001 021248 32 3663072037953
