3124146302_1
In stock 4771 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €11.40

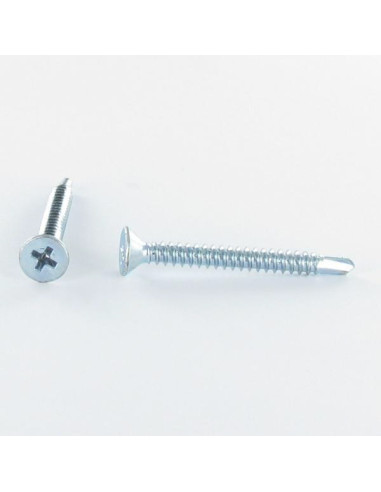

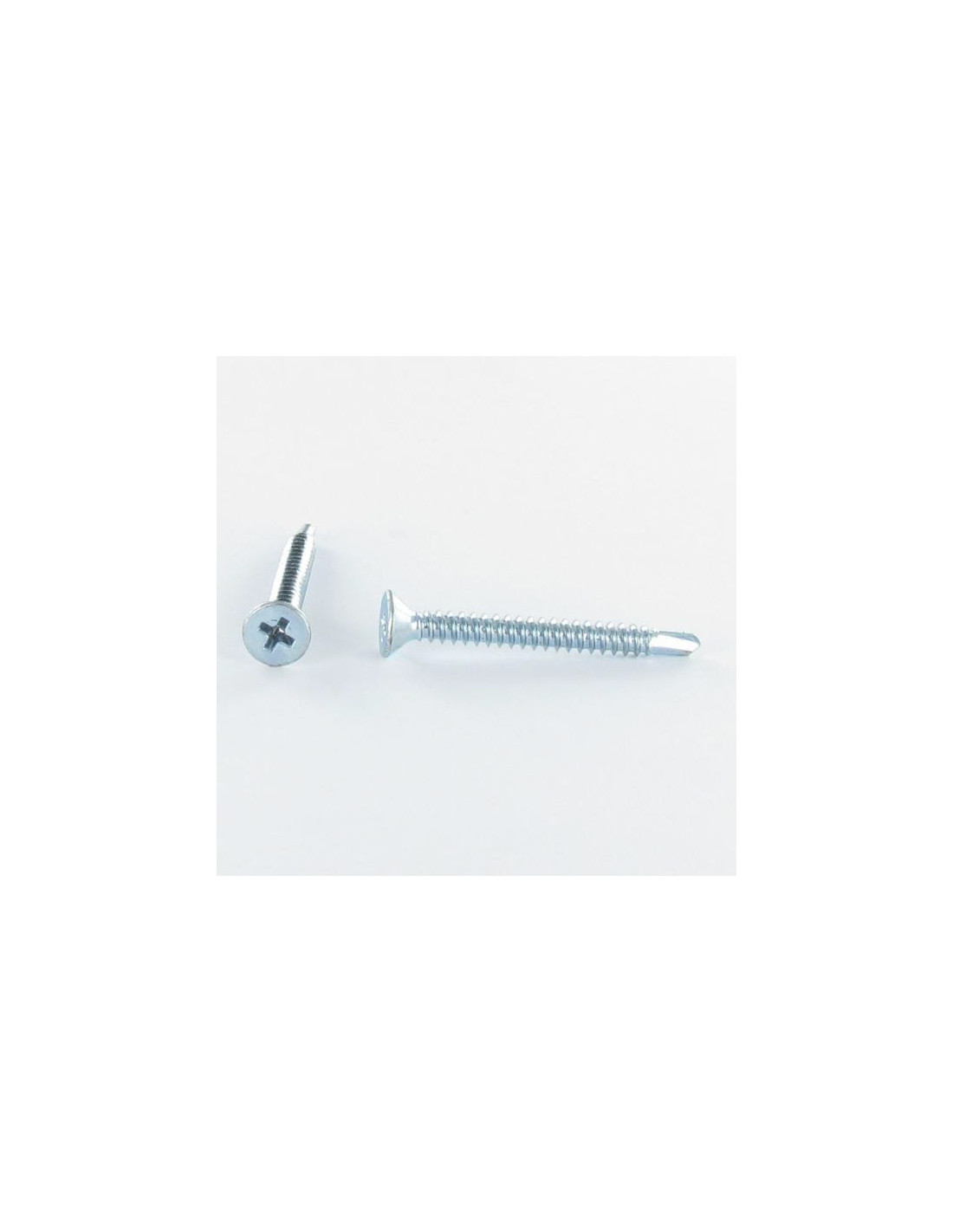

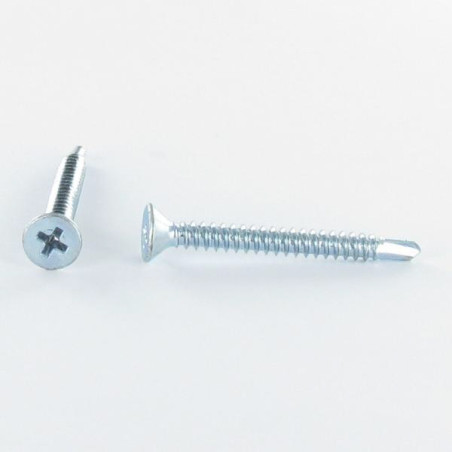

DIN 7504P + VS3124 - Self Drilling Countersunk Head Phillips 6.3X63 Sheet Metal Thread Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
63
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504P + VS3124
Sub product family
Countersunk Head
WEIGHT For THERE unit
10 GR

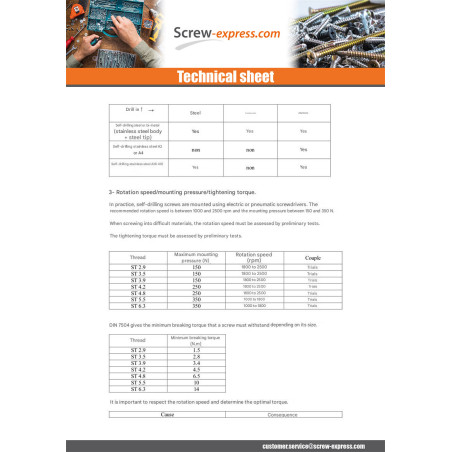

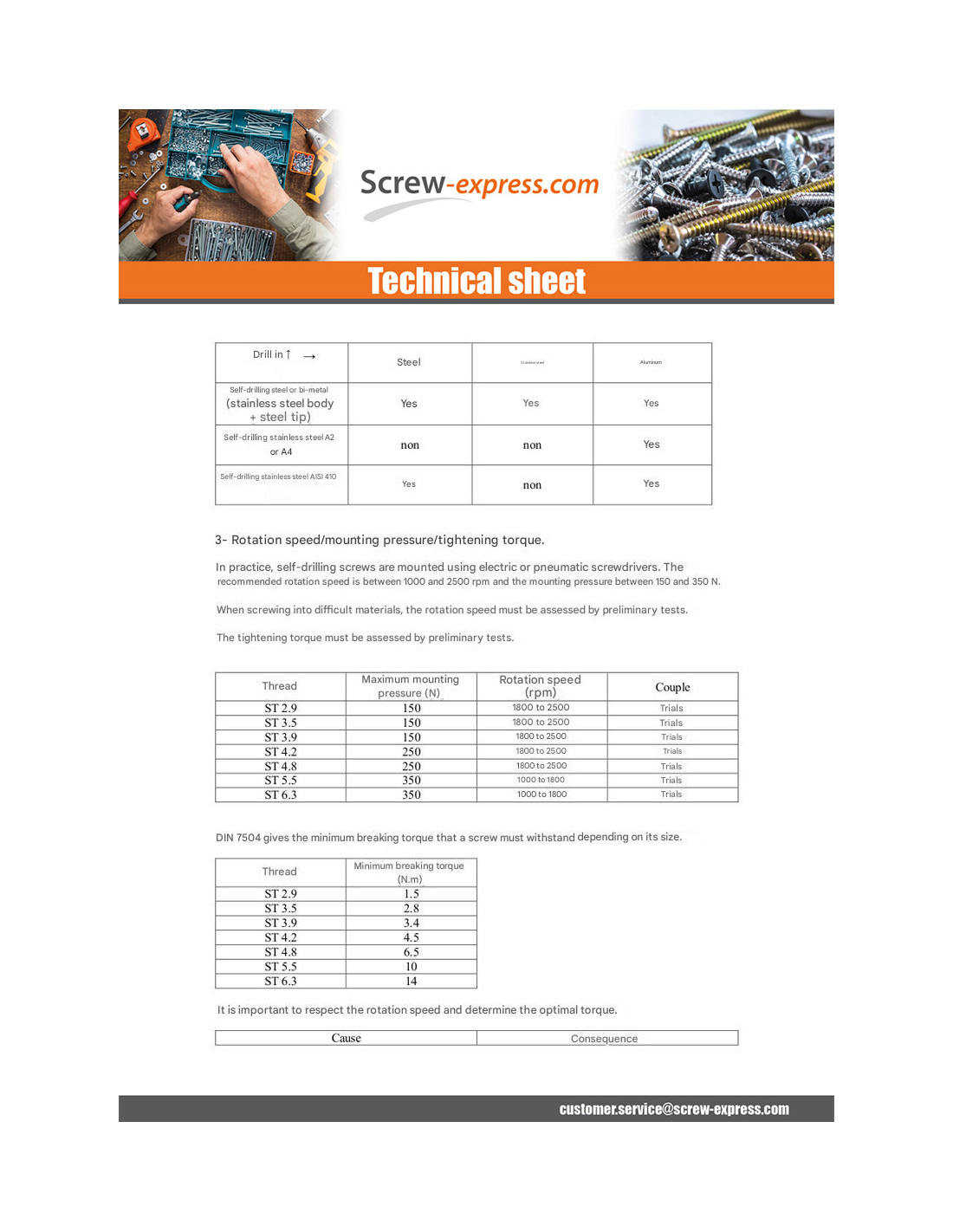

Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
51
4771 Items
3663072038134
Self Drilling Countersunk Head Phillips 6.3X63 Sheet Metal Thread Zinc Plated Other Reference : TFC63063 VISTORXAUTO W000305457 FIX000514 VISAP63x63 FIX000514 PDV0030A 126A28488 1014348 B0317 A01201 3663072038134
