1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave
1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave
1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave
1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave
1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave
1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave

1 x Washer ONDUFLEX M2.5 Steel Type to 1 Wave

3554000201_1
In stock 2800 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €11.00

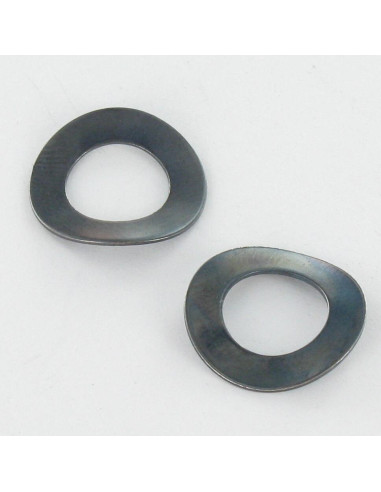

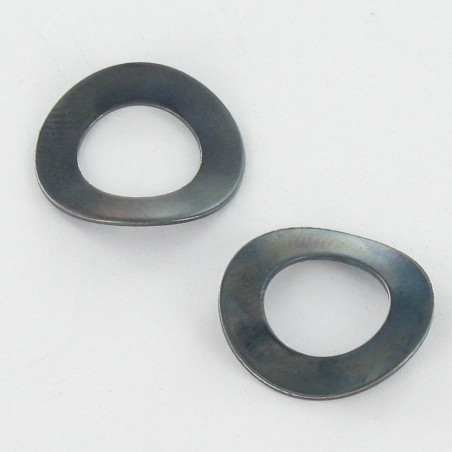

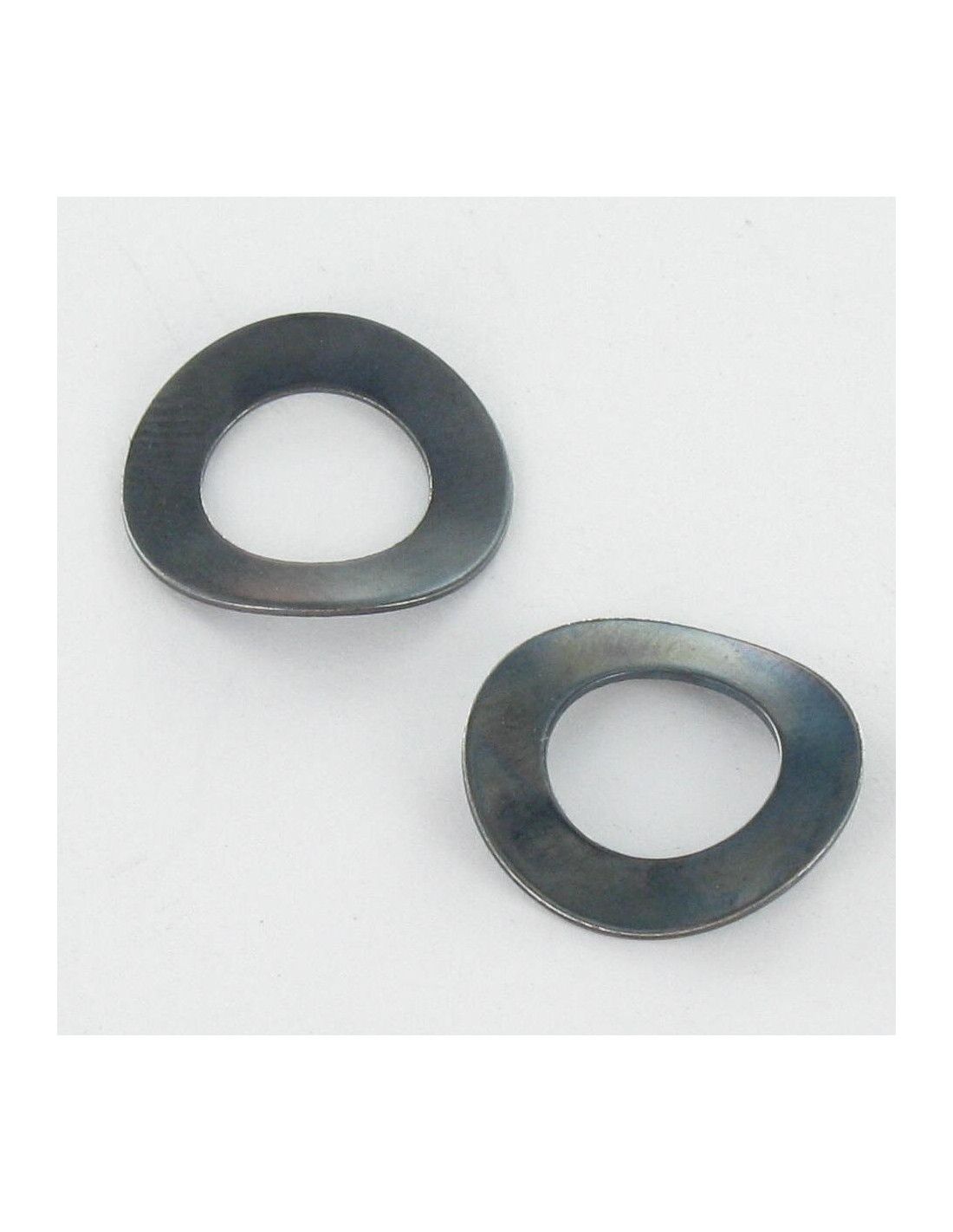

Washer ONDUFLEX M2.5 Steel Type to 1 Wave
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M2.5
Thickness
mm
Linch Pin Screw
M2.5
Material
Steel
COLOR
Grey Steel / Black
Norm
VS3554 DIN 137A
Unit weight
0.05 GR
2800 Items
3663072061071
Washer ONDUFLEX M2.5 Steel Type to 1 Wave
Diameter = M2.5, Thickness = MM, Material = Steel, Norm = VS3554 DIN 137A


dimensional guide (mm)
Diameter 2 2.5 3 3.5 4 5 6 7 8 10 12 14 16 18 20 22 24
Interior diameter 2.2 2.7 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25
Exterior diameter 4.5 5 6 6.5 9 10 12 14 17 21 24 28 30 34 36 40 44
Tickness 0.3 0.3 0.4 0.5 0.5 0.5 0.5 0.8 0.8 1 1.2 1.5 1.5 1.5 1.6 1.8 1.8

Other Reference : 3617501862678 5744 5744 3663072061071
